Products

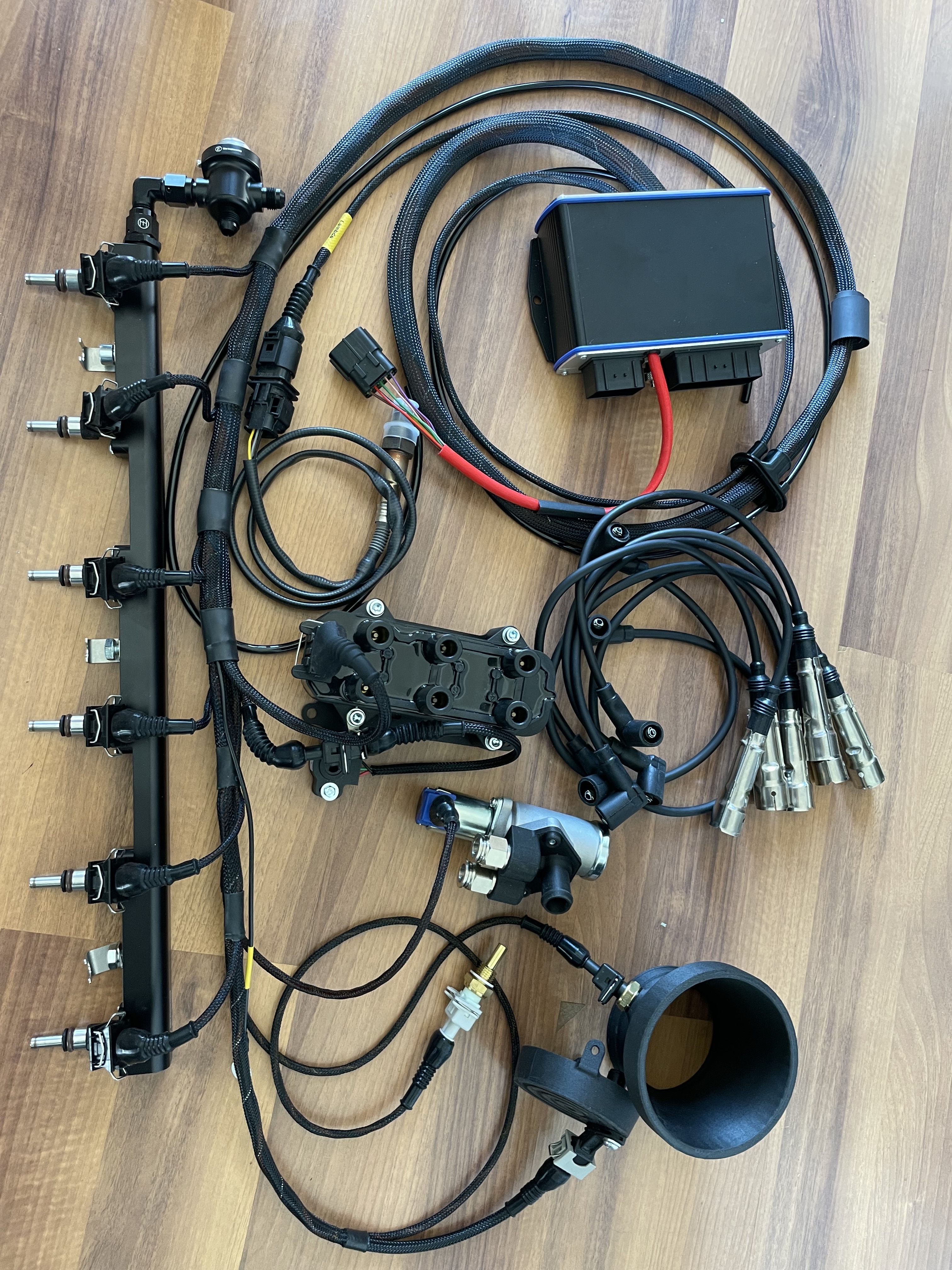

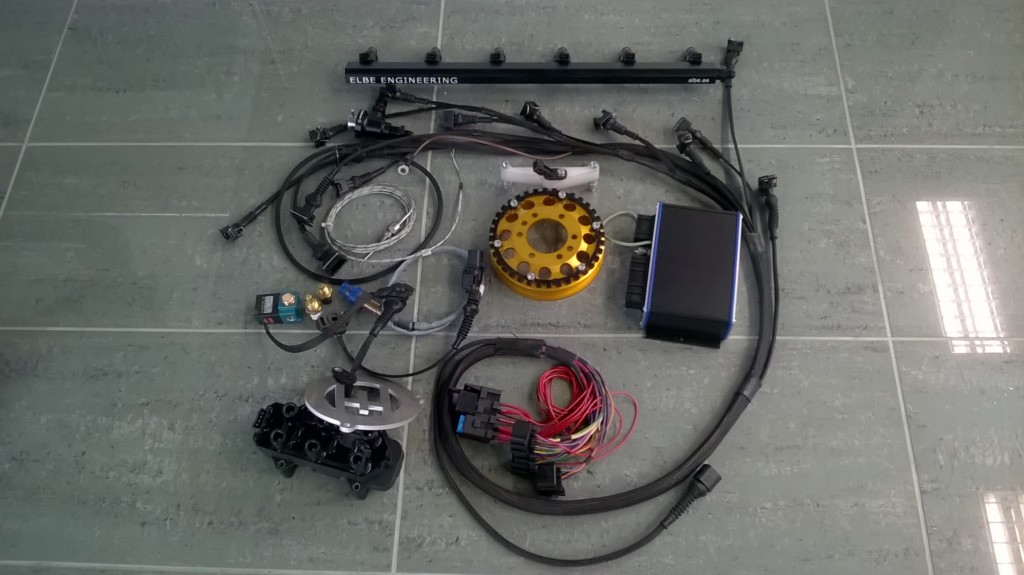

EFI system for M117 with aluminum pulleys* – 4500 Euros per set.

Including:

VEMS (MaxxECU optionally) ecu with handcrafted concentric twisted wiring harness. Bluetooth connection.
Billet aluminum fuel rails with injectors, mounting accessories and fuel fittings.

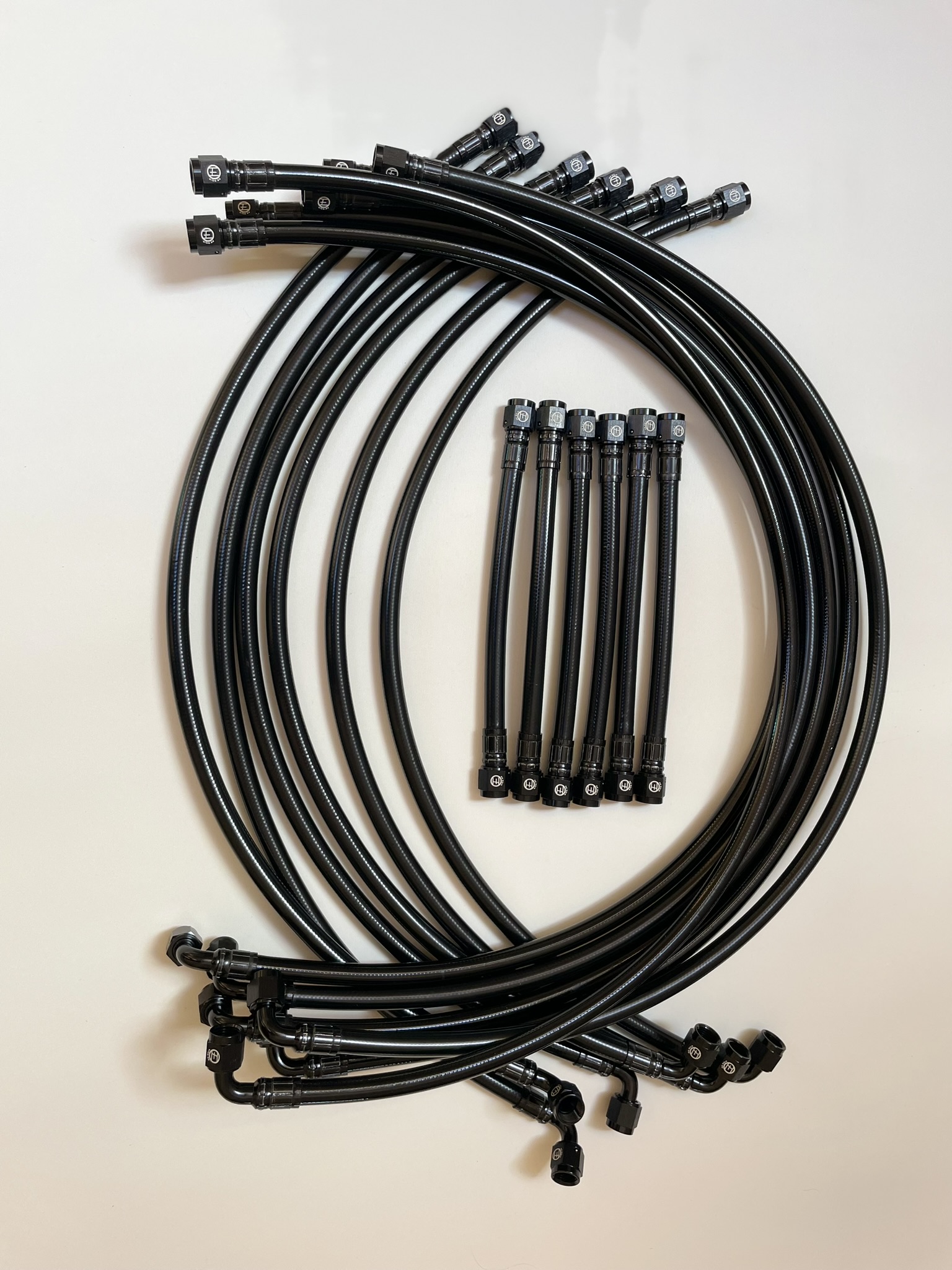

Teflon AN6 fuel lines with our billet fuel pressure regulator housing and Bosch 3 bar regulator. Olive type fittings to chassis side 8mm hard line.
Ignition coils with mounting bracket and spark plug cables with mounting to valve covers.
Adapter between throttle body and air filter housing with port for crankcase ventilation to left side of valve cover.
Idle air valve with tubing and mounting on intake manifold. Idle air outlet to lower intake manifold instead of EGR pipe. Idle air valve can be not used as well (warm climate regions for example where cold start not needed).
Sensors: Crankshaft sensor with mounting bracket, Coolant temperature, Inlet air temperature, Throttle position sensor with adapter, Wideband oxygen sensor, MAP sensor inside ECU – vacuum tubing included.

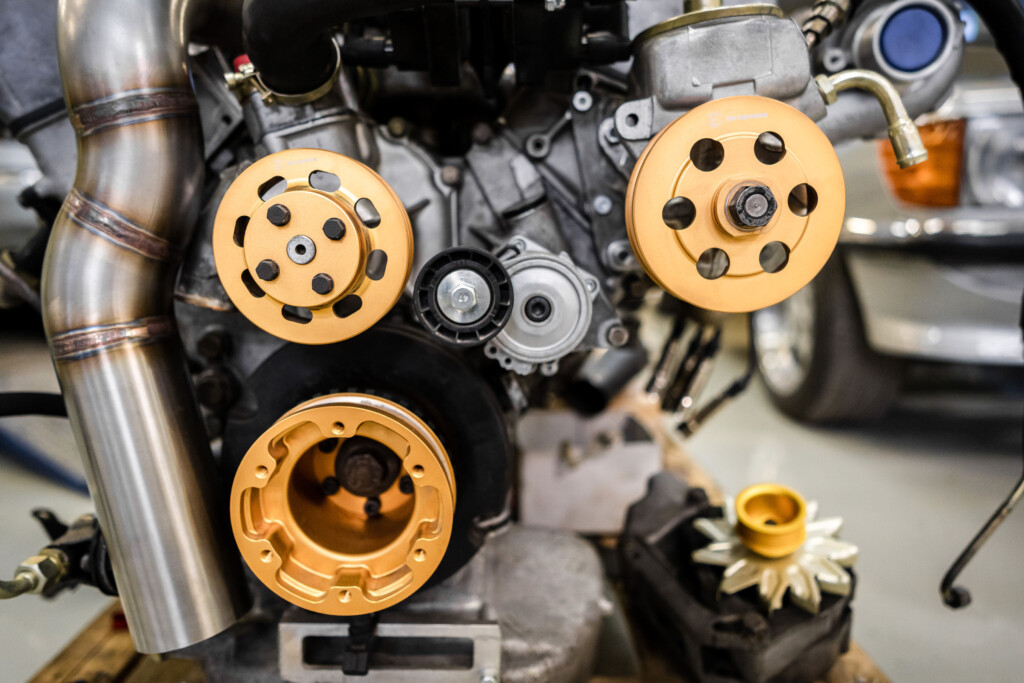

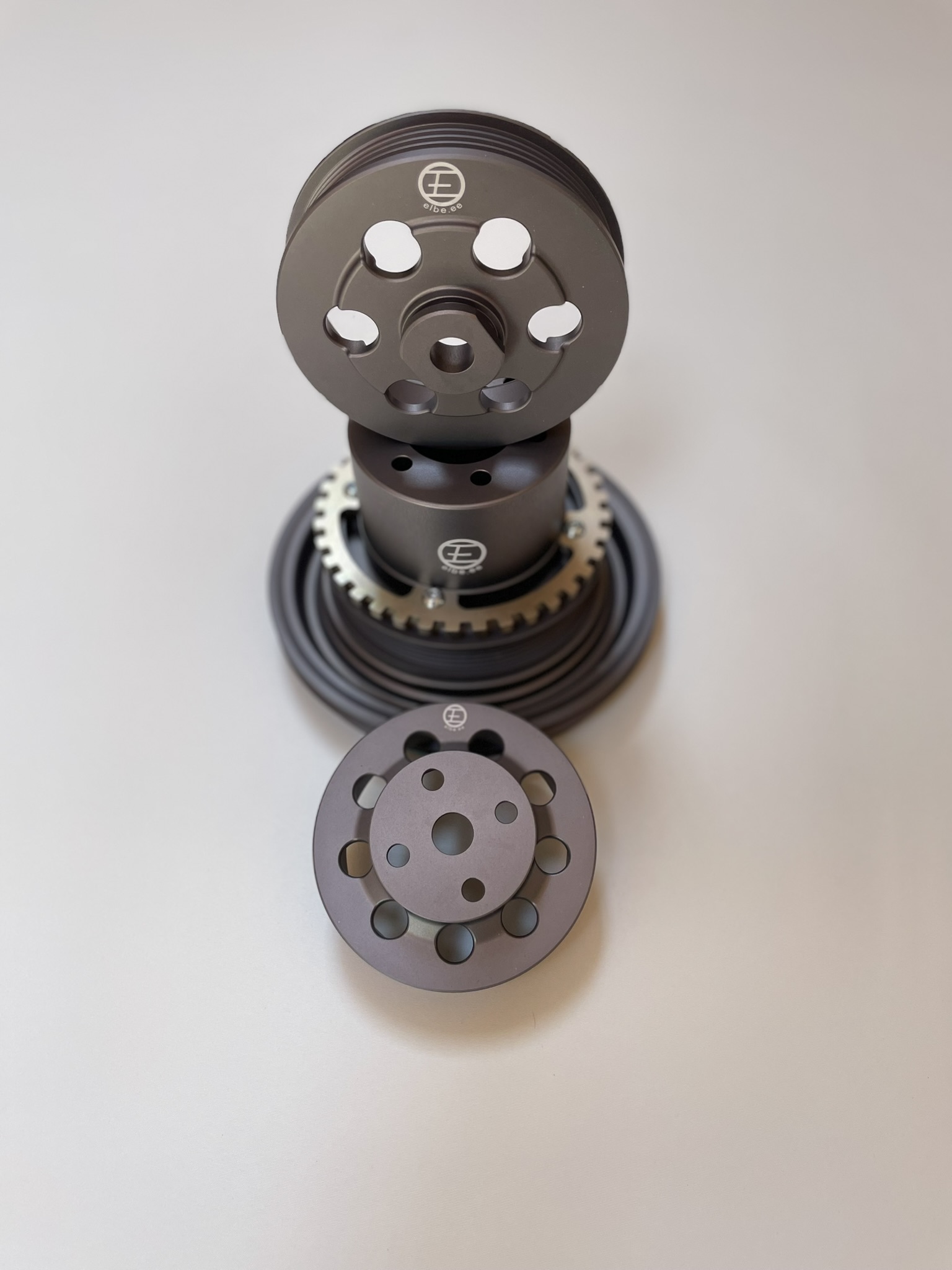

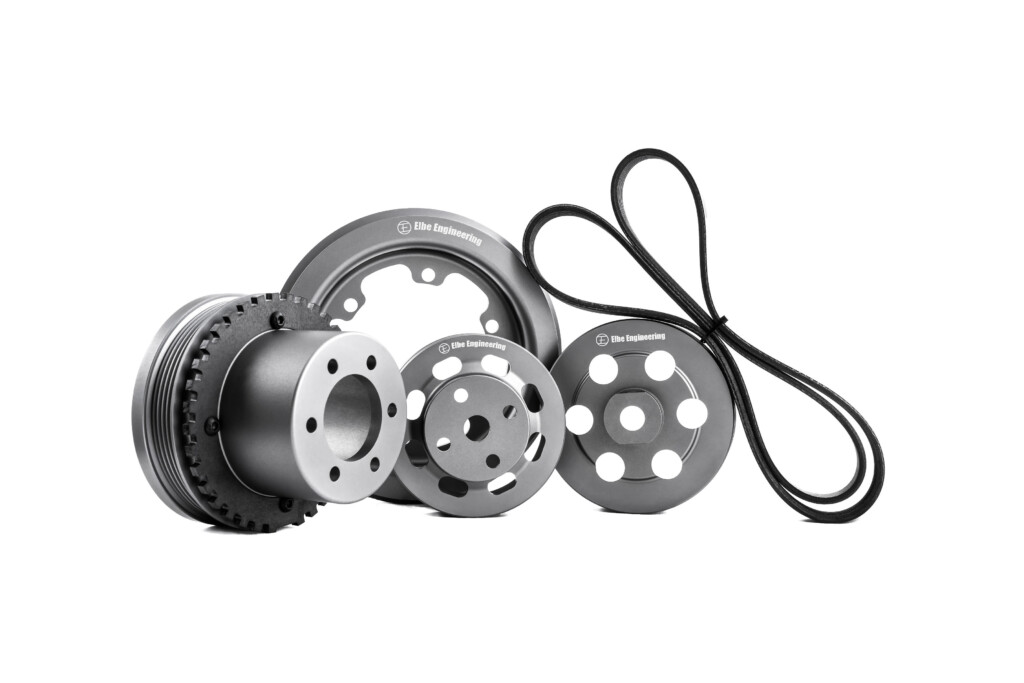

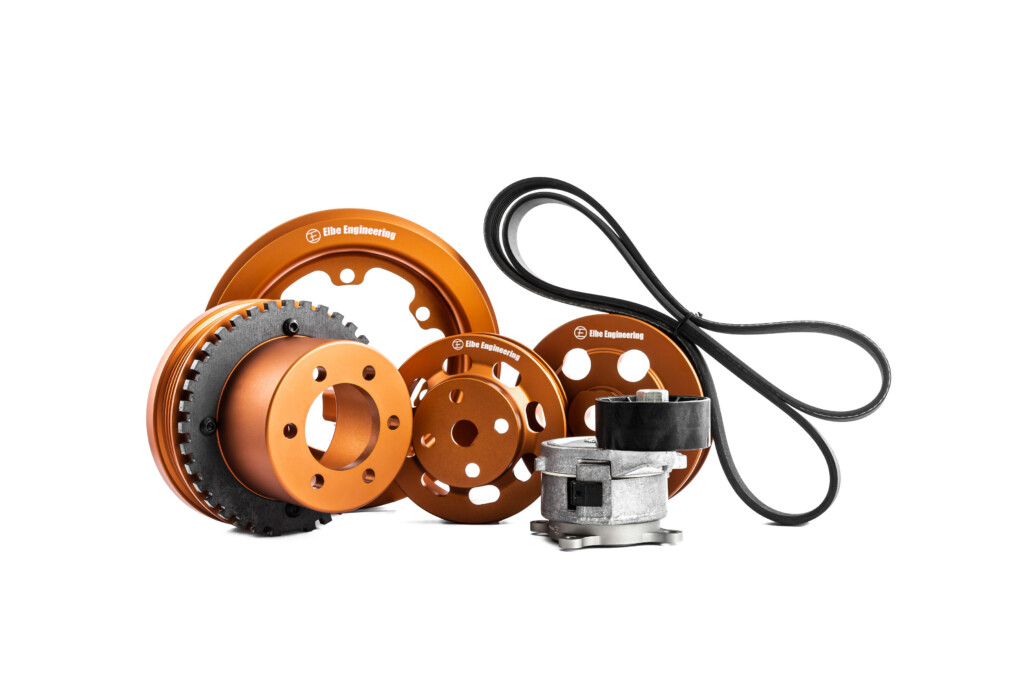

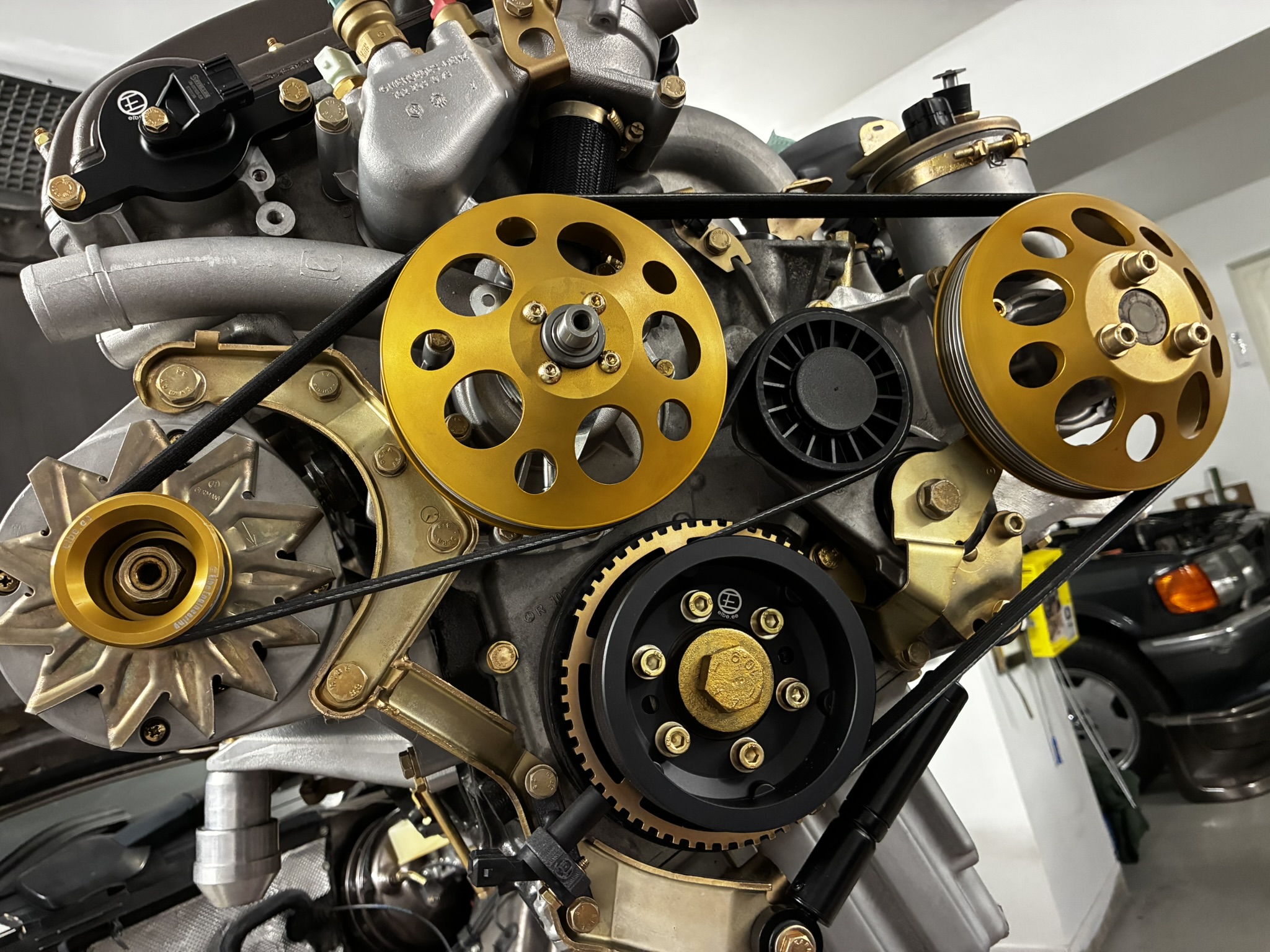

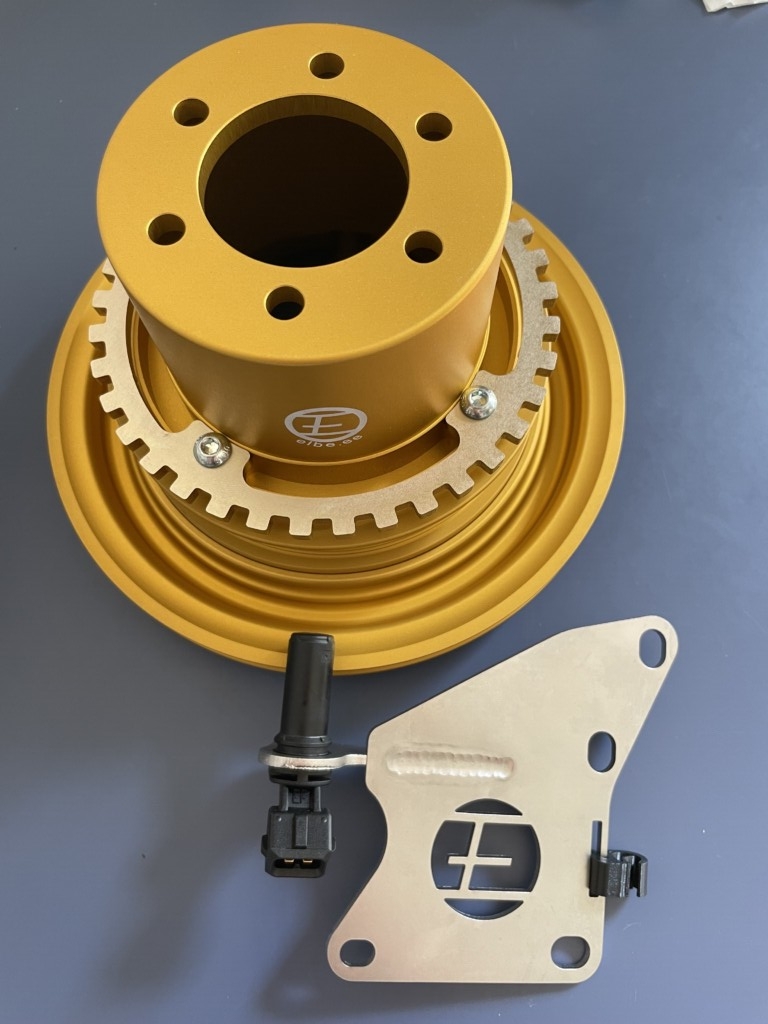

*Crankshaft pulley + water pump pulley + power steering pump pulley – 6-rib belt instead of double V-type belts. Alternator and A/C belts remain V-type. No groove for secondary air pump!

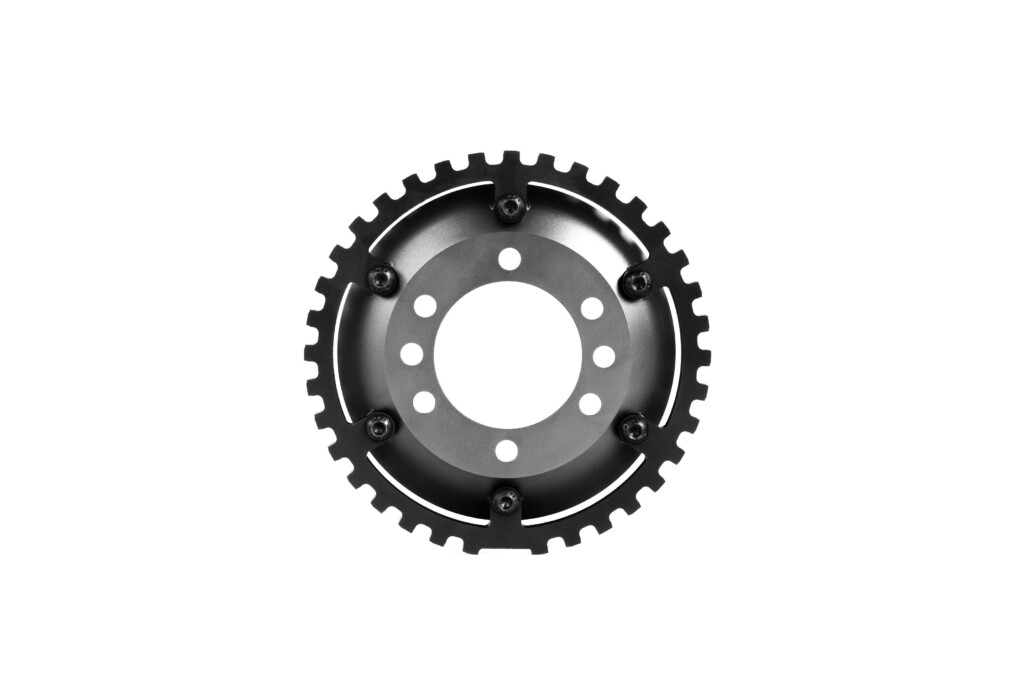

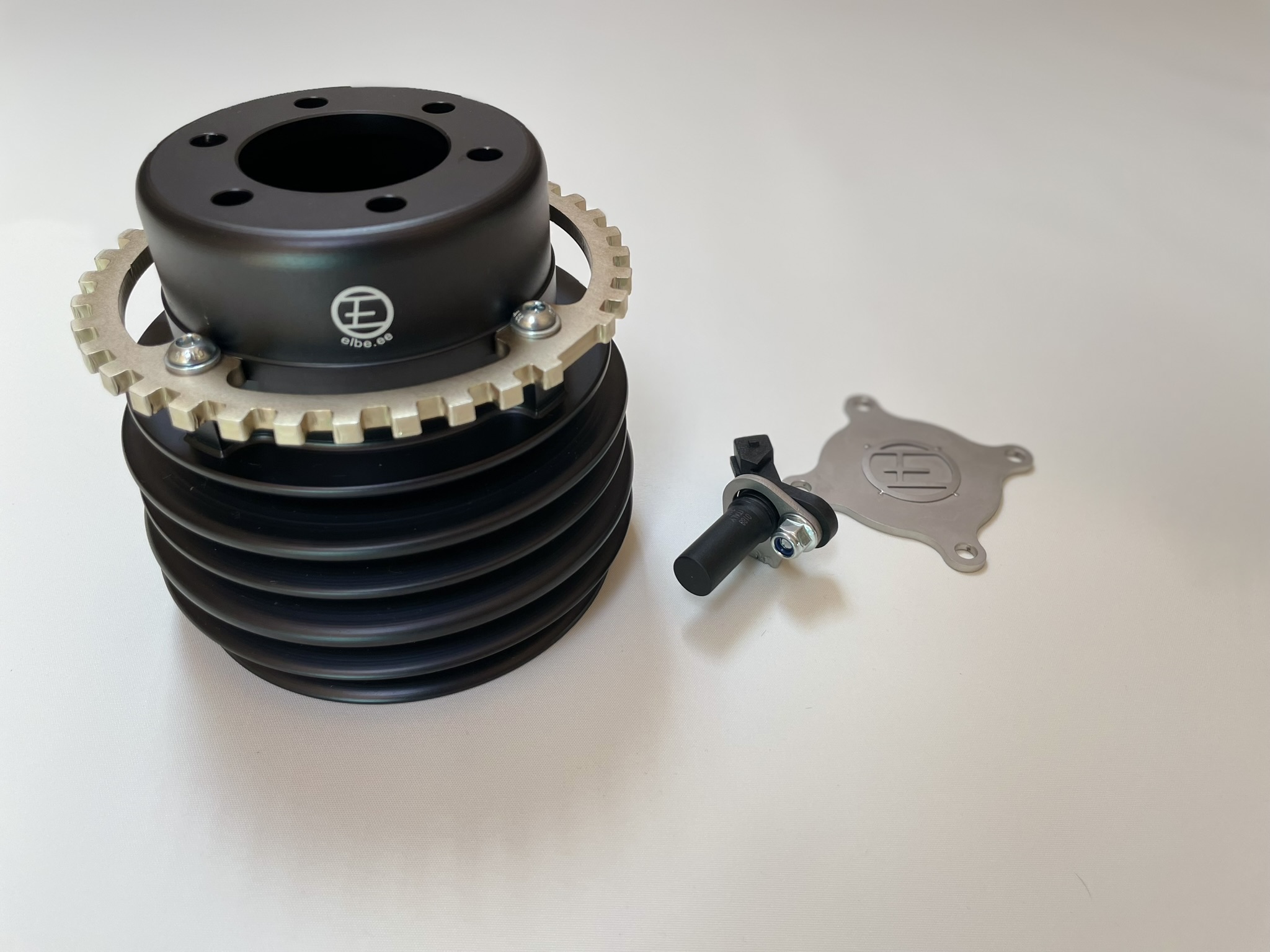

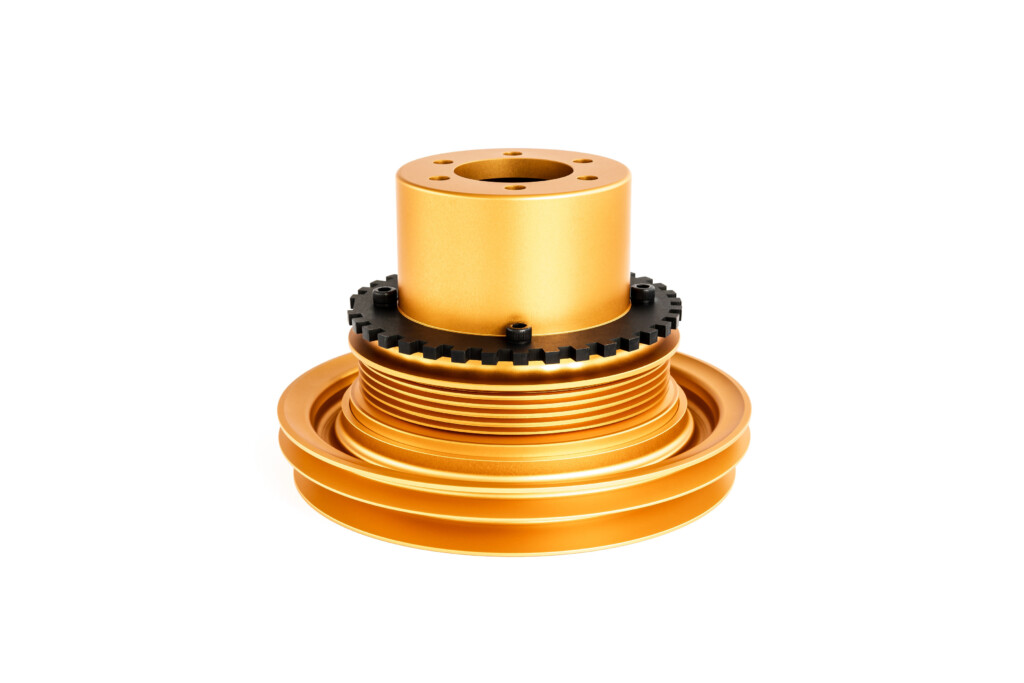

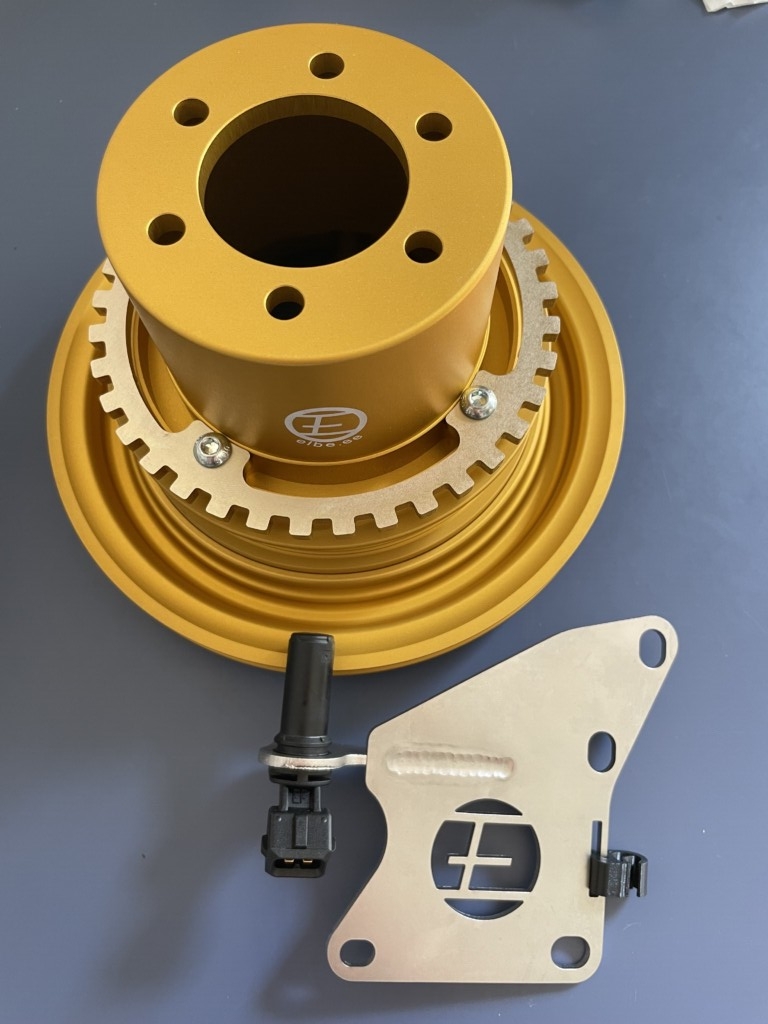

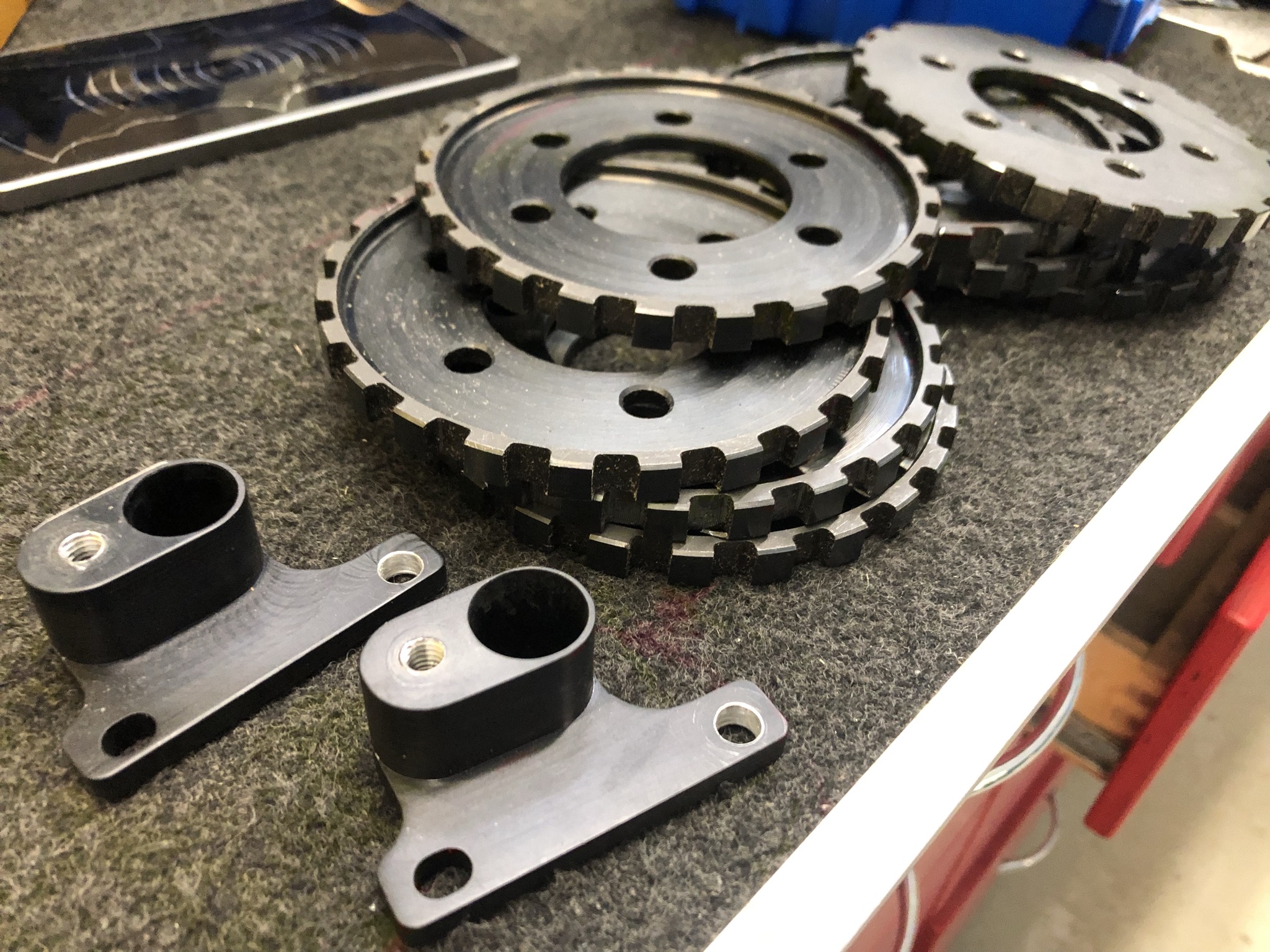

Most important advantage is trigger wheel what’s bolted on crankshaft pulley instead of removing harmonic balancer and replacing it with trigger wheel. Works both ways but proper way would be with harmonic balancer and pulley with trigger wheel on it . Material: 7075 aluminum.

Automatic tensioner for power steering/water pump belt. Mounted instead of SLS/hydraulic pump. Additionally 100 Euros.

EFI kit without pulleys – trigger wheel mounted instead of harmonic balancer – 3600

On request: We can offer MaxxECU with our EFI kits.

Components for EFI conversion:

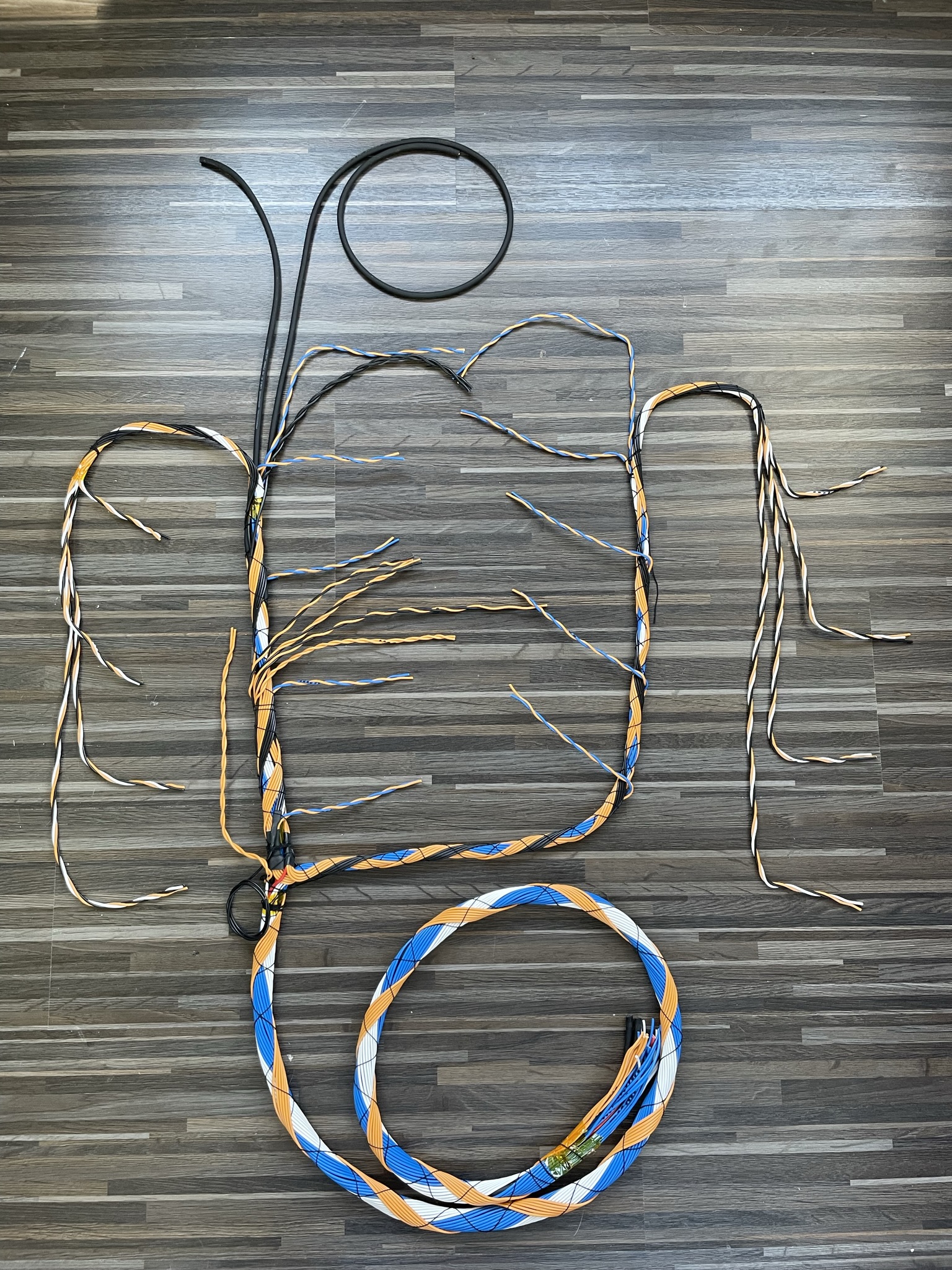

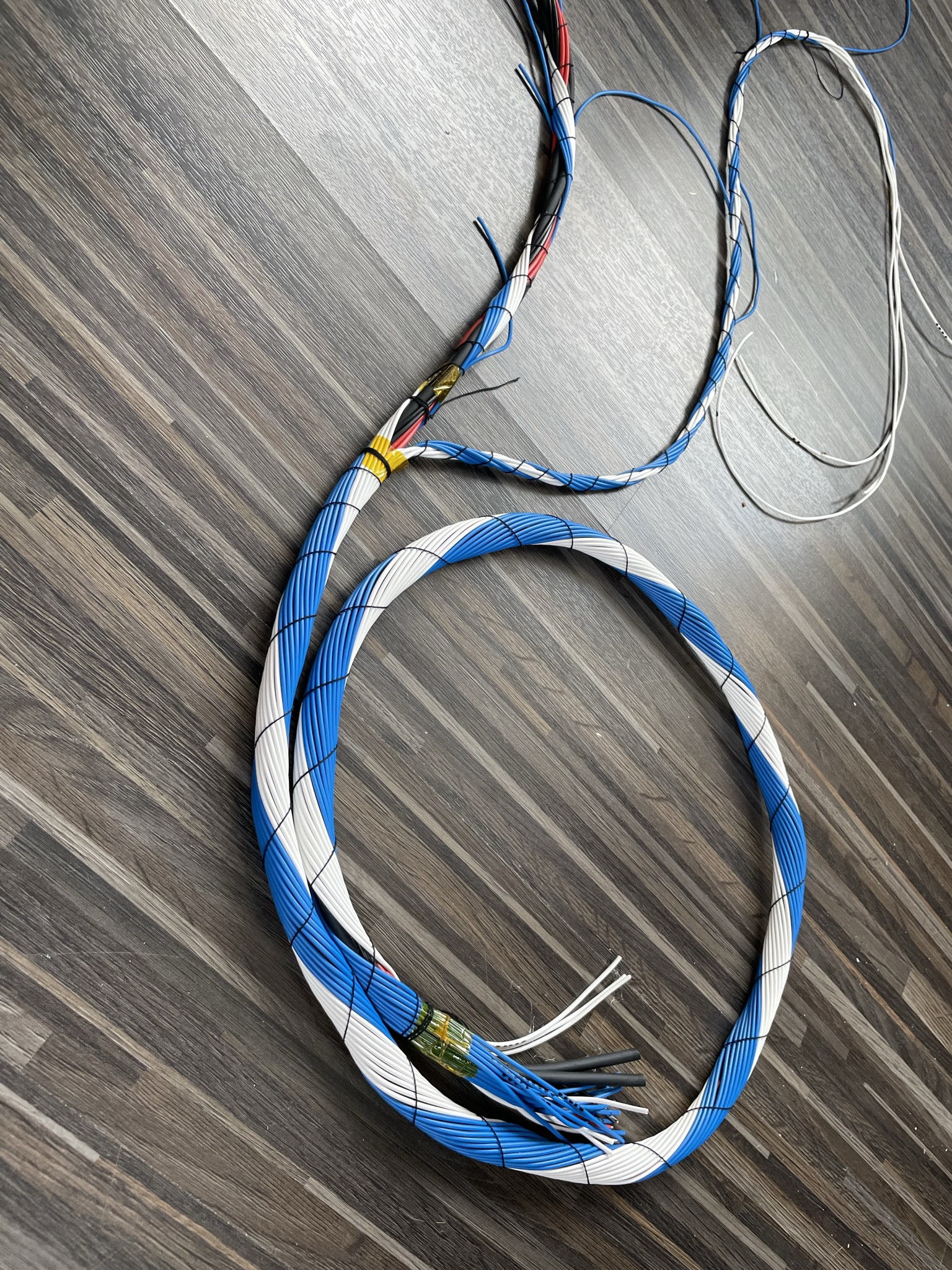

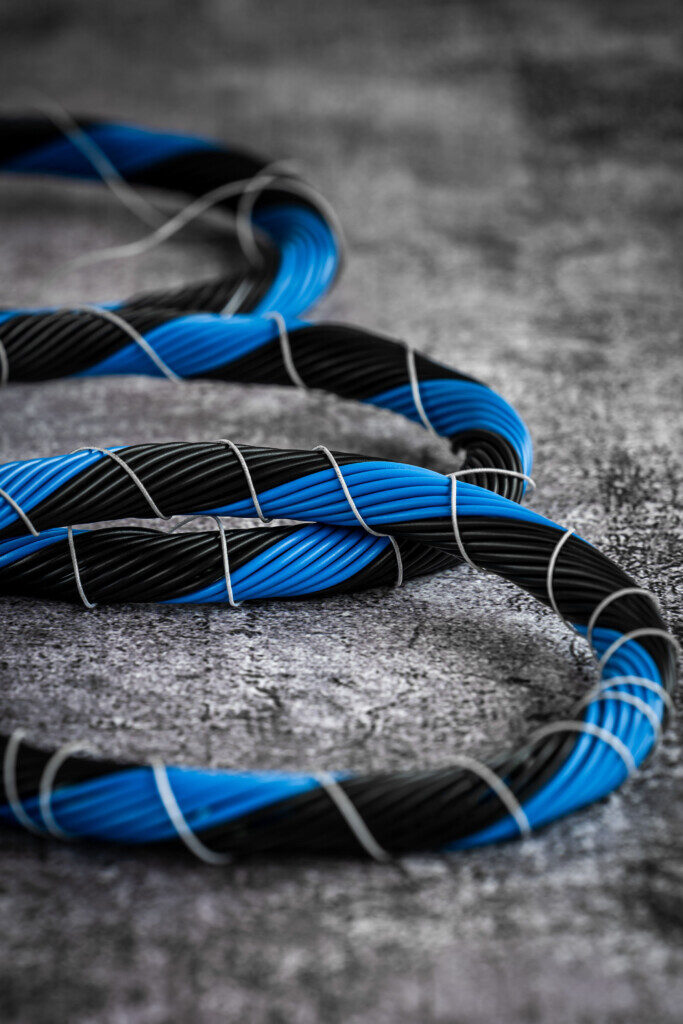

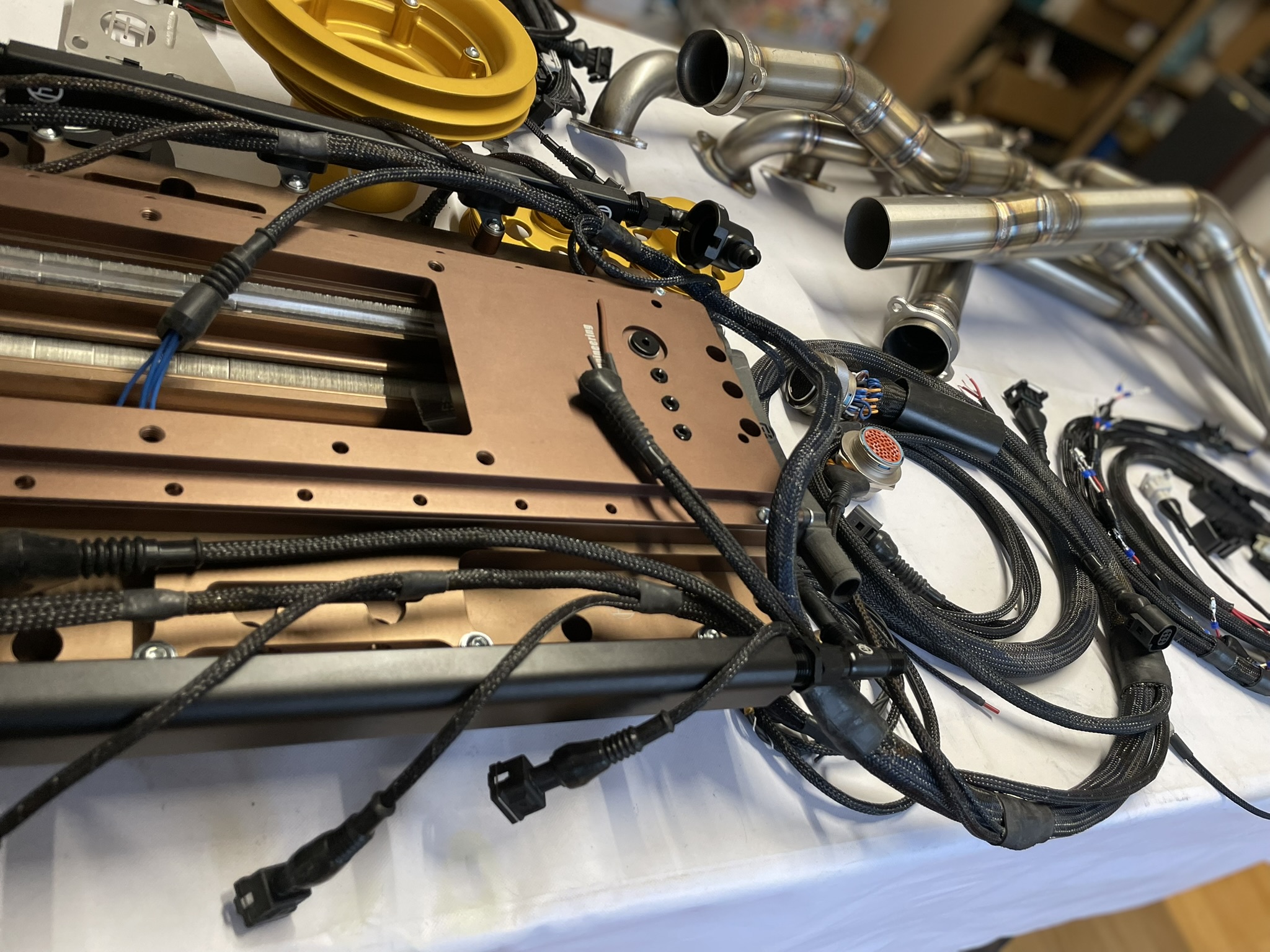

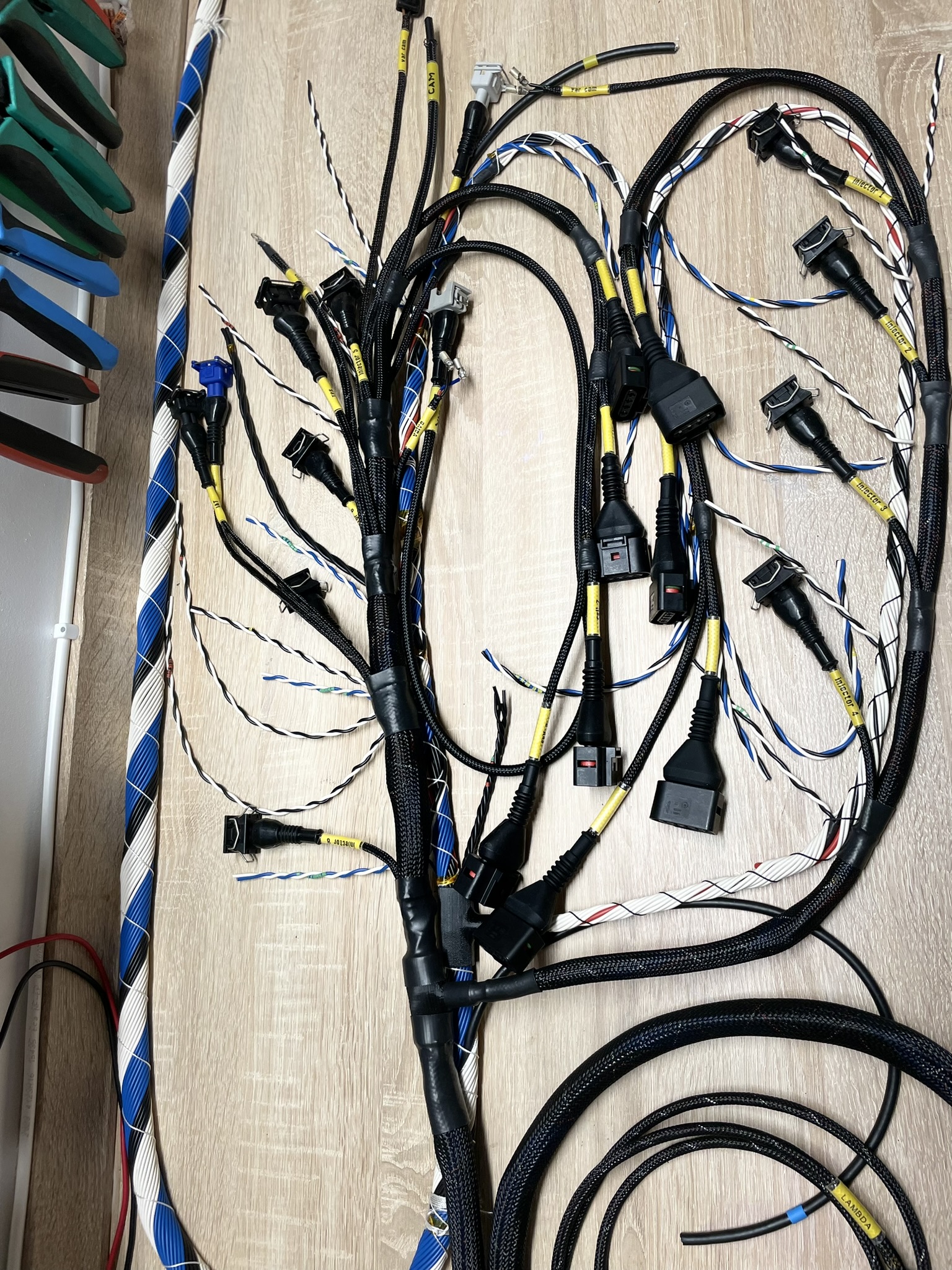

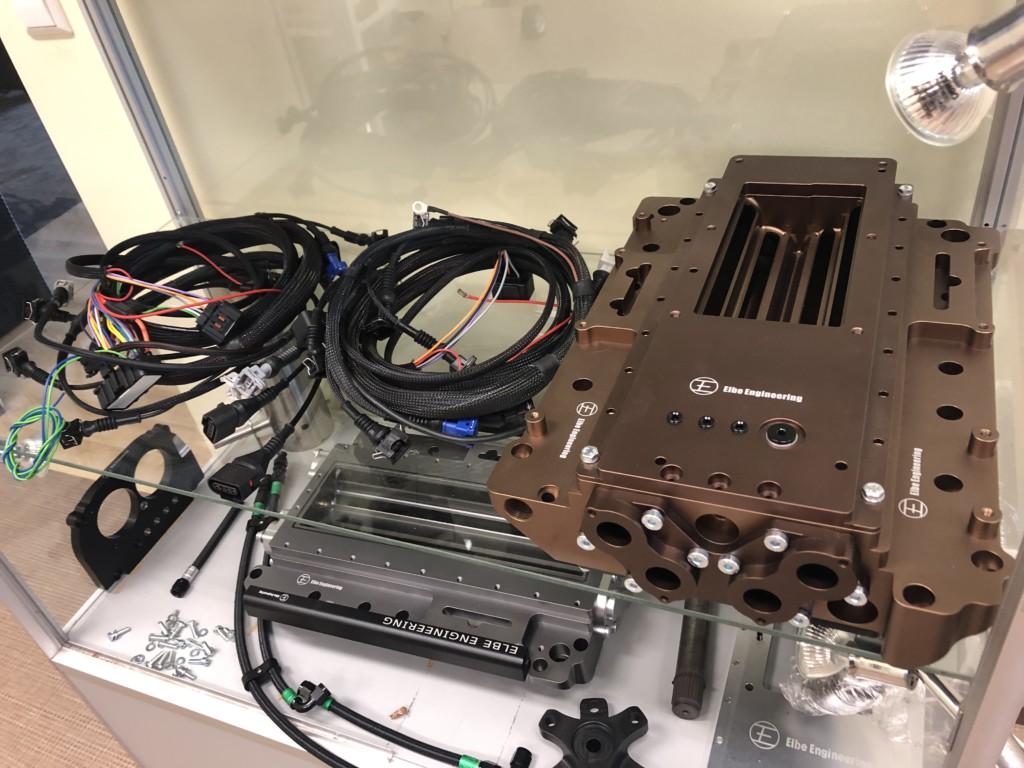

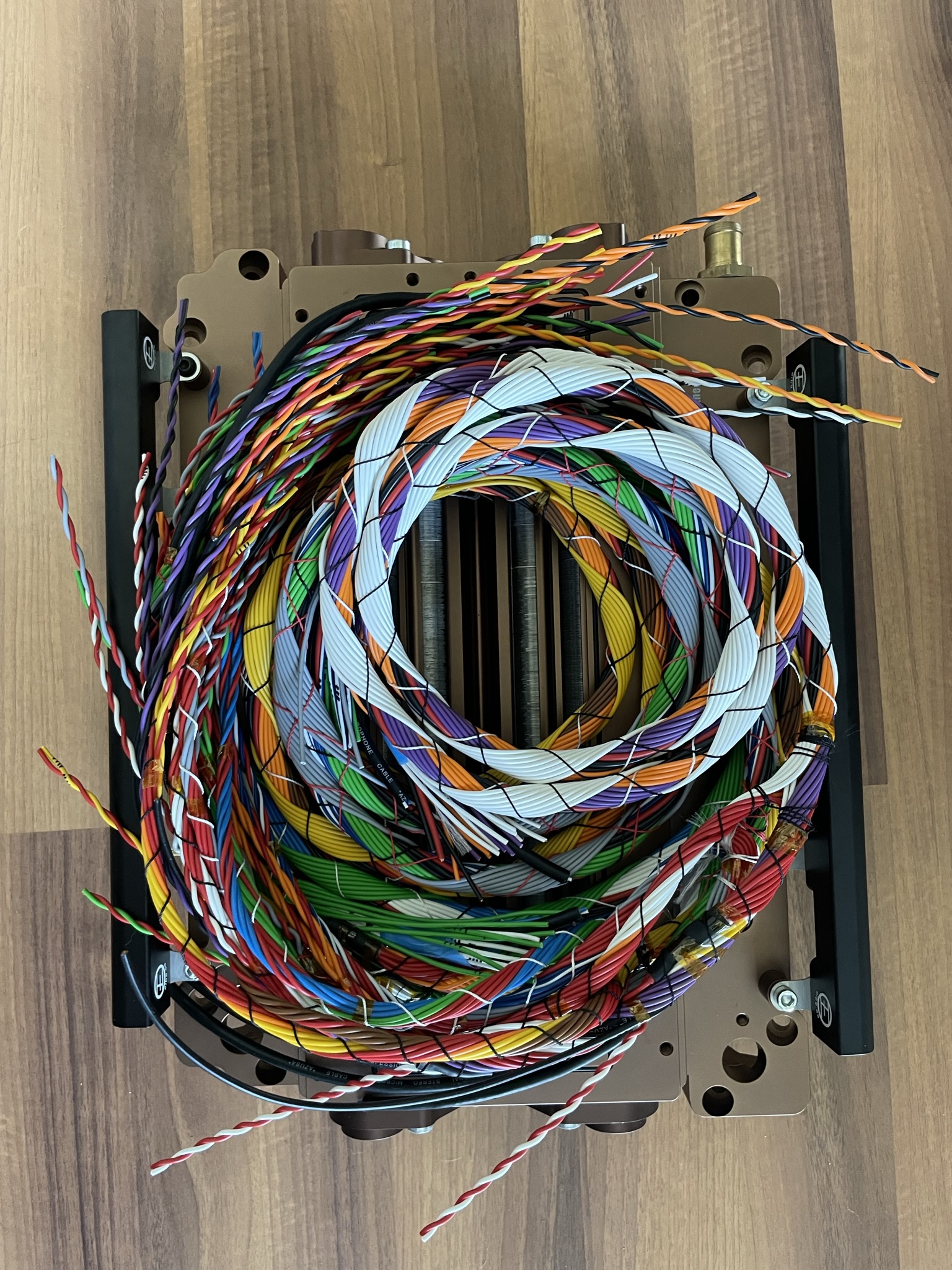

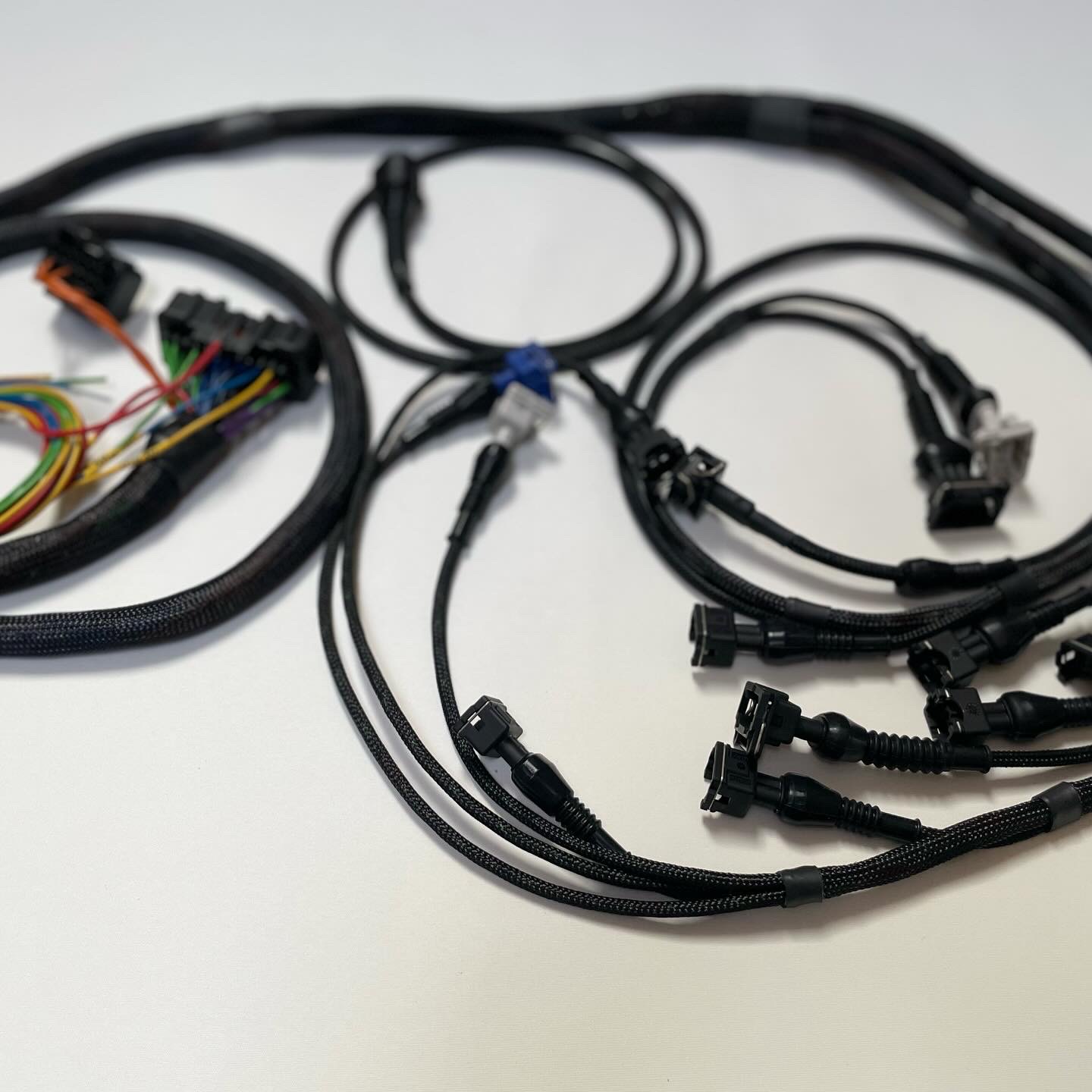

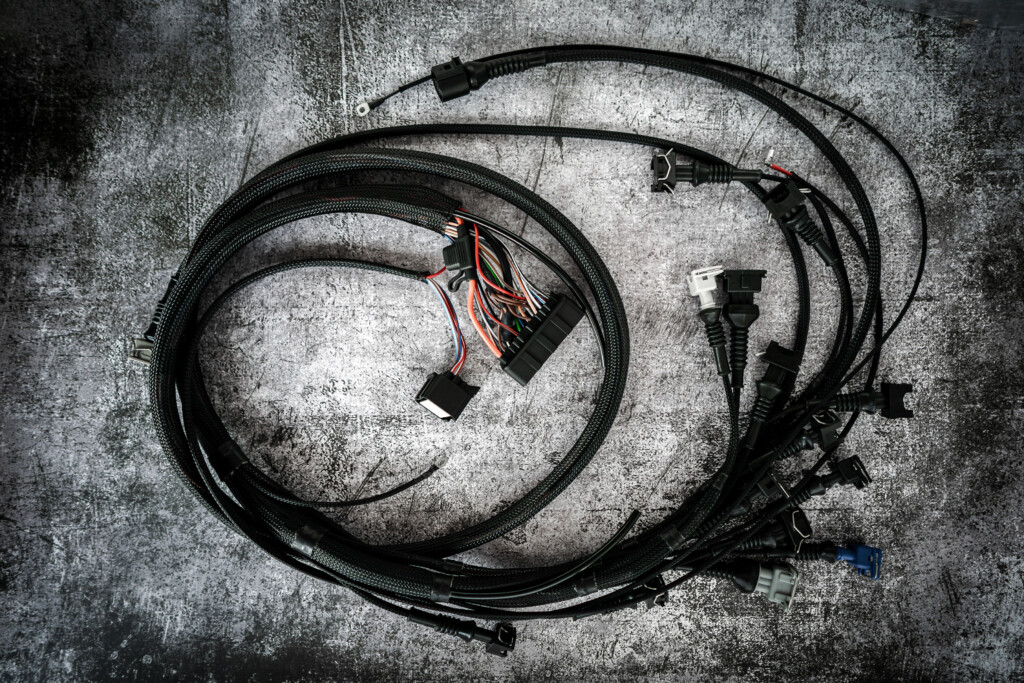

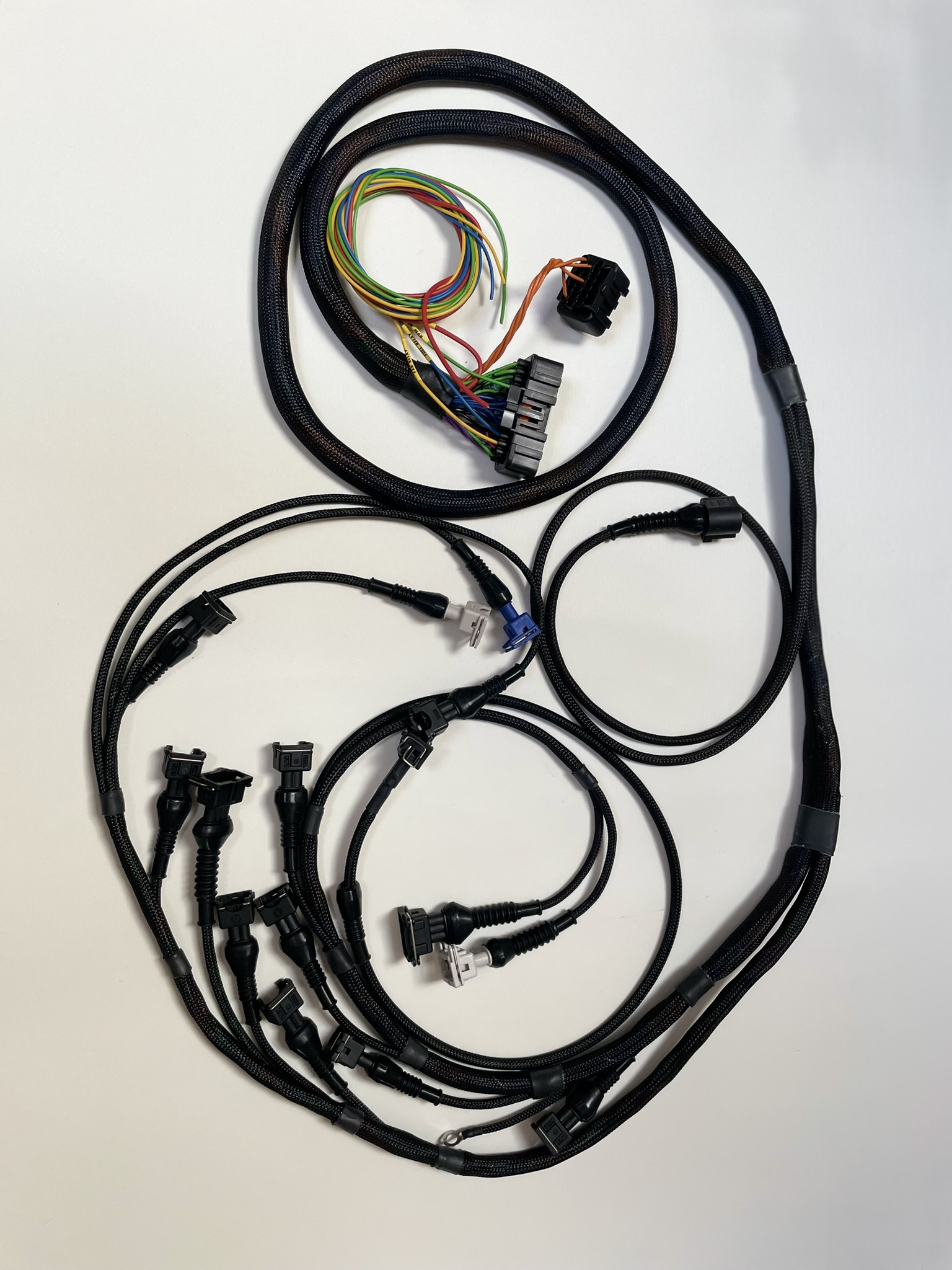

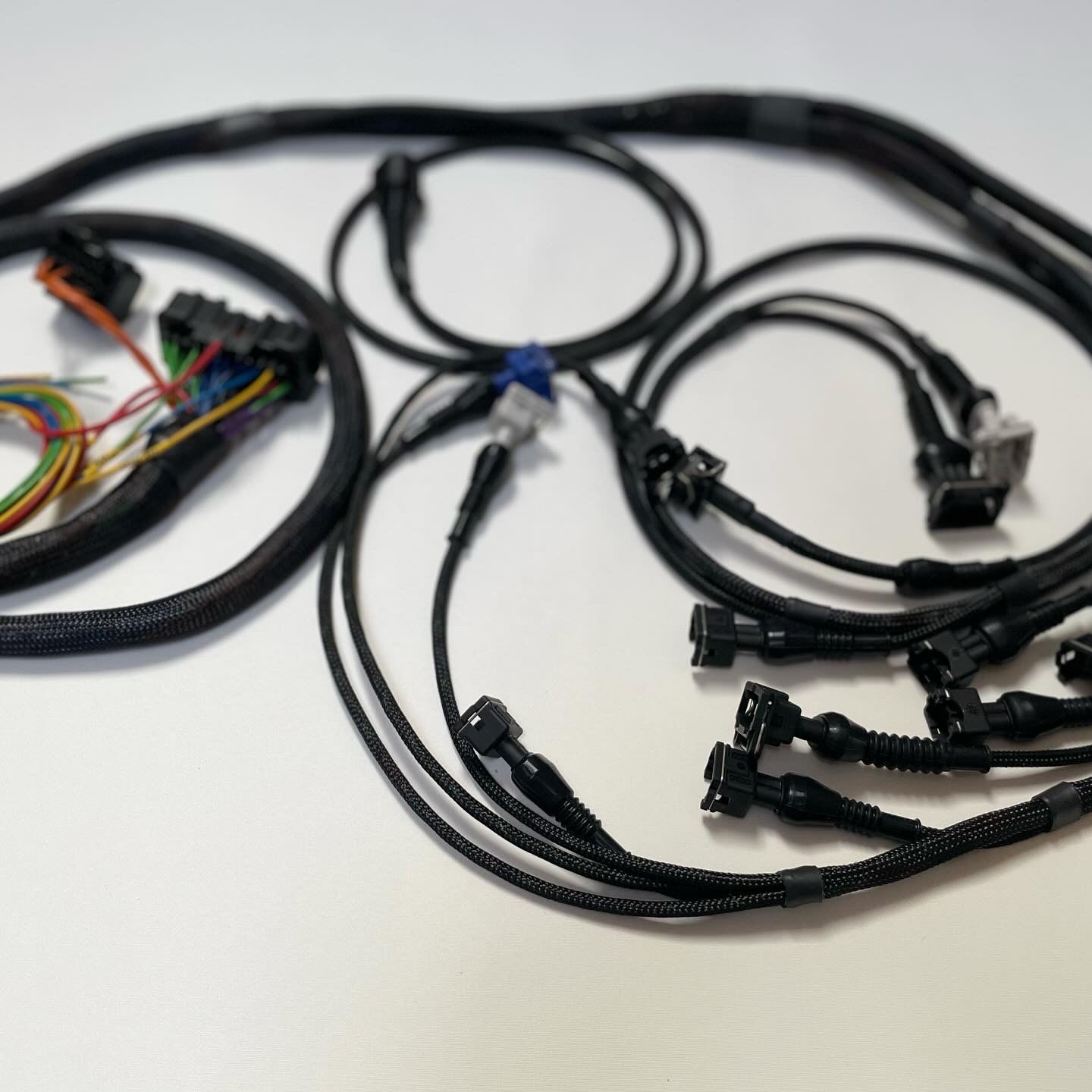

Handcrafted engine wiring harnesses without ECU connector/pins. Possible to order without any connectors and/or customized cable sets.

M102-8V – 450 euros

Sensor connectors: Crankshaft position, Throttle position, Coolant temperature, Air temperature / 1x ignition coil / 4x injectors / Idle air valve /Fan clutch control

M102-16V – 600 euros

Sensor connectors: Crankshaft position, Camshaft position, Throttle position, Coolant temperature, Air temperature / 4x ignition coil / 4x injectors / Idle air valve / Fan clutch control

M103 – 600 euros

Sensor connectors: Crankshaft position, Throttle position, Coolant temperature, Air temperature / 1x ignition coil / 6x injectors / Idle air valve

M104 – 700 euros (6x VAG coil connectors)

Sensor connectors: Crankshaft position,, Camshaft position, Throttle position/ETC, Coolant temperature, Air temperature / 6x ignition coil / 6x injectors / Idle air valve / Camshaft solenoid / Intake flap solenoid

M110 – 600 euros

Sensor connectors: Crankshaft(Distributor) position, Throttle position, Coolant temperature, Air temperature / 1x ignition coil / 6x injectors / Idle air valve

M116 – 800 euros

Sensor connectors: Crankshaft position, Throttle position, Coolant temperature, Air temperature / 2x ignition coil / 8x injectors / Idle air valve

M117 – 800 euros

Sensor connectors: Crankshaft position, Throttle position, Coolant temperature, Air temperature / 2x ignition coil / 8x injectors / Idle air valve

M119 – 990 euros (8x VAG coil connectors)

Sensor connectors: Crankshaft position, Camshaft position, Throttle position, Coolant temperature, Air temperature / 8x ignition coil / 8x injectors / Idle air valve / 2x Camshaft solenoid / Intake solenoid

Fuel rails:

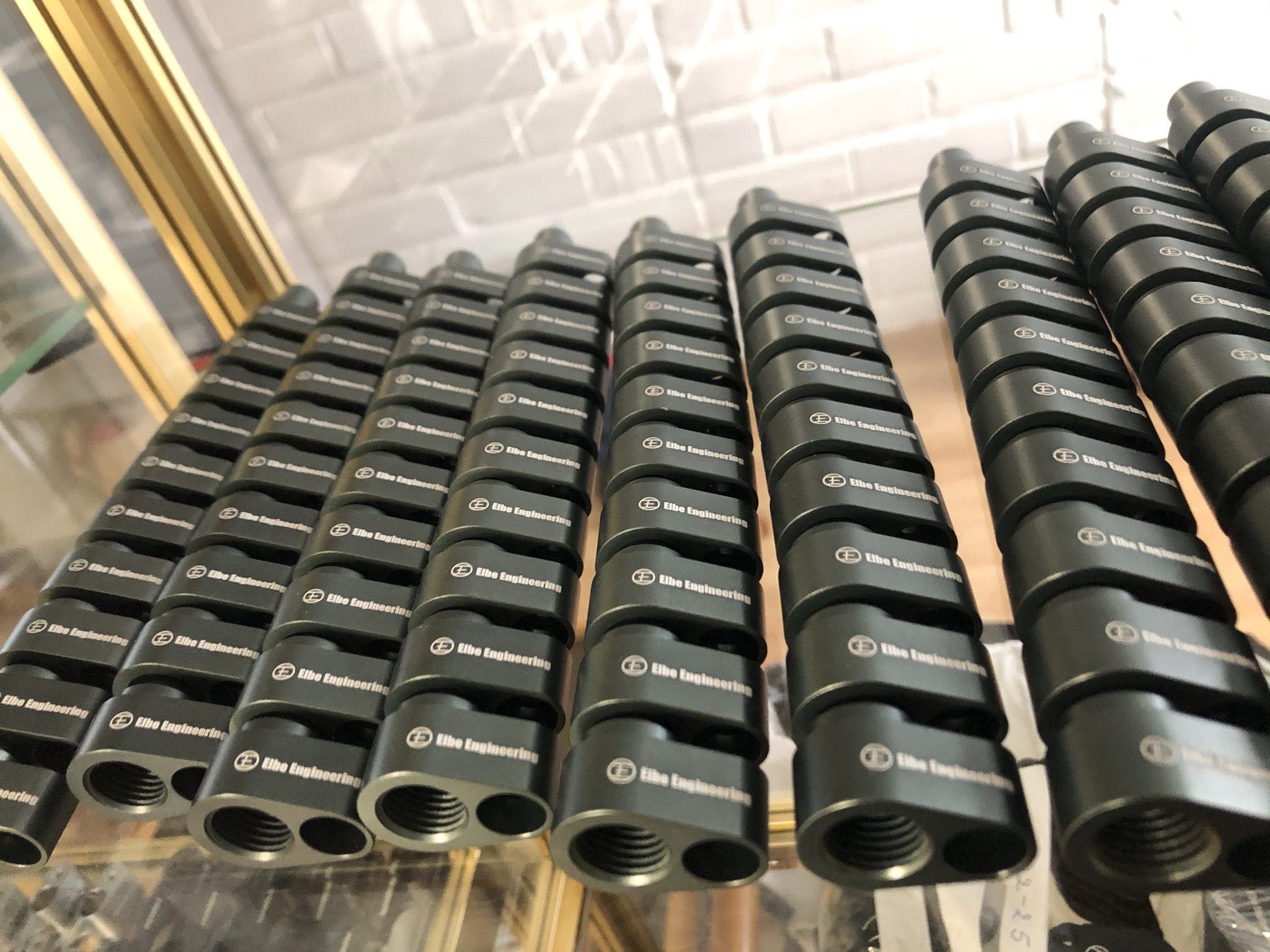

M117 Billet Fuel rails with mounting accessories – 300 Euros per set

6061 anodized aluminum, lightweight design, 3/8″ inlet/outlet. Without Injectors and fuel fittings.

M110 Fuel rail with mounting brackets – 200 Euros per set

3/8″ inlet/outlet. Without Injectors and fuel fittings.

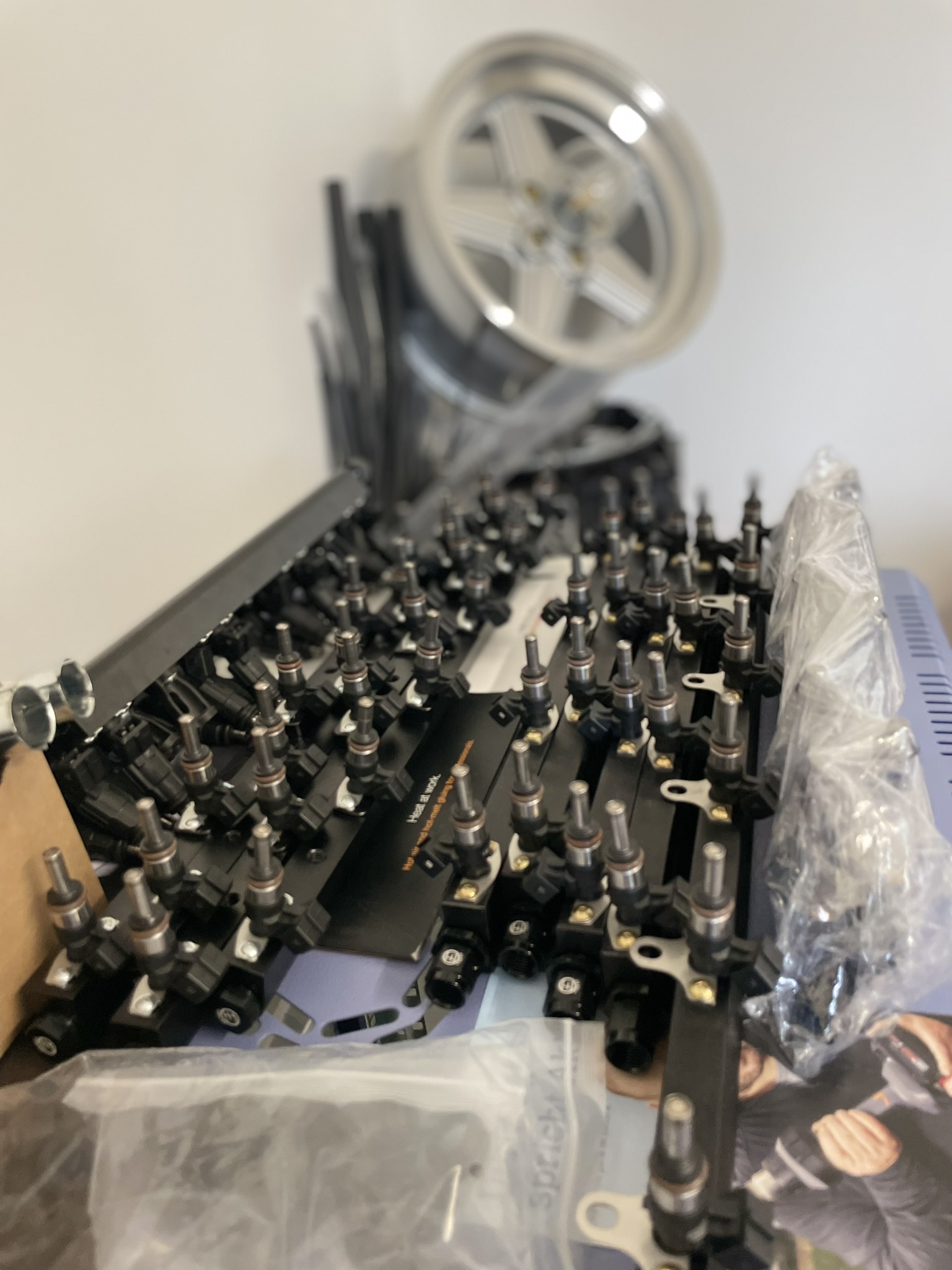

Fuel injectors:

M102 injectors 4pcs – 180 Euros per set

M110 injectors 6pcs – 270 Euros per set

M116/M119 injectors 8pcs – 360 Euros per set

M119 injectors 8pcs – 360 Euros per set

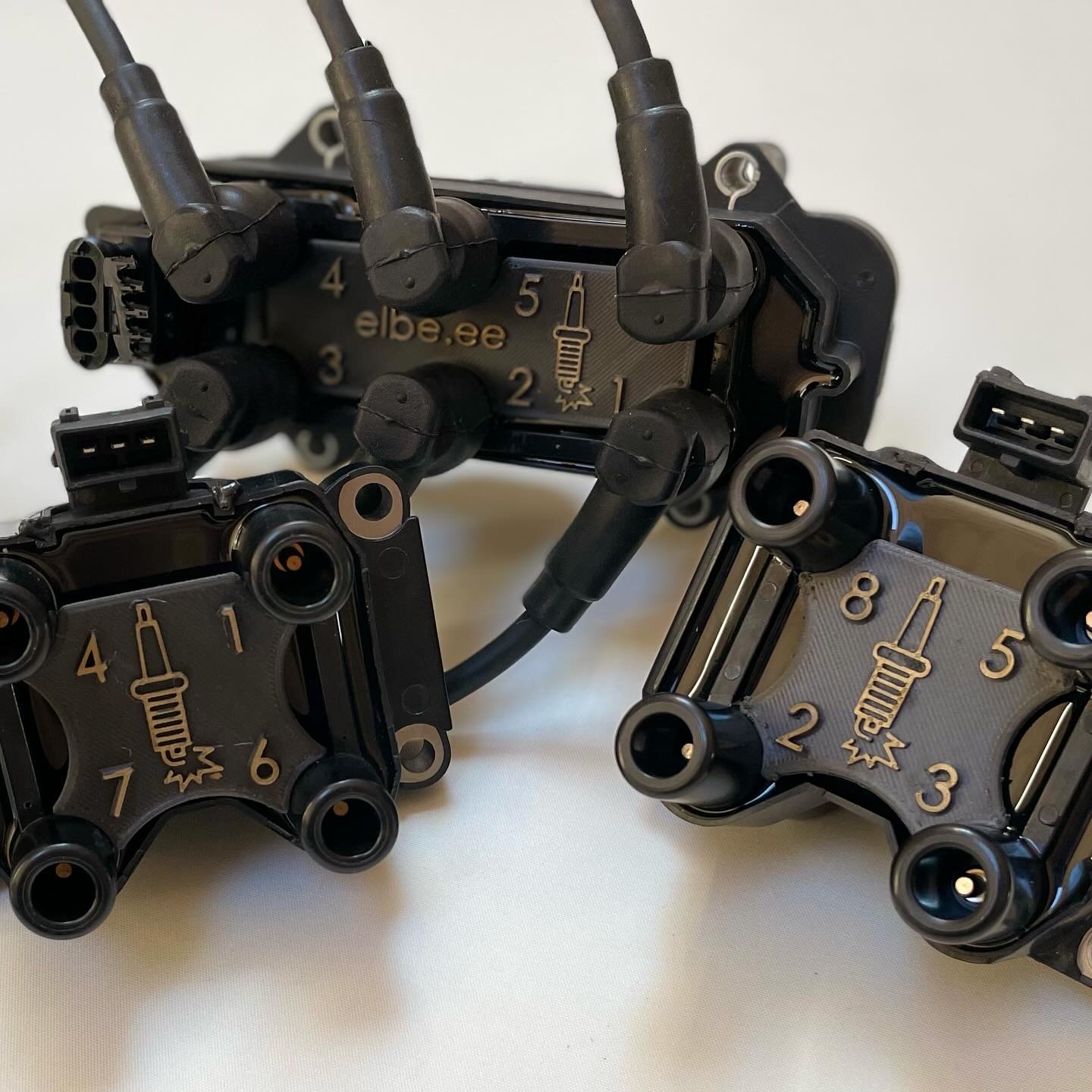

Ignition coils:

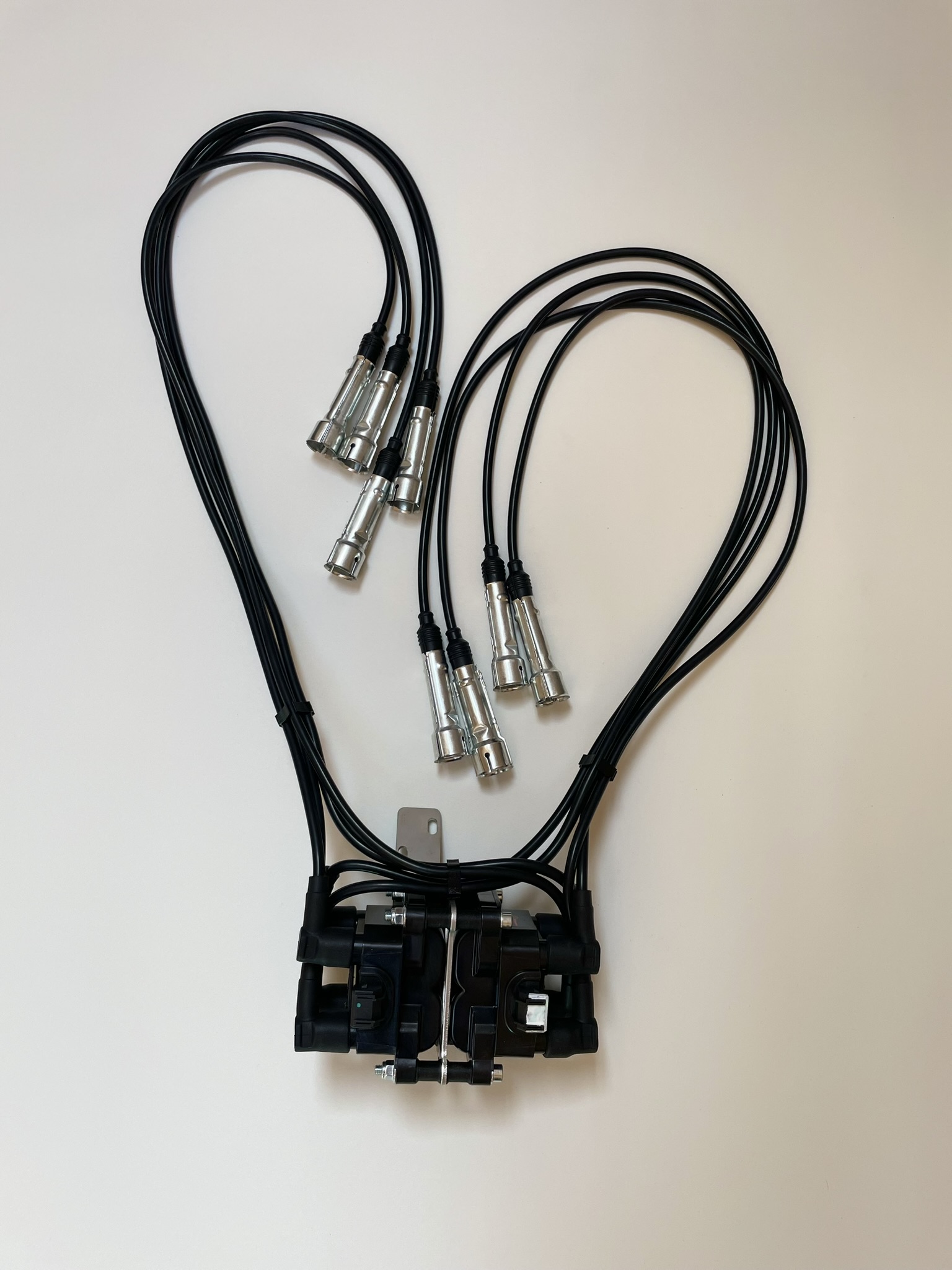

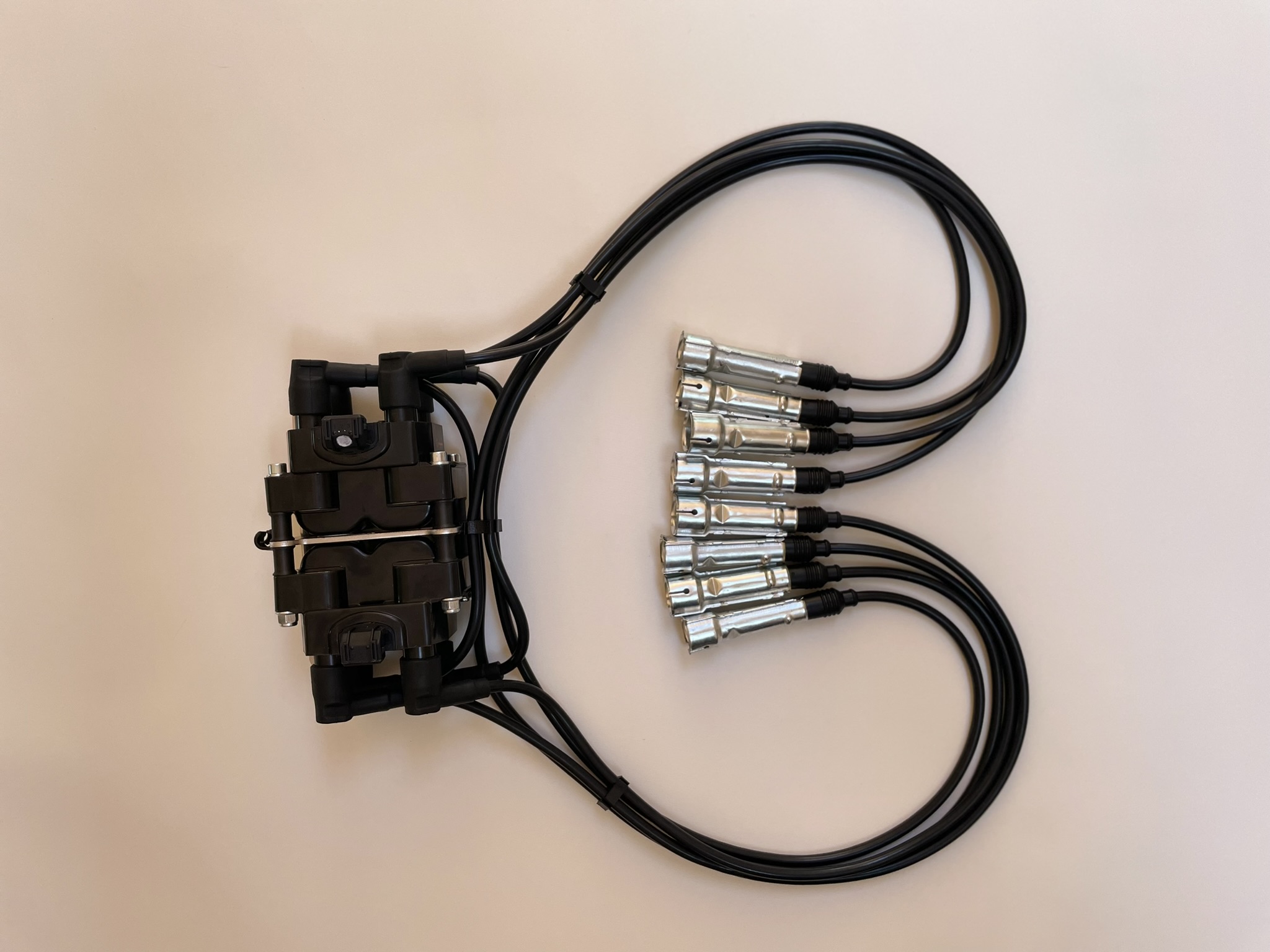

M116/M117 coilpack with mounting bracket and spark plug wires – 400 Euros per set
M102 2.3-16 set of 4 Coil on plugs – 140 Euros per set
M102 2.5-16 set of 4 Coil on plugs – 160 Euros per set
M110 coilpack with mounting bracket and spark plug wires plus throttle position sensor – 400 Euros per set

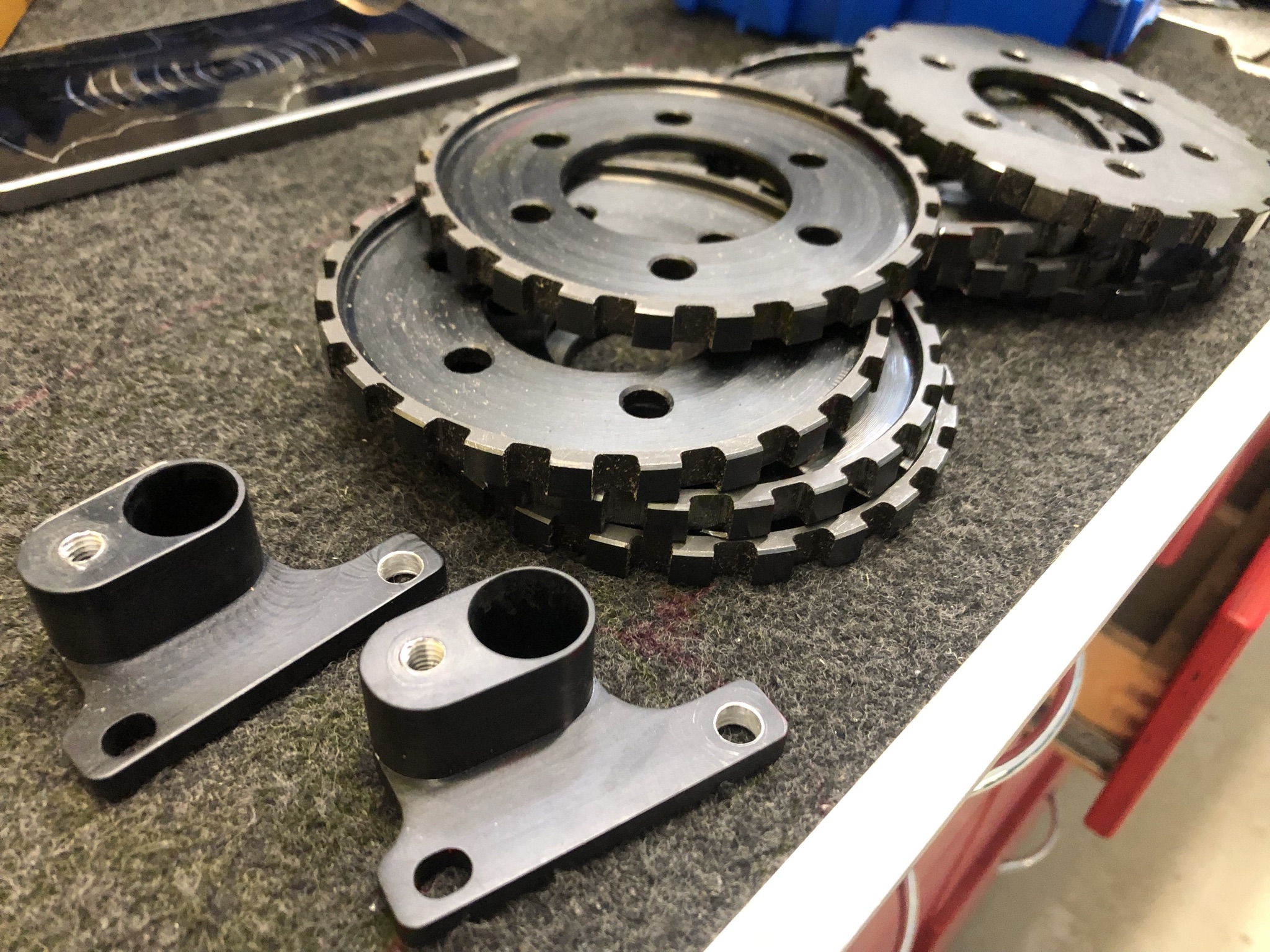

Crankshaft / Camshaft sensors and trigger wheel kits:

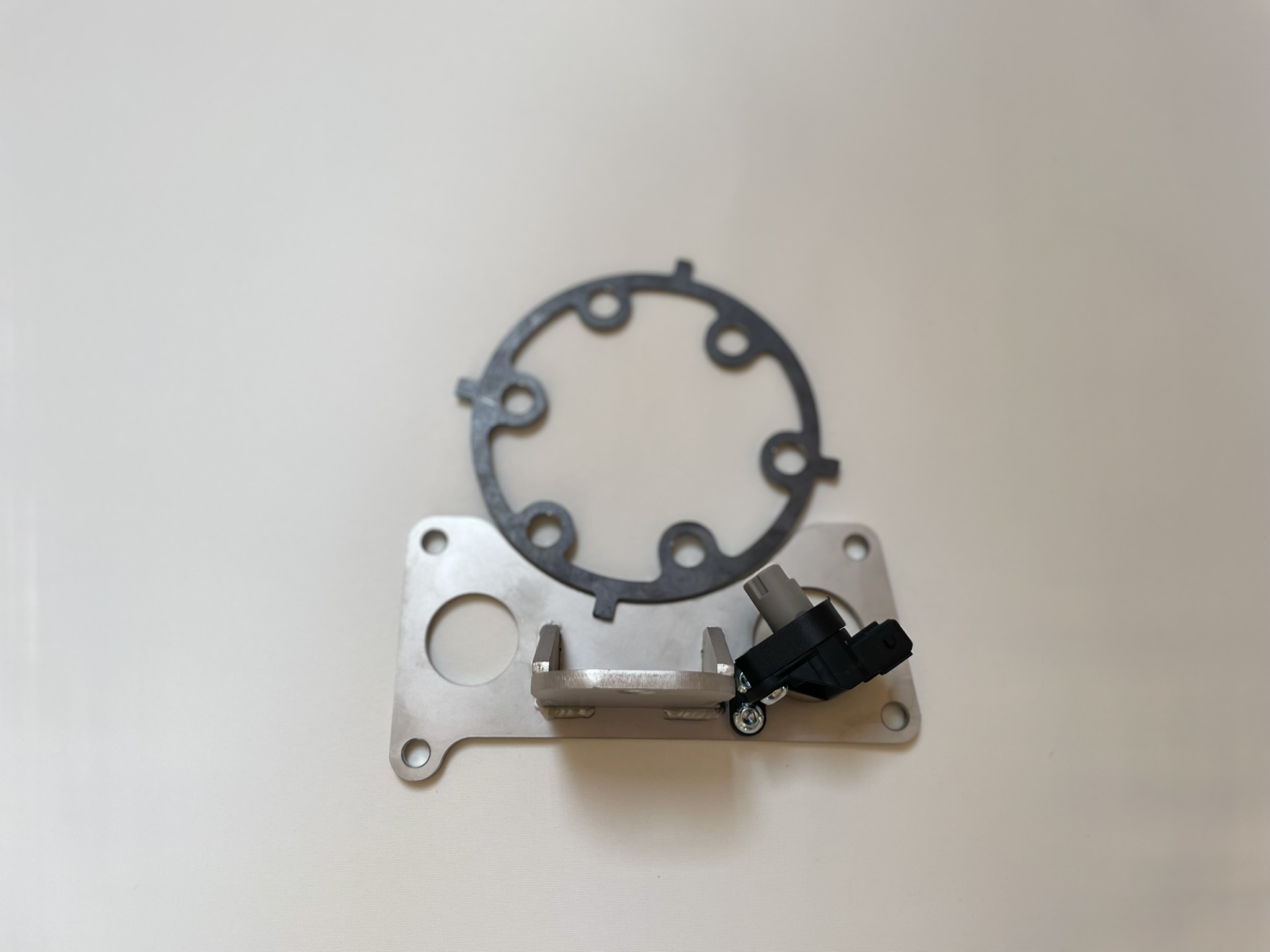

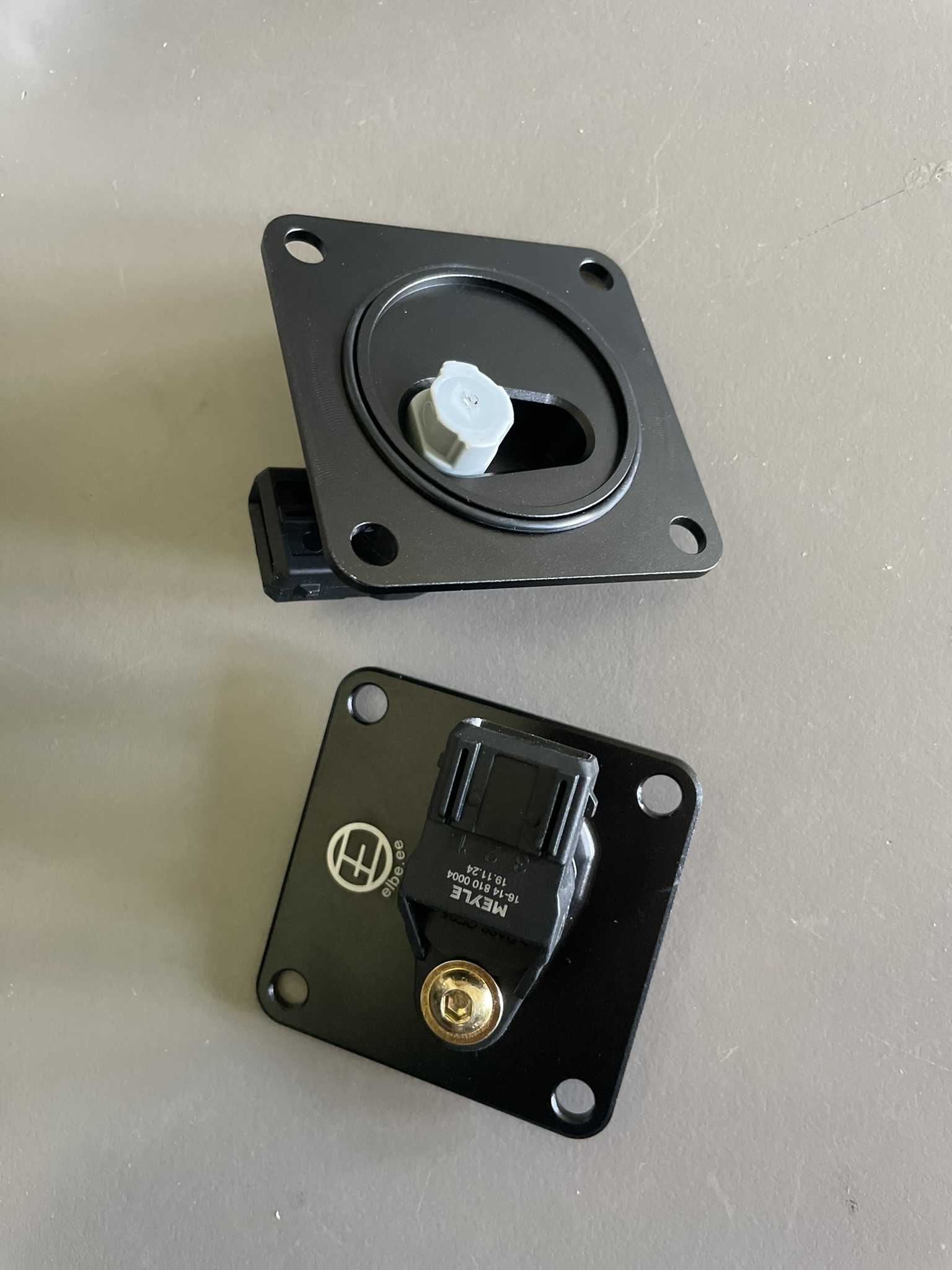

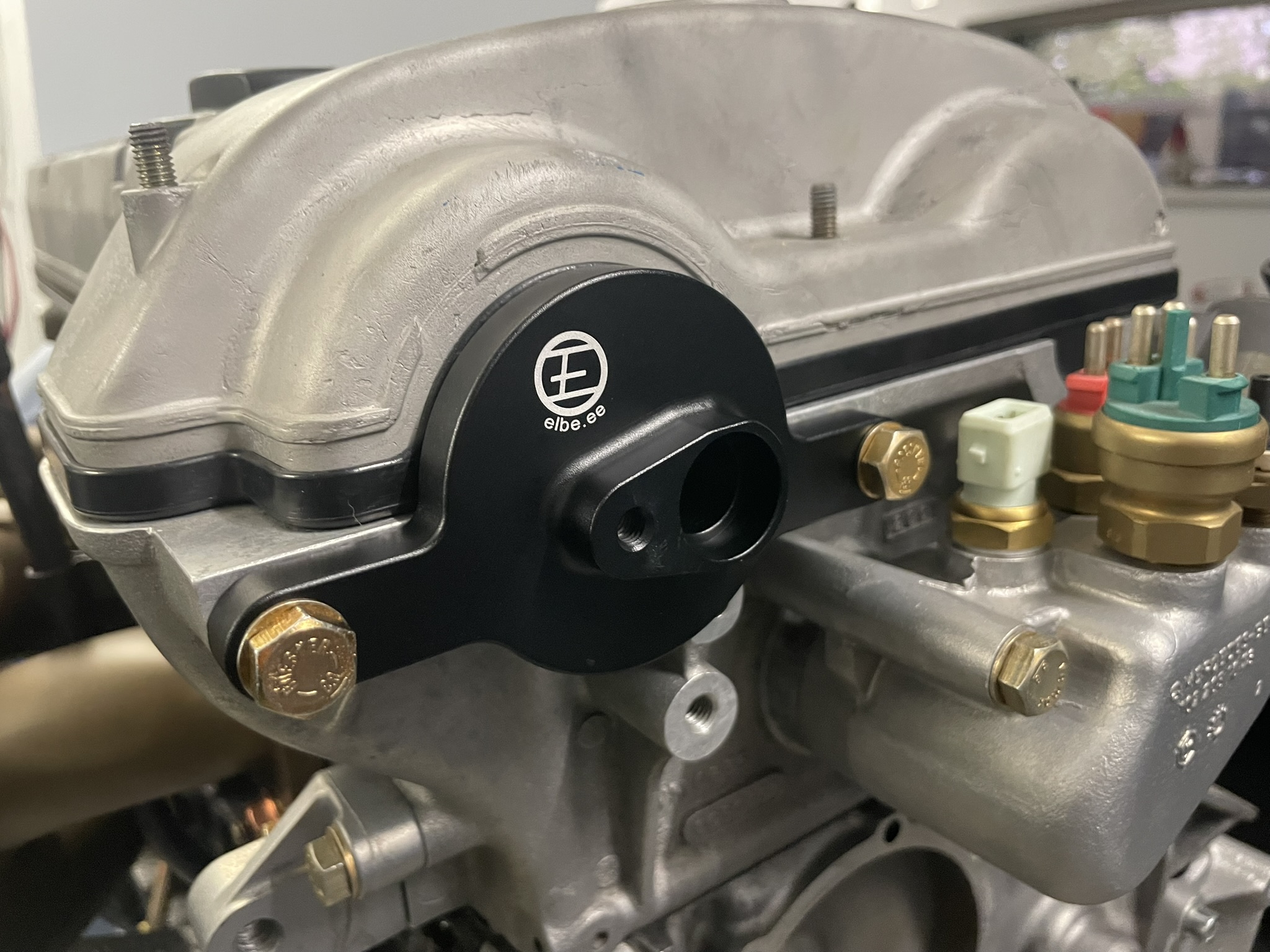

M102-16 Camshaft position sensor with mounting bracket (mounted instead of SLS/hydraulic pump) – 200 Euros

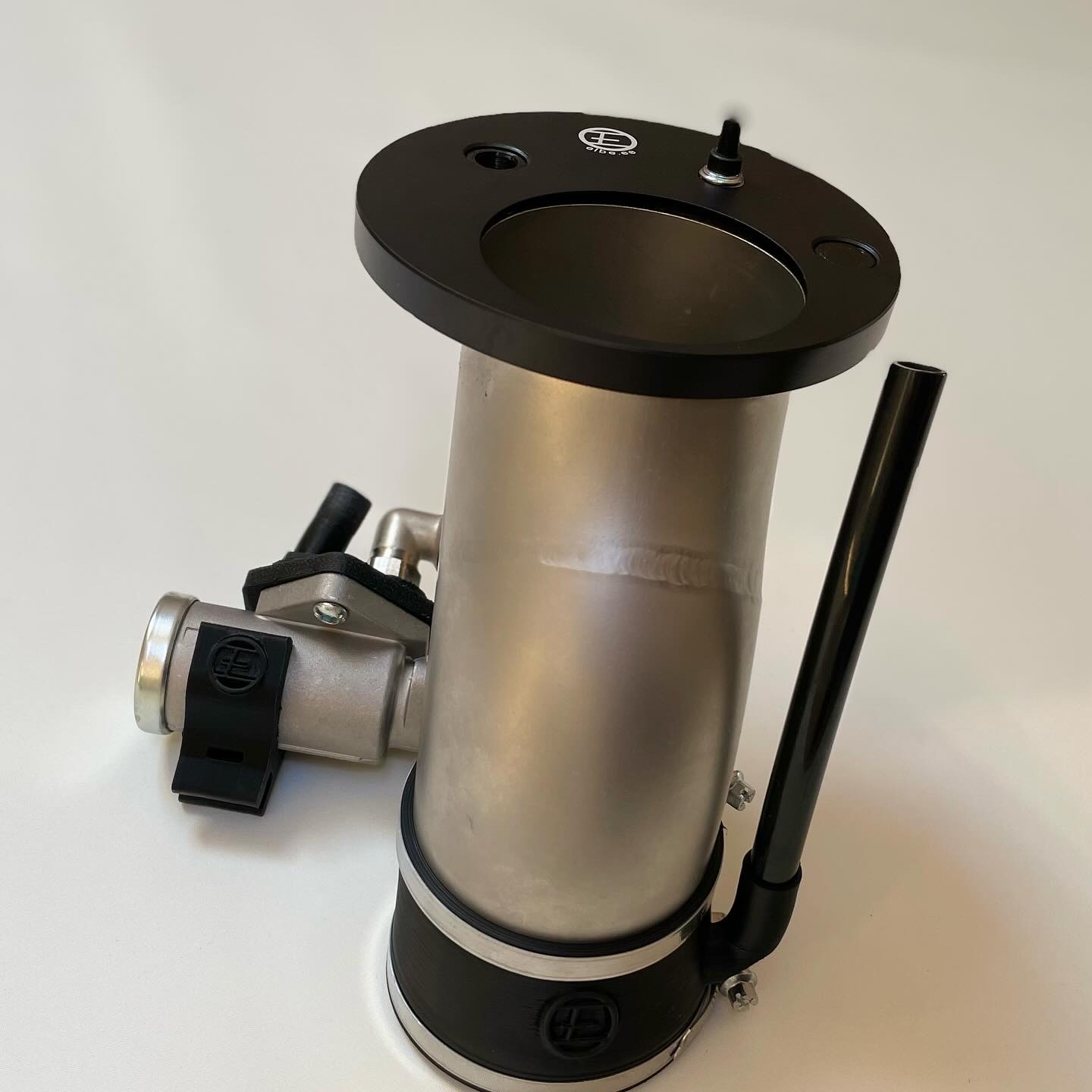

Adapters between throttle body and air filter housing(replacing K-jetronic unit):

M116/M117 Adapter with manifold air temperature sensor, idle air port, crankcase ventilation port – 250 Euros
M102-16 Adapter with manifold air temperature sensor – 200 Euros
M110 Adapter with manifold air temperature sensor – 200 Euros
M119 Adapter with manifold air temperature sensor, crankcase ventilation port – 250 Euros

Sensors:

M116/M117/M119 Throttle position sensor – 180 Euros
M102-16/M103 Throttle position sensor – 170 Euros
M14x1.5mm Coolant temperature sensor – 20 Euros
M12x1.5mm Manifold air temperature sensor – 25 Euros
Wideband 4.9 oxygen sensor – 120 Euros

W201 190E Evolution 1 body panels kit – 1500 Euros

9-pcs of body panels and rear spoiler. Fits on 2.3-16 or 2.5-16 body kit.

Glassfiber.

W201 185mm differential cover. Billet 7075 anodized aluminum. Cooling fins can be bolted on separately (coming soon). O-ring gasket sealing. Price 450 Euros.

Products/Parts/Systems I have been developed. If you need something from list above please ask. Most of the products are not in stock but can be fabricated on request.

EFI kits for MB engines : M102-8V ; M102-16V ; M103 ; M104 ; M110 ; M116/M117 ; M119
Plug and play Efi kit for Lancia Flavia 1.8 flat-4 engine (originally with Kugelfisher injection)

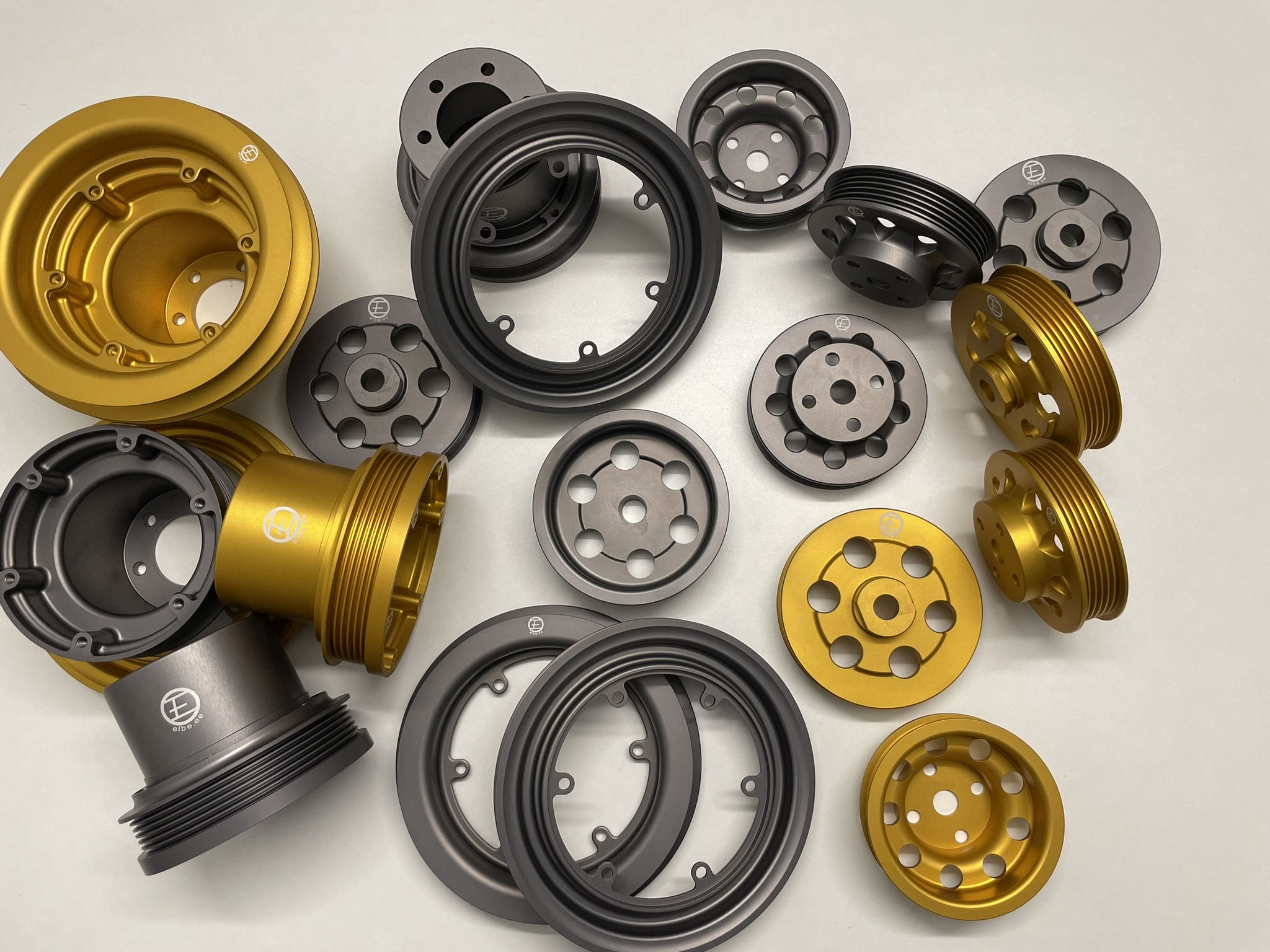

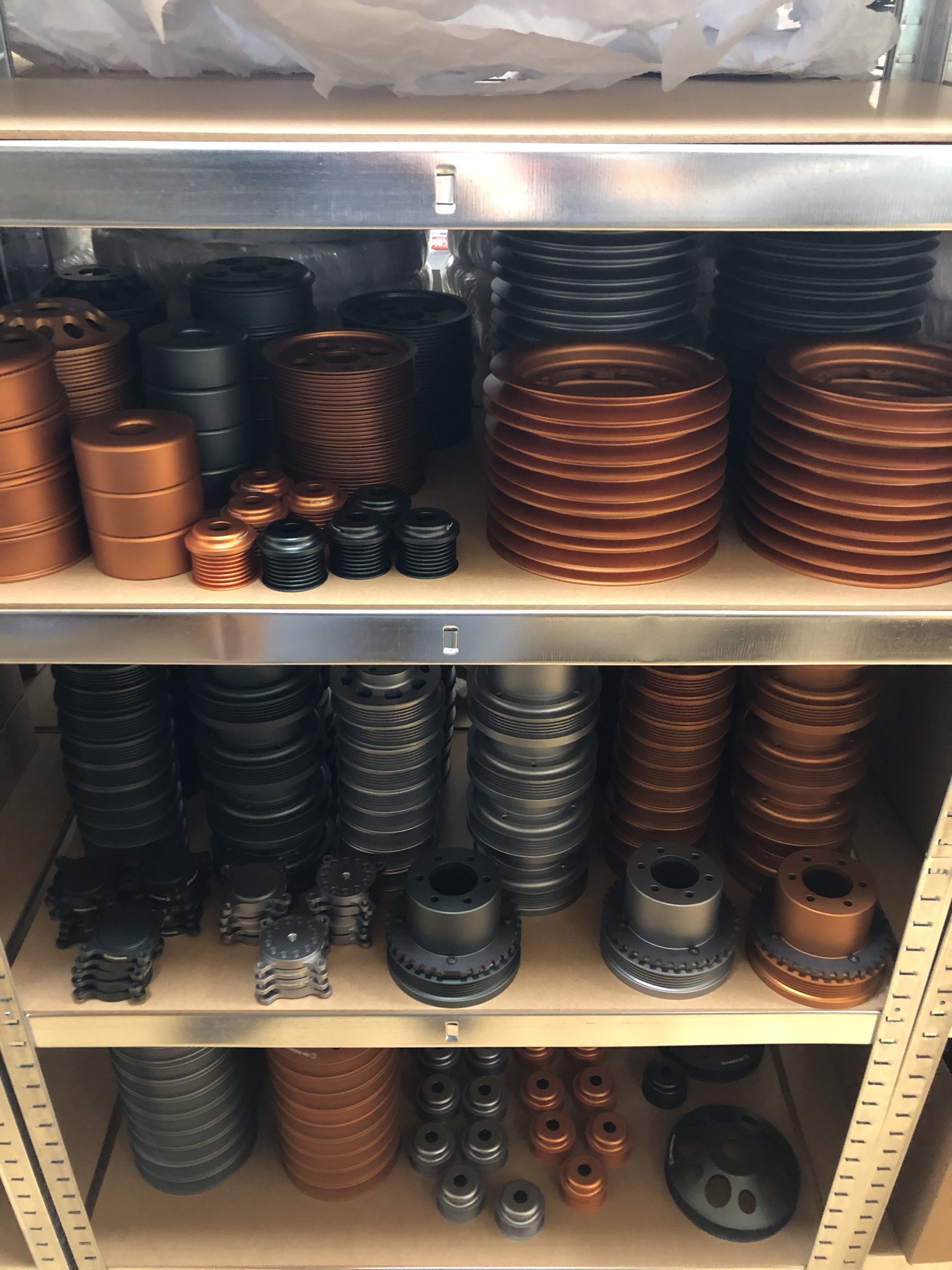

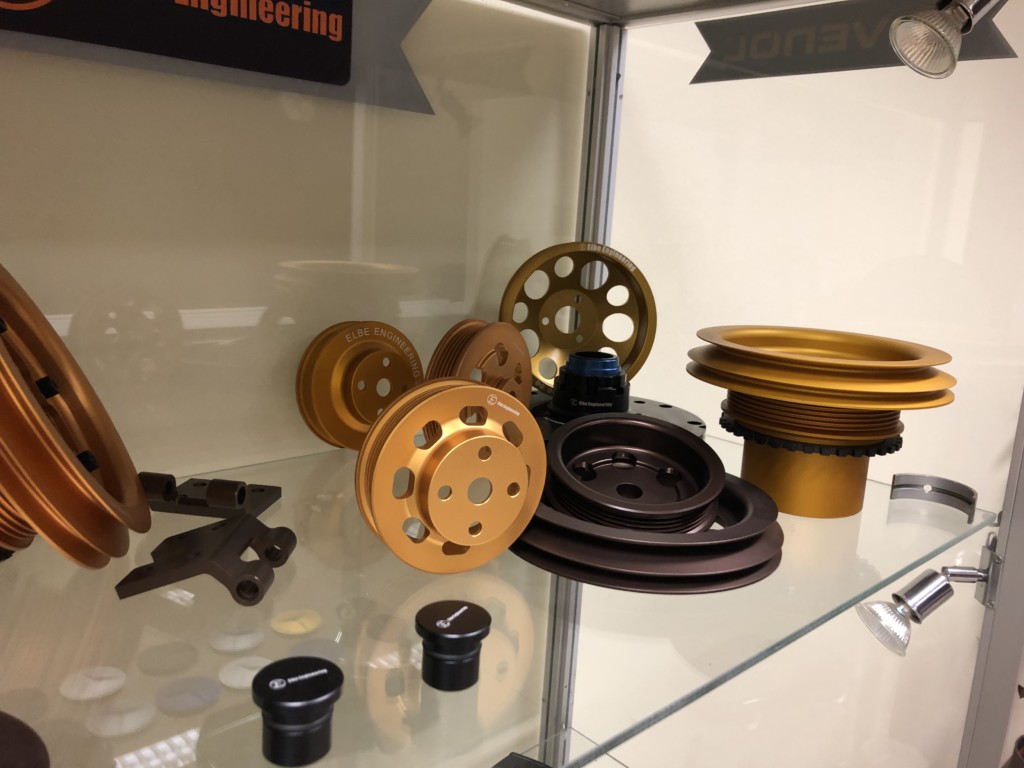

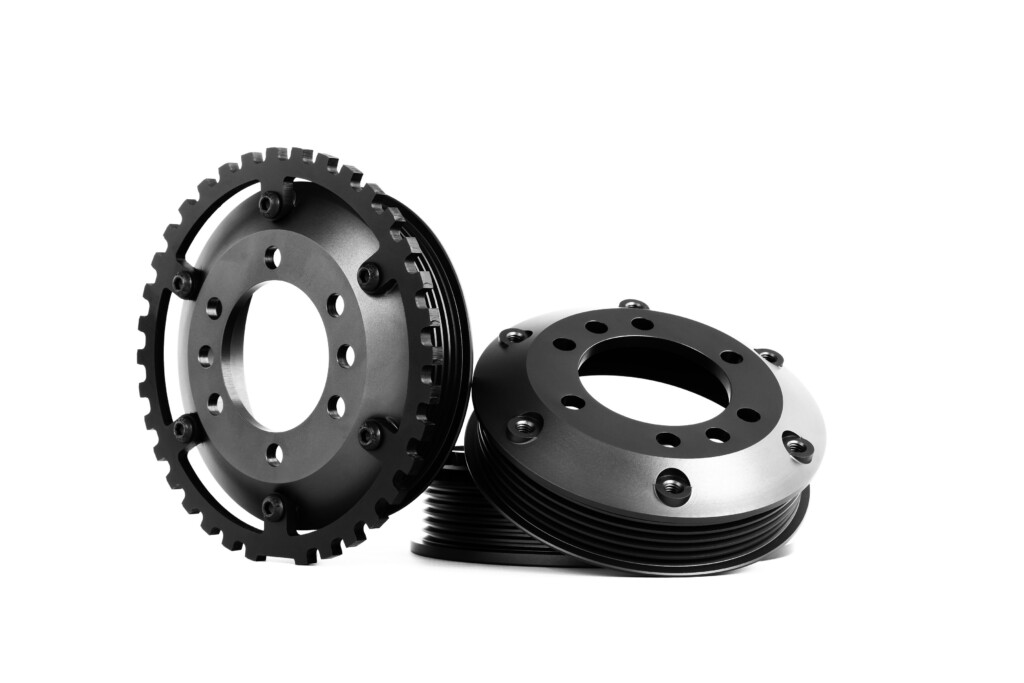

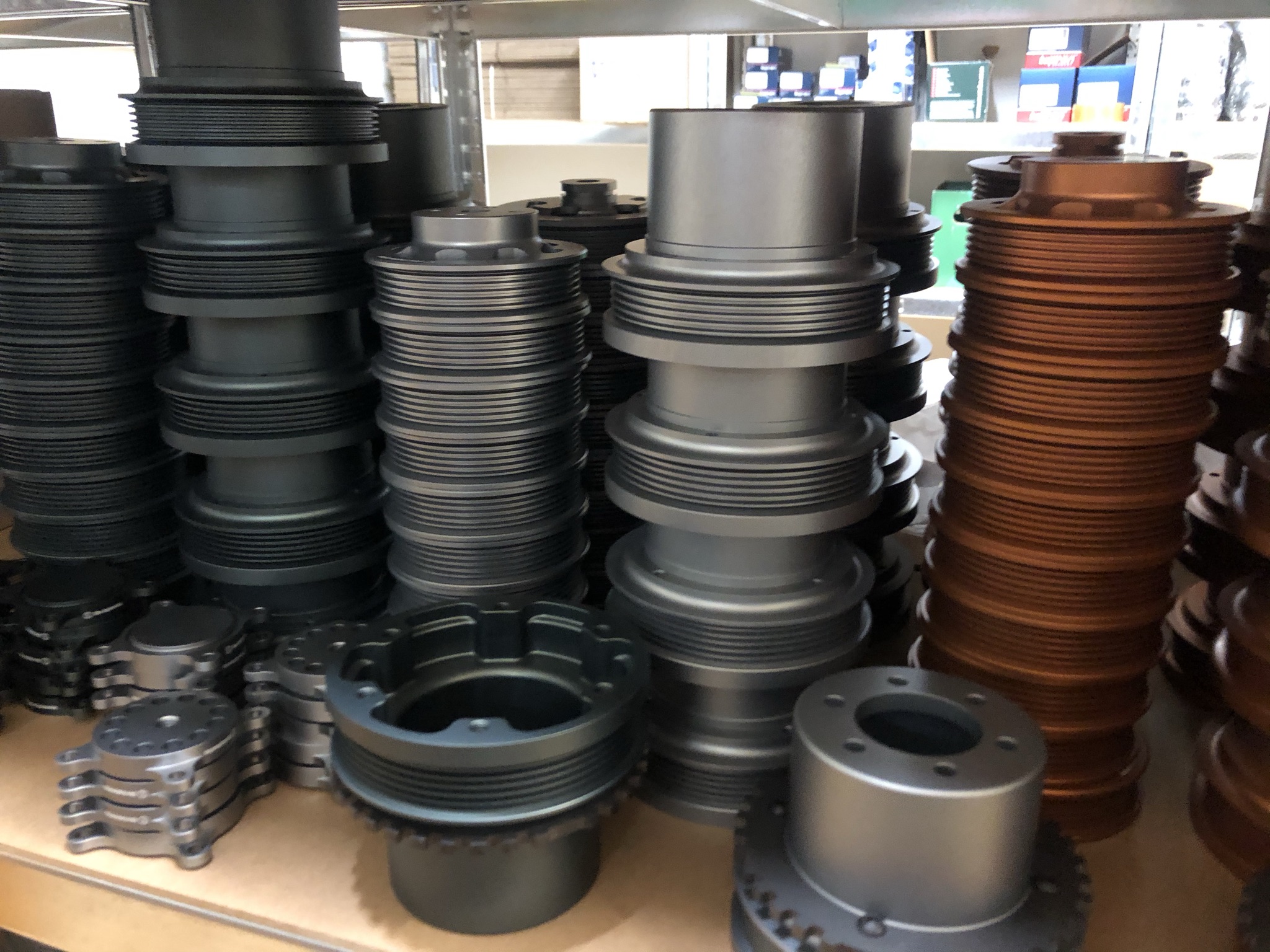

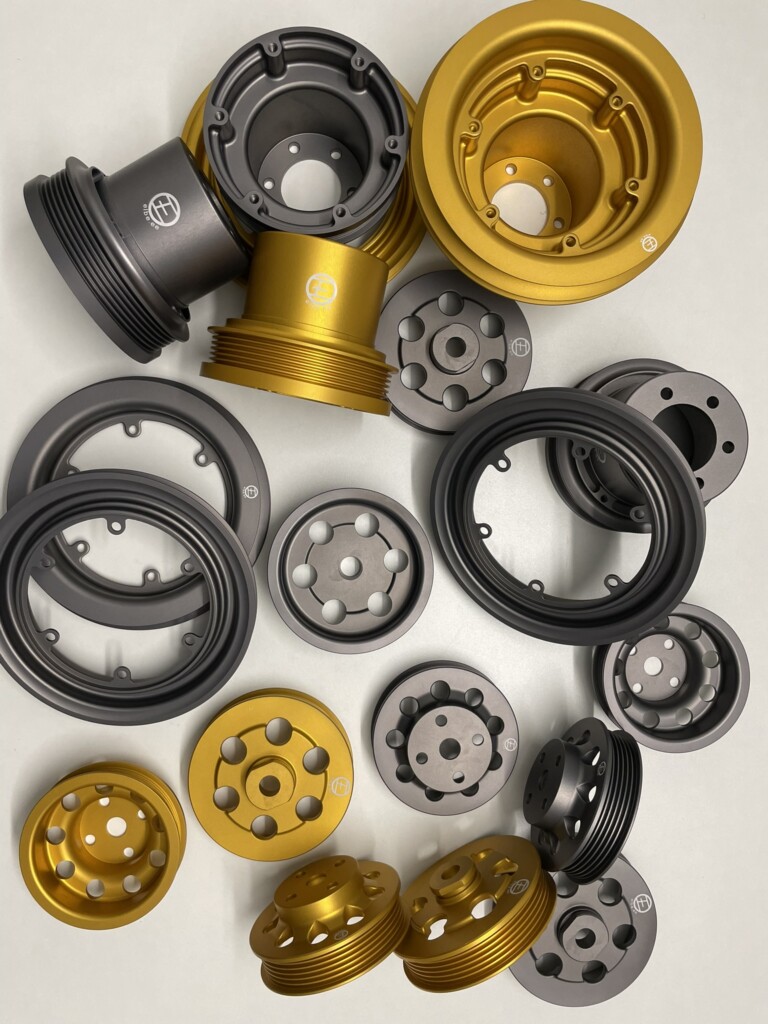

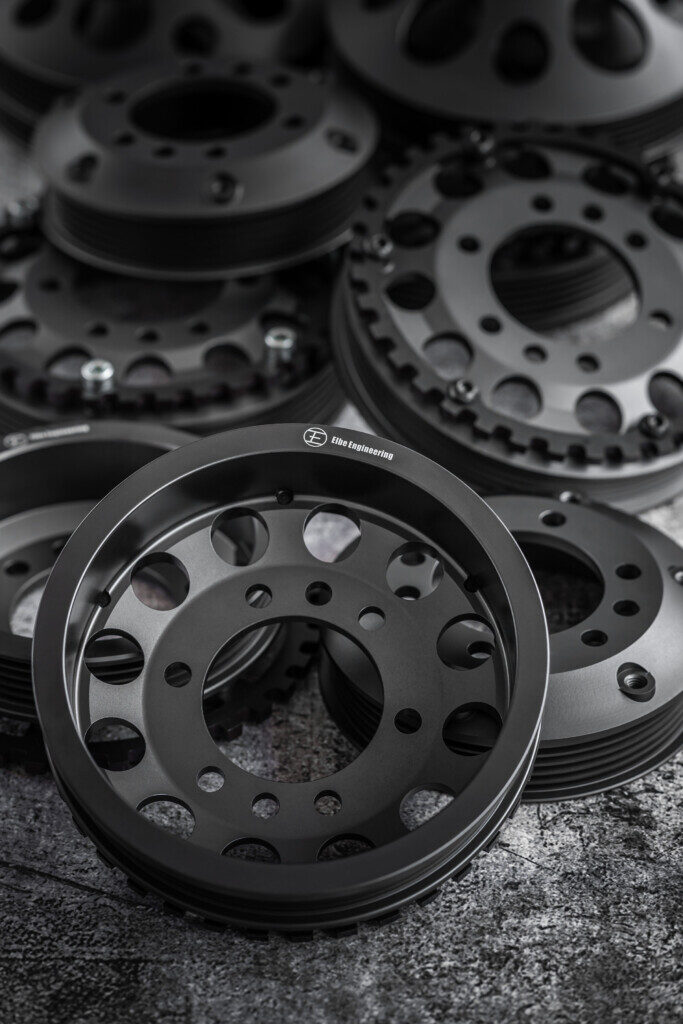

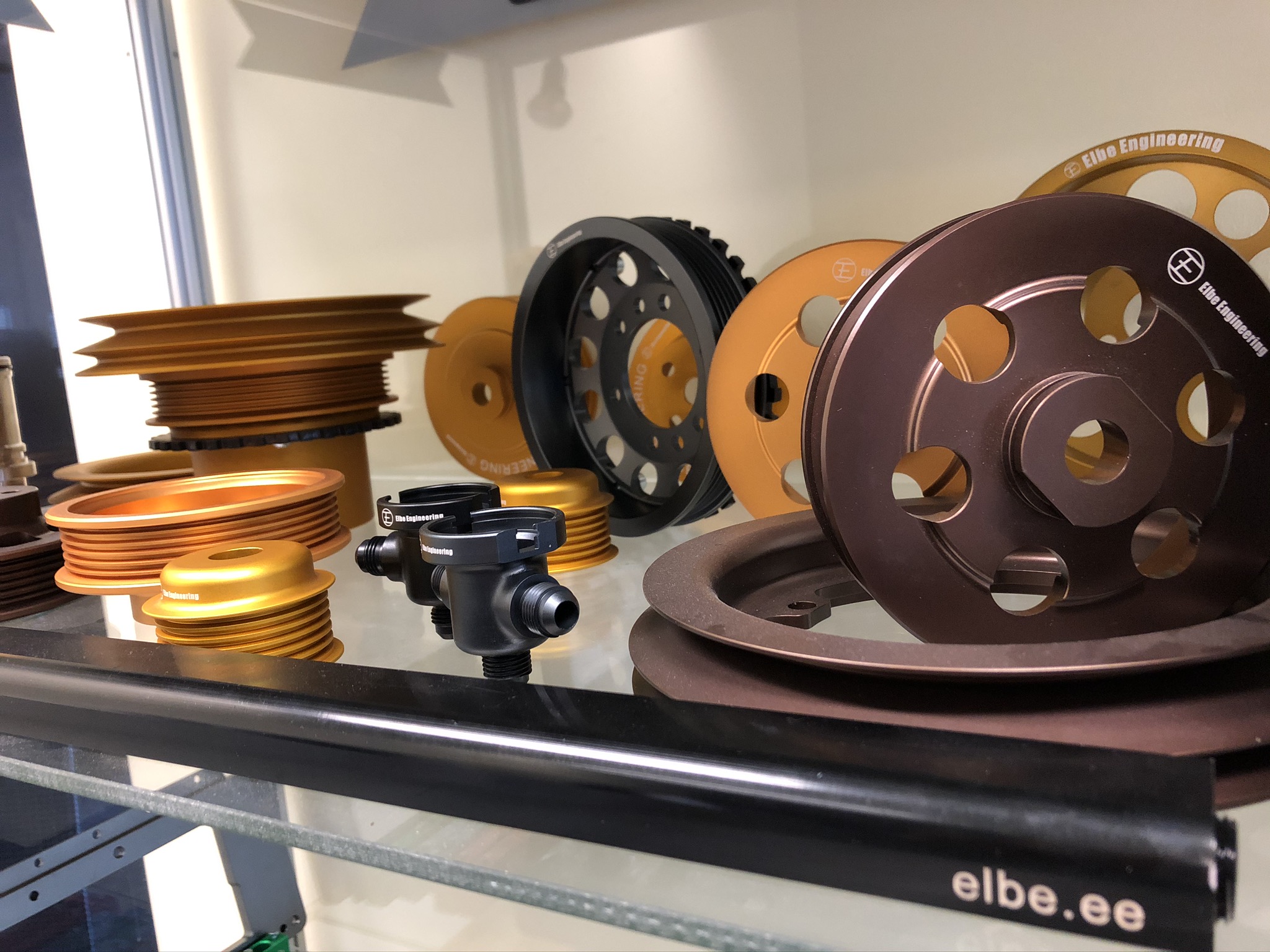

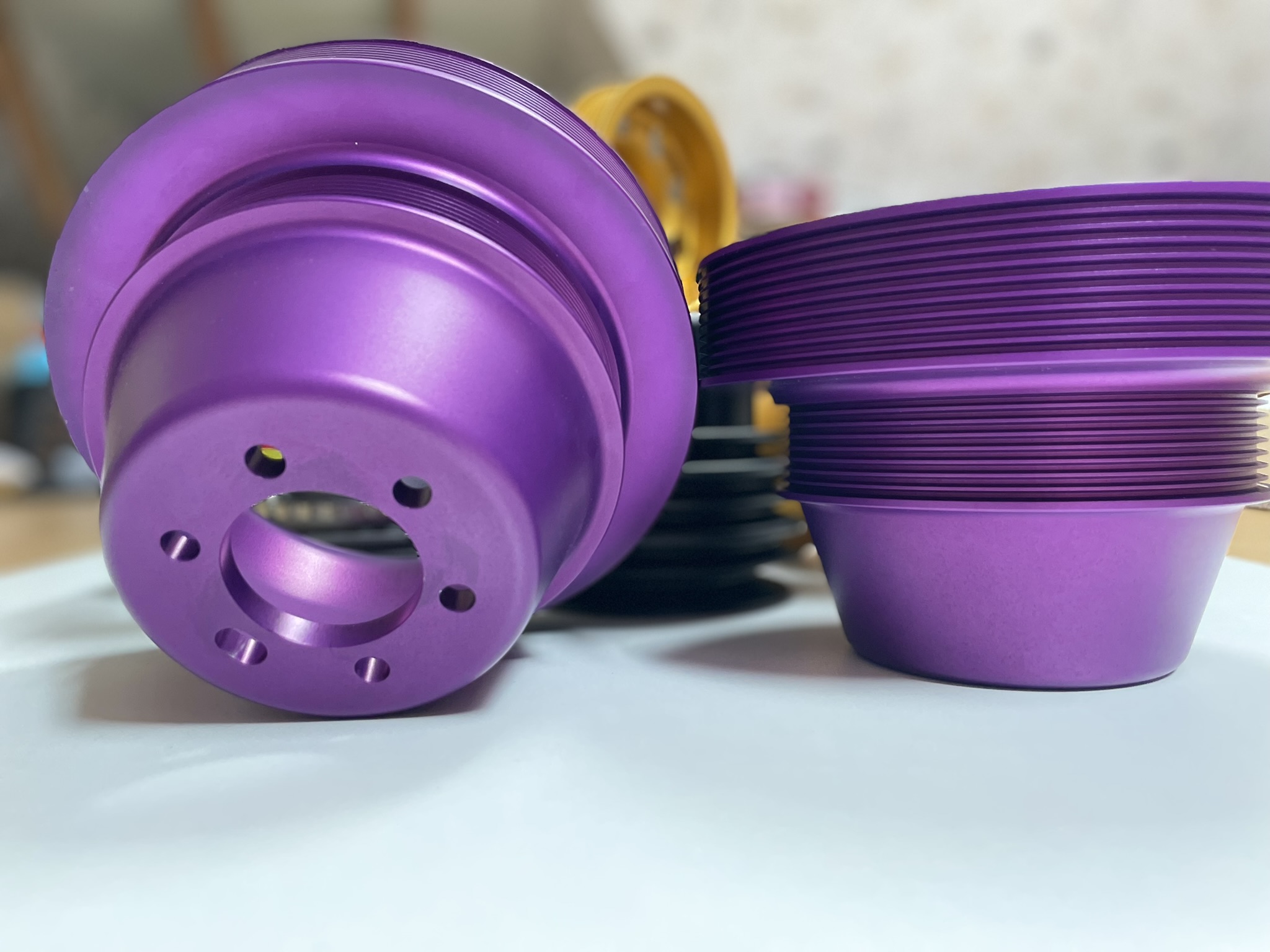

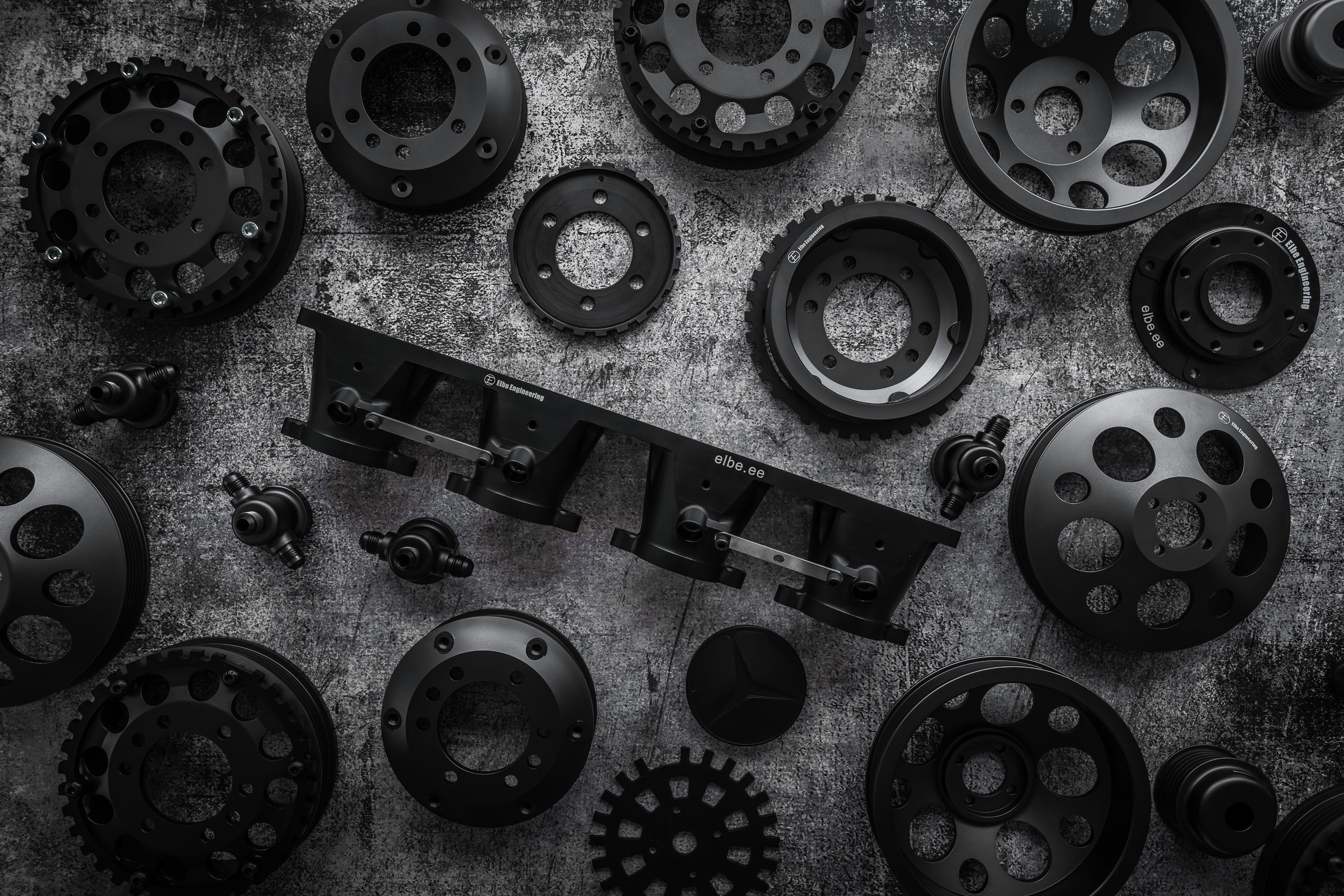

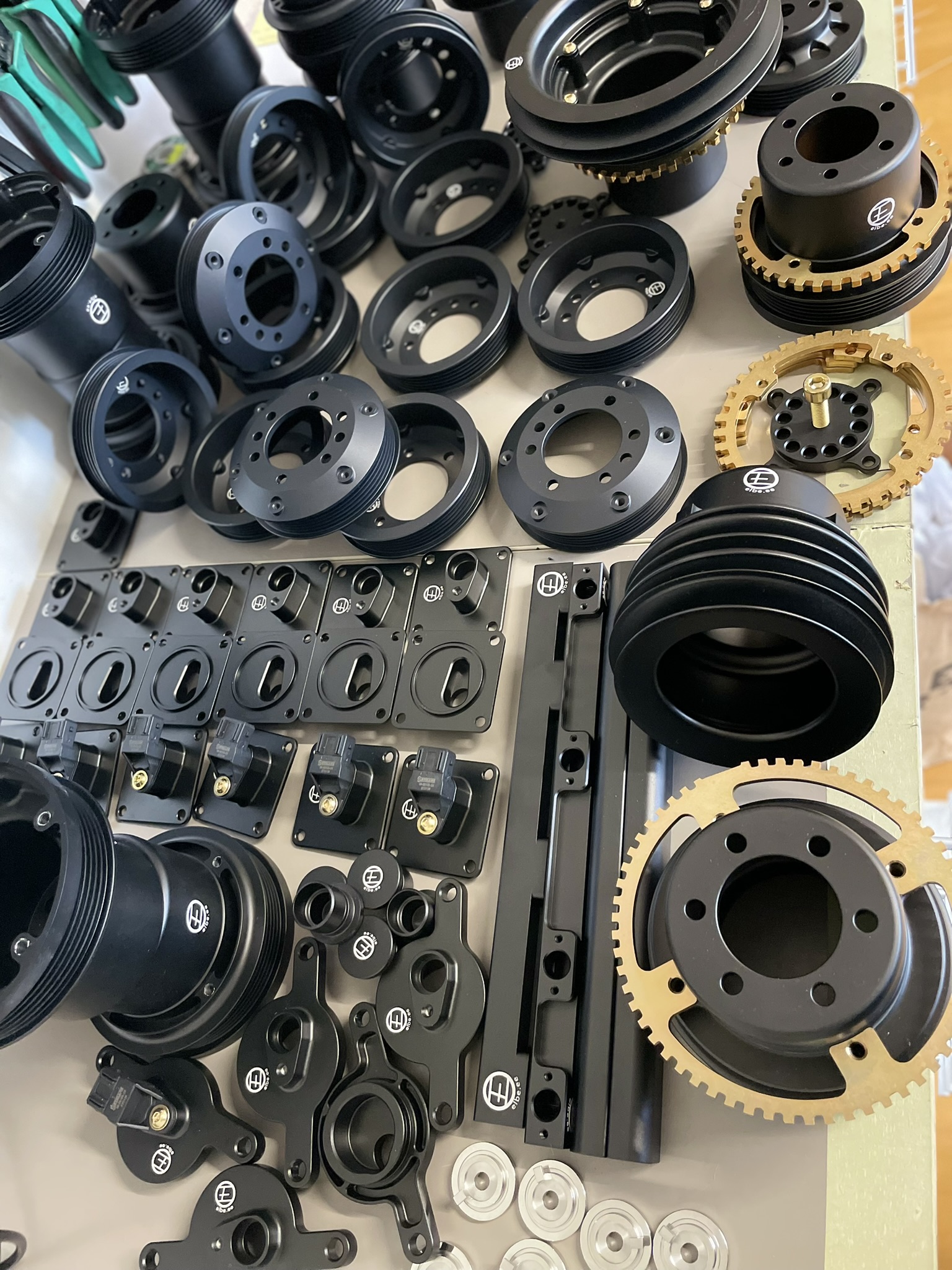

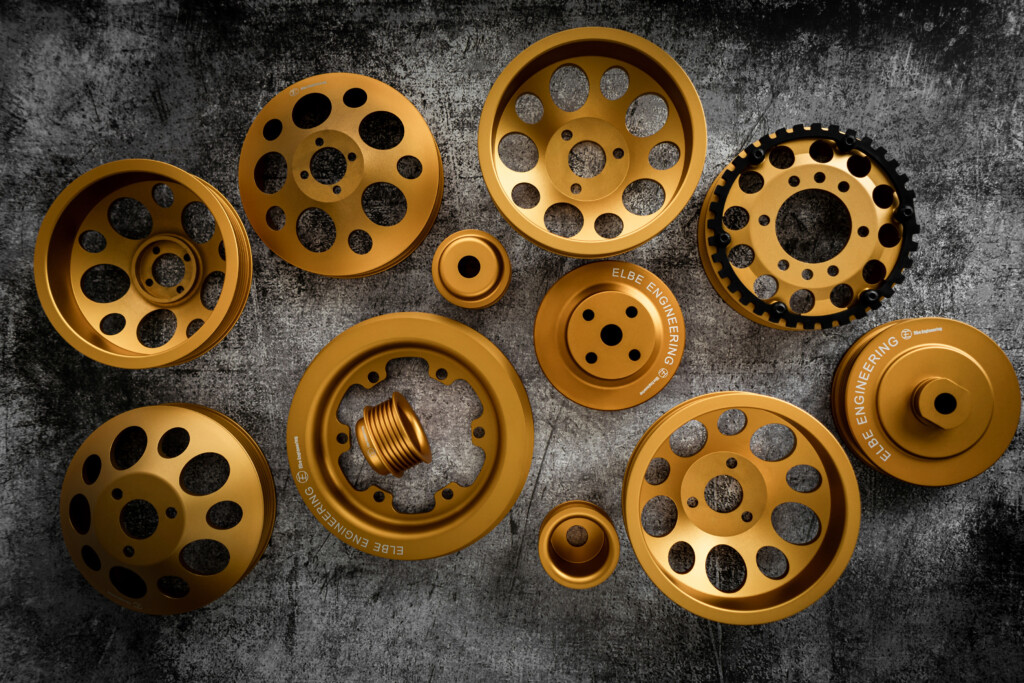

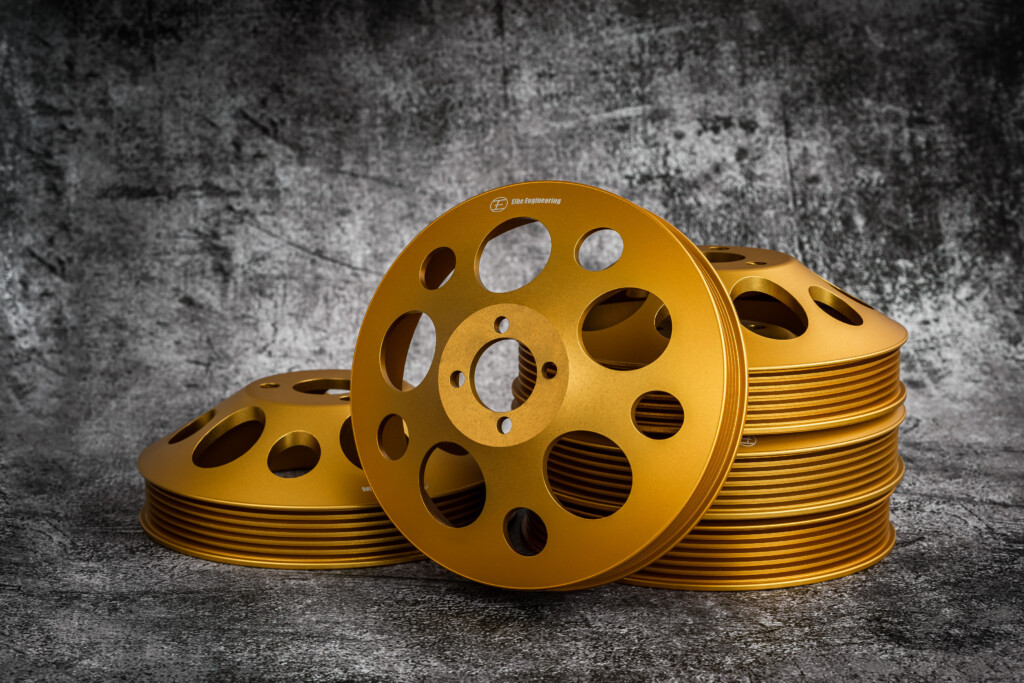

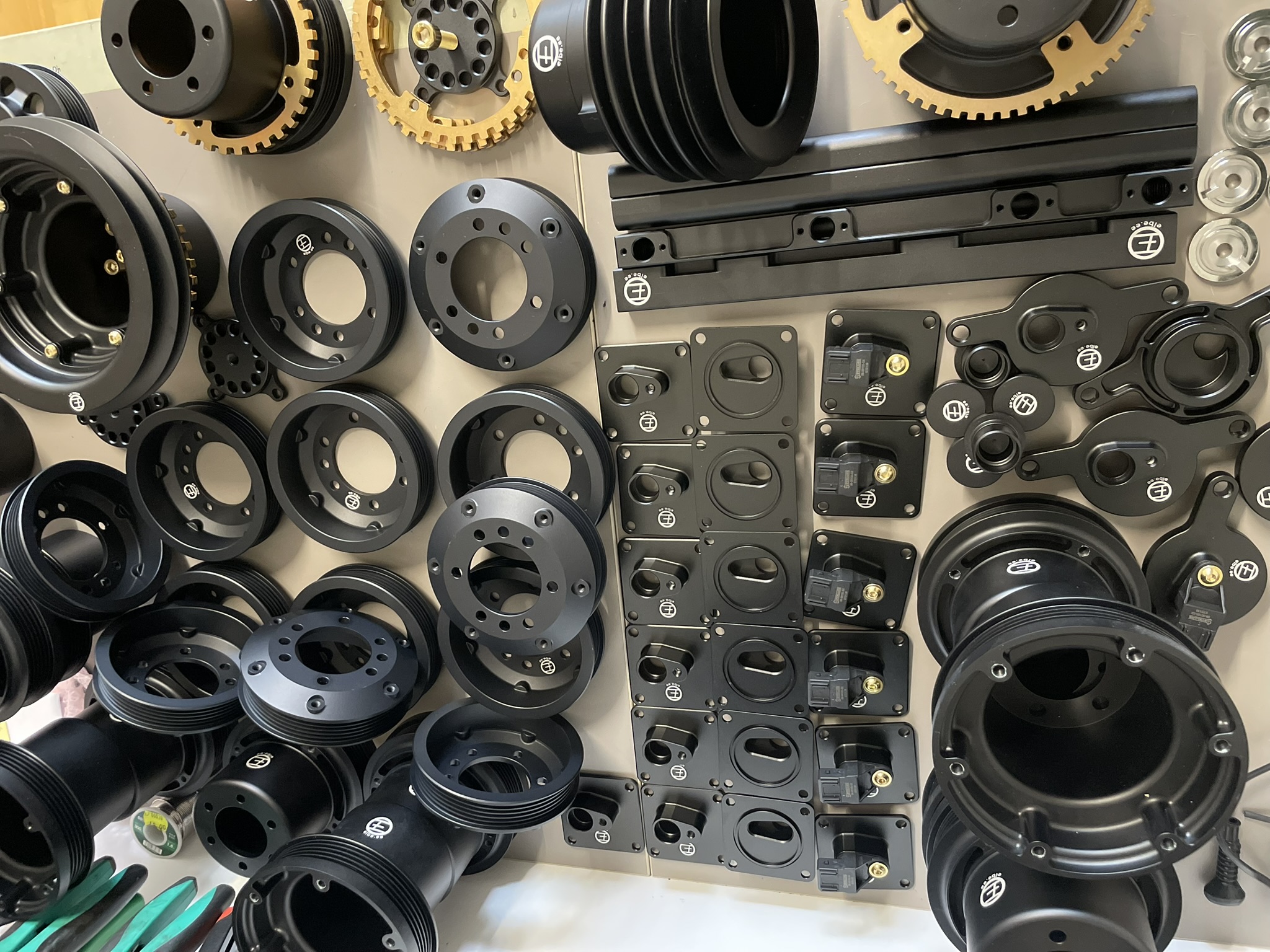

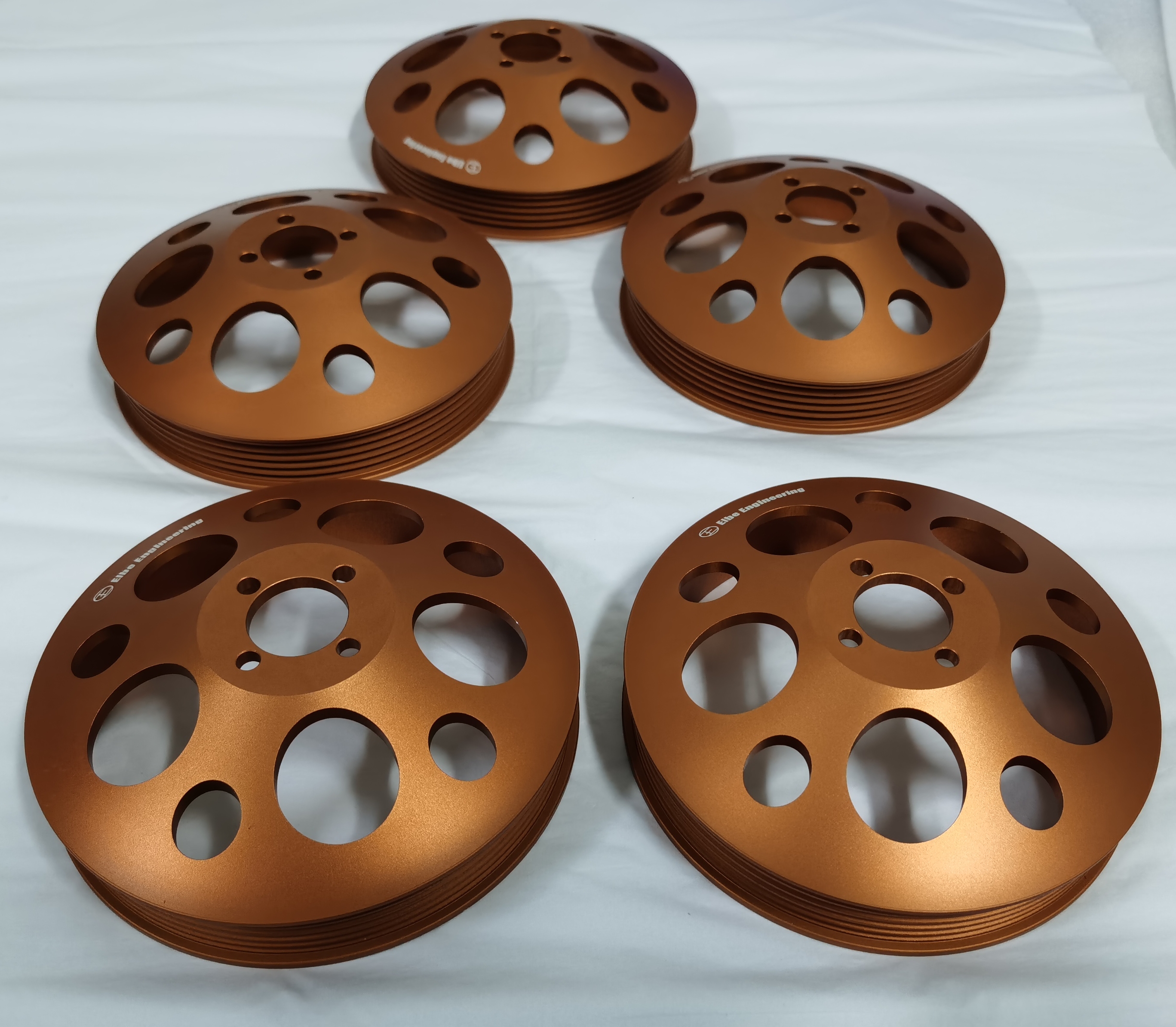

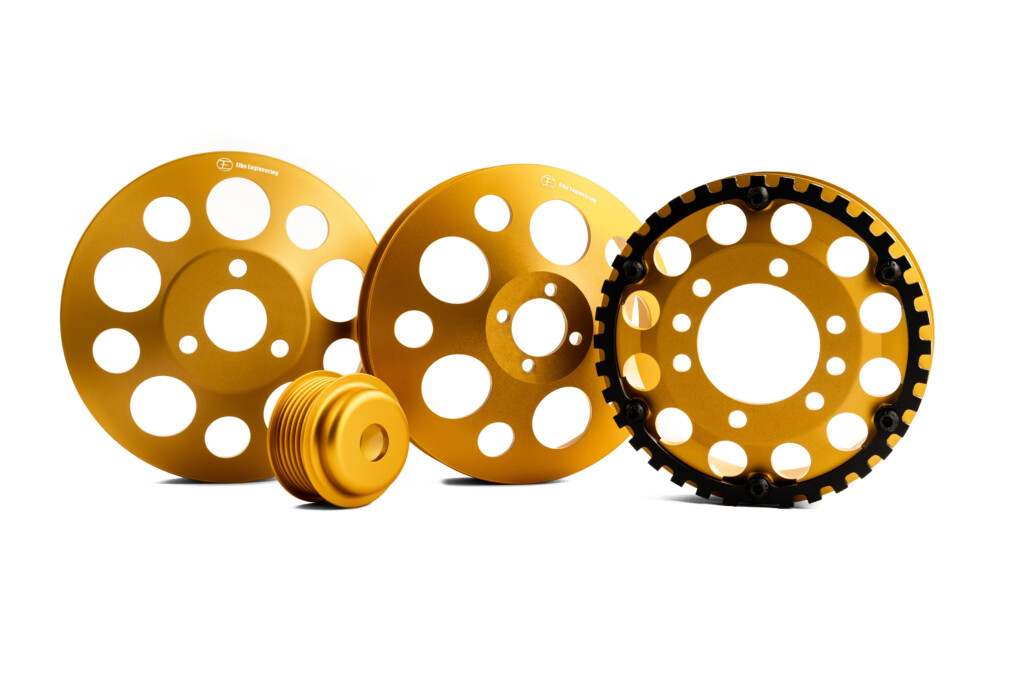

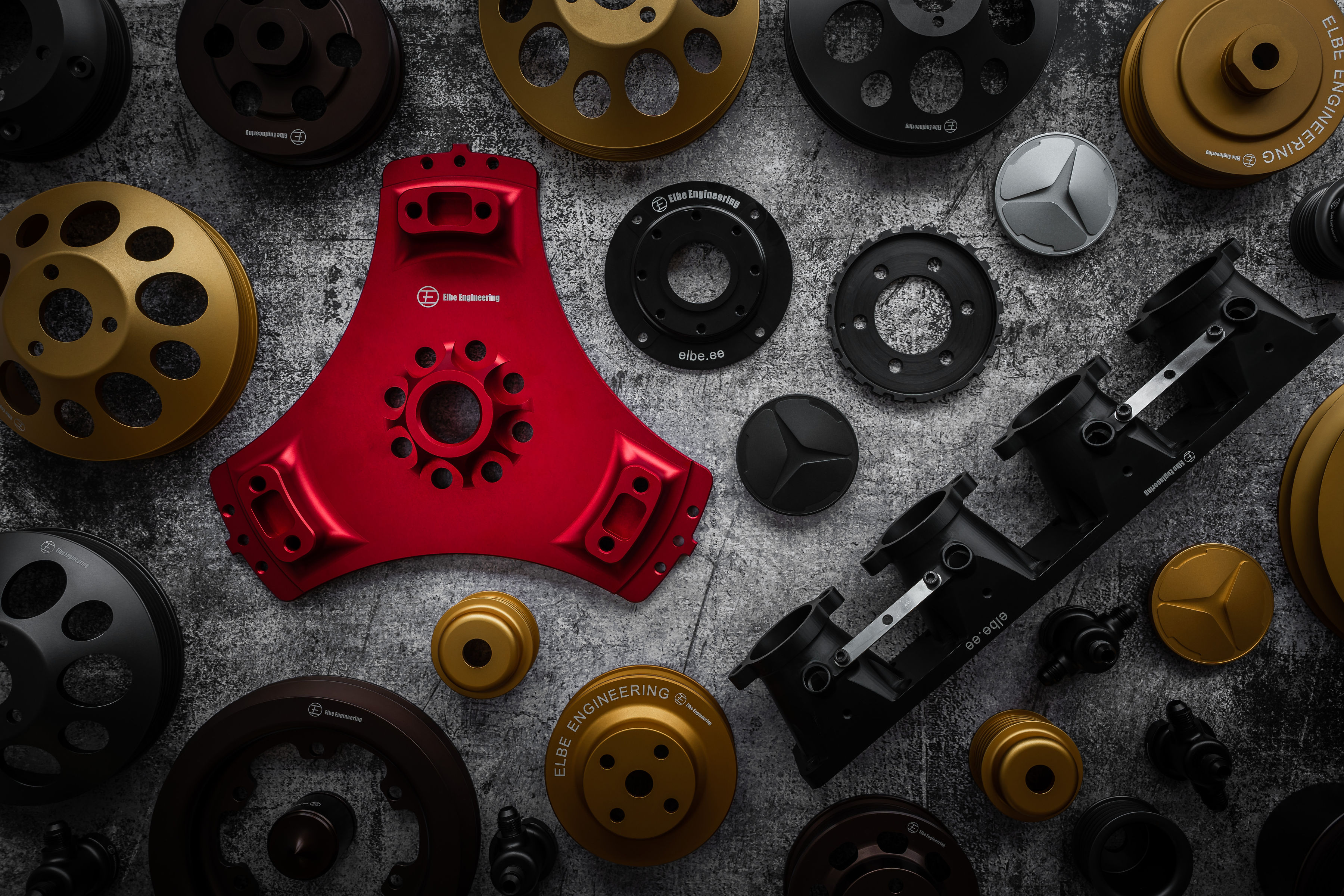

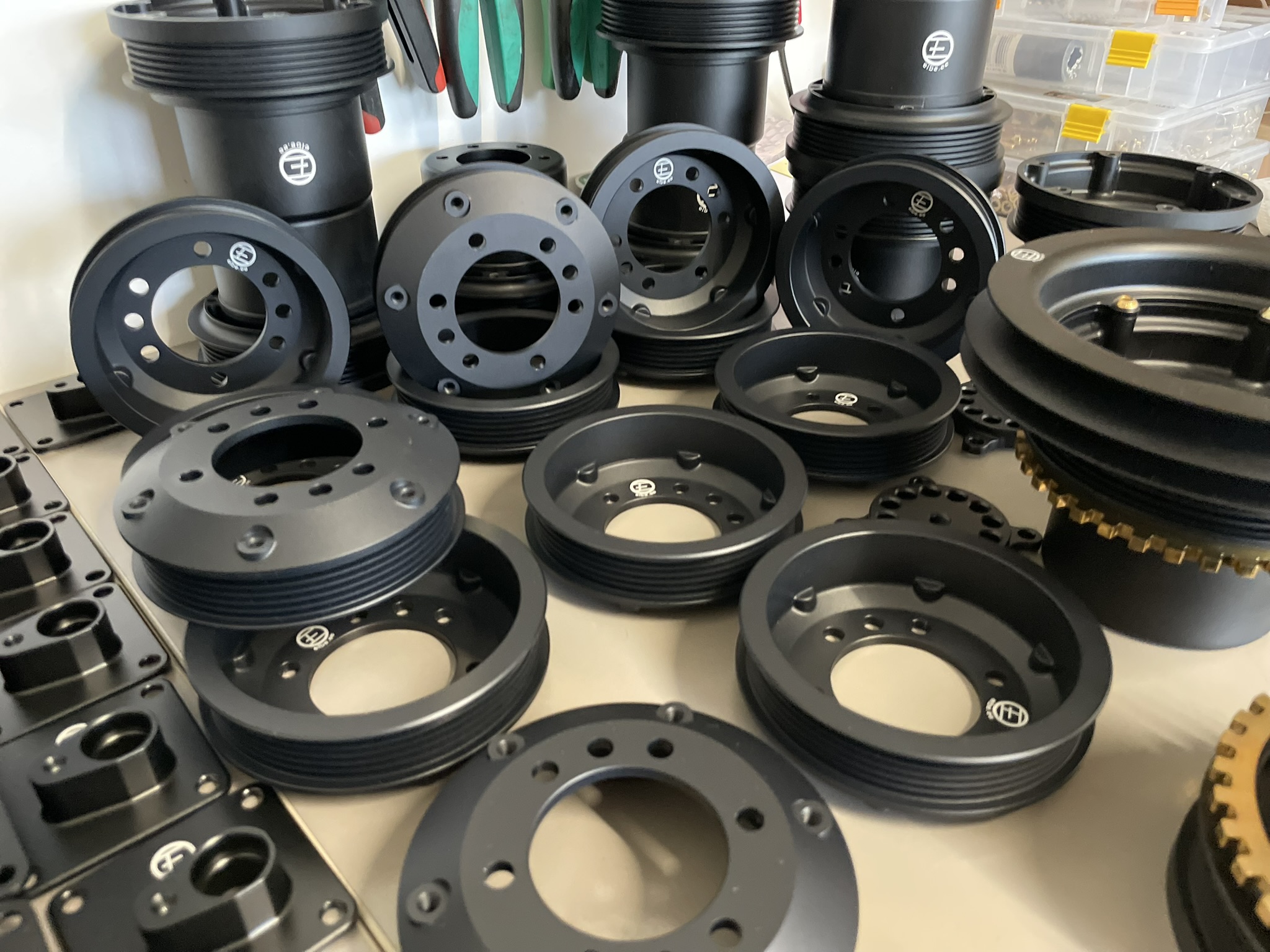

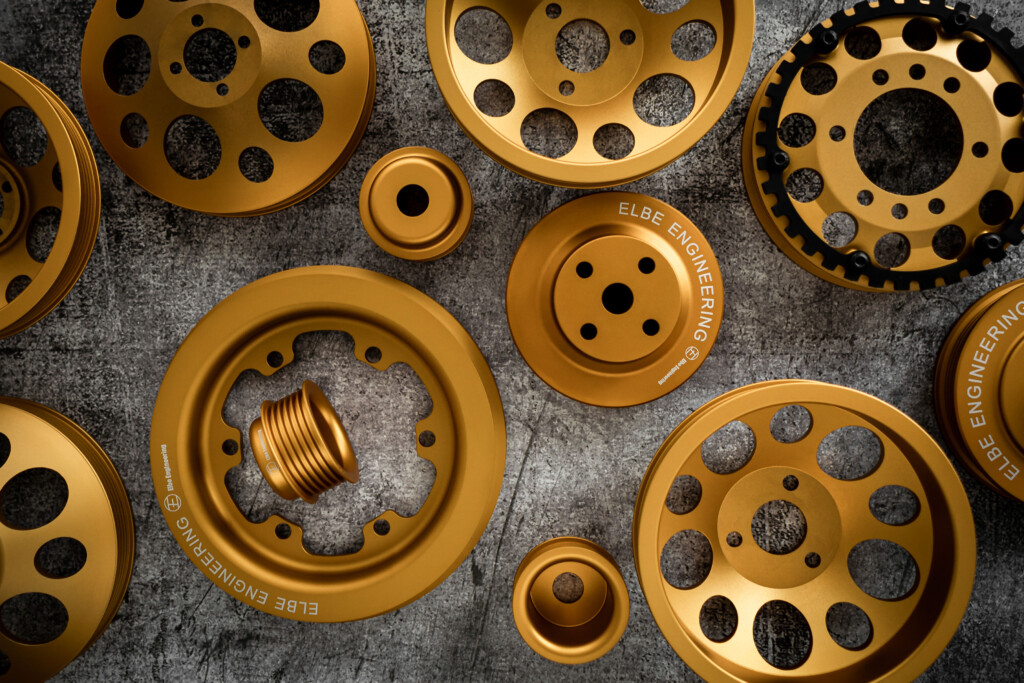

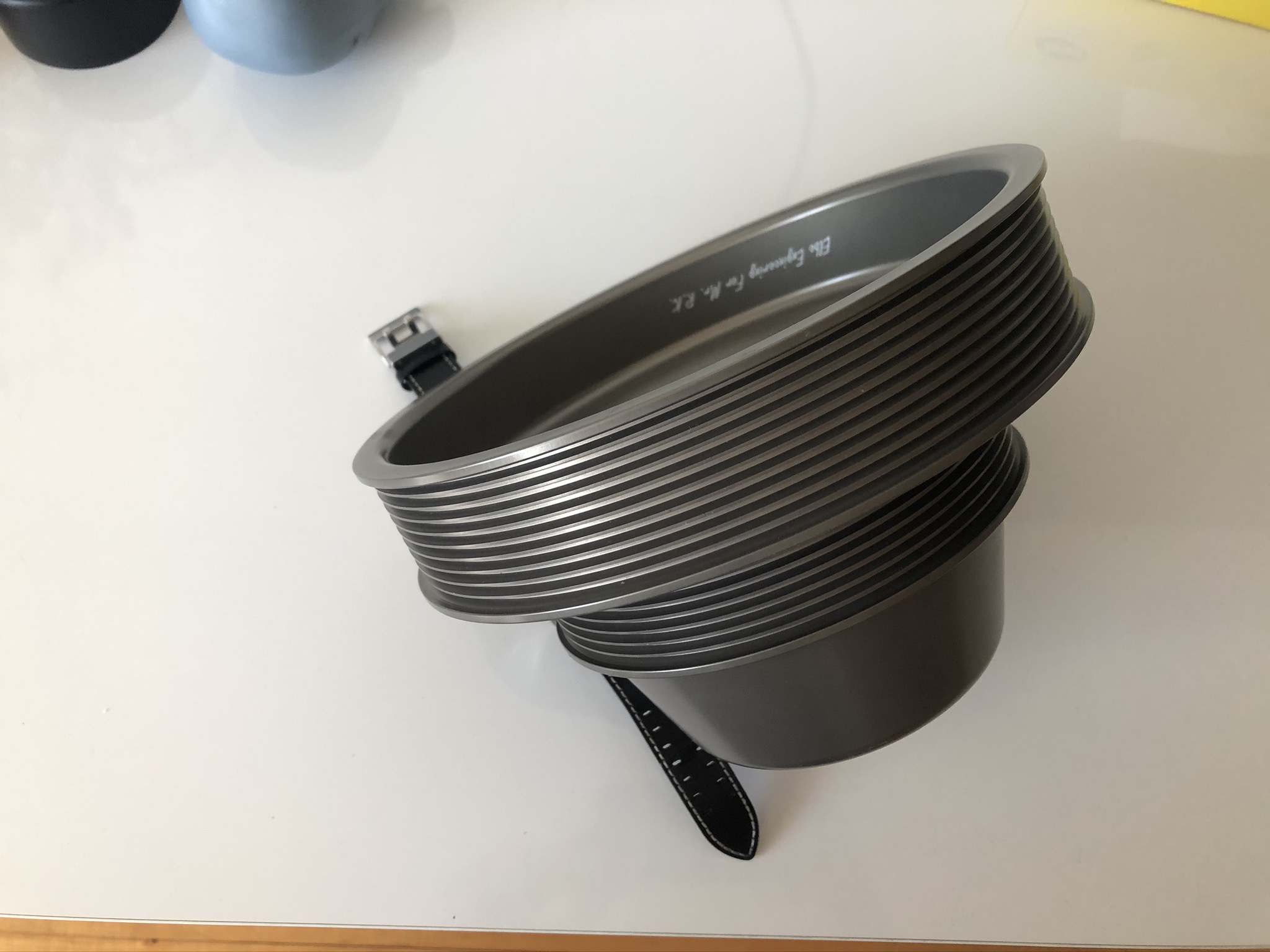

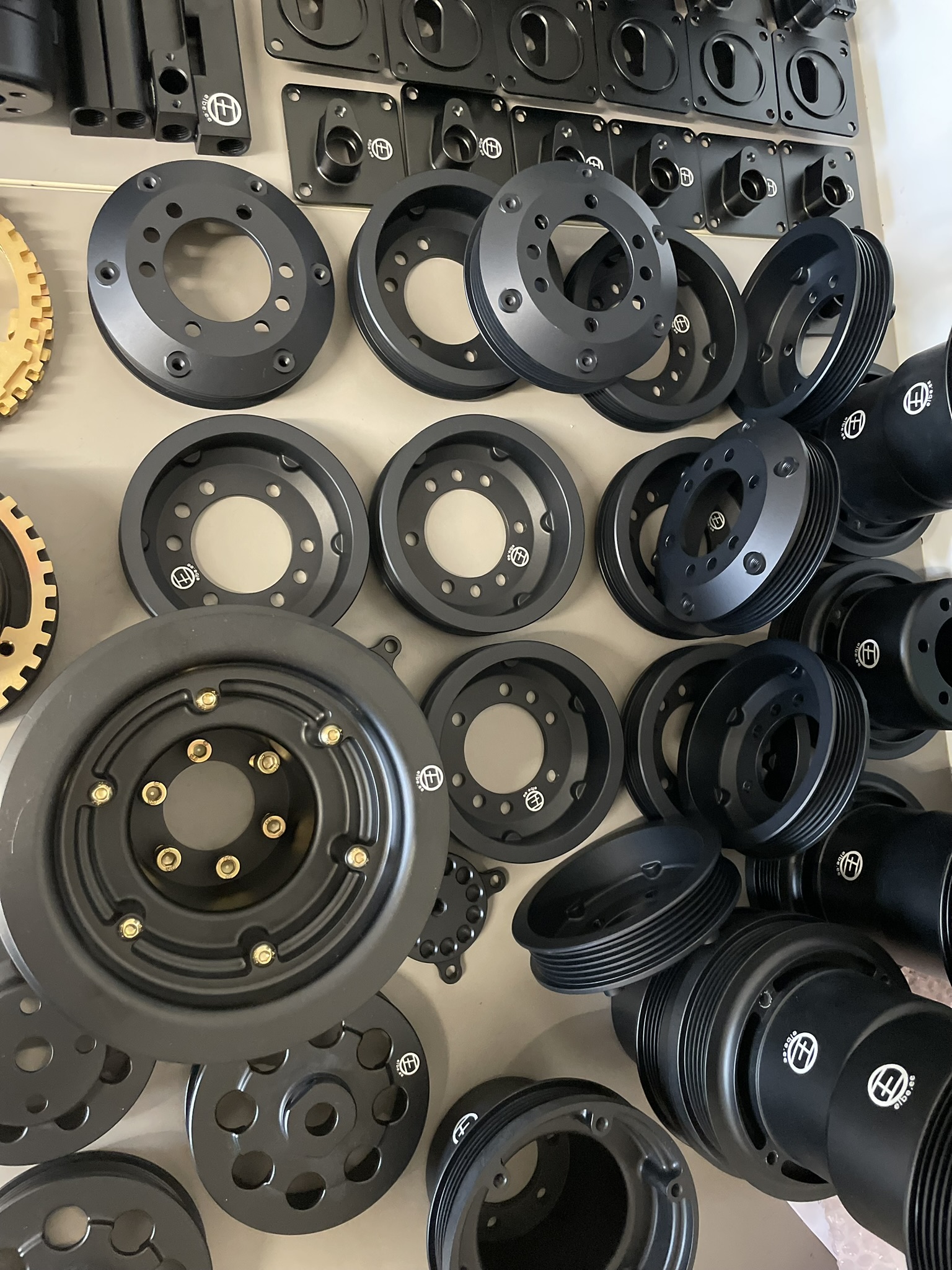

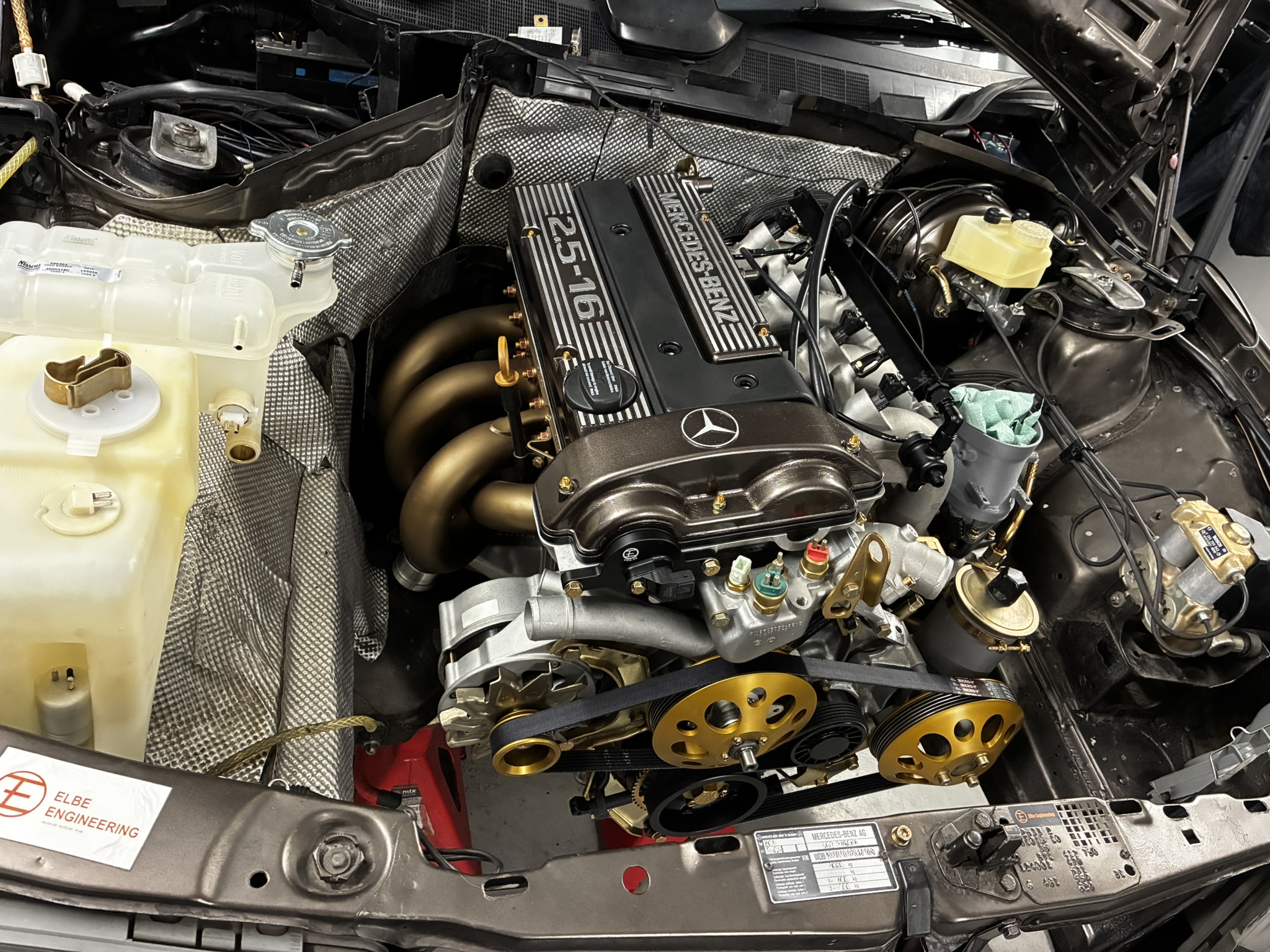

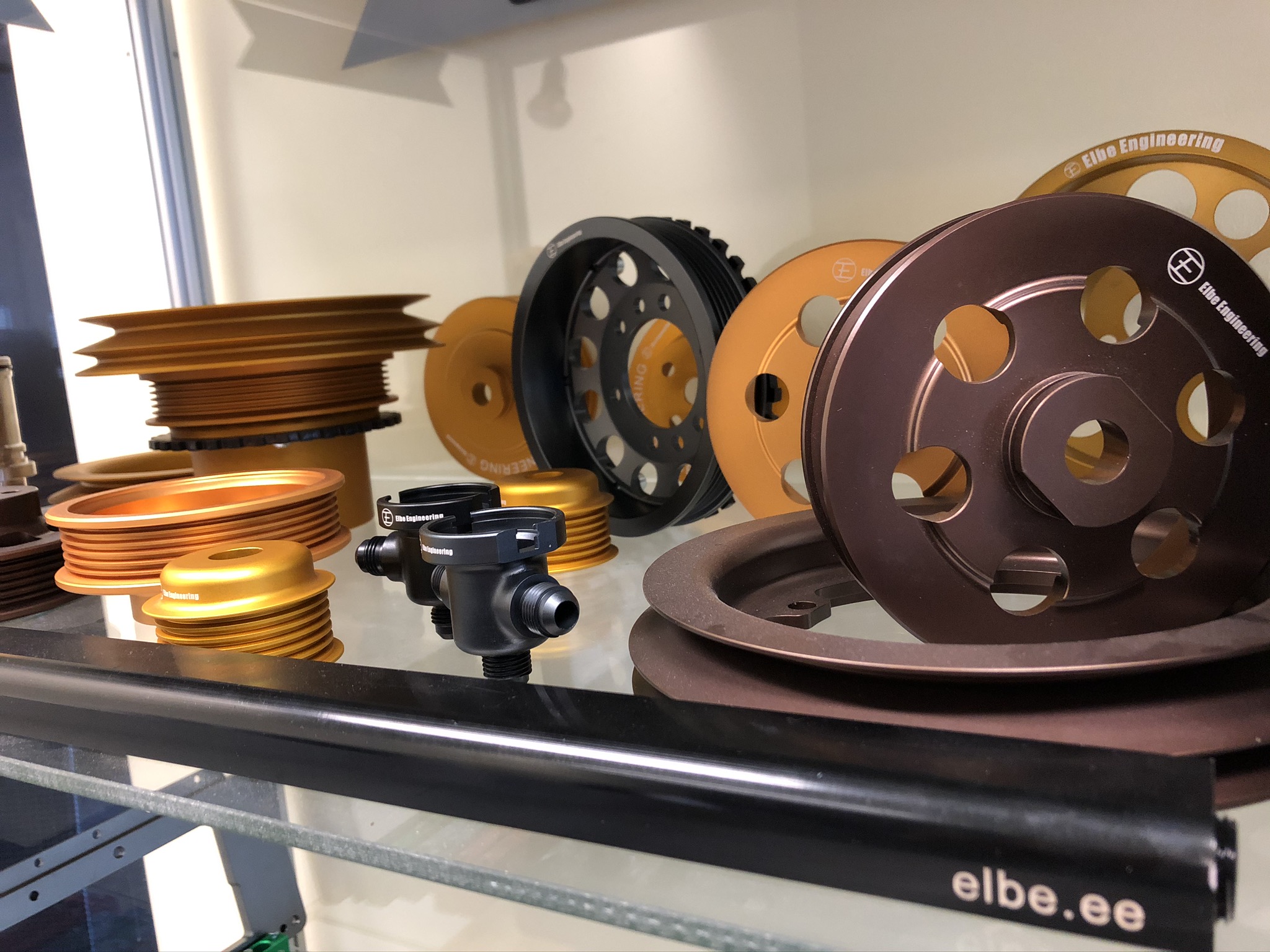

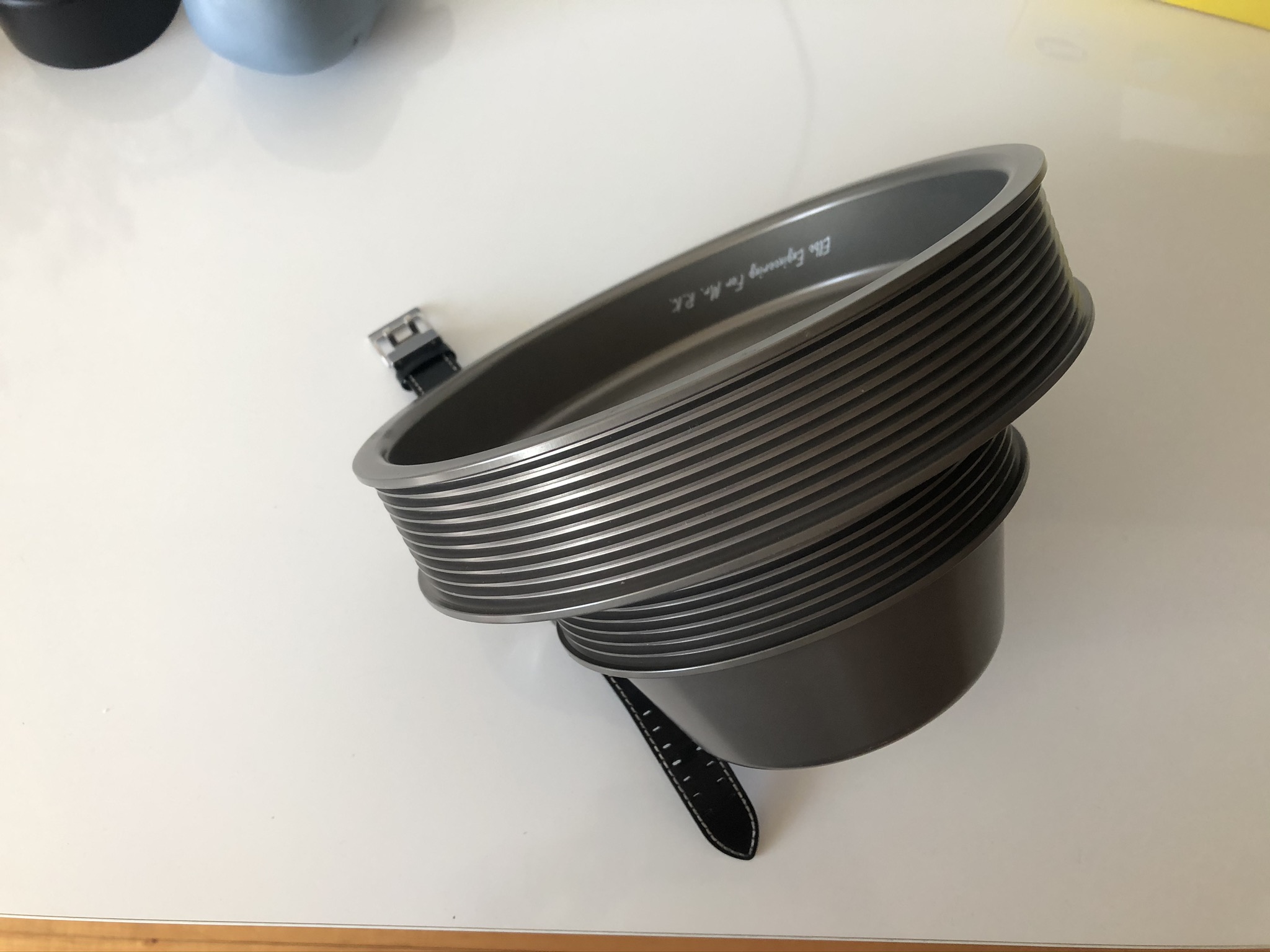

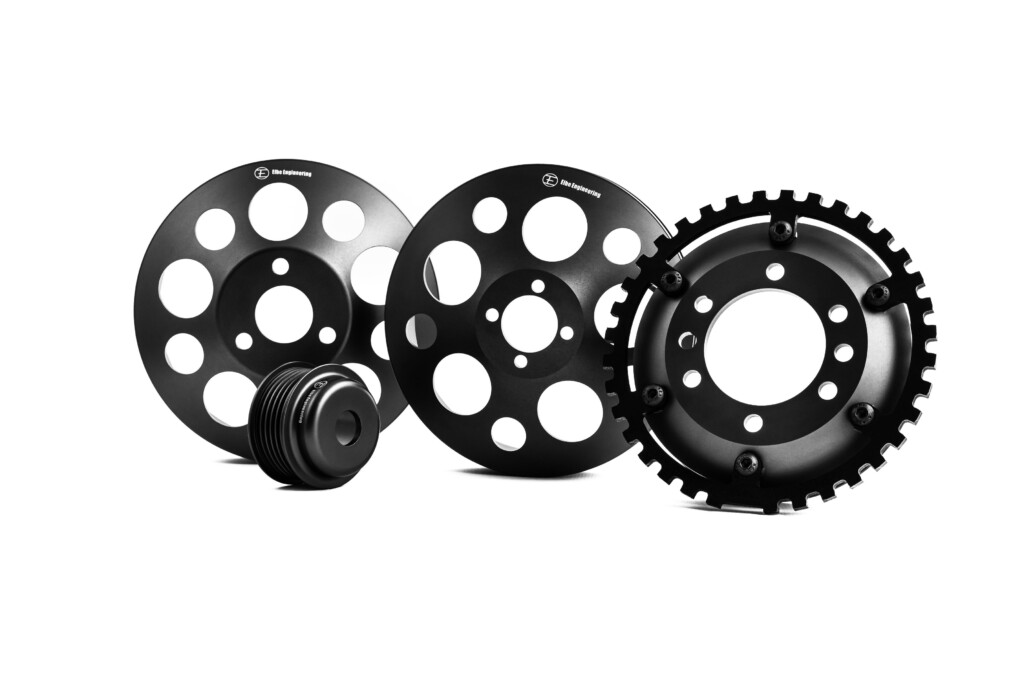

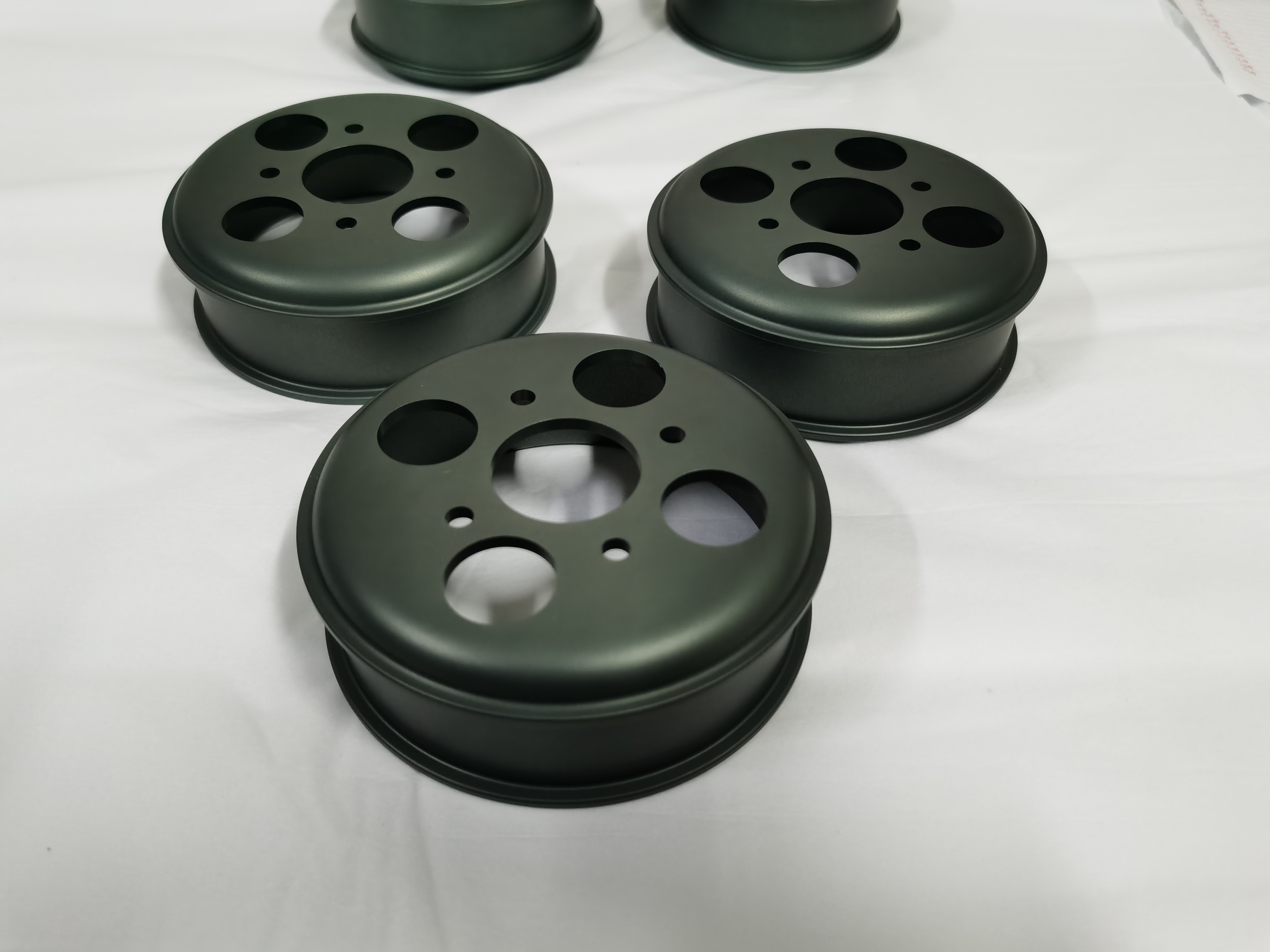

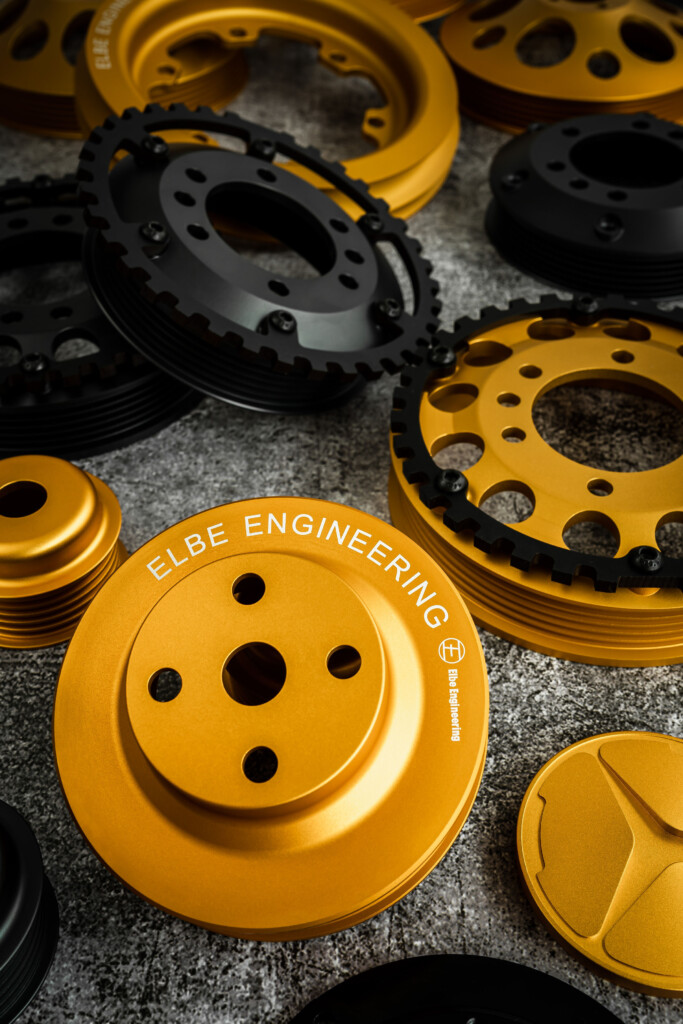

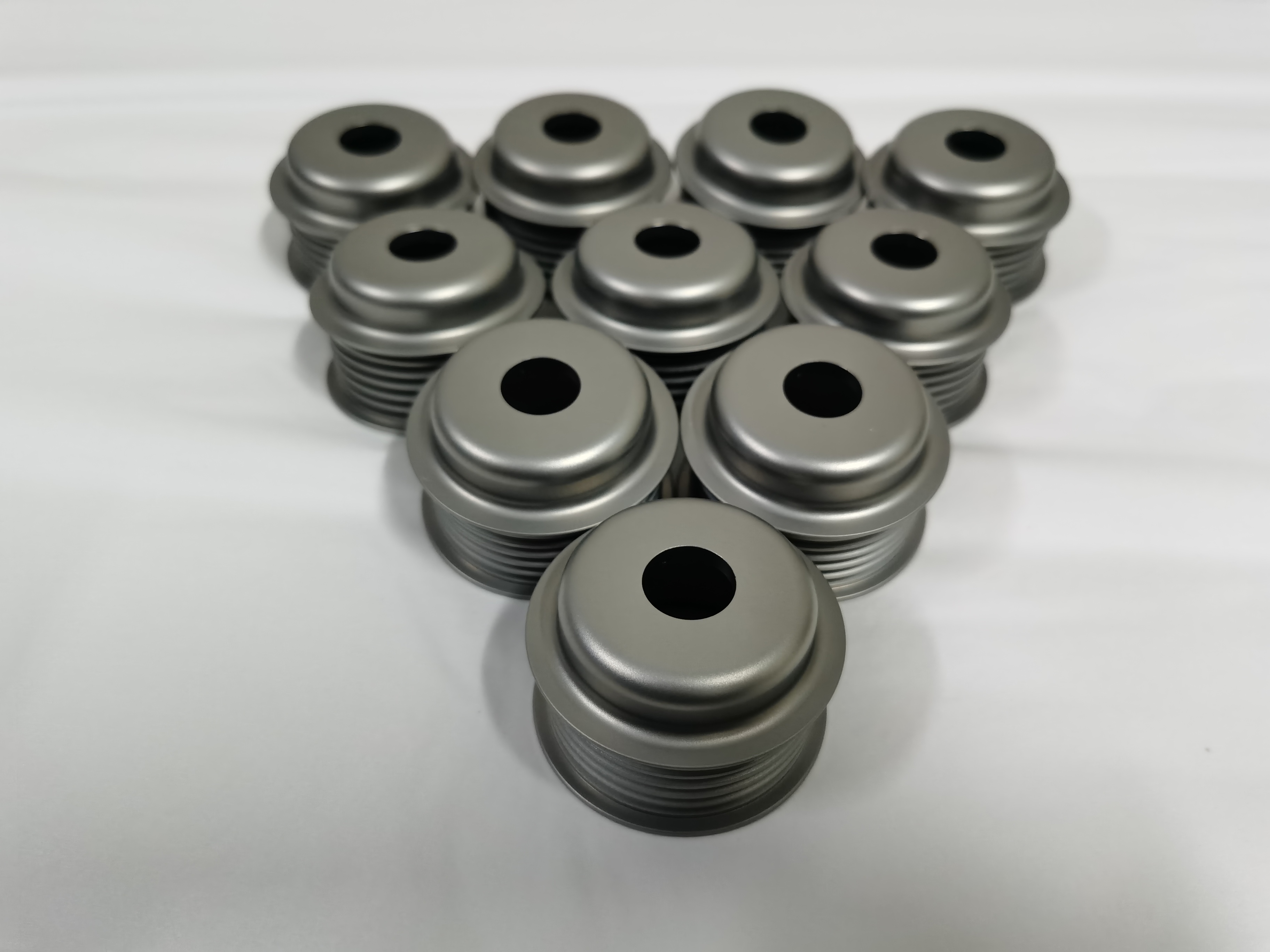

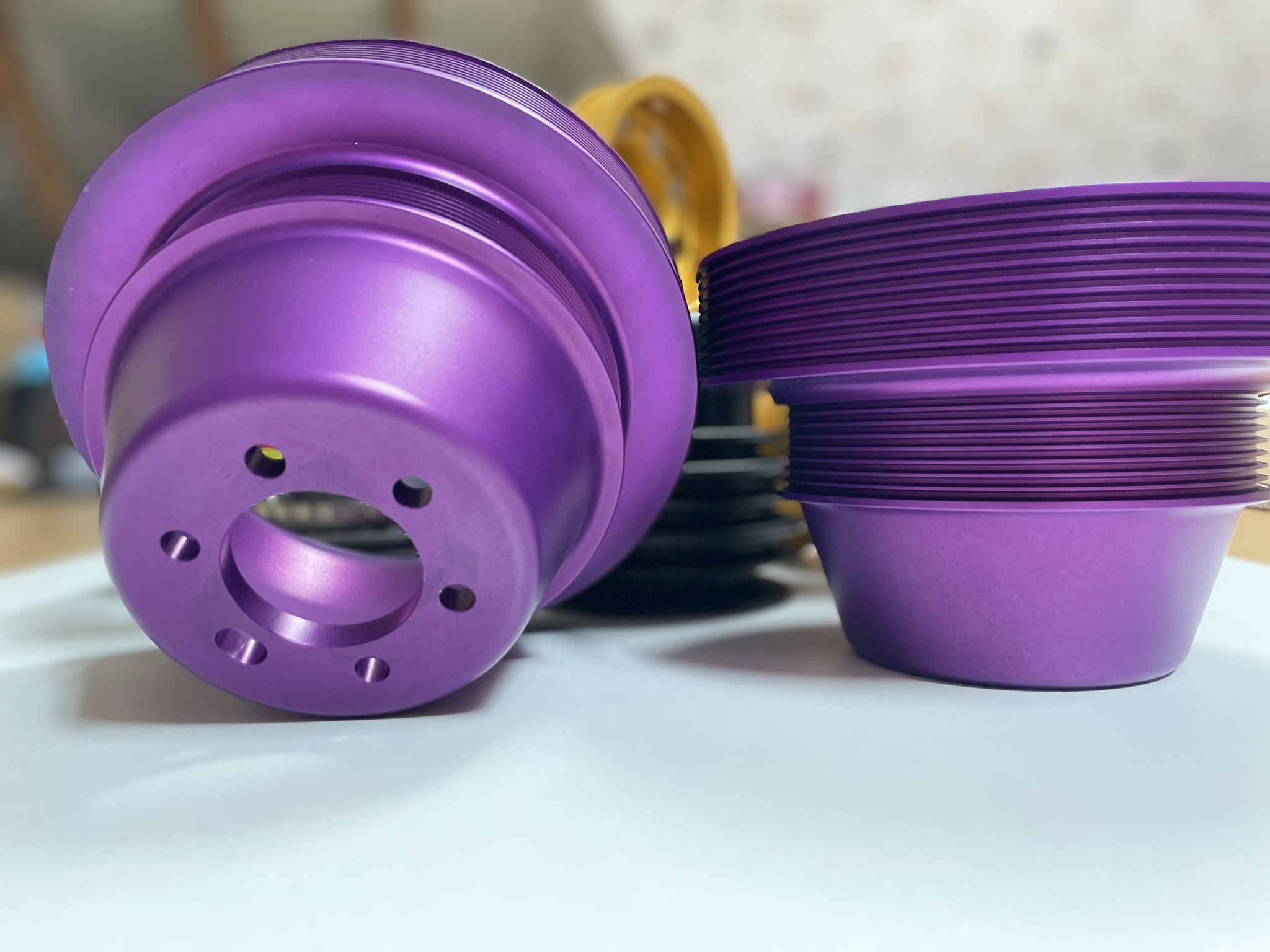

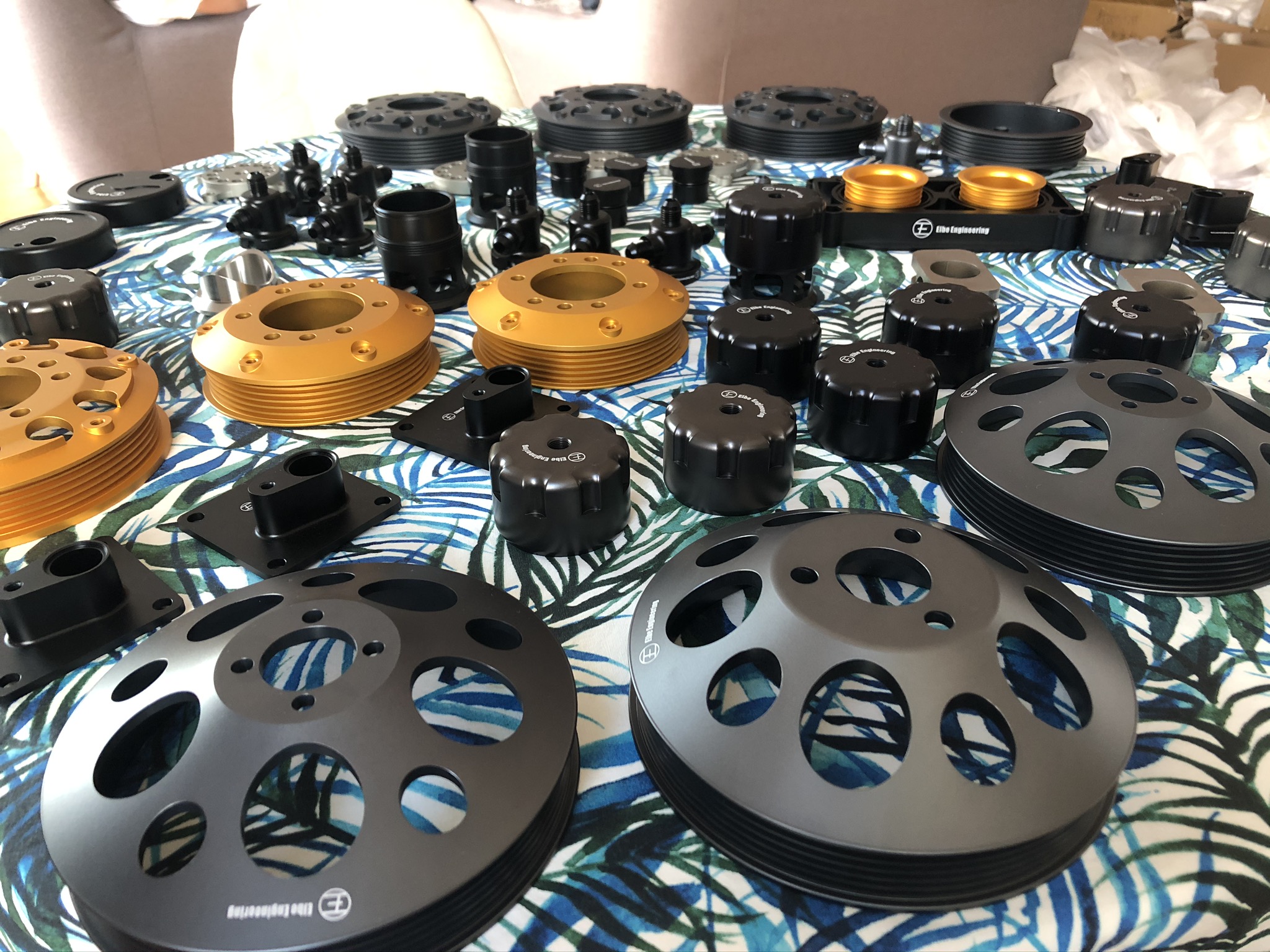

Lightweight pulleys for MB engines: M102-8V ; M102-16V ; M116/M117 ; M120

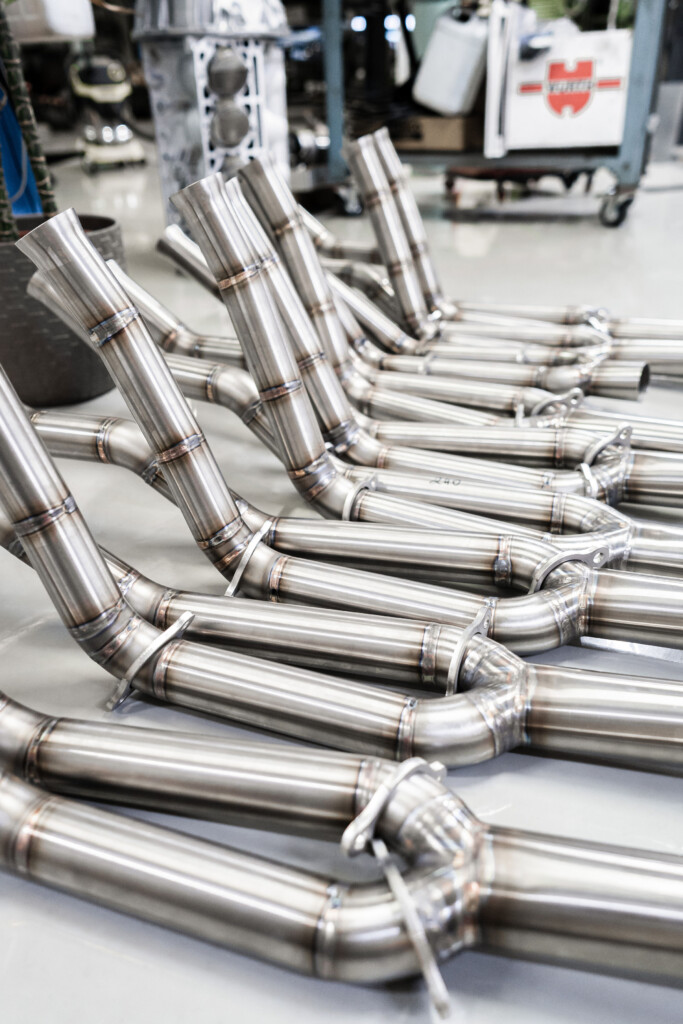

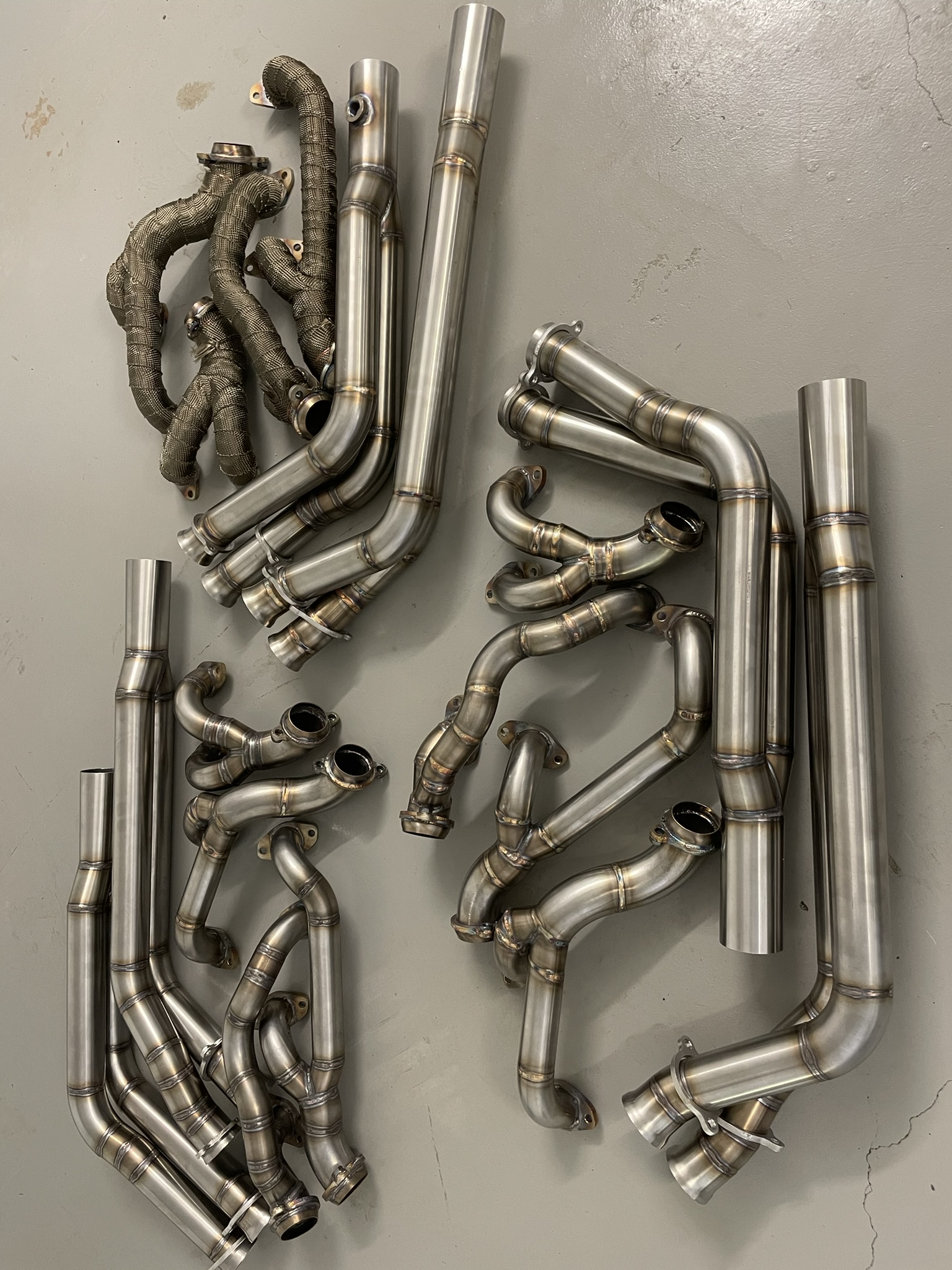

Naturally aspirated stainless steel manifolds: MB M117 (R107 ; W126 ; W460/W463) ; M119

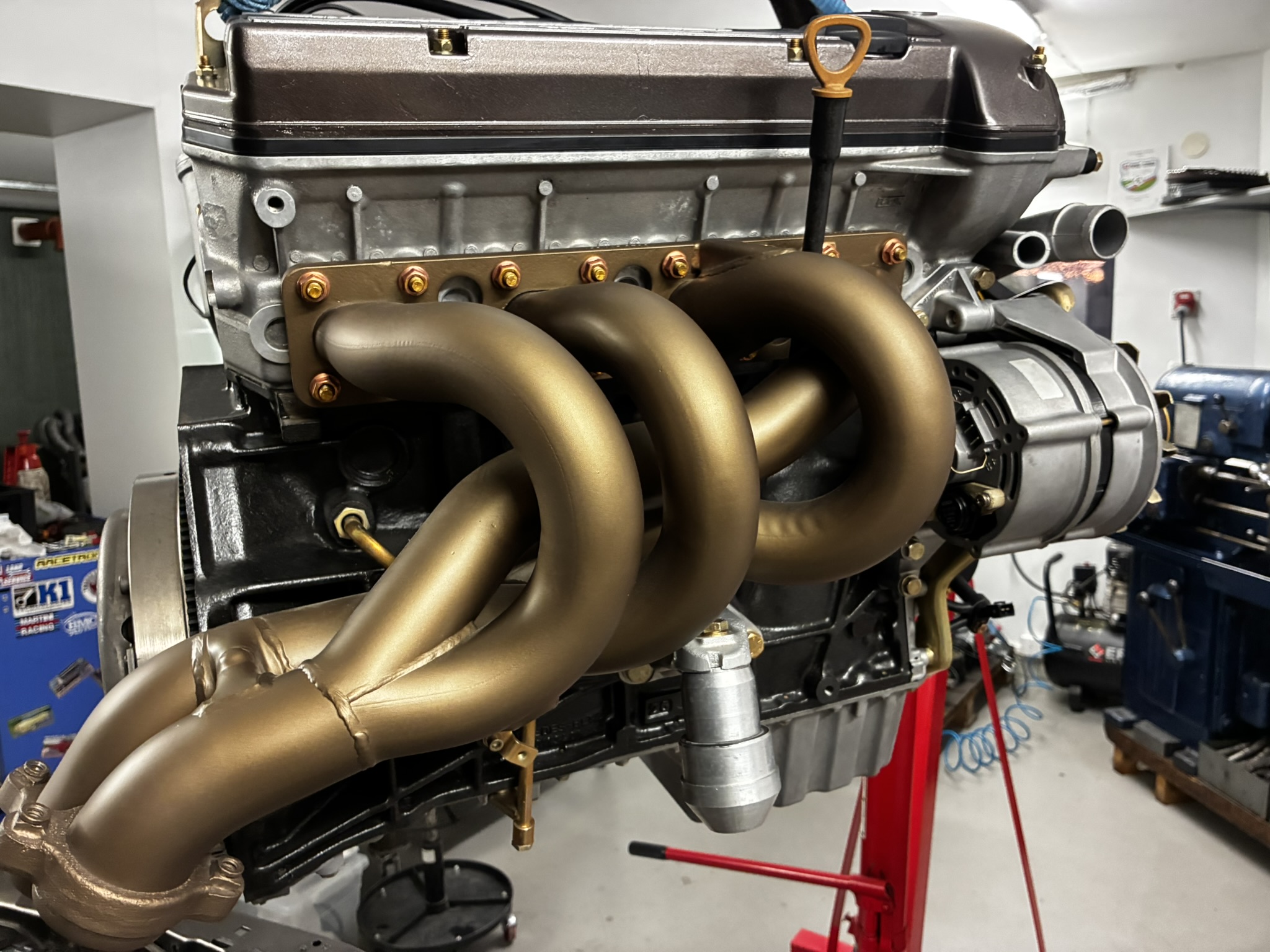

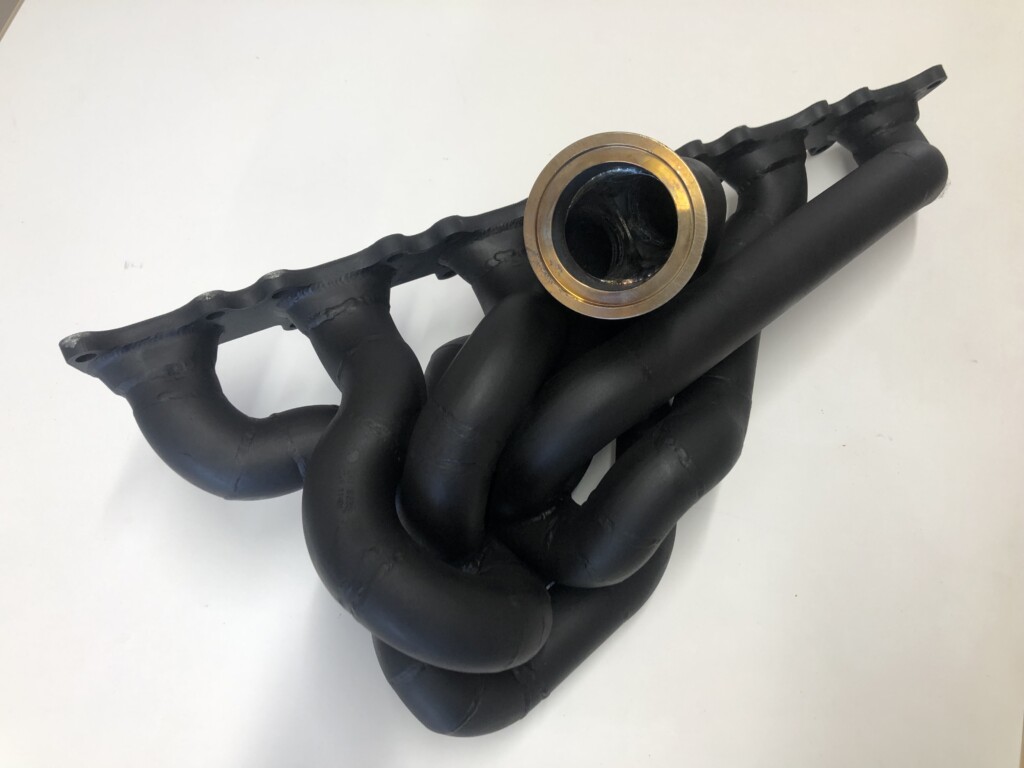

Mild steel turbo tubular manifolds: M102-8V ; M102-16V ; M103 ; M104 ; M117 ; OM602 ; OM603 ; OM605 ; OM606 ; BMW S50

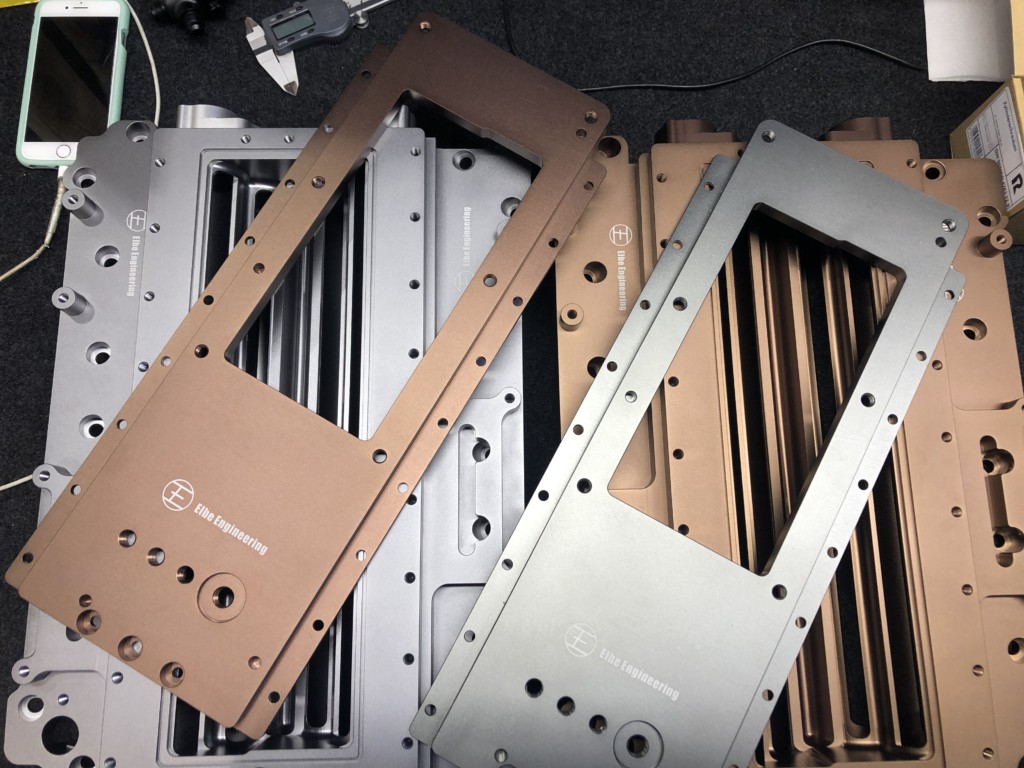

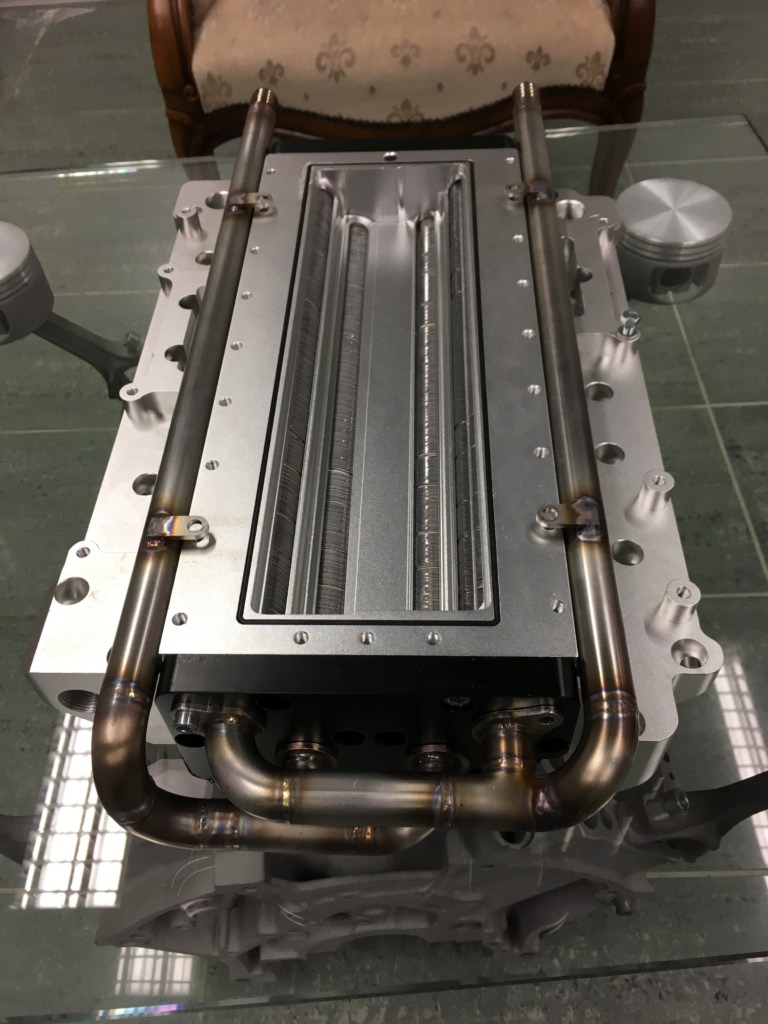

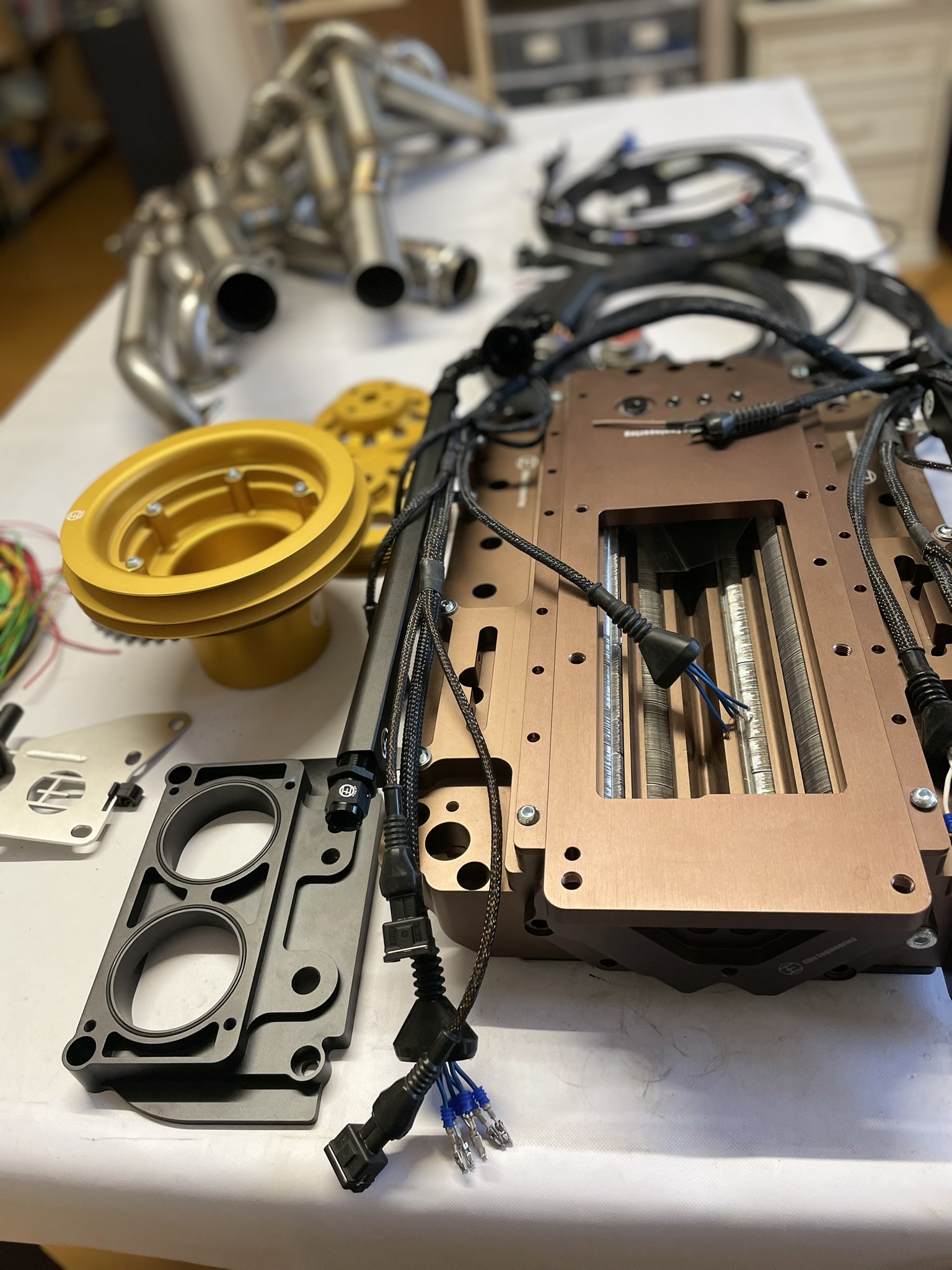

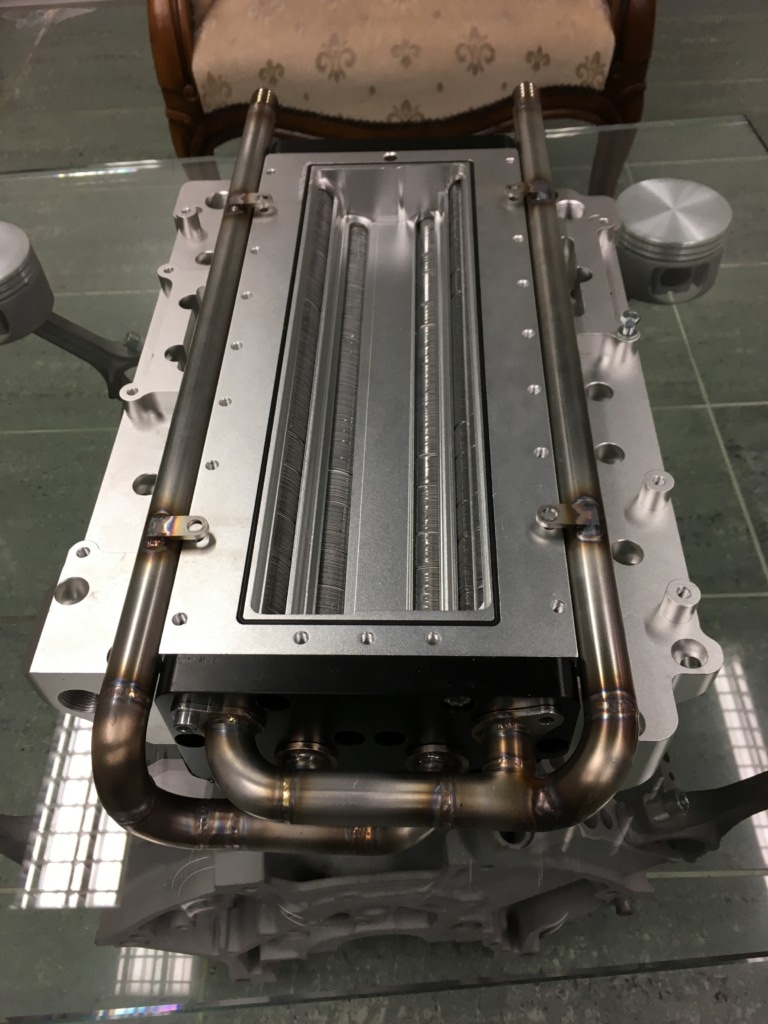

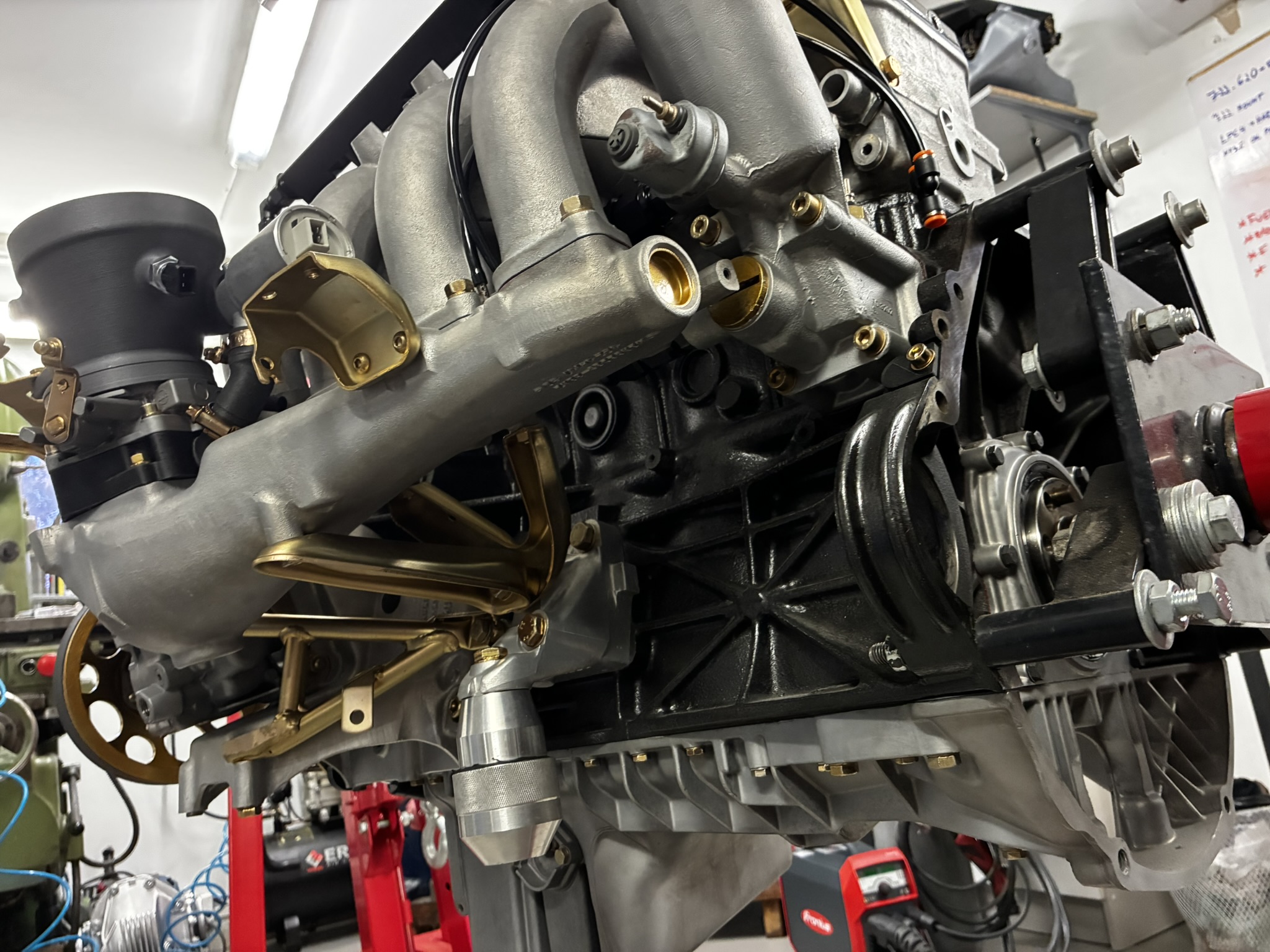

Intake manifold with internal cooler: M117 ; OM606
M117 lower intake plenum with increased volume and port for idle air valve

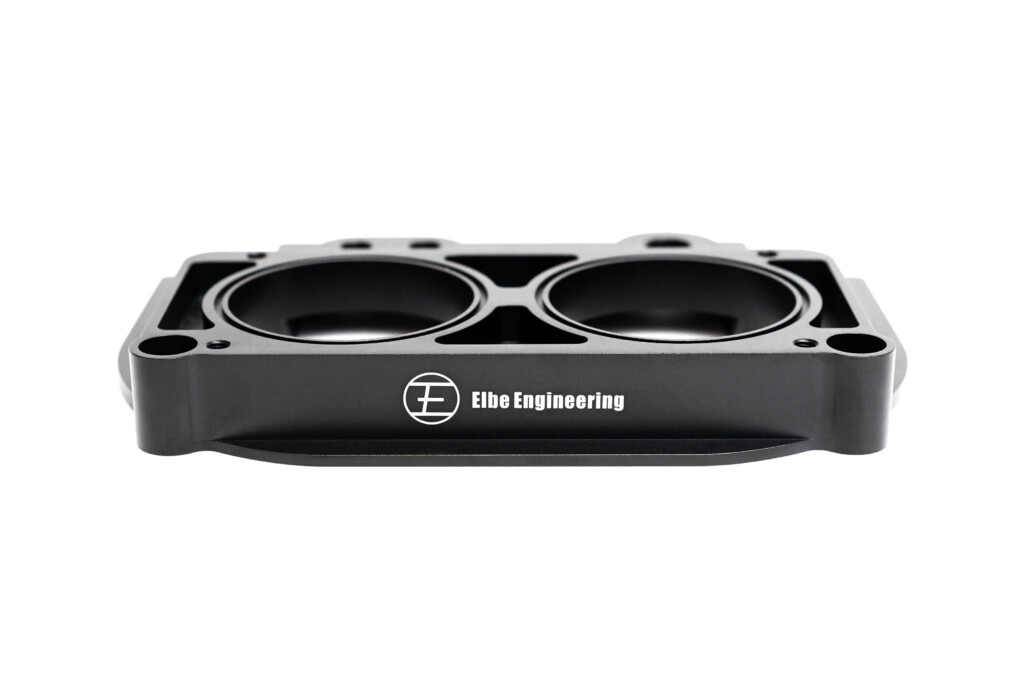

Slide throttles: MB M102-16 ; VW Golf 8V

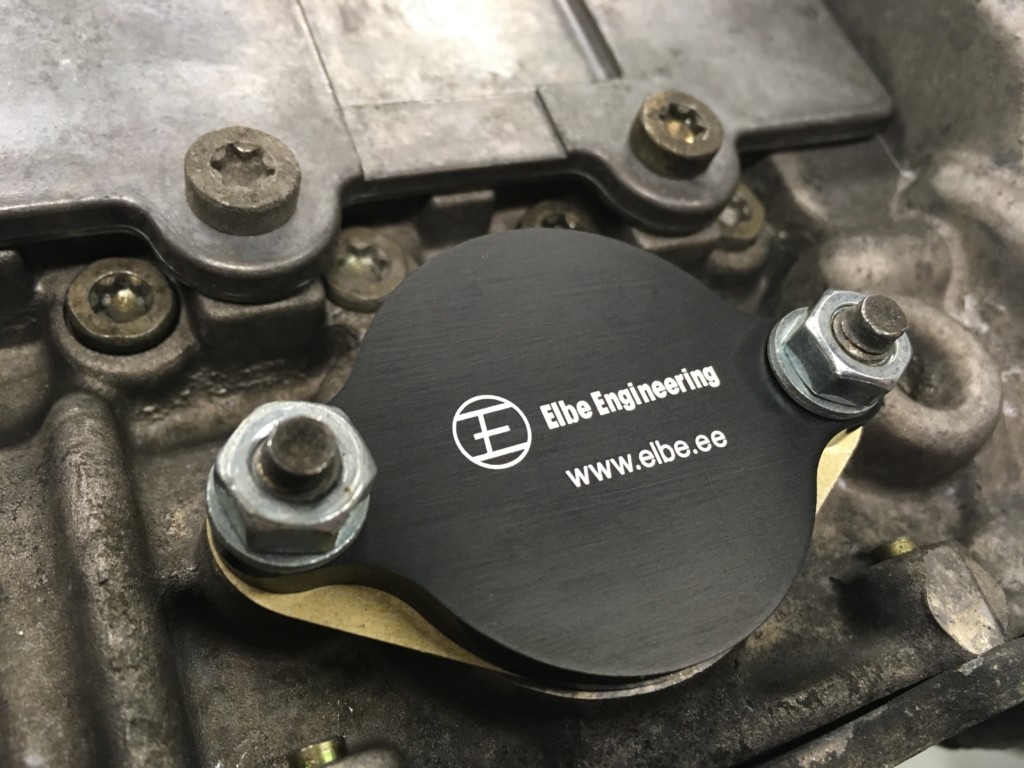

OM605/OM606 EDC pump fuel inlet flange/fitting and mechanical fuel pump covers

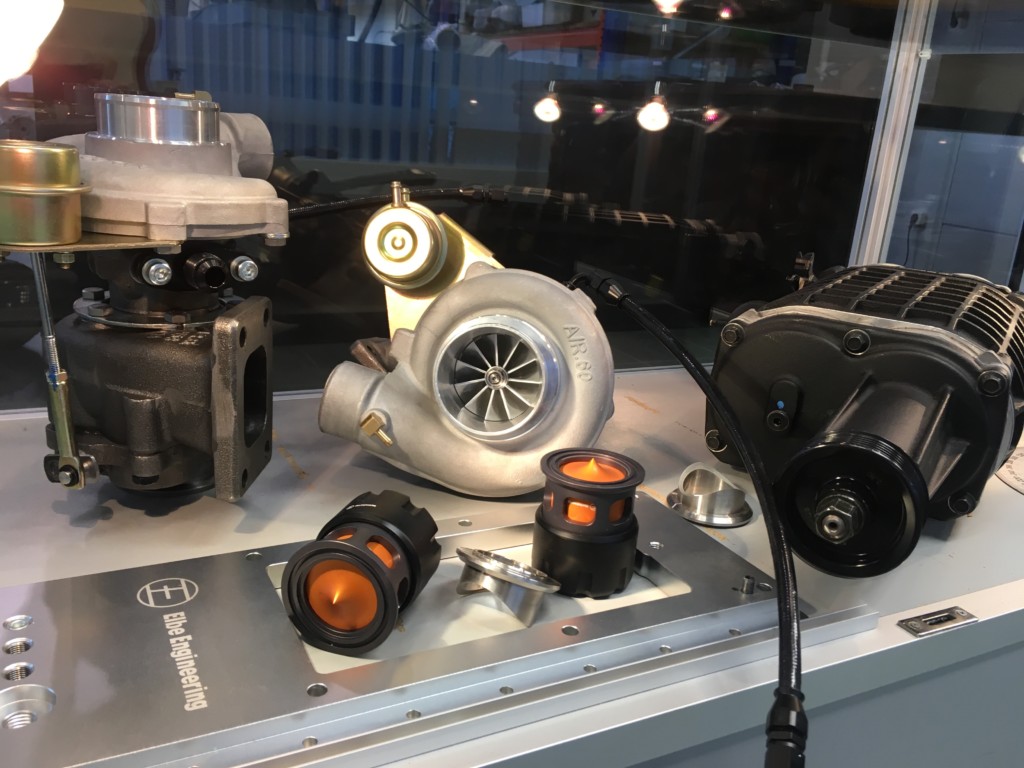

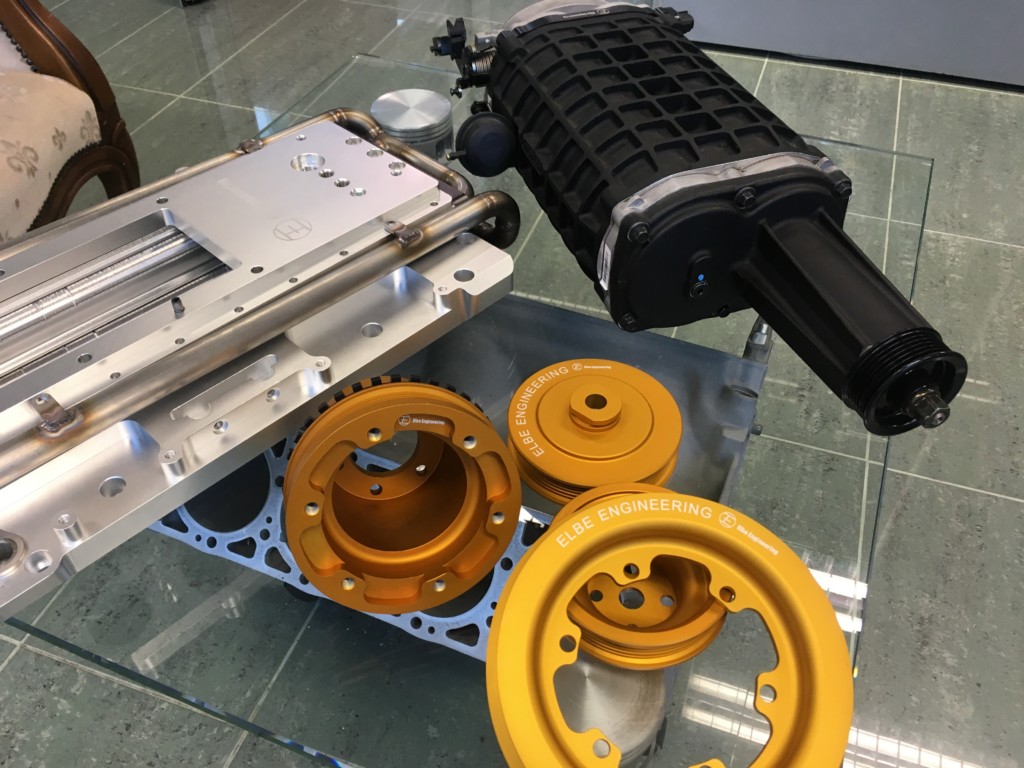

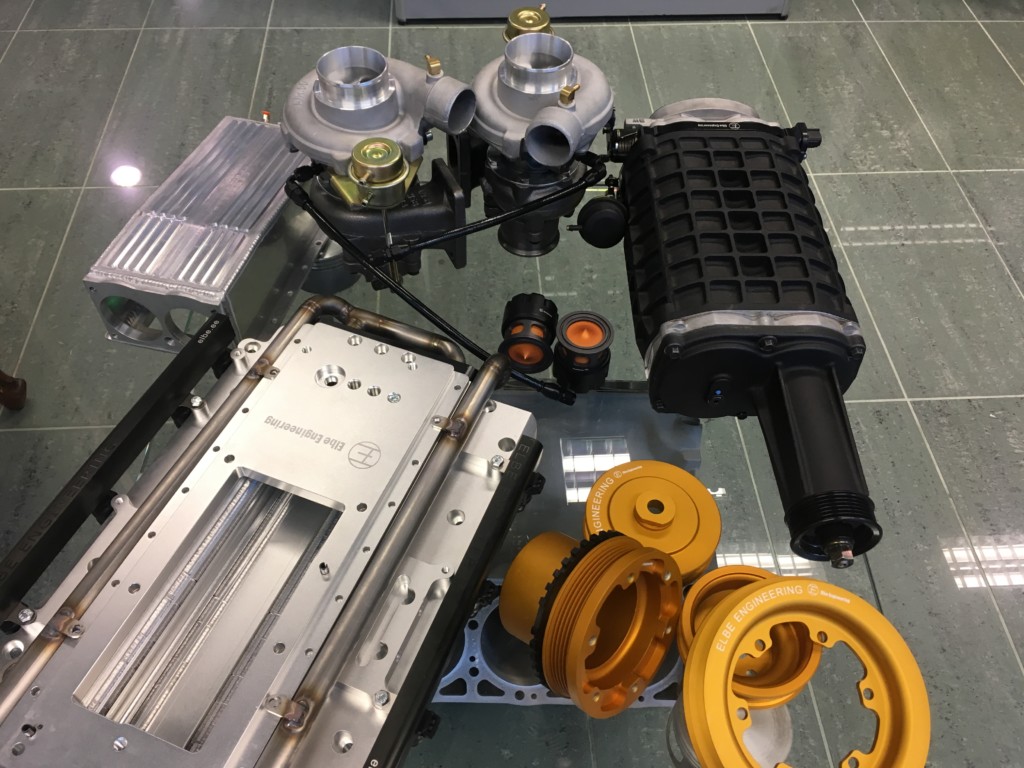

W126 M117 Supercharger setup
W126 M117 Twin turbo setup

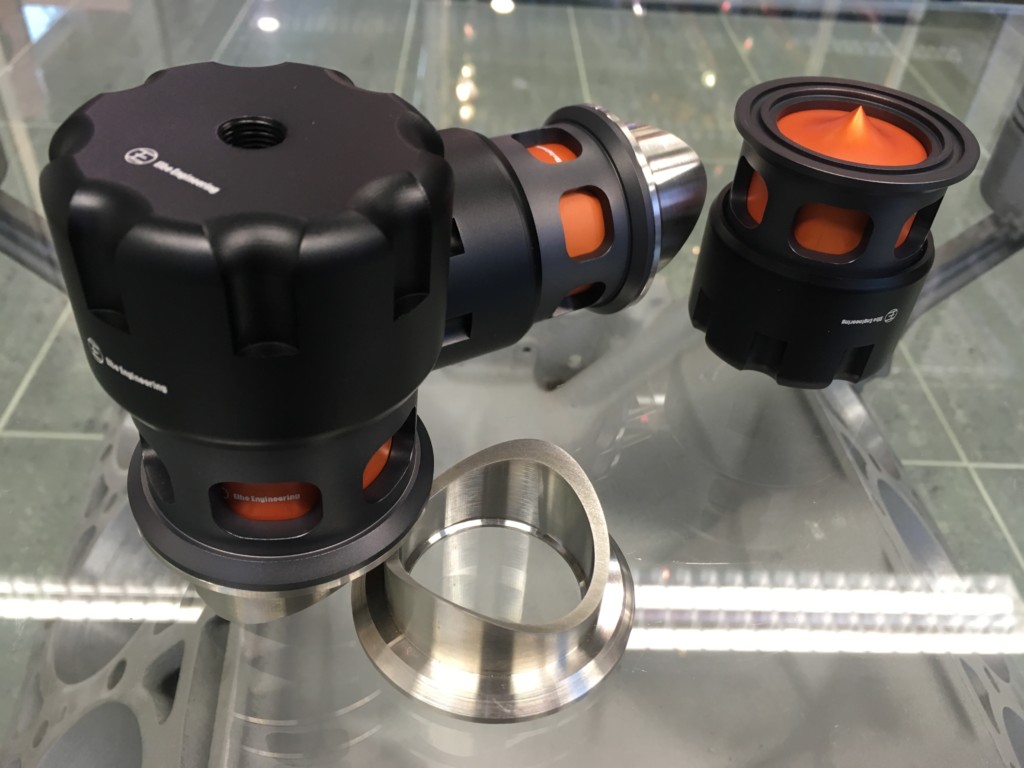

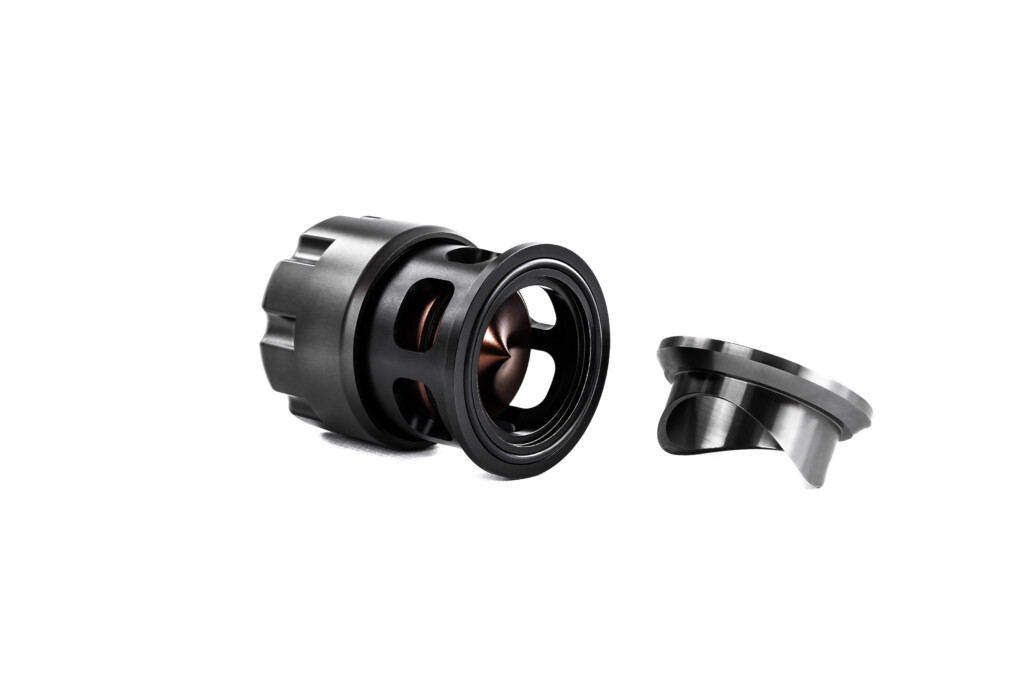

Blow off valve 45mm

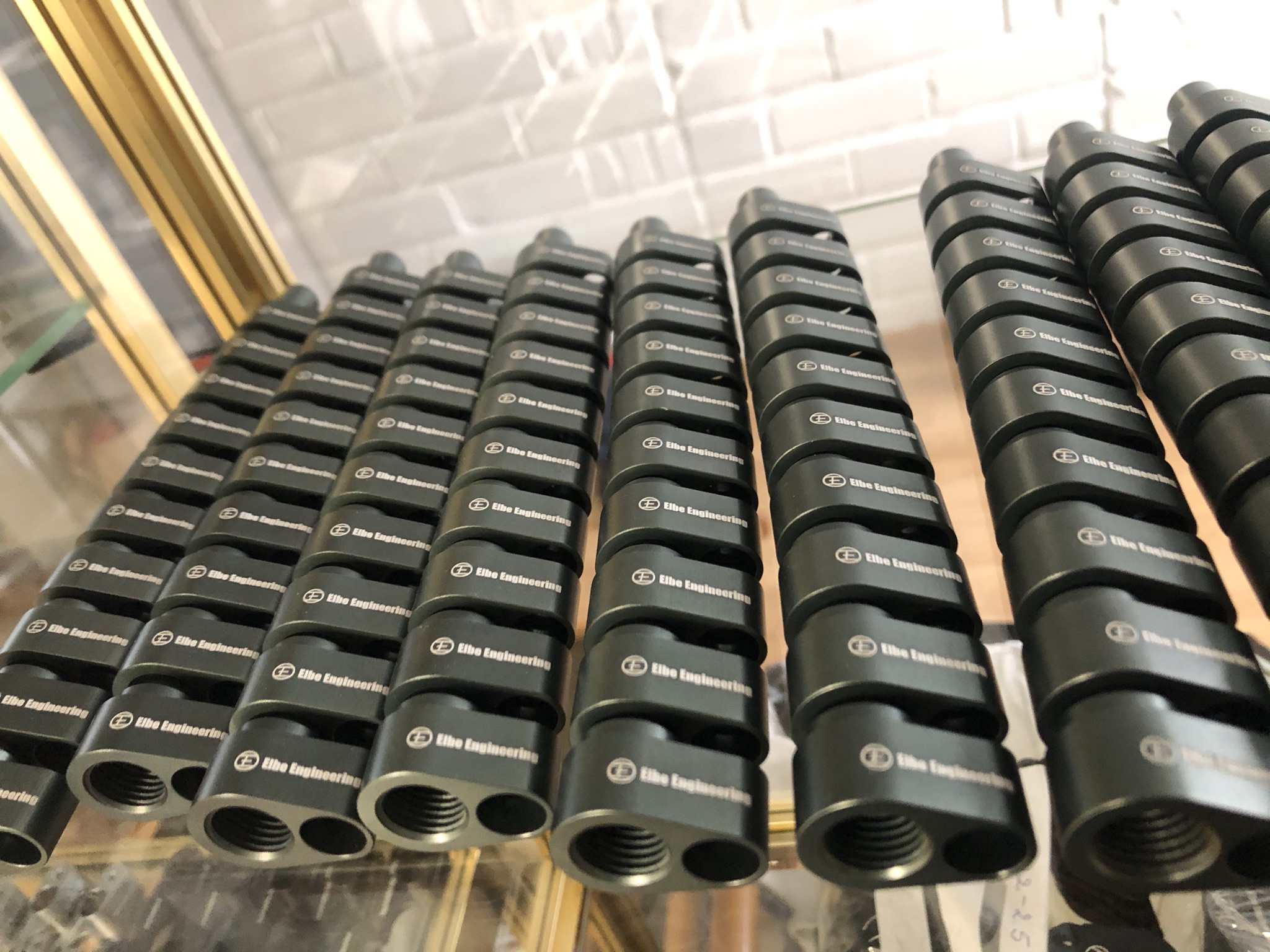

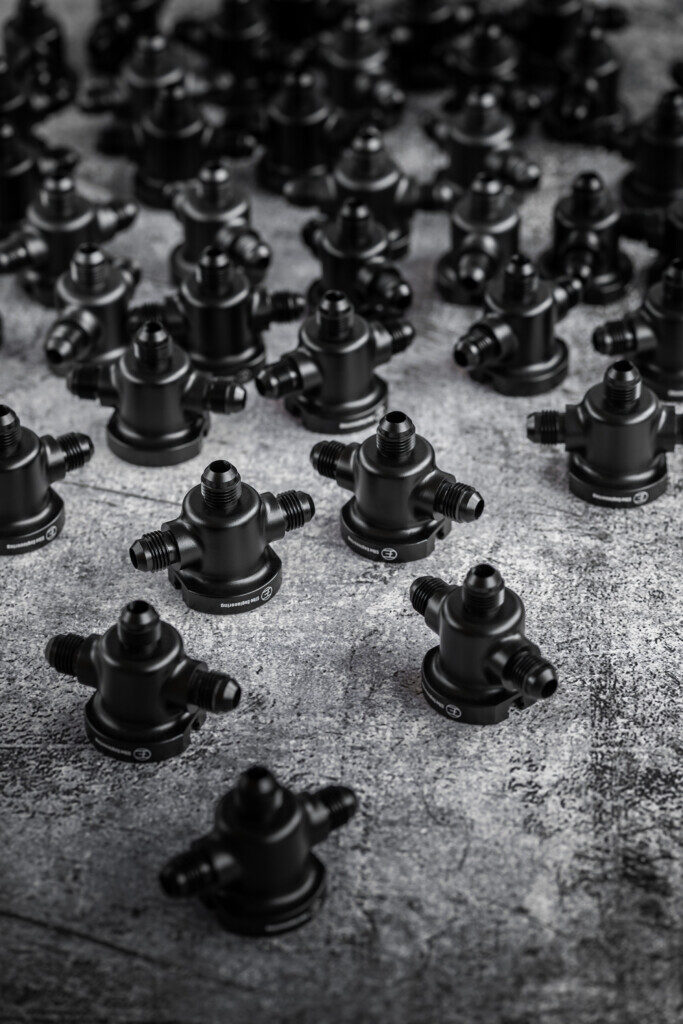

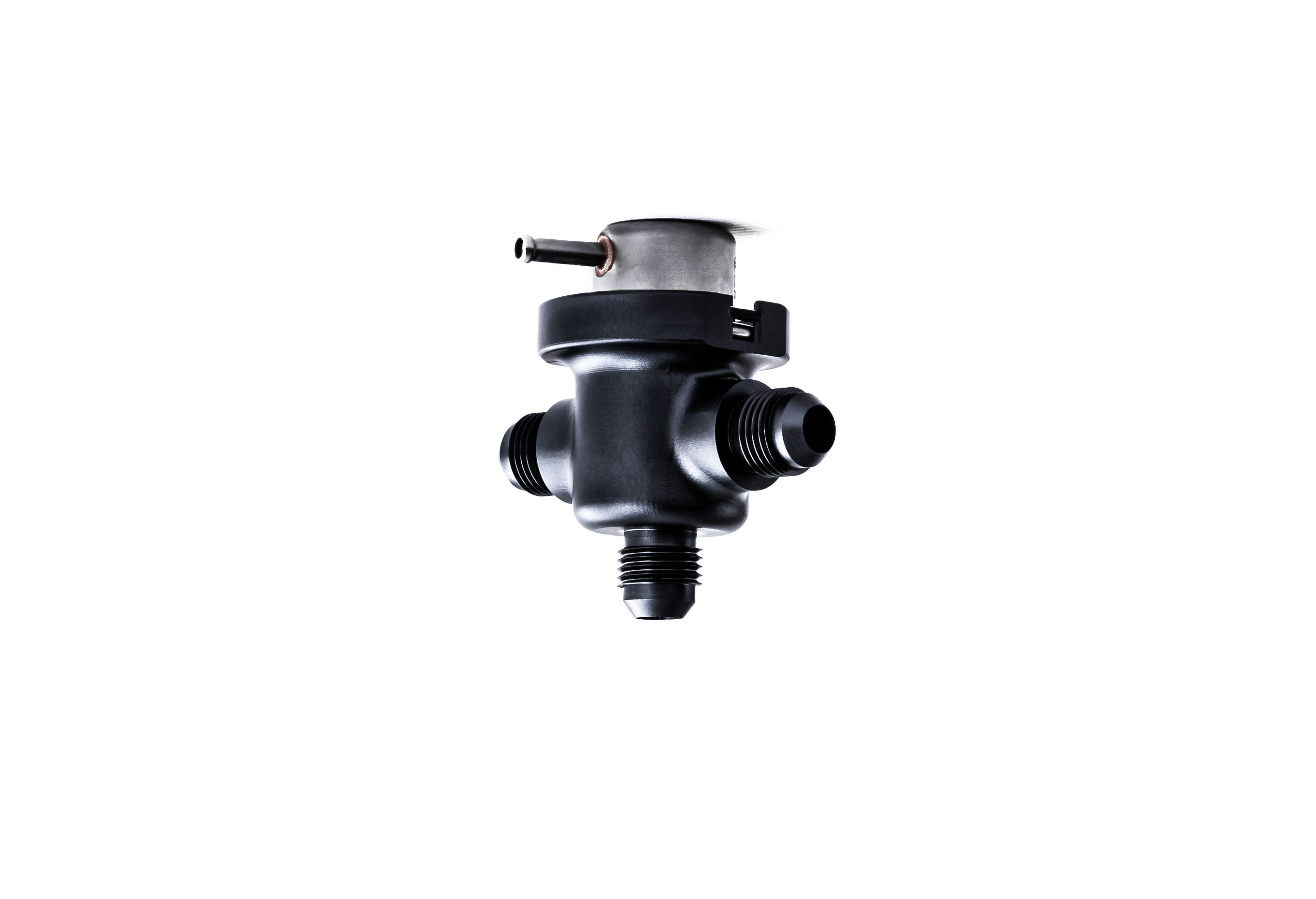

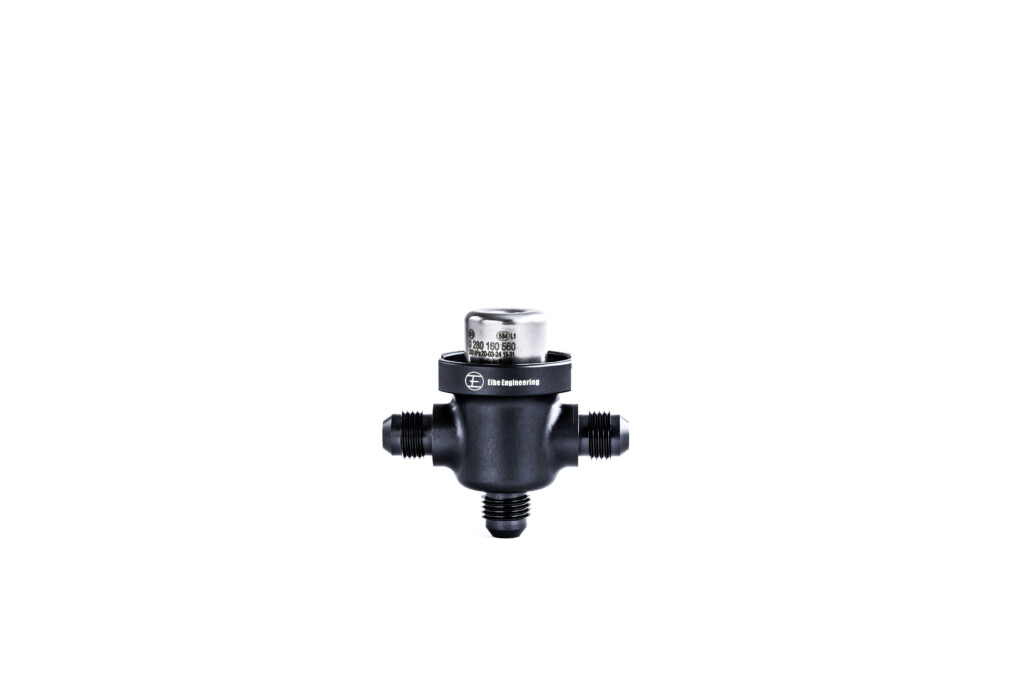

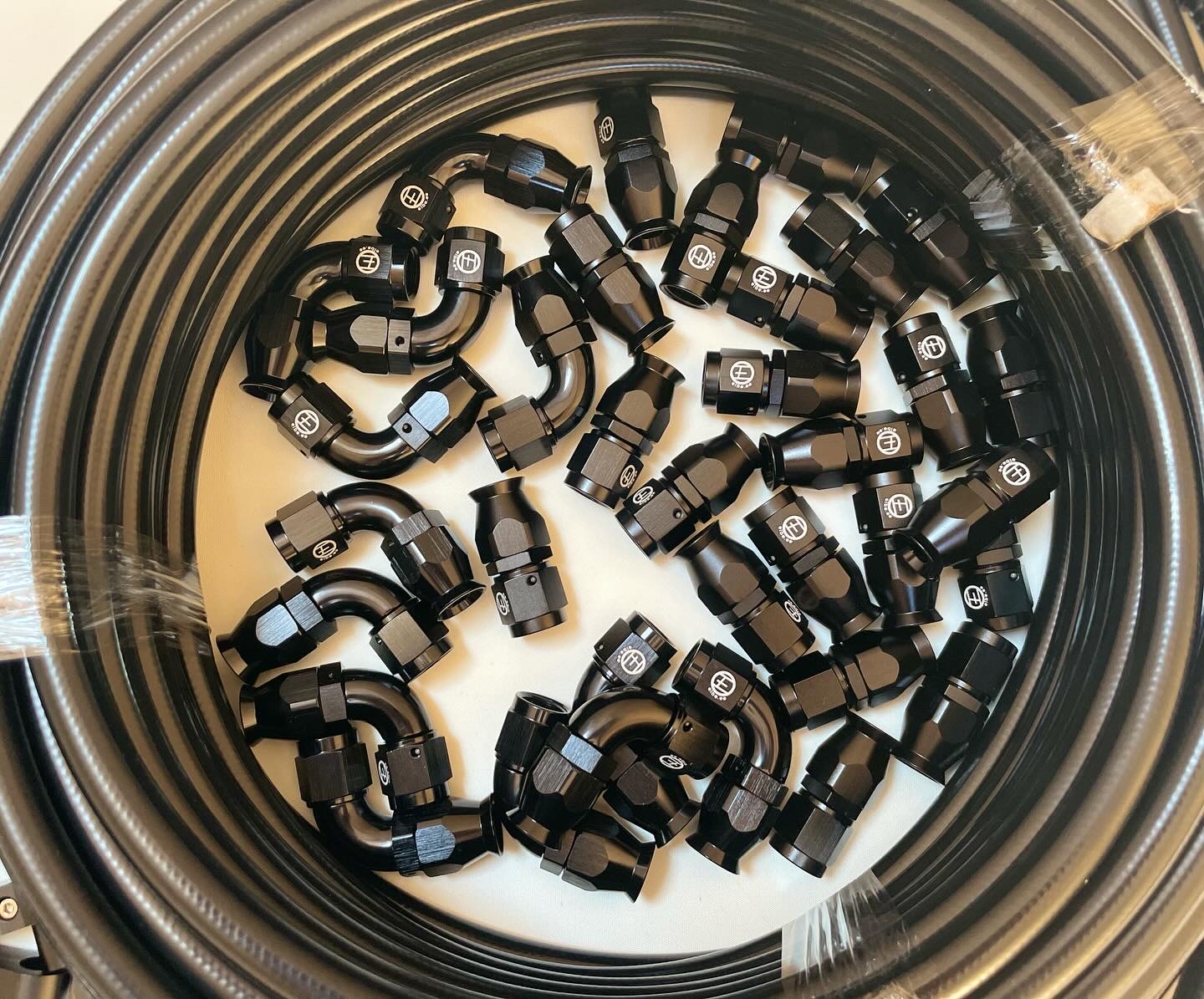

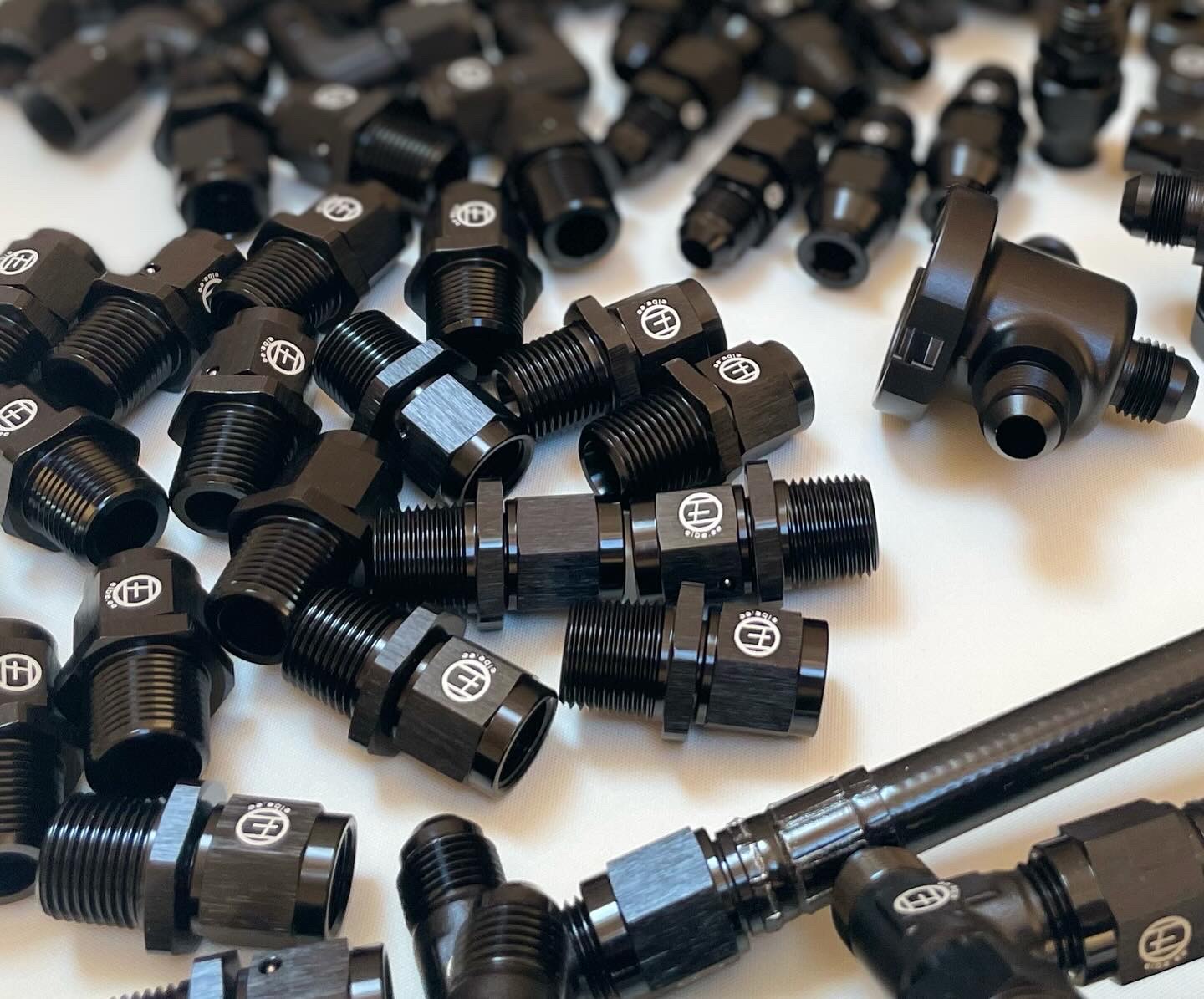

Lightweight and compact AN6 fittings dual port fuel pressure regulator housing

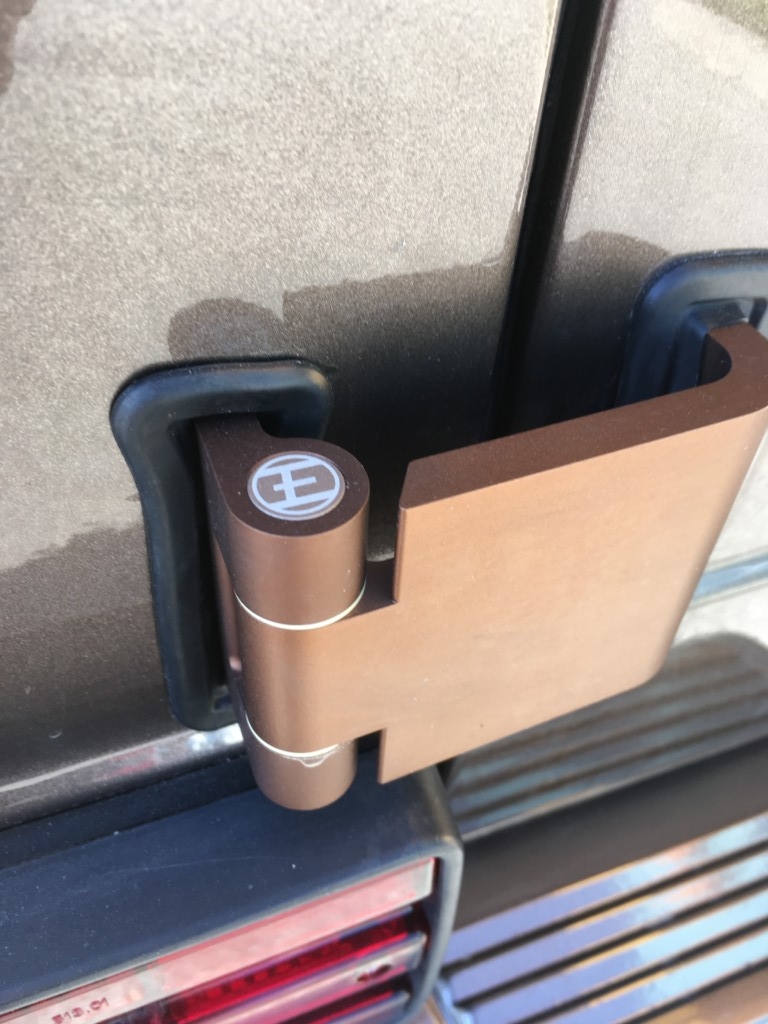

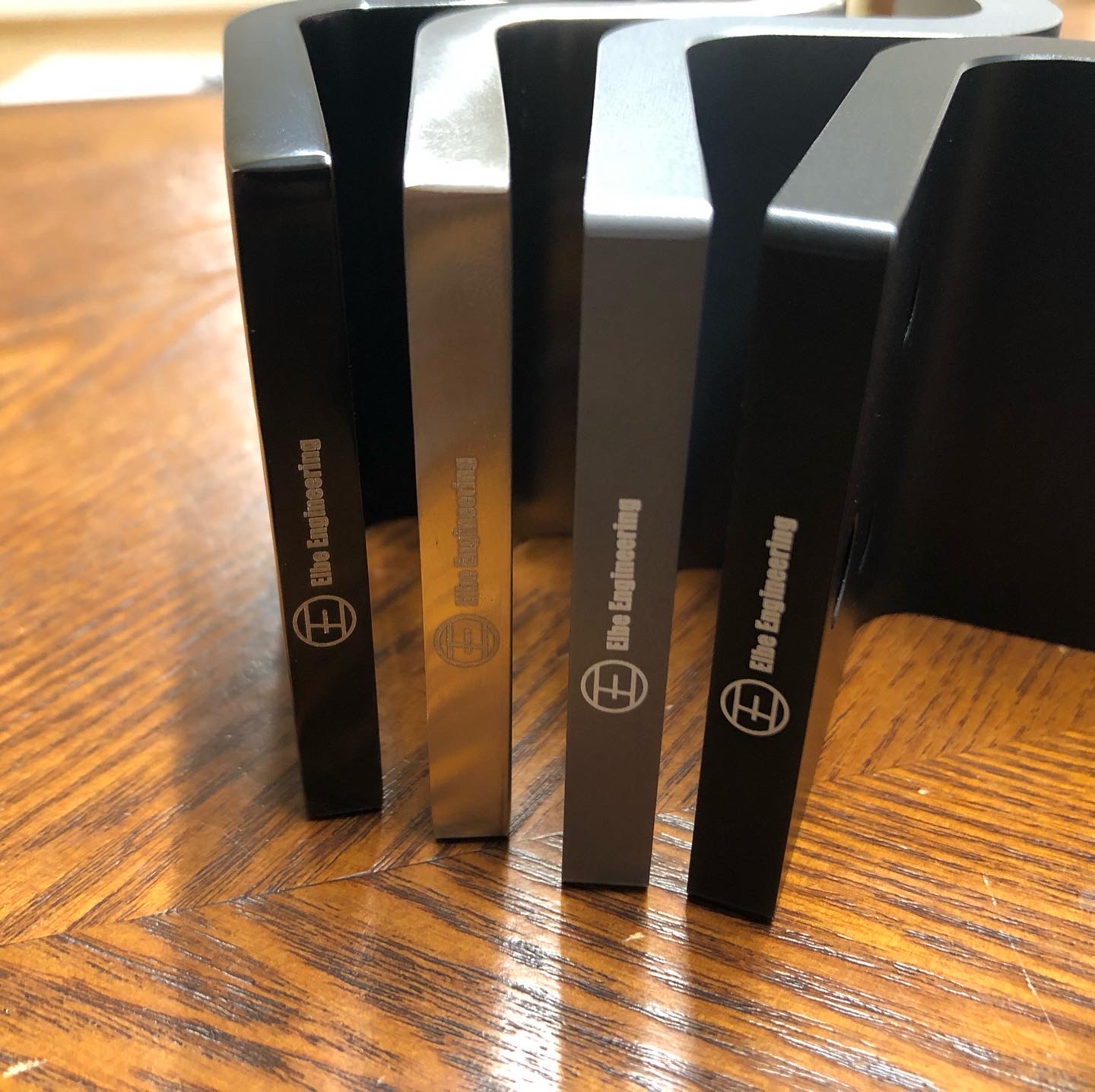

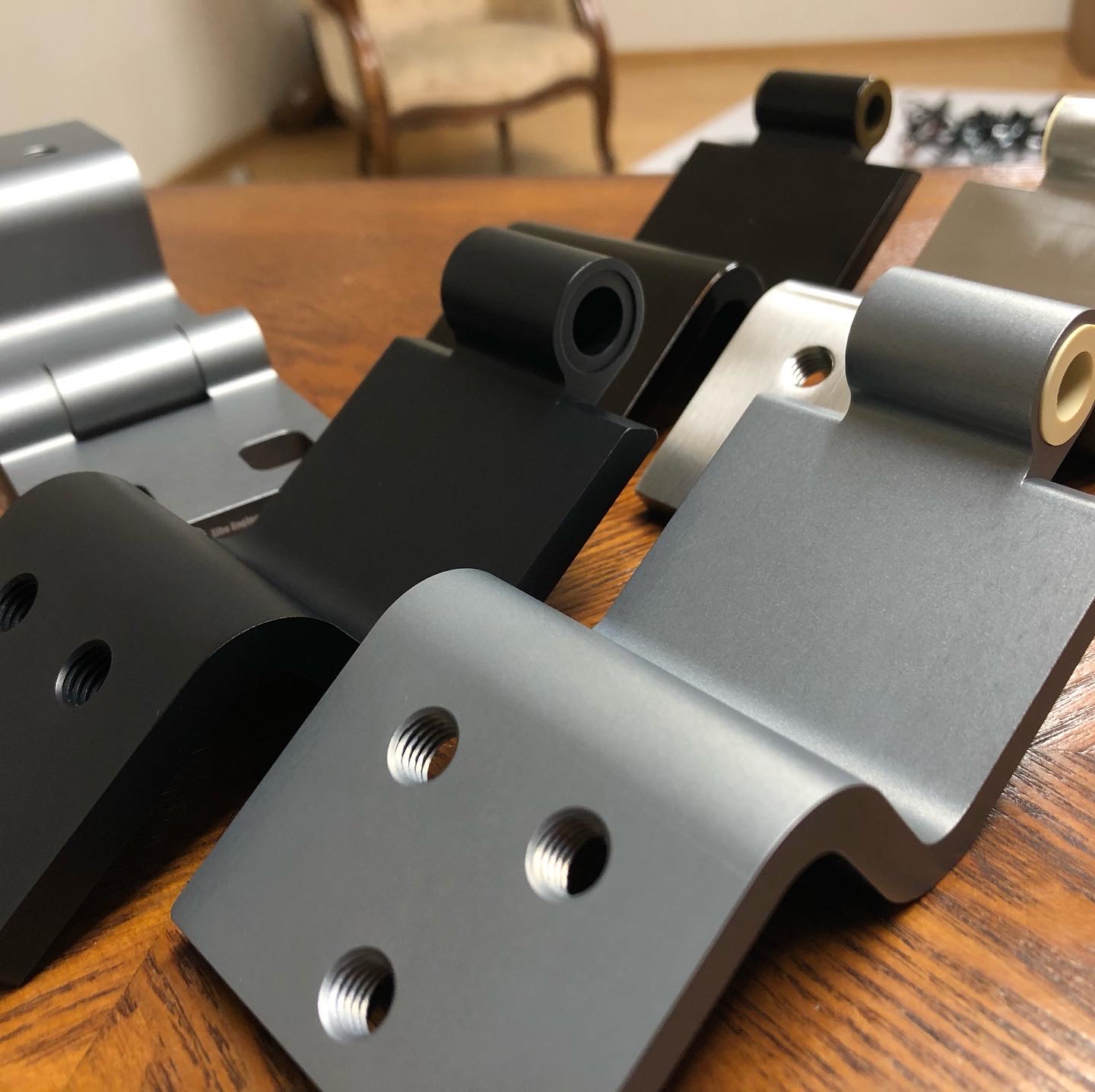

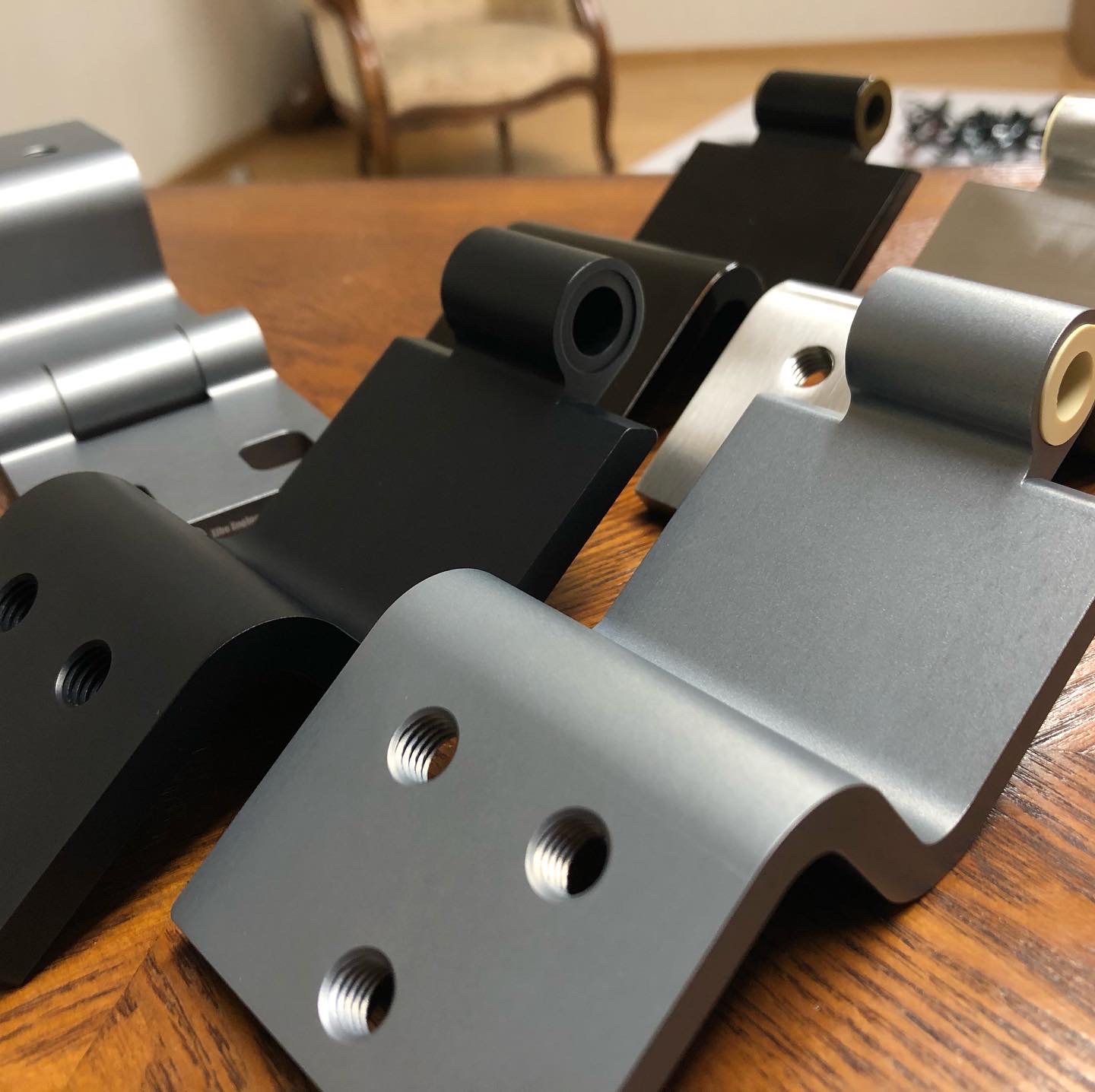

W460-W463 aluminum and stainless steel hinges

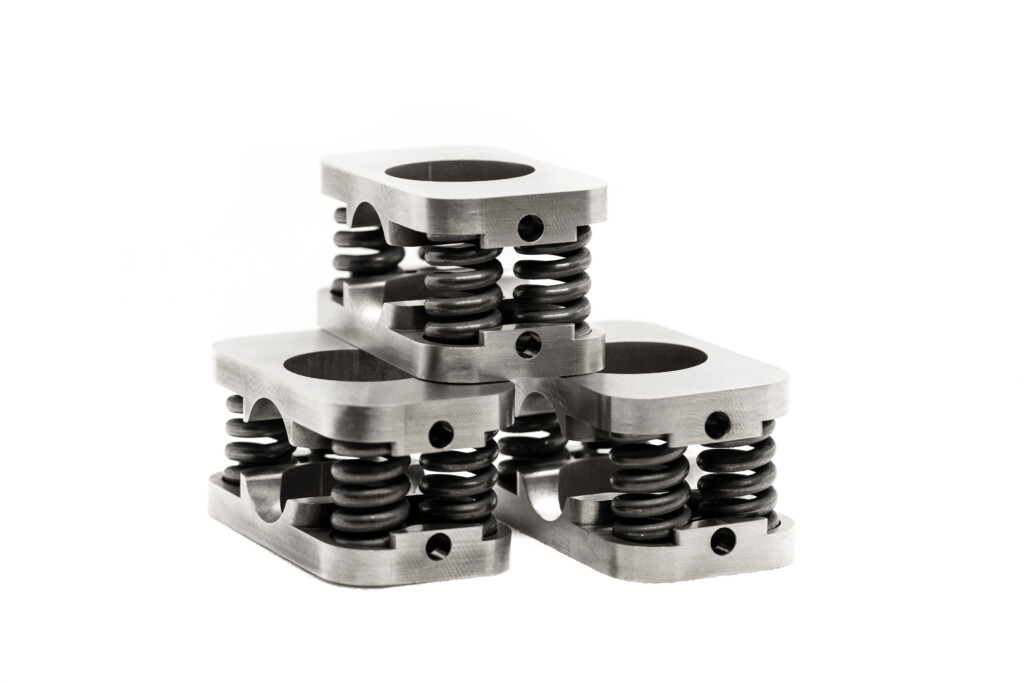

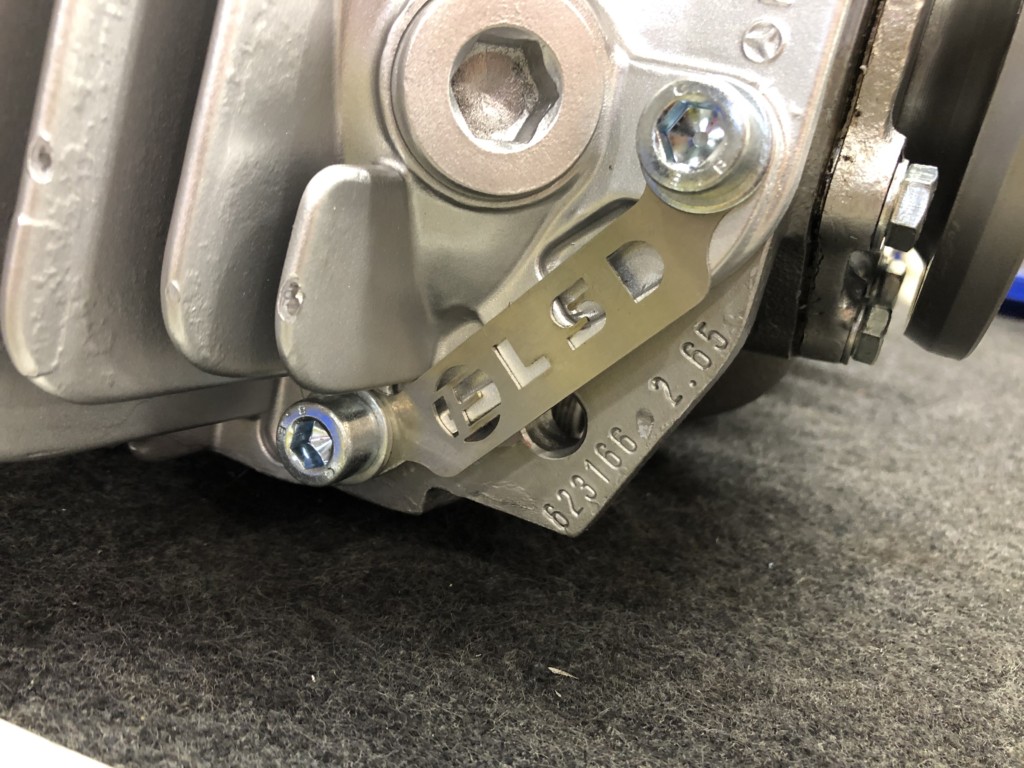

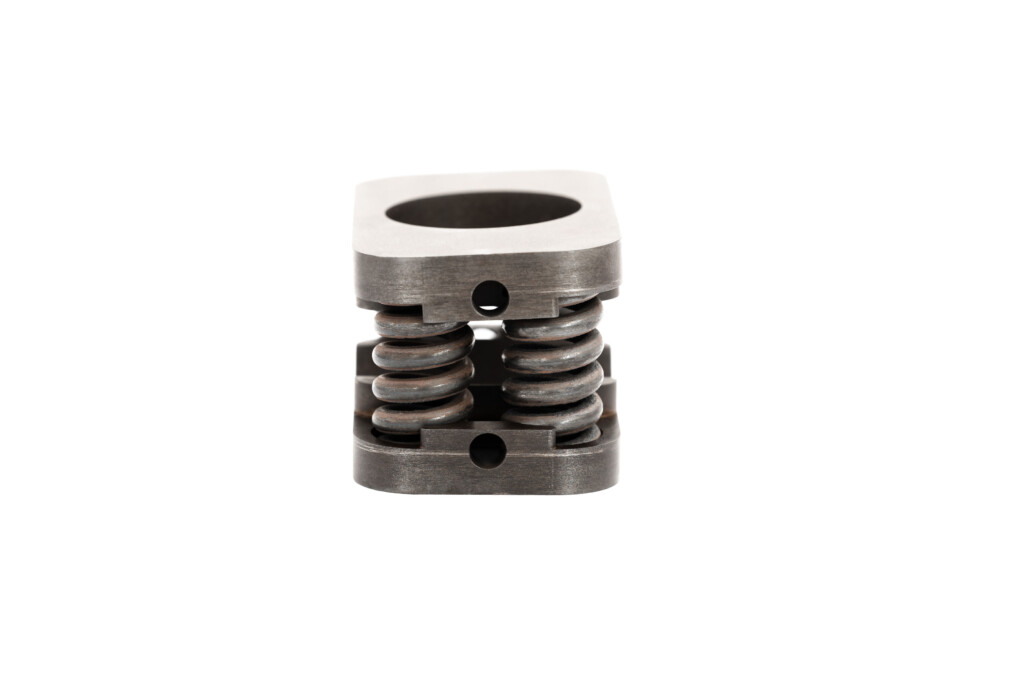

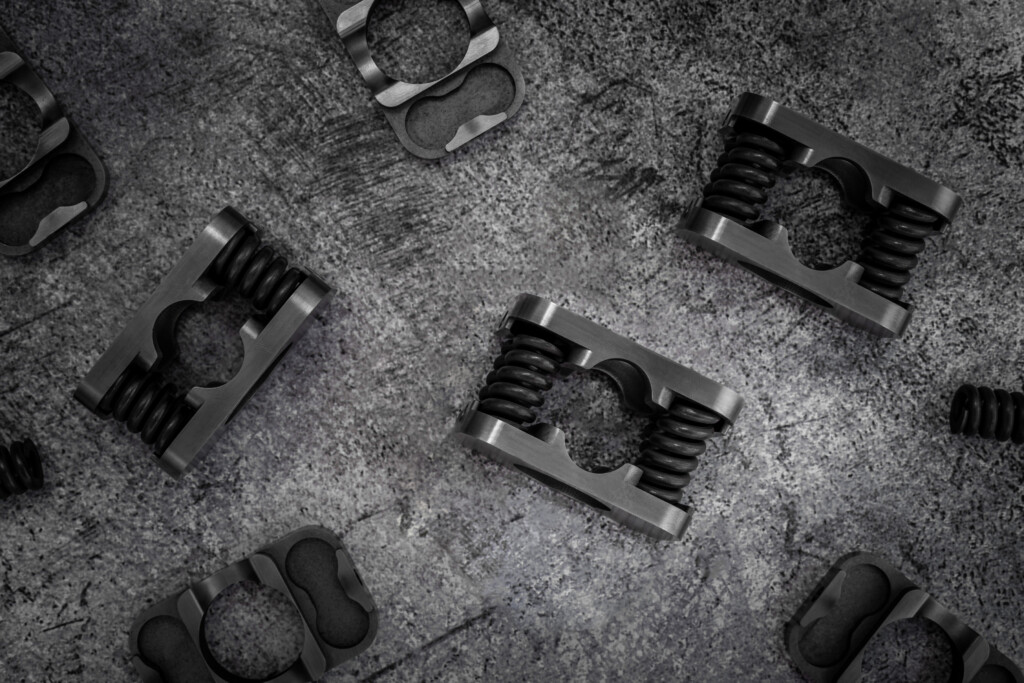

Limited slip spring block kits for MB ASD/LSD differentials – 185mm and 210mm
W201 185mm differential cover/mounting plate

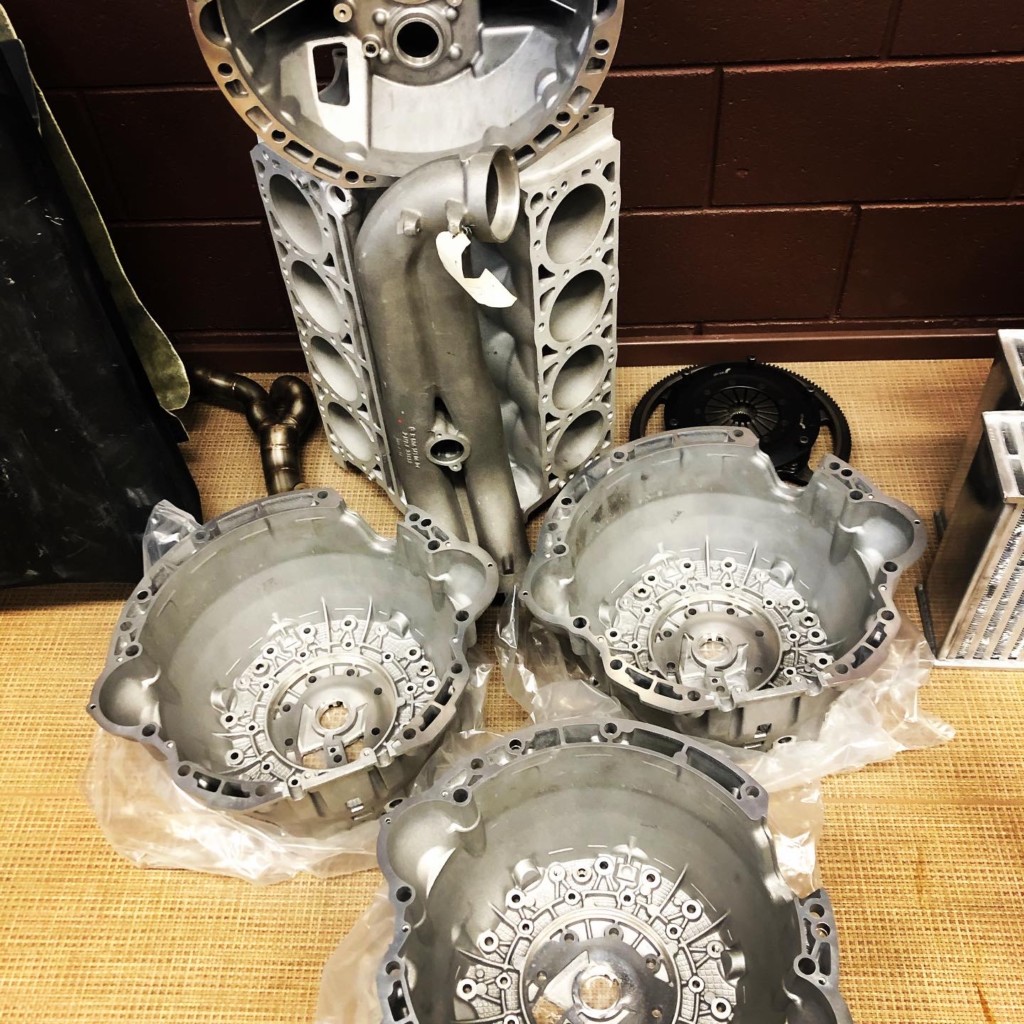

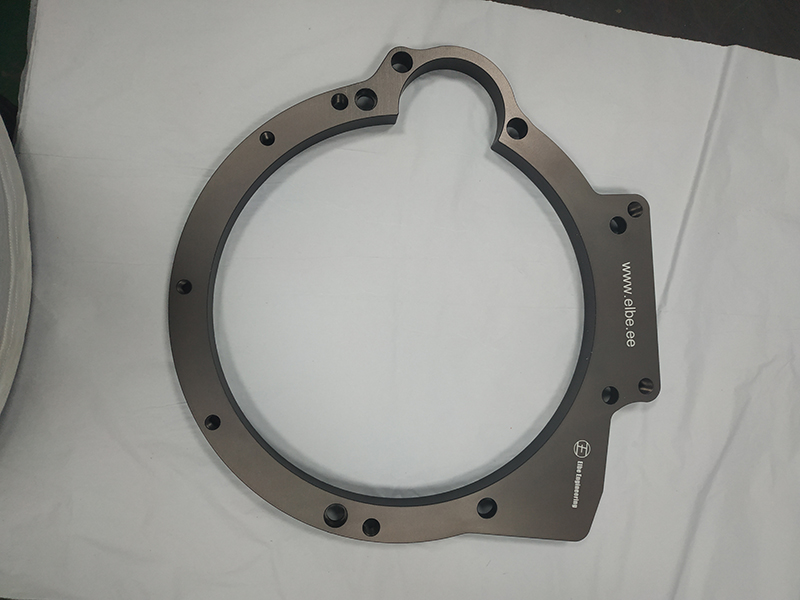

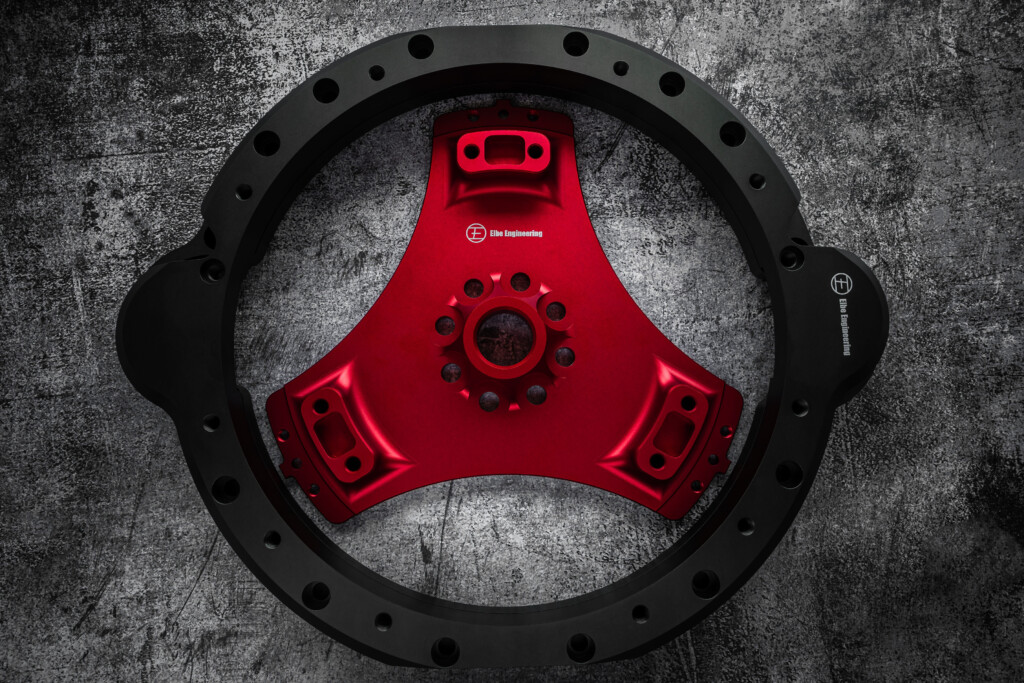

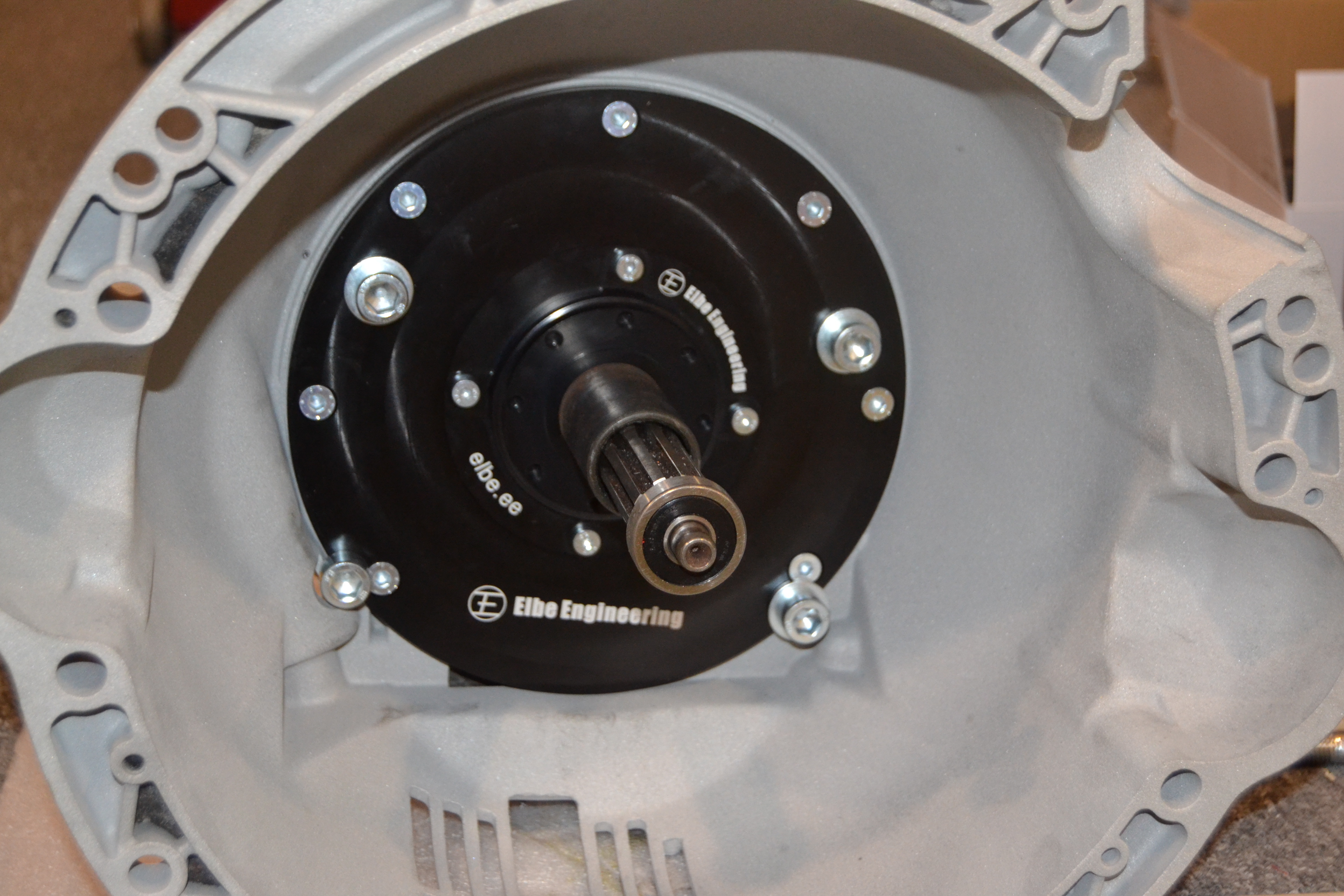

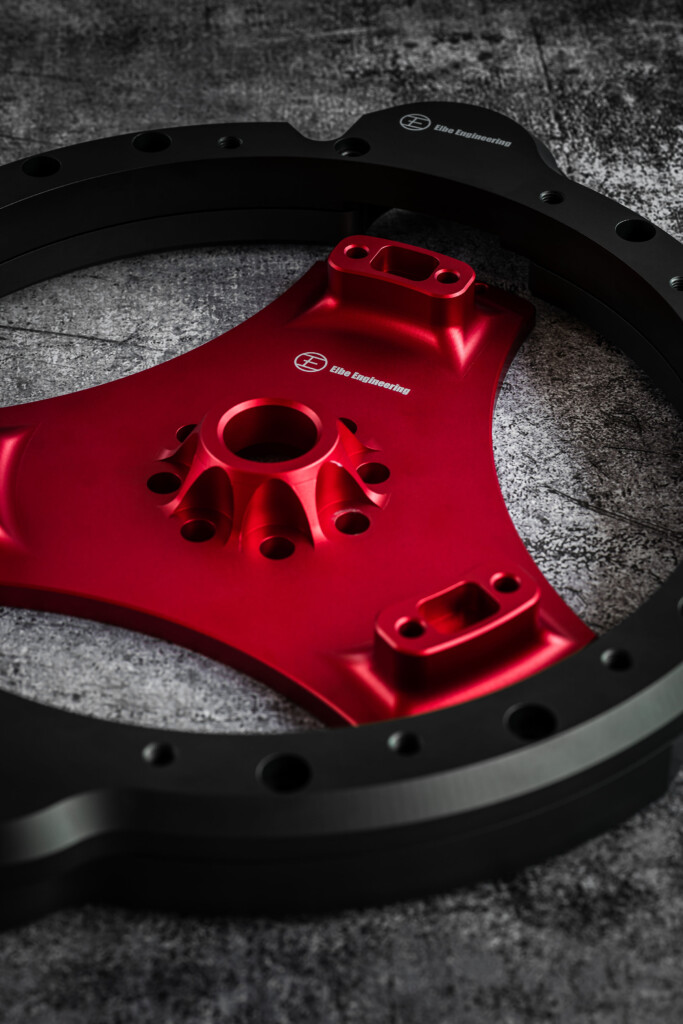

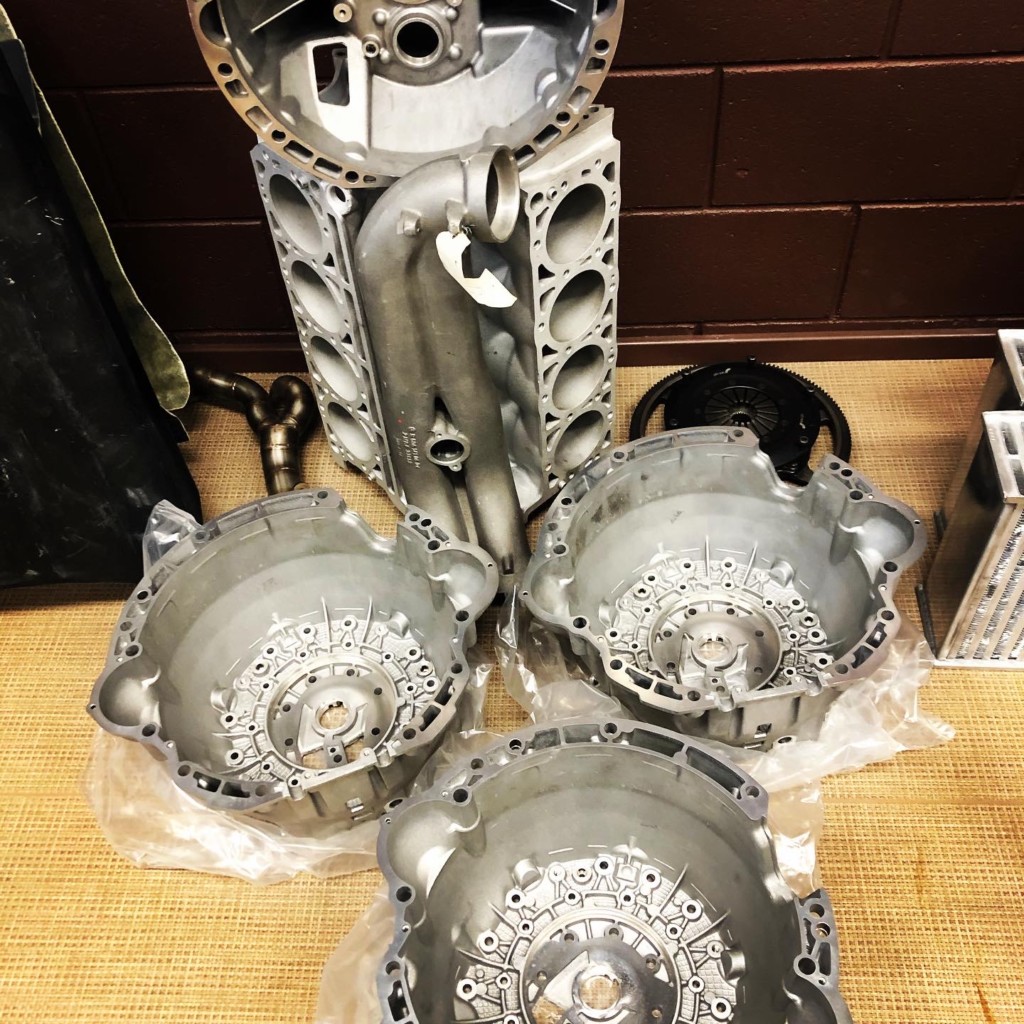

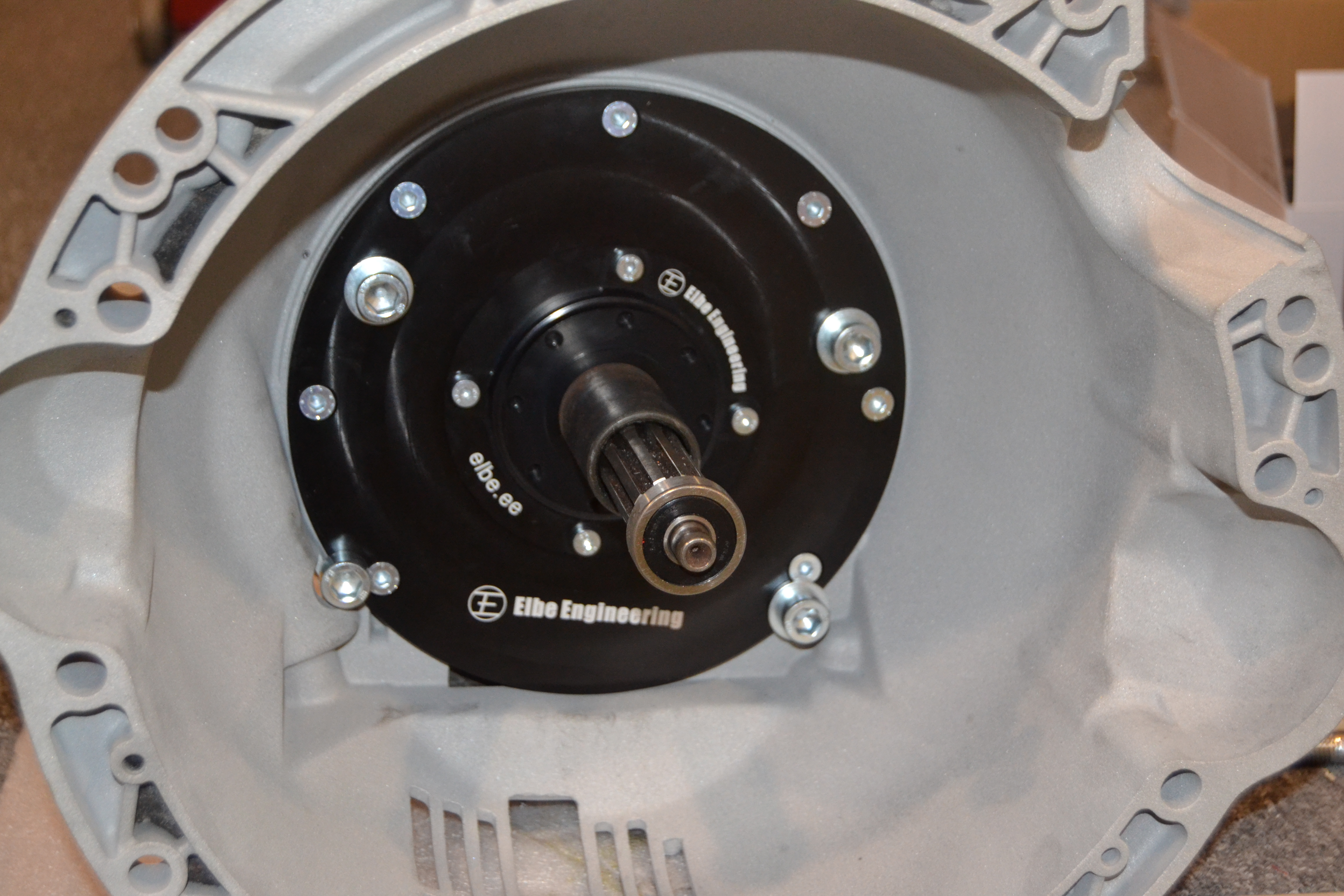

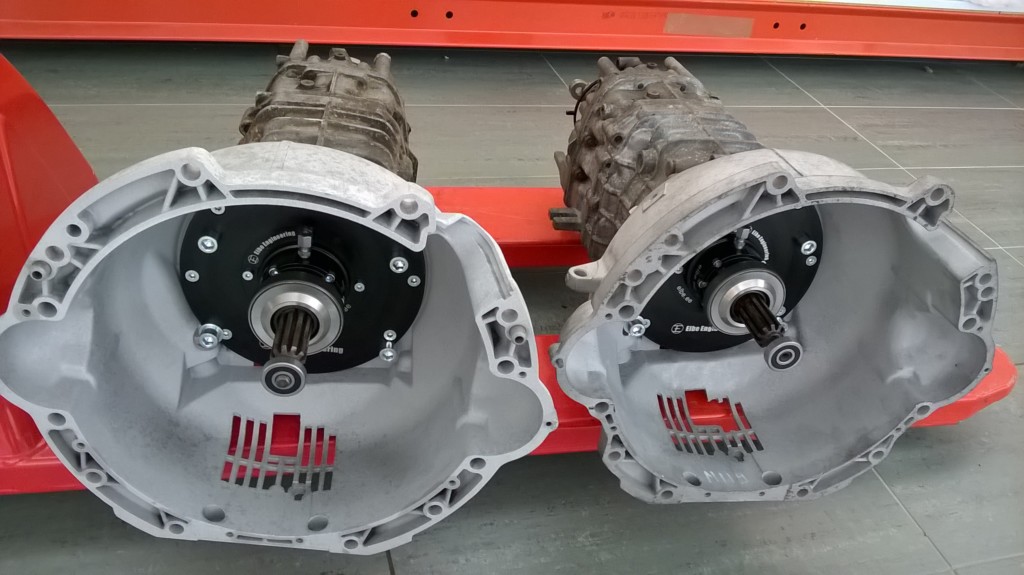

Transmission adapters : M116/M117/M100 Iron block adapter for 5G tronic transmissions ; Audi engine with BMW gearbox ; BMW engine with Liberty drag race transmission
MB 722.6 transmission rear mounting bracket for factory 722.2/3/4/5 equipped cars

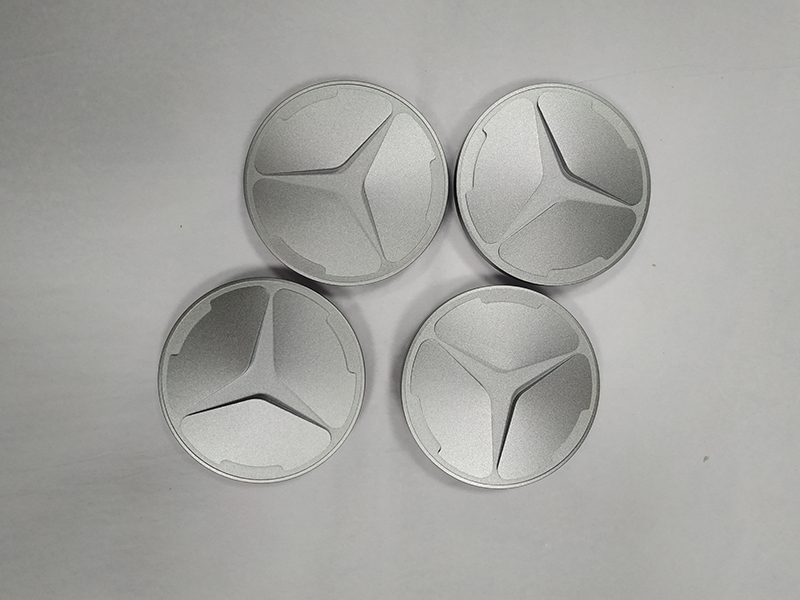

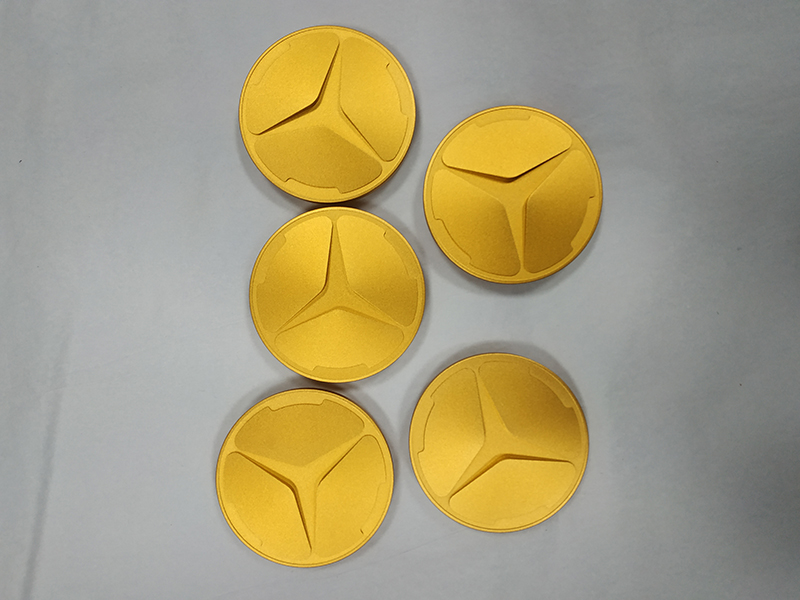

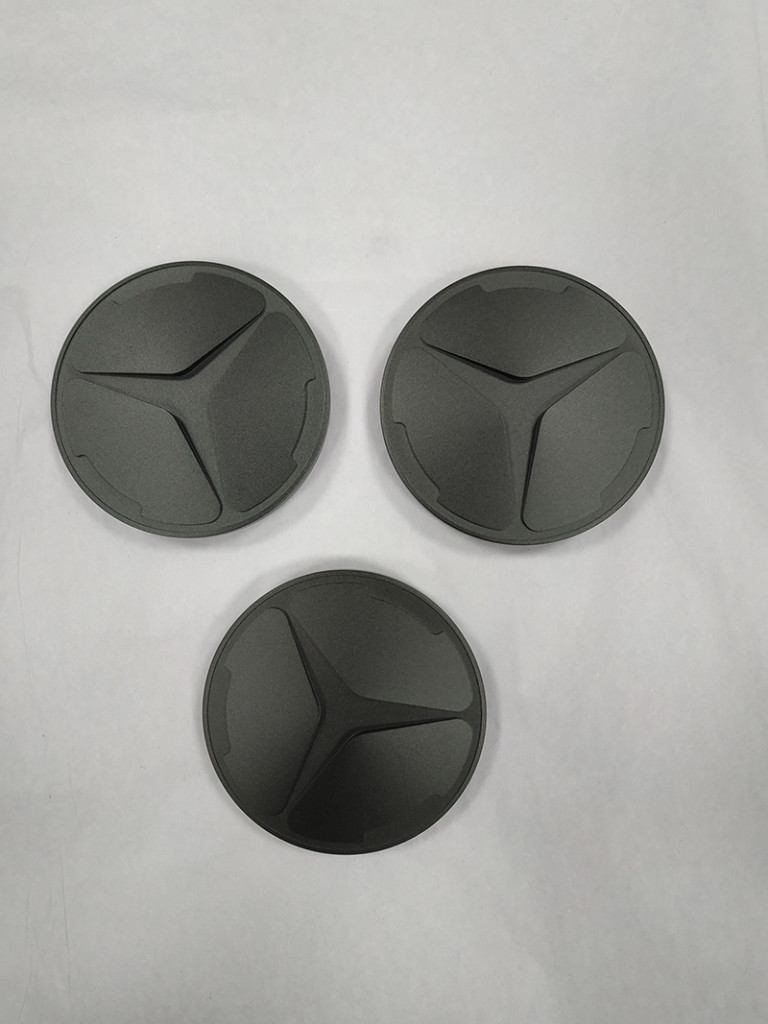

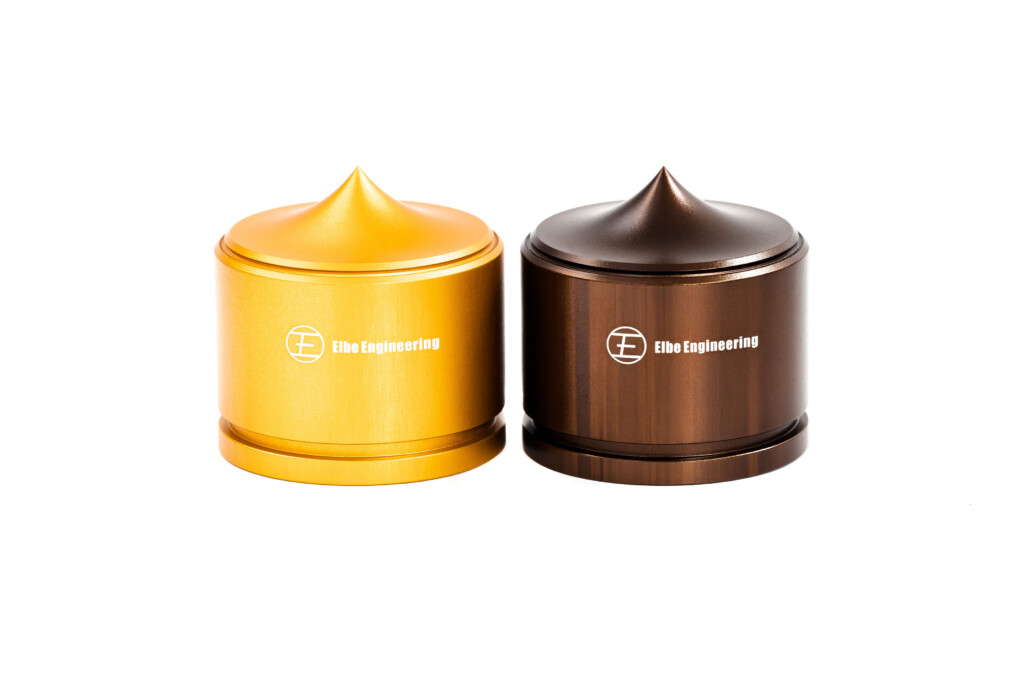

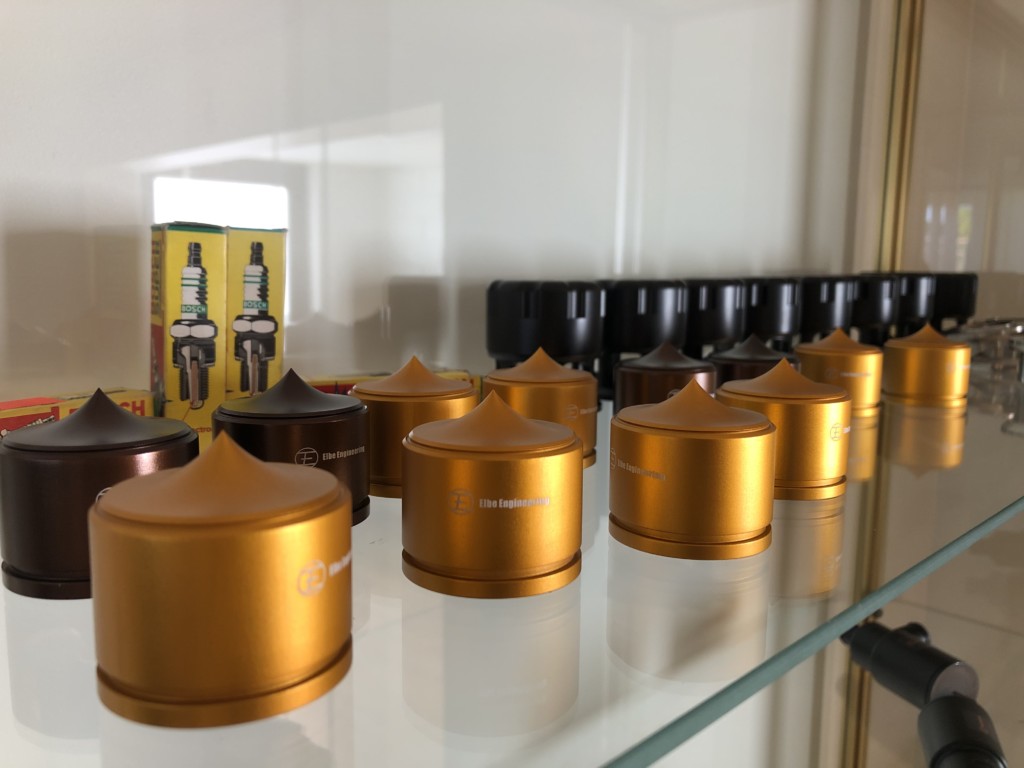

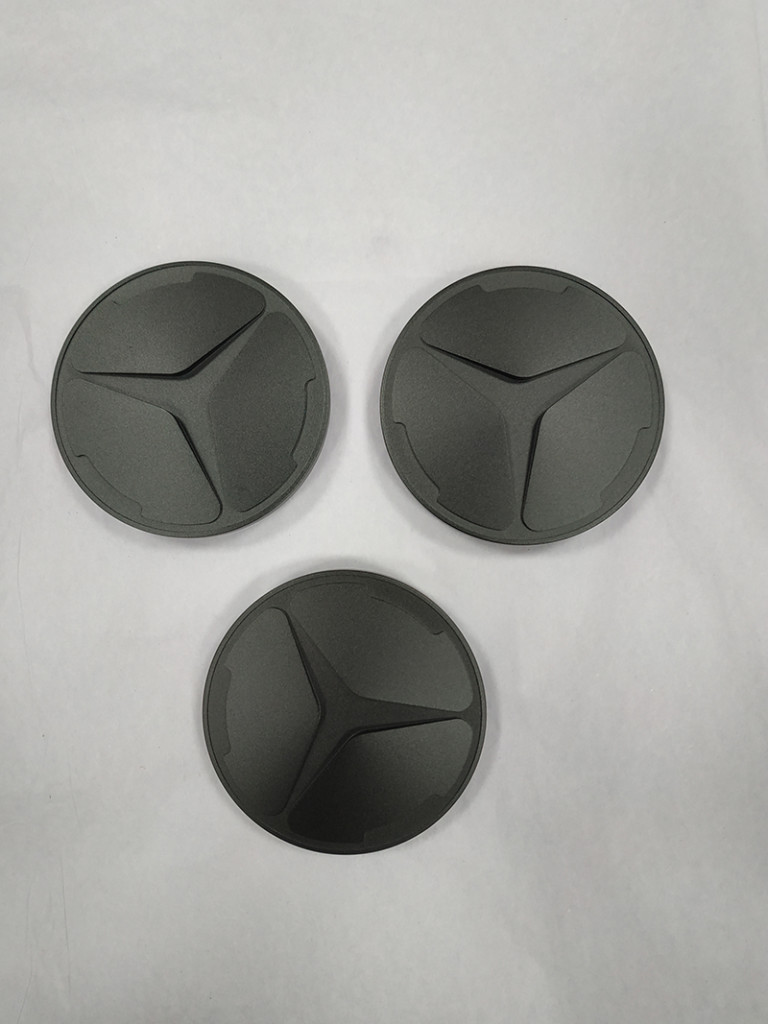

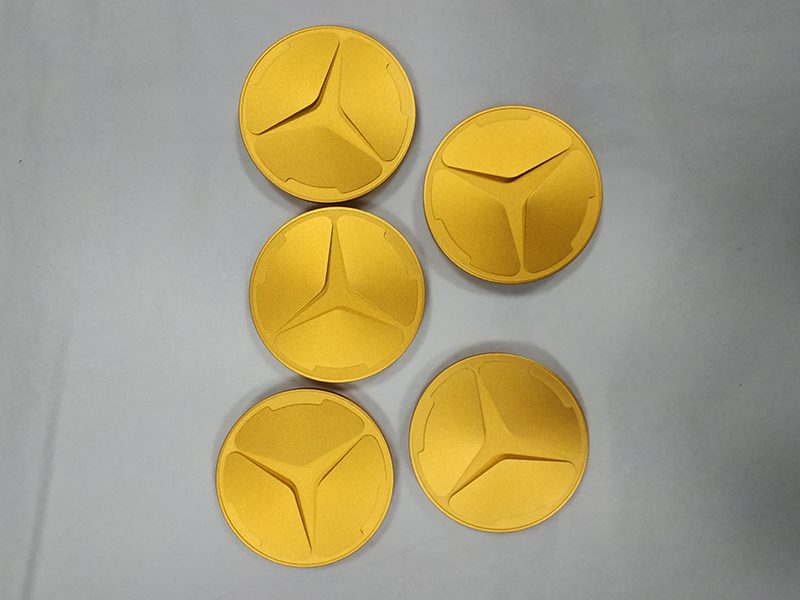

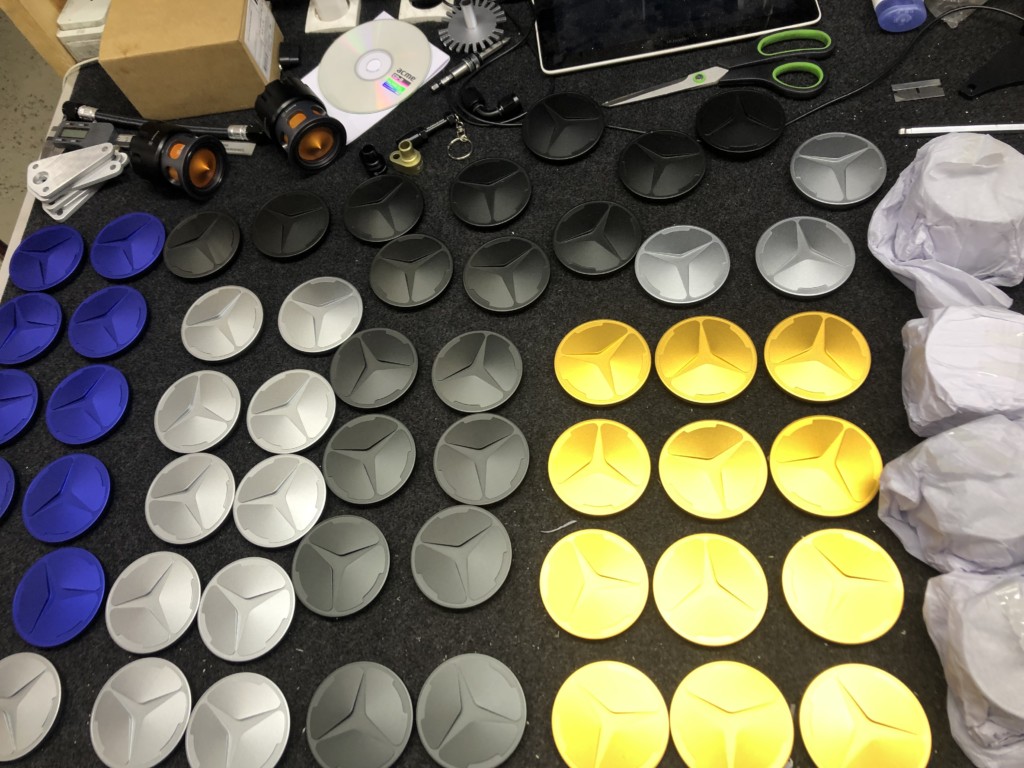

Wheels center hole cover caps

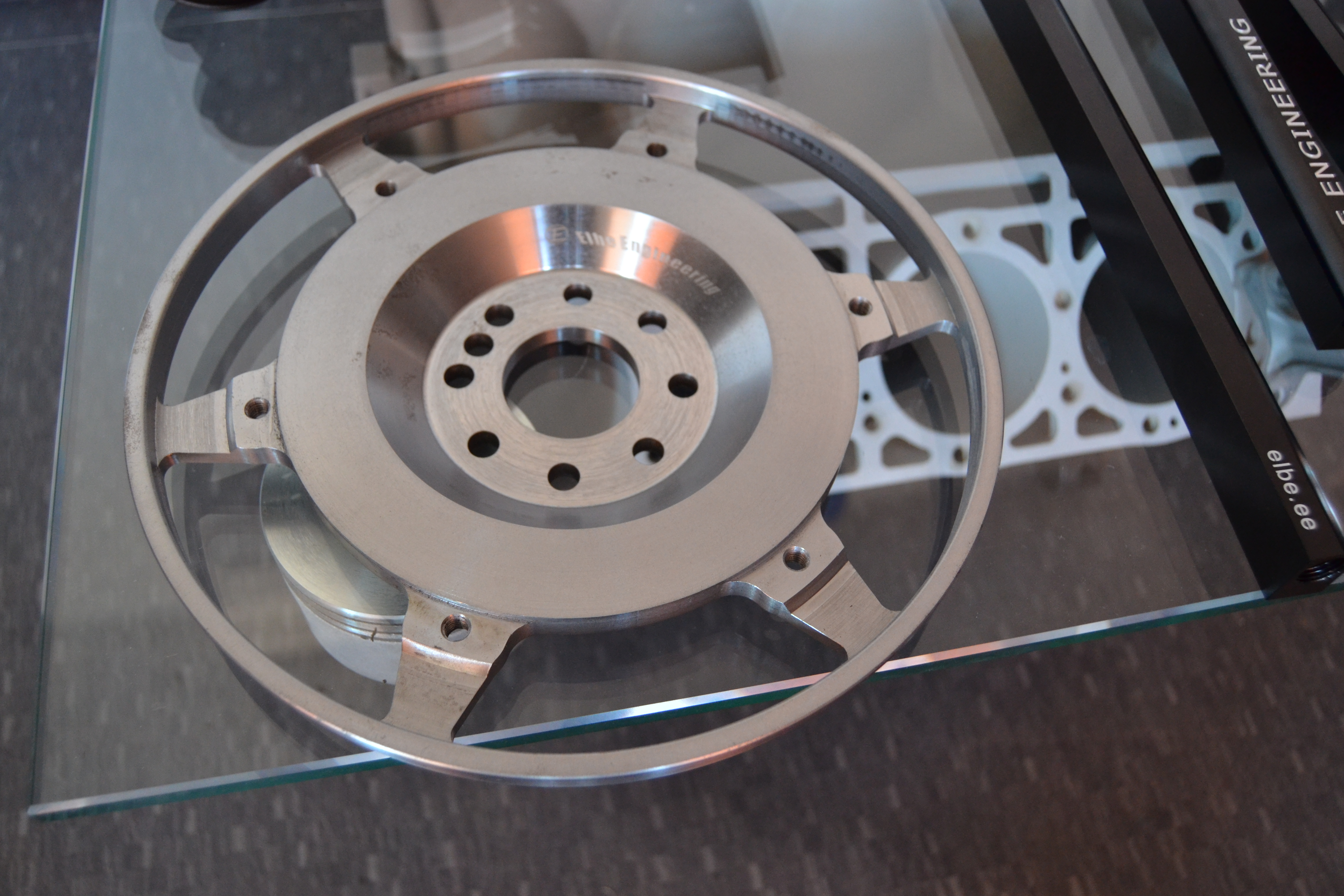

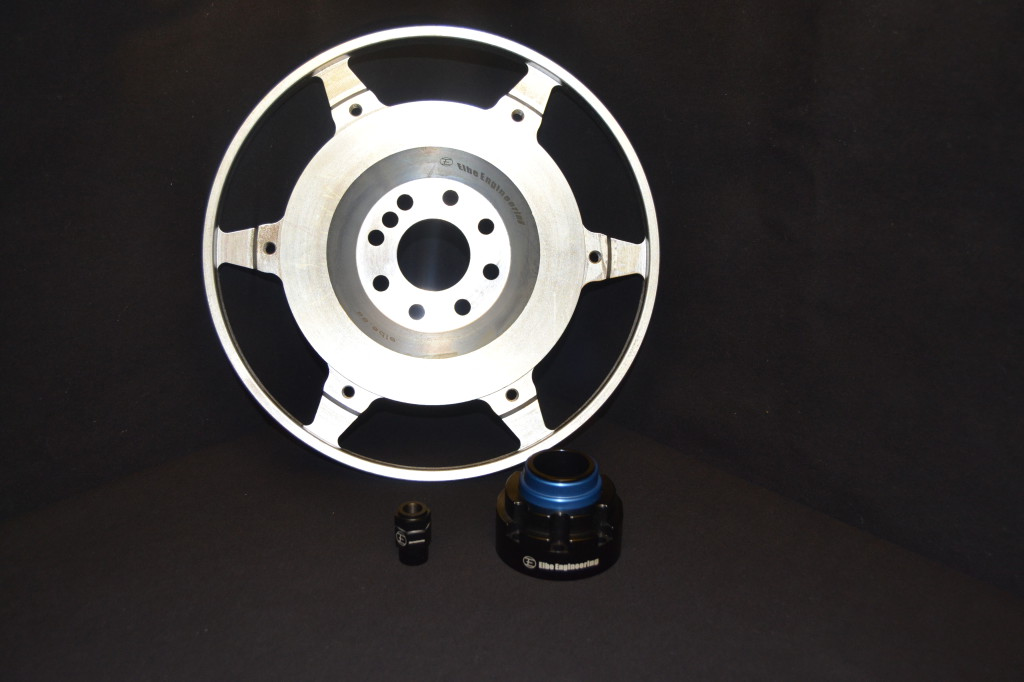

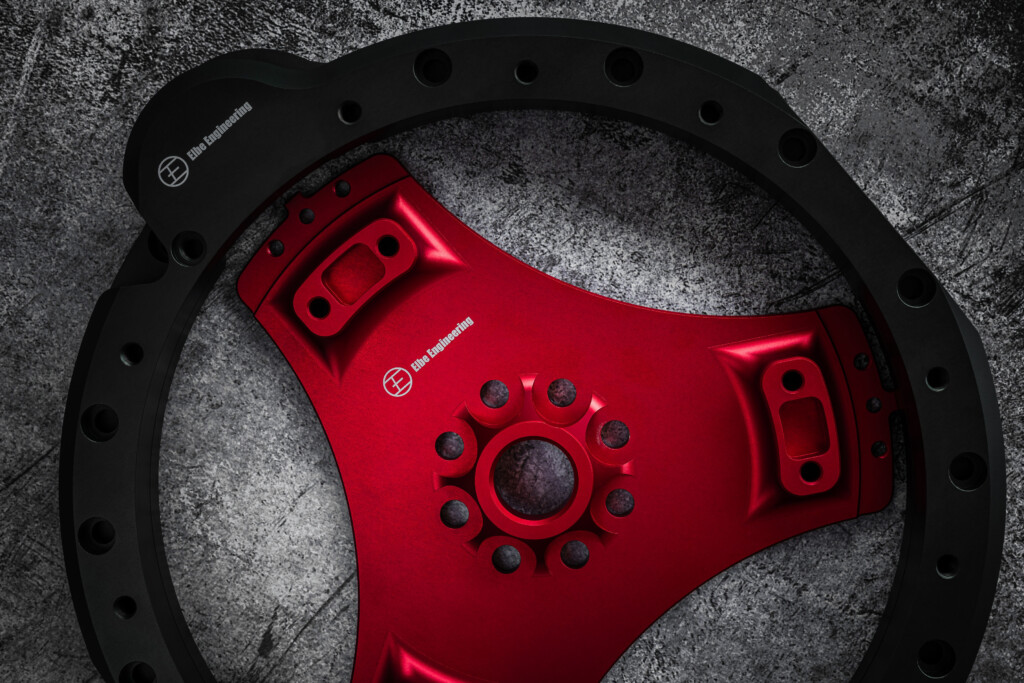

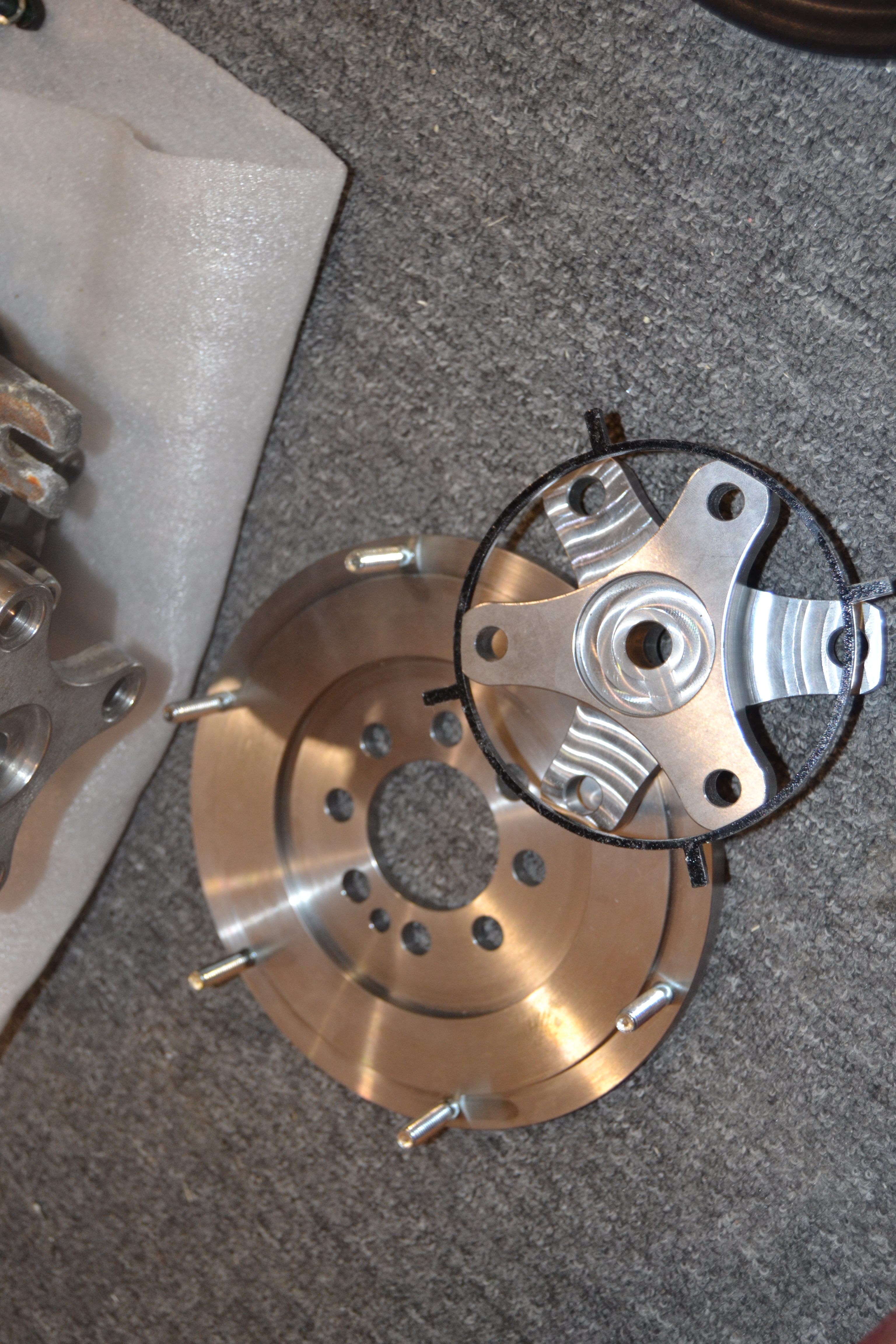

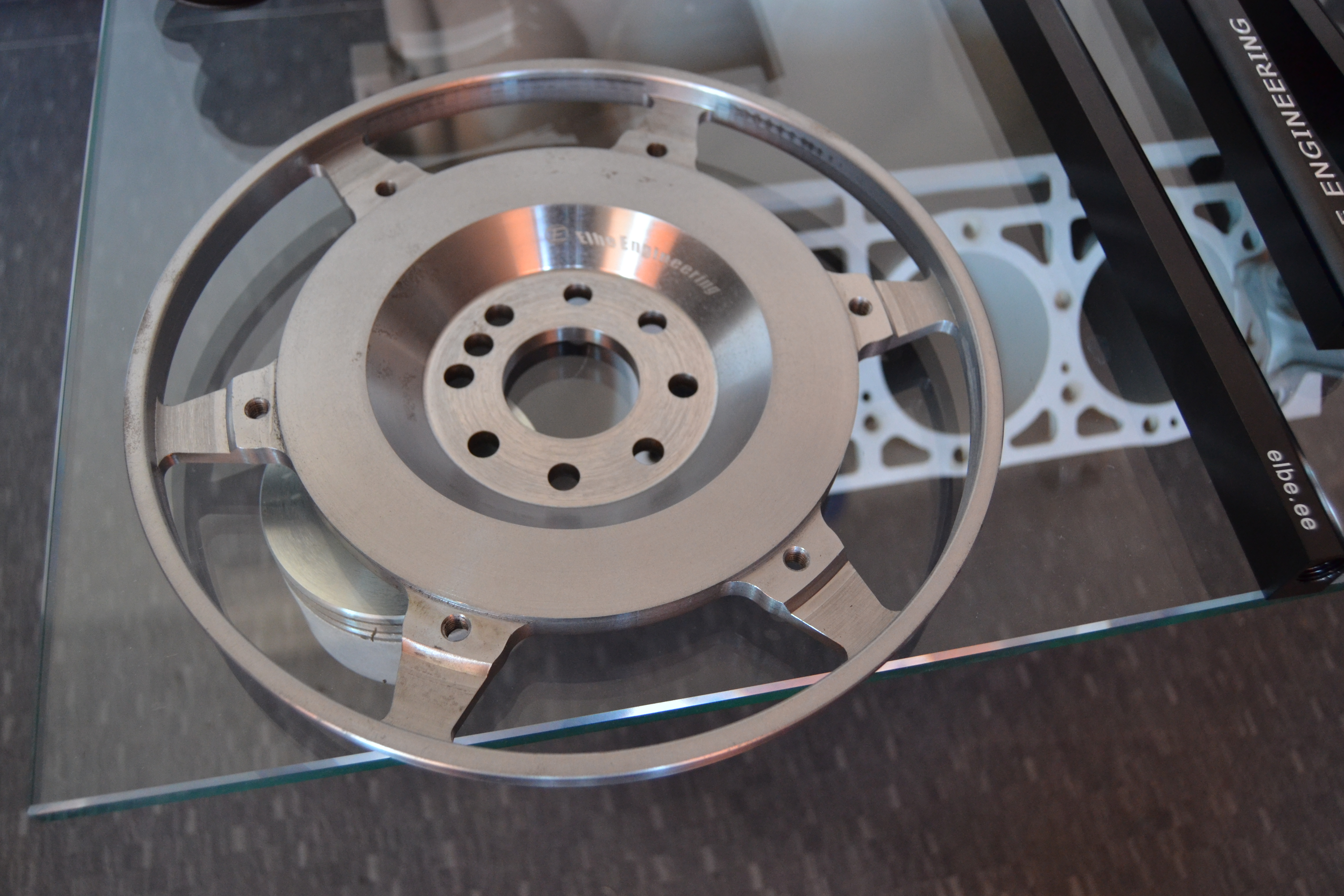

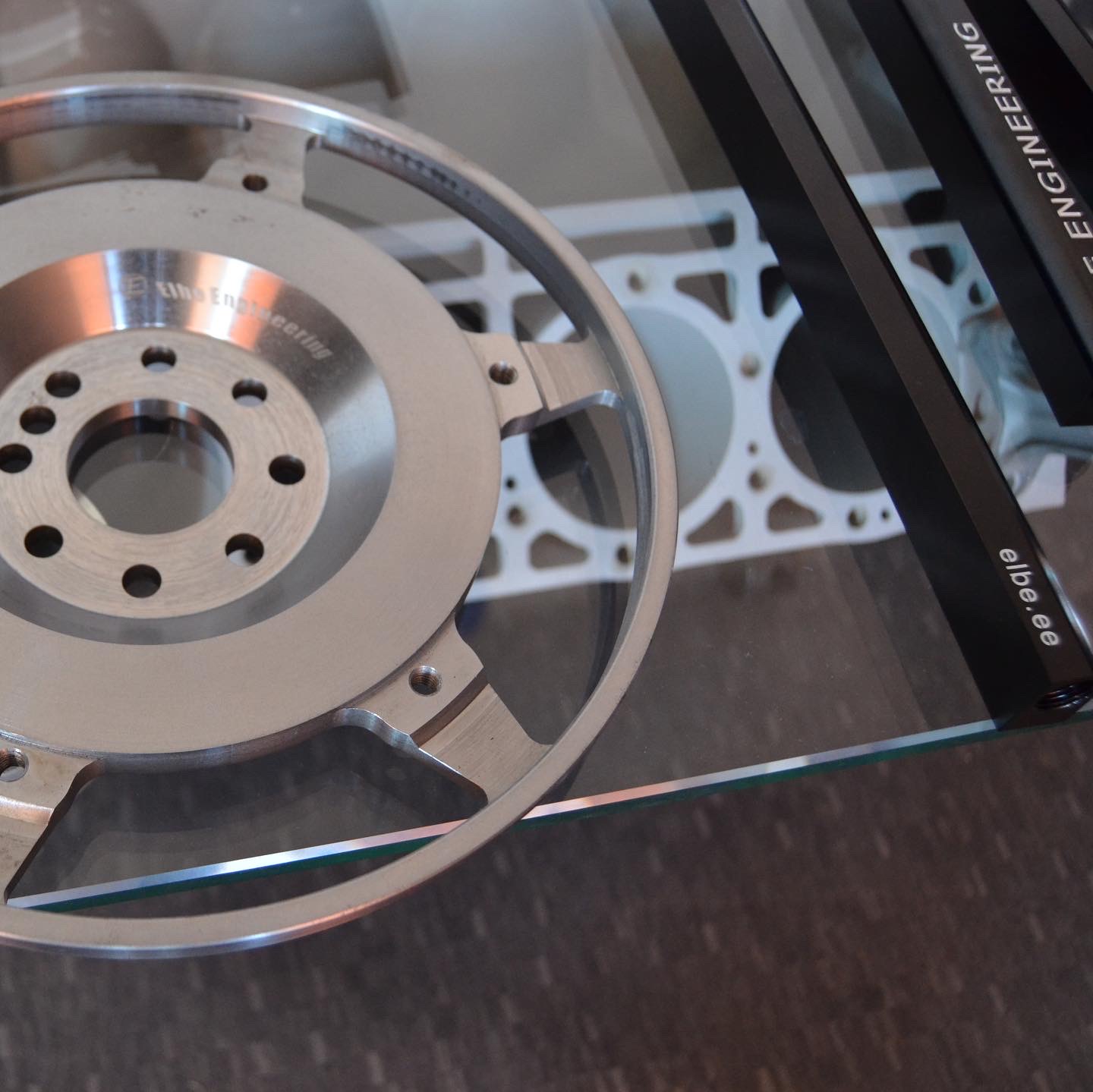

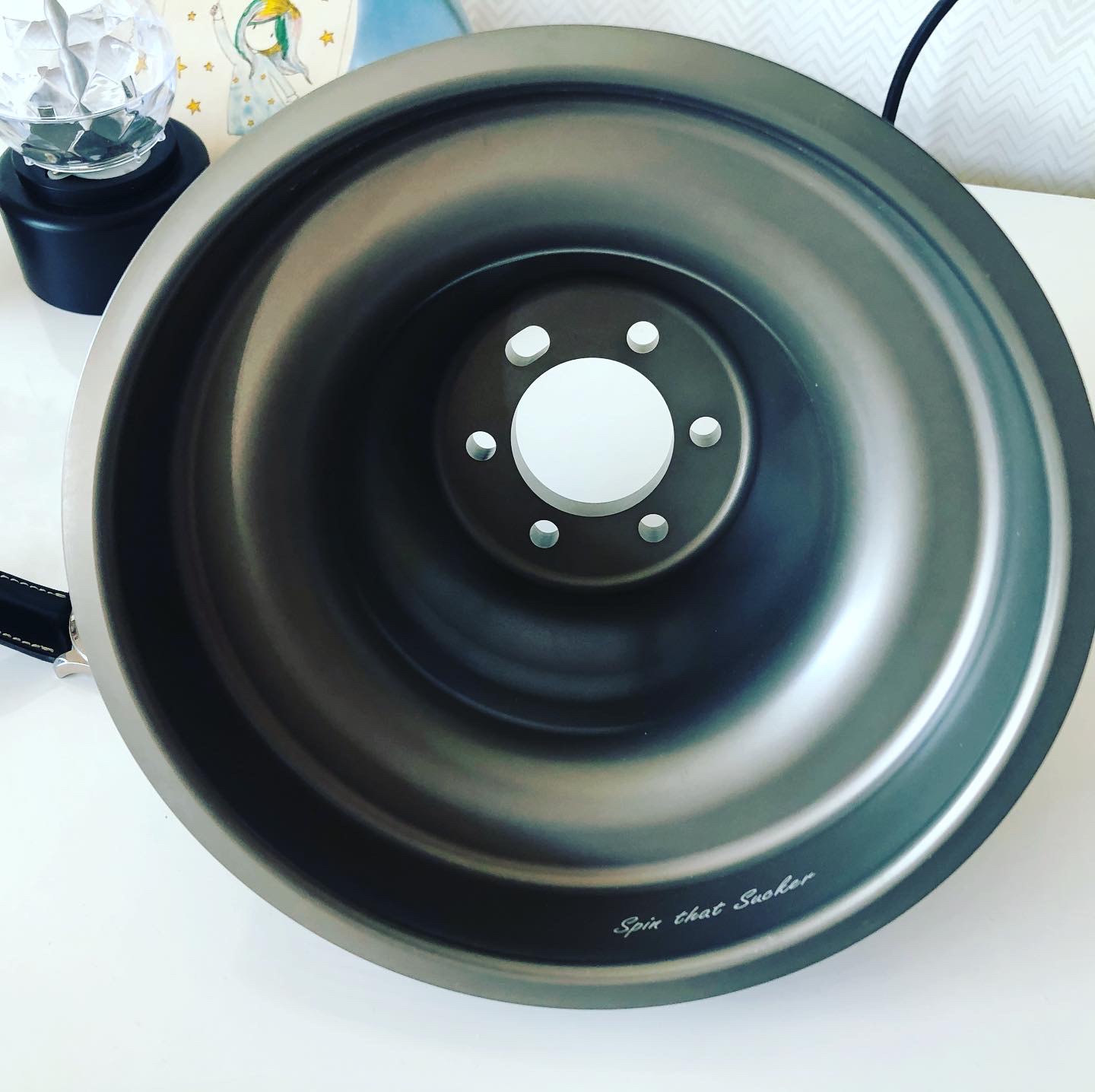

184mm clutched Flywheels for M102 / M103 / M104 / M111 / OM601-606 / M113

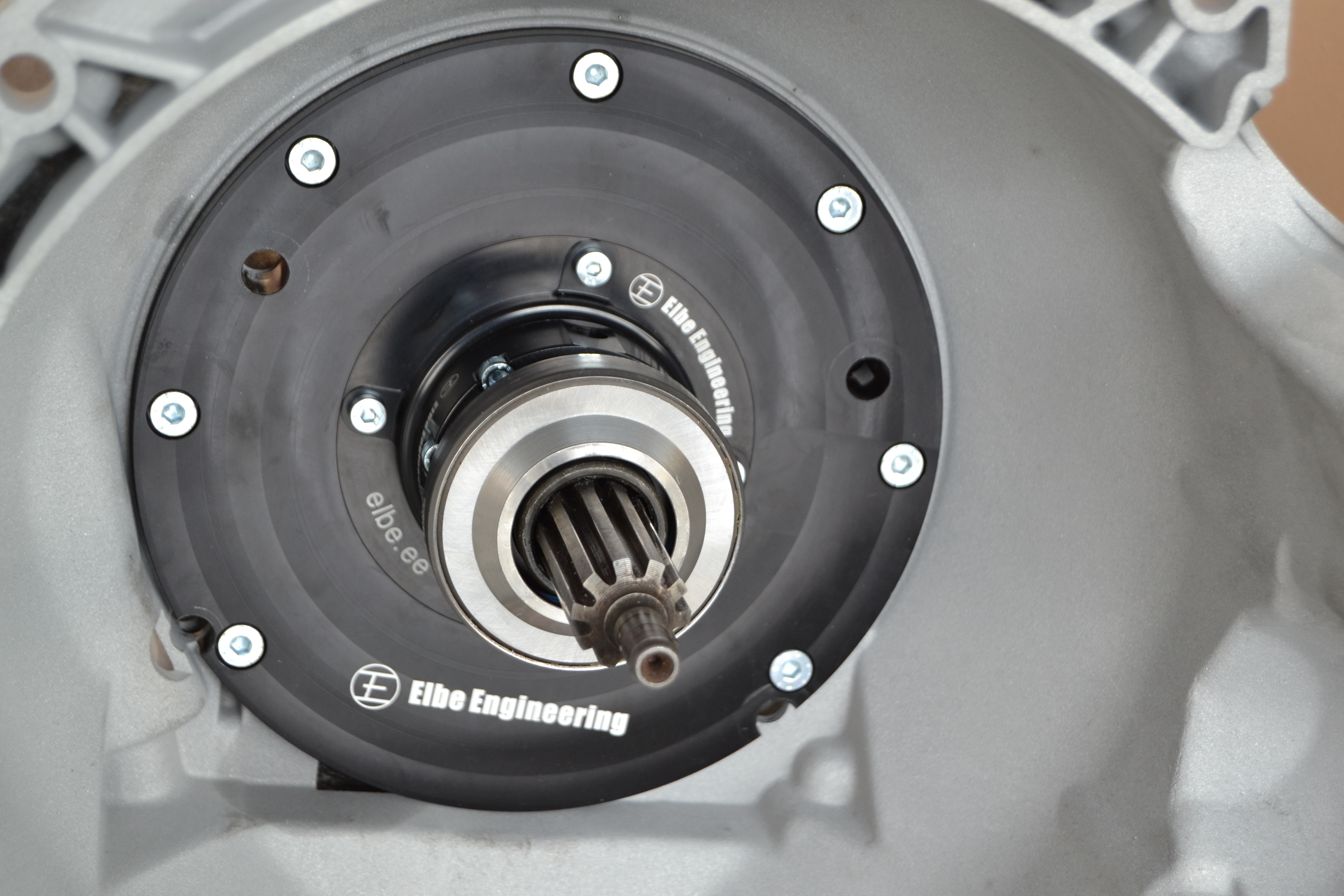

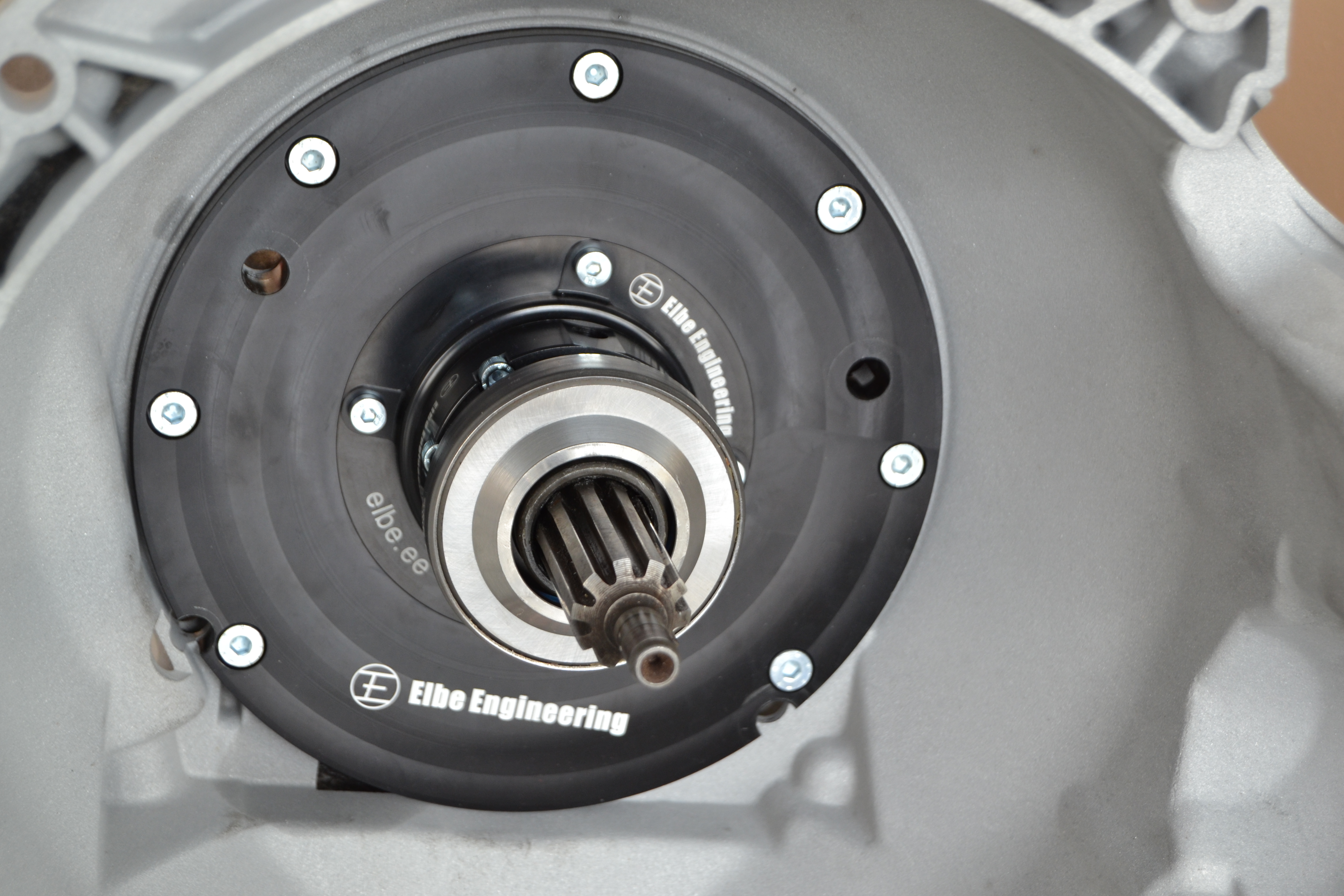

Hydraulic clutch release bearing assembly

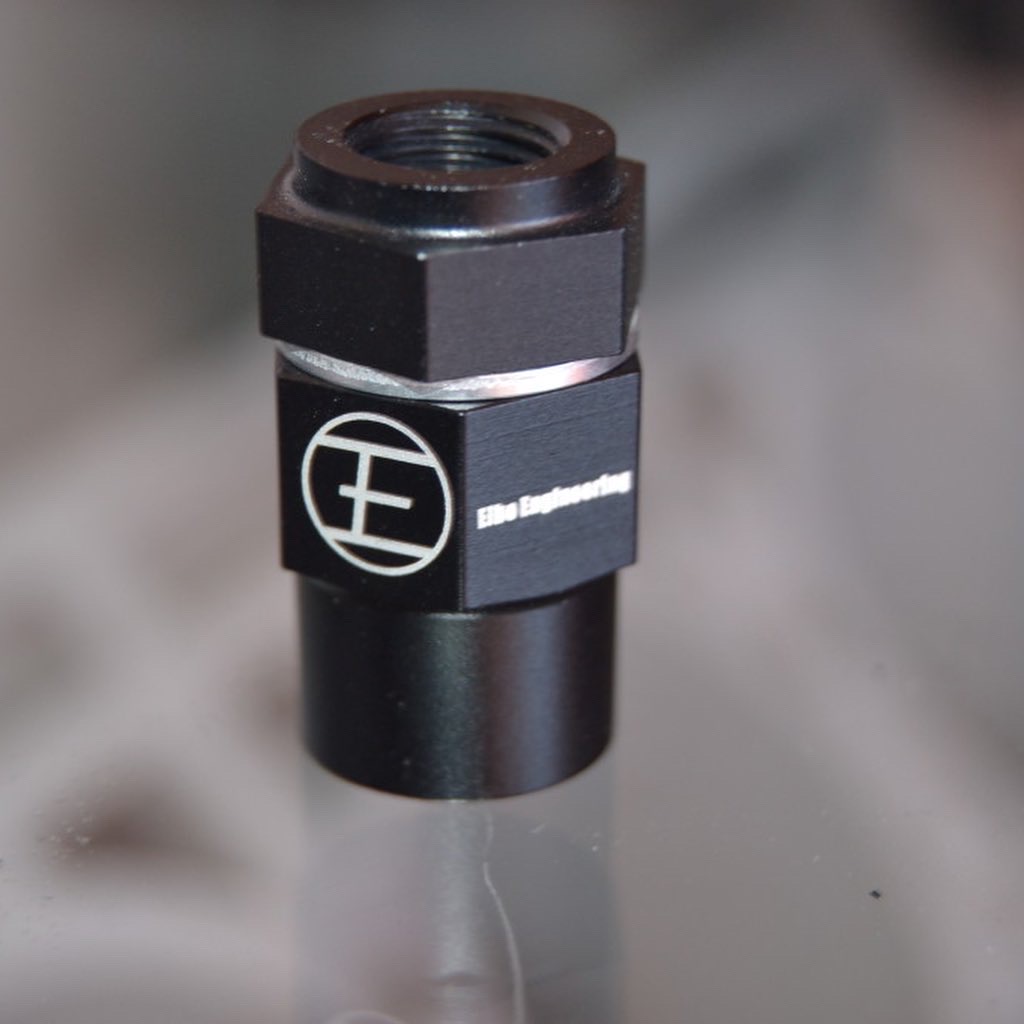

One way valve for hydraulic clutches for reducing stress loads

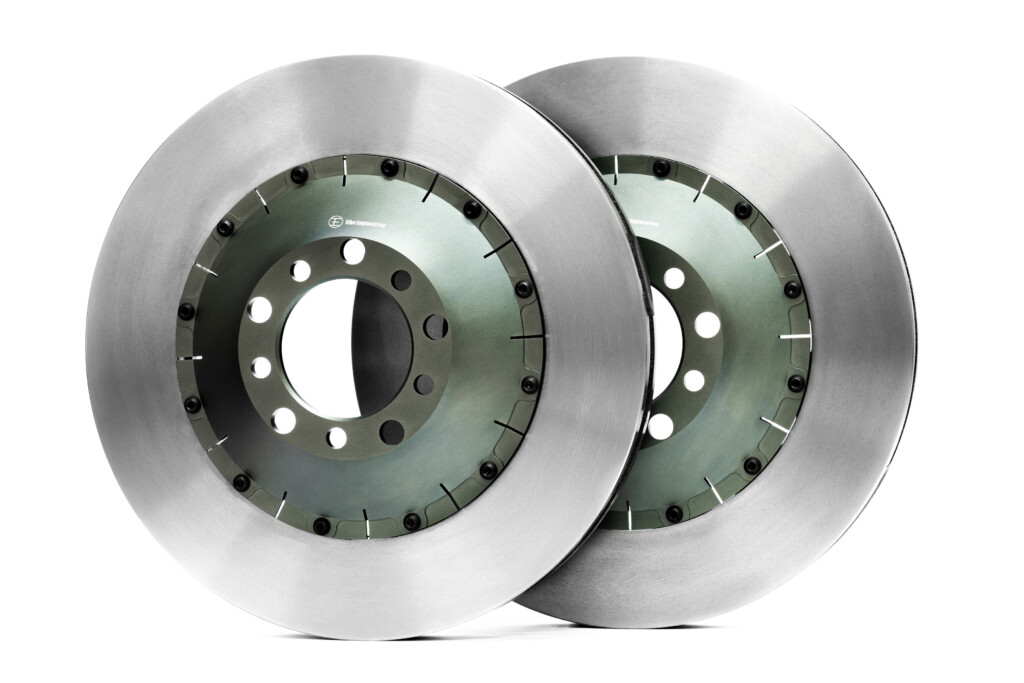

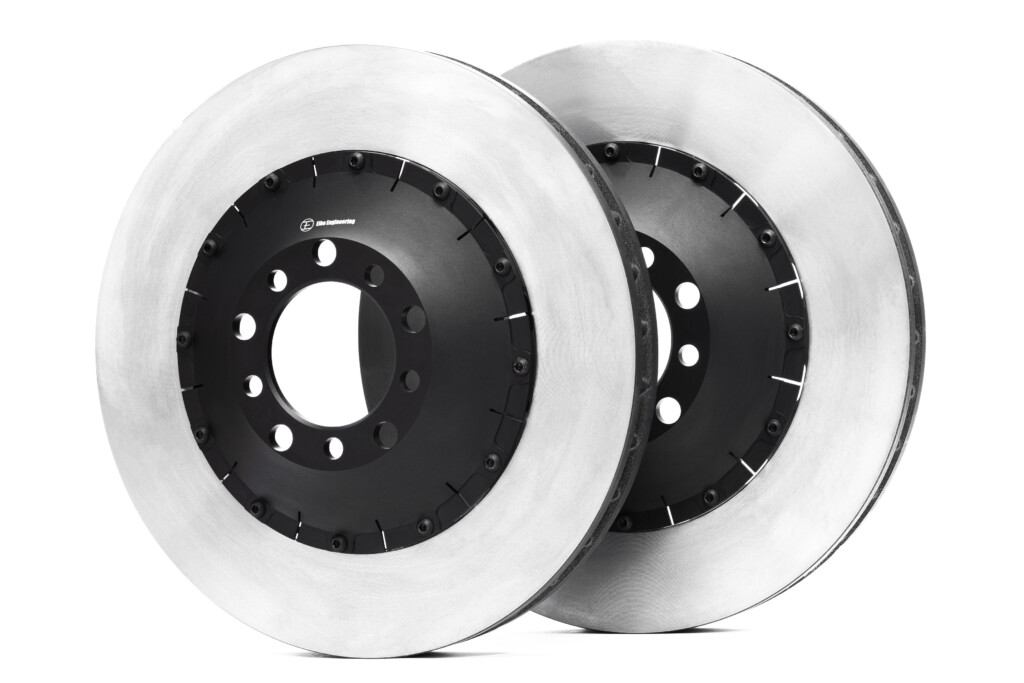

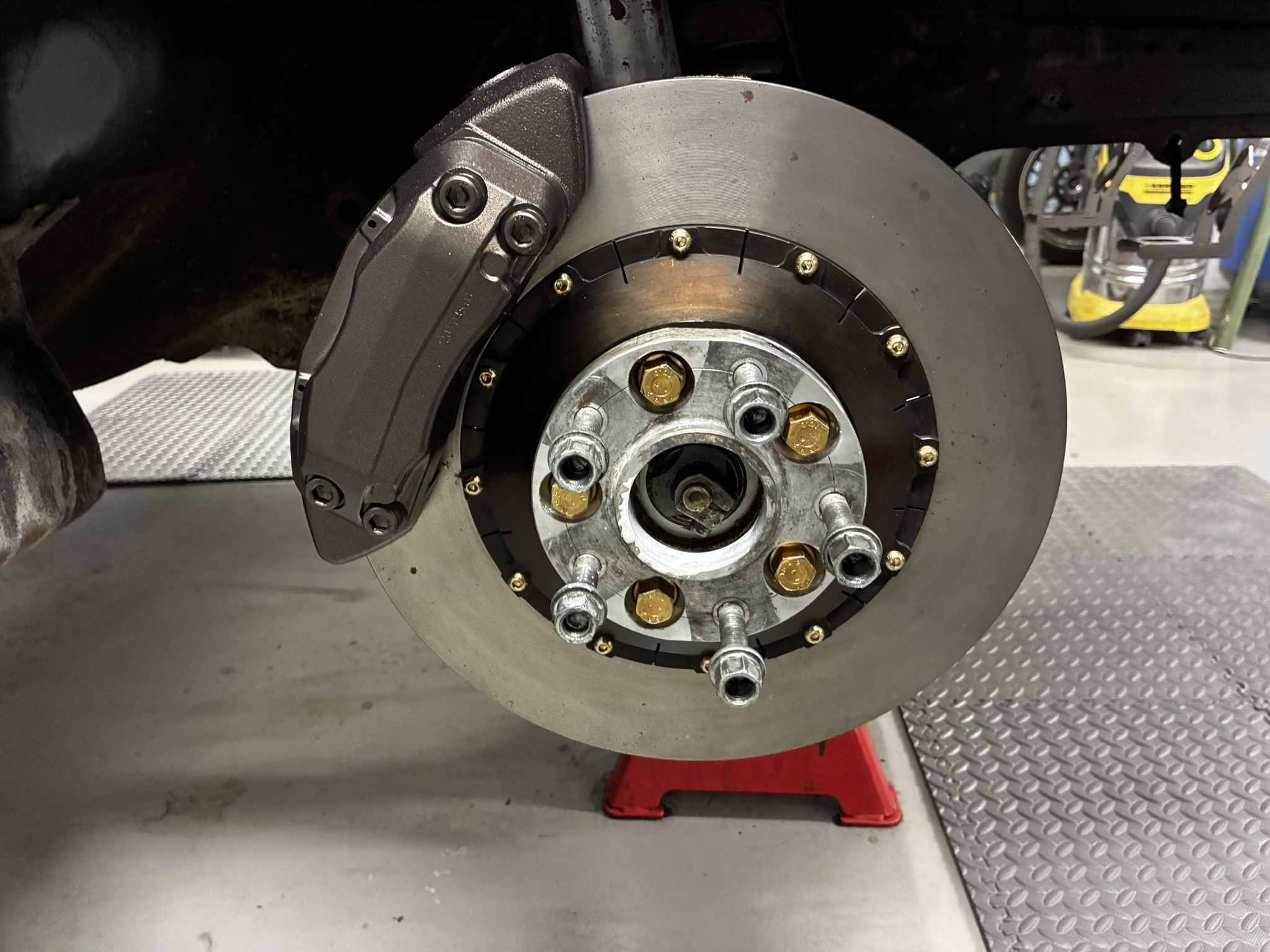

Big brake upgrades : W201/W124 ; R107 ; W126

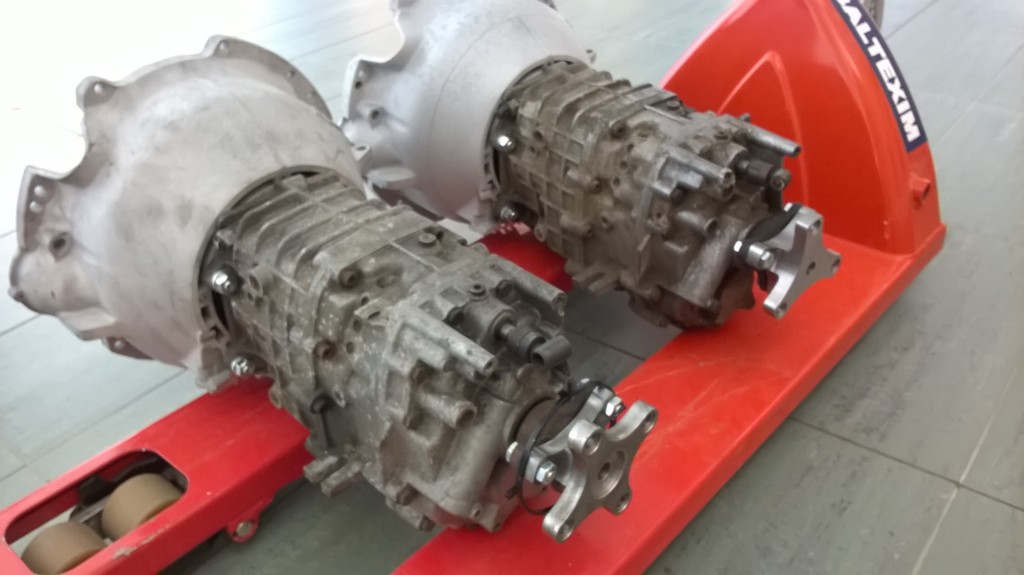

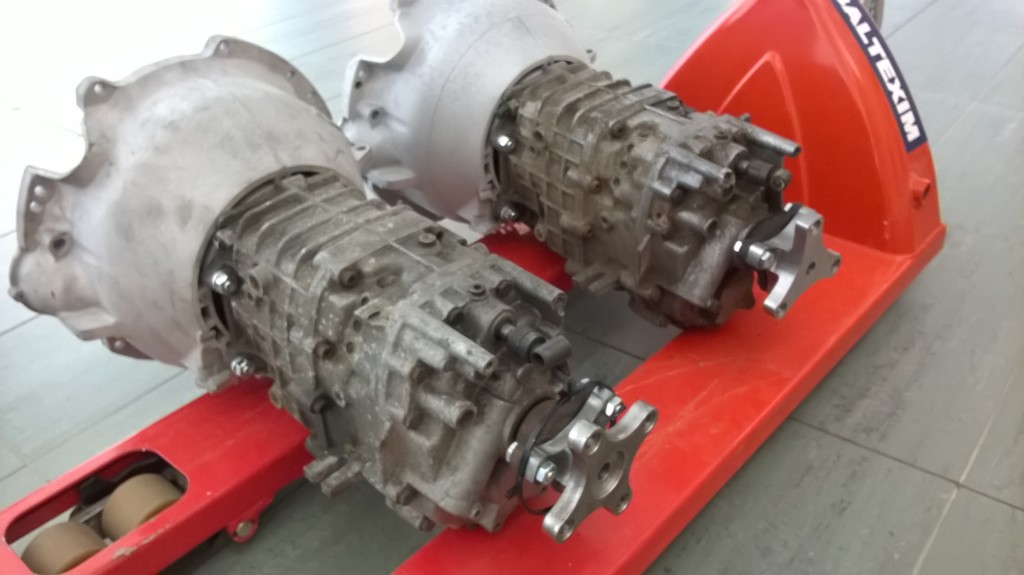

Getrag 265 Manual gearbox sets for M117 and M119 engines

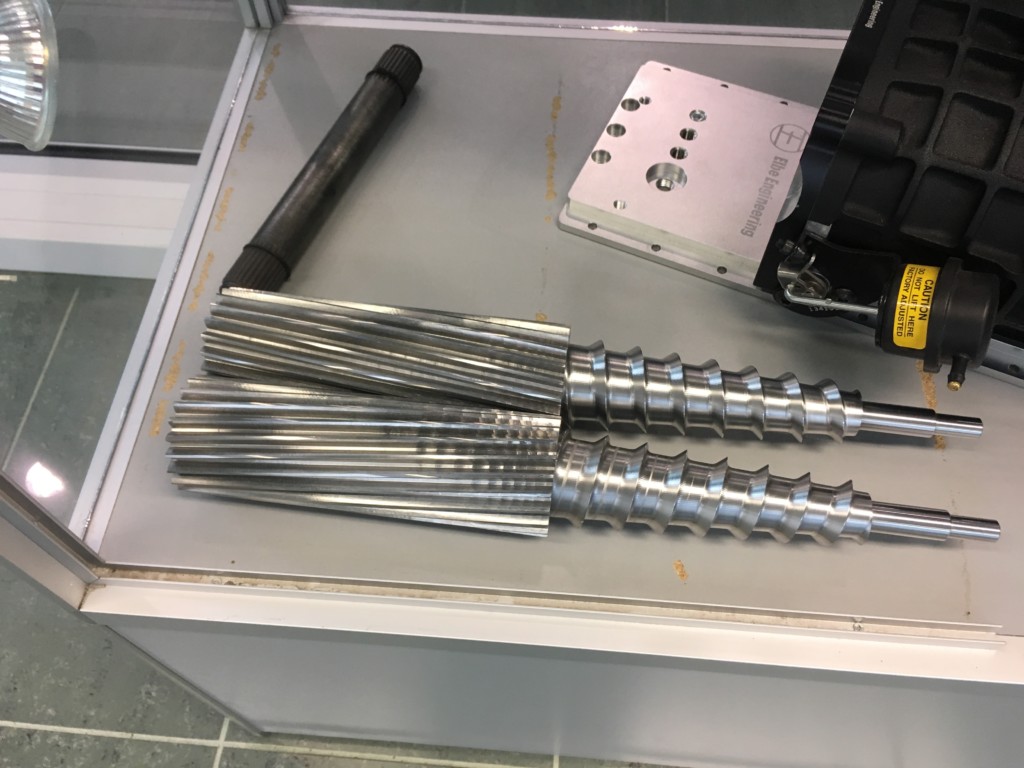

Different industrial solutions: Assembly lines ; food processing machinery ; metal processing machinery ; innovation projects
Plus many different prototypes
