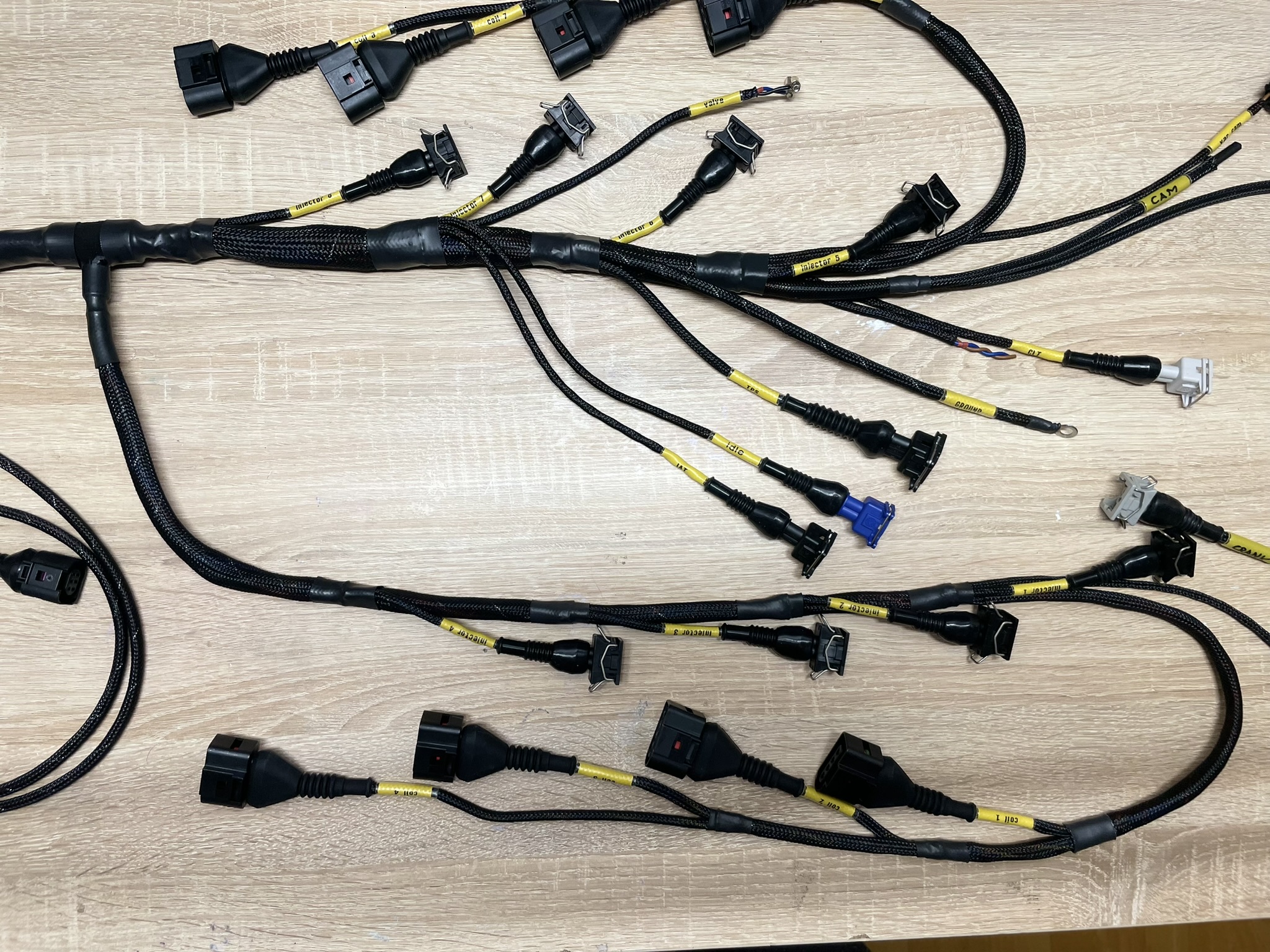

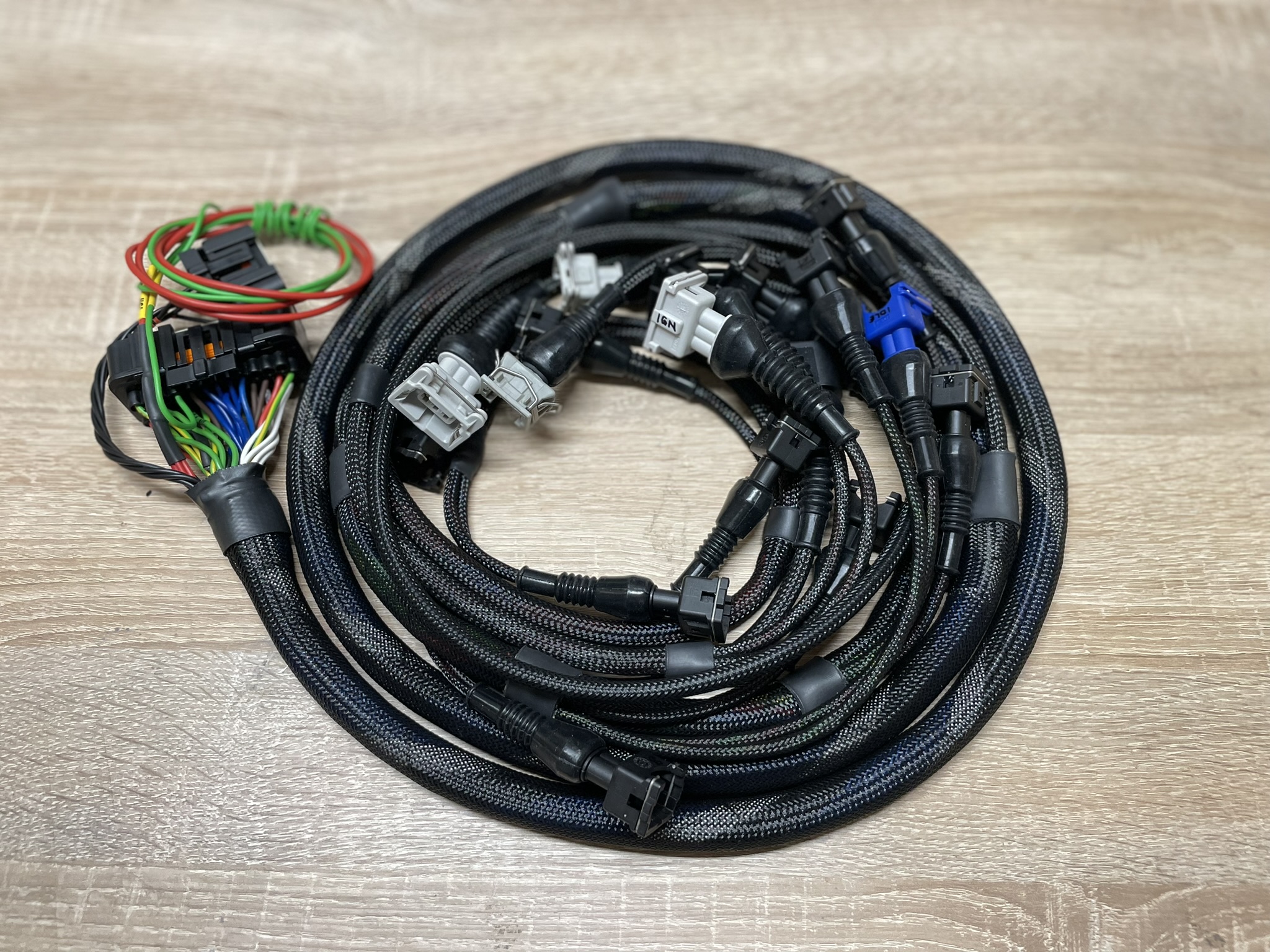

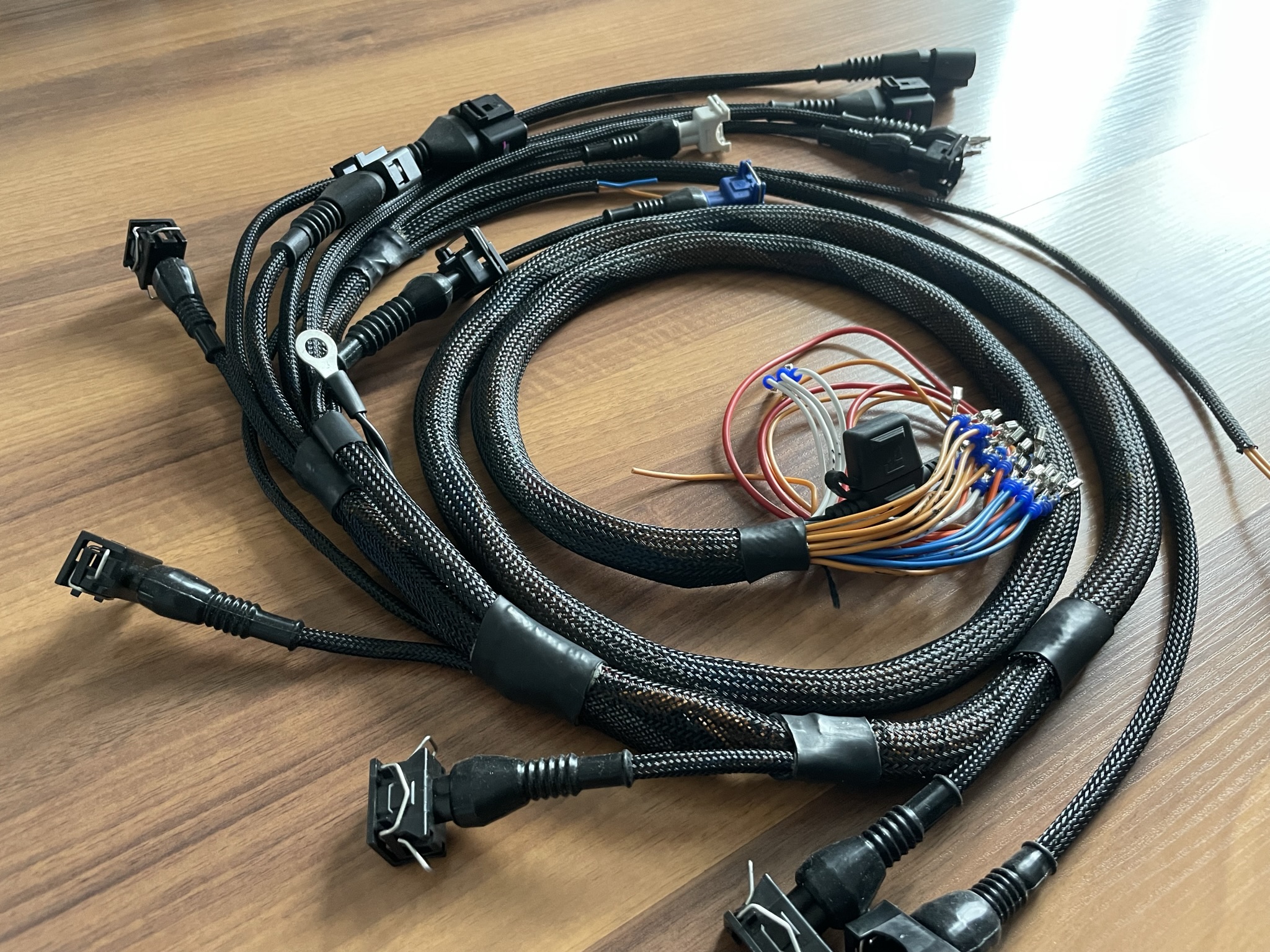

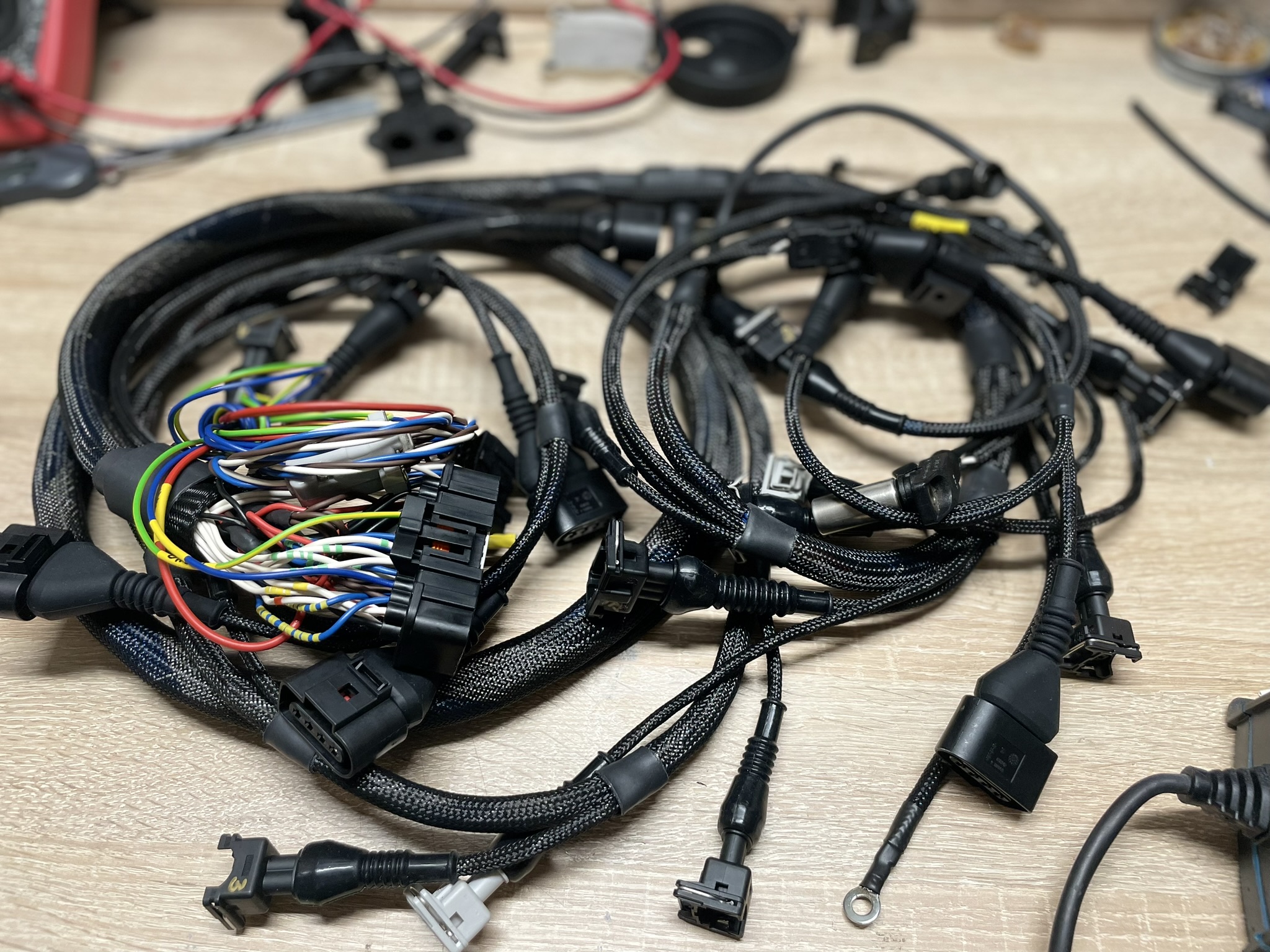

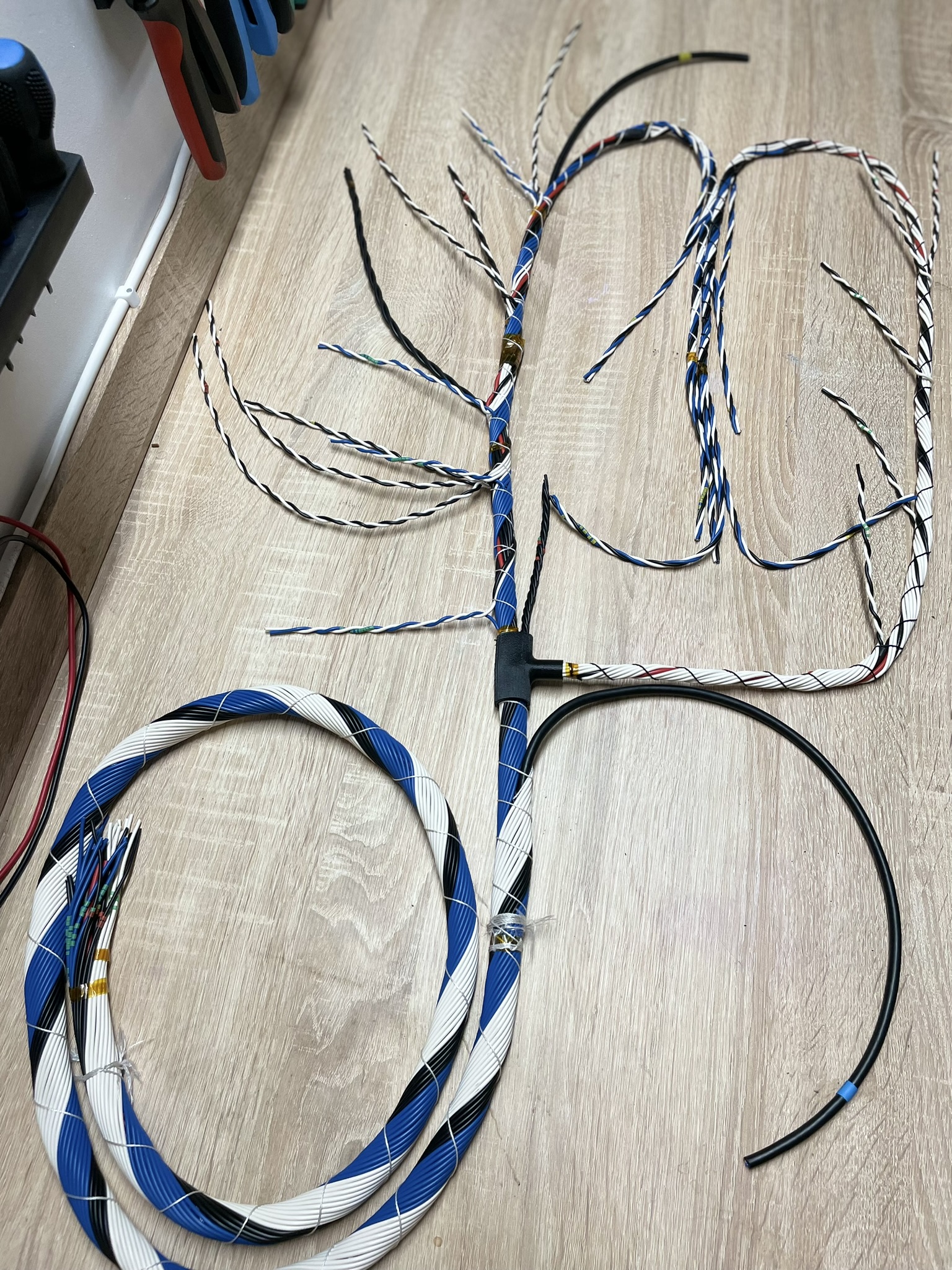

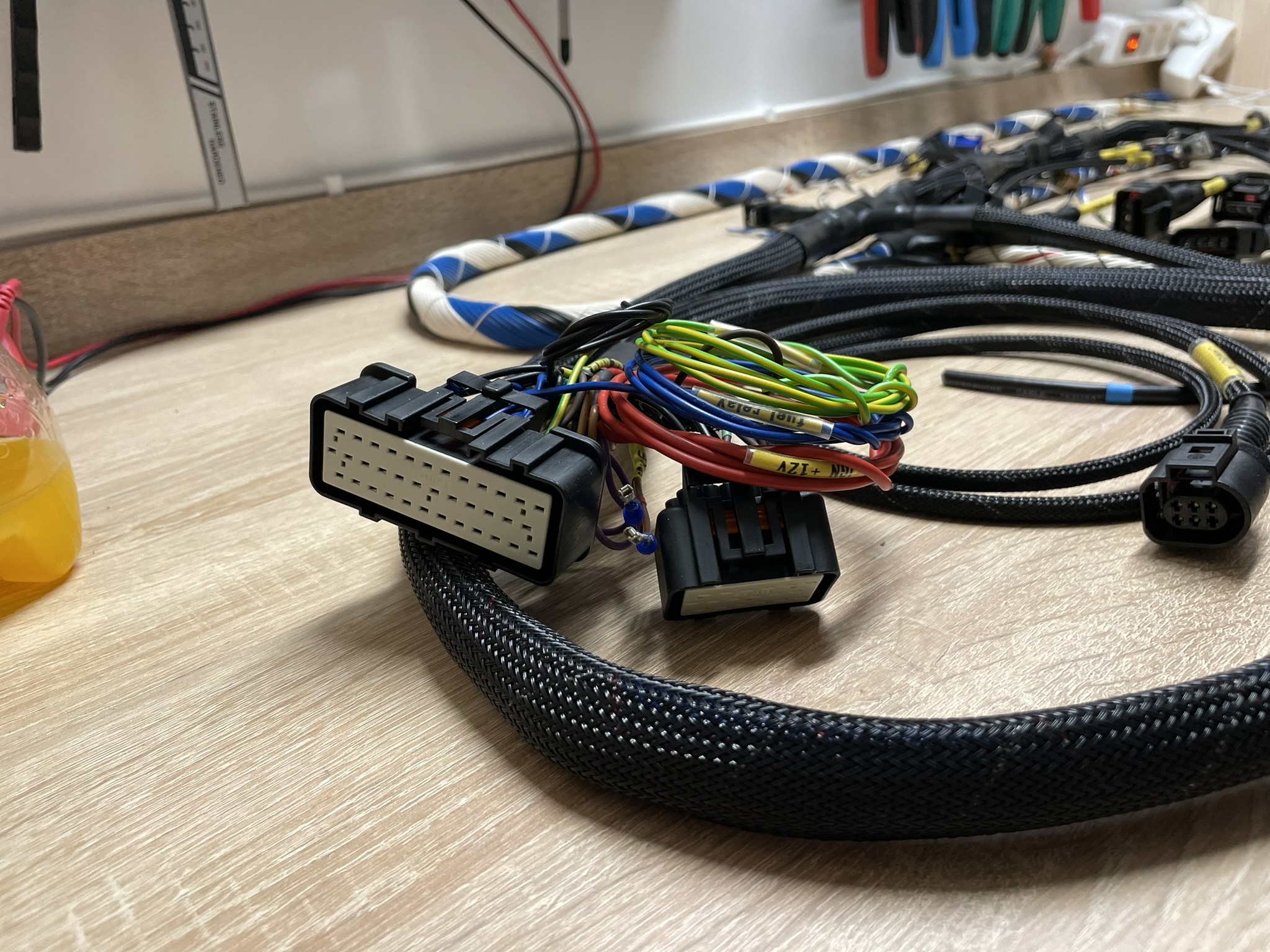

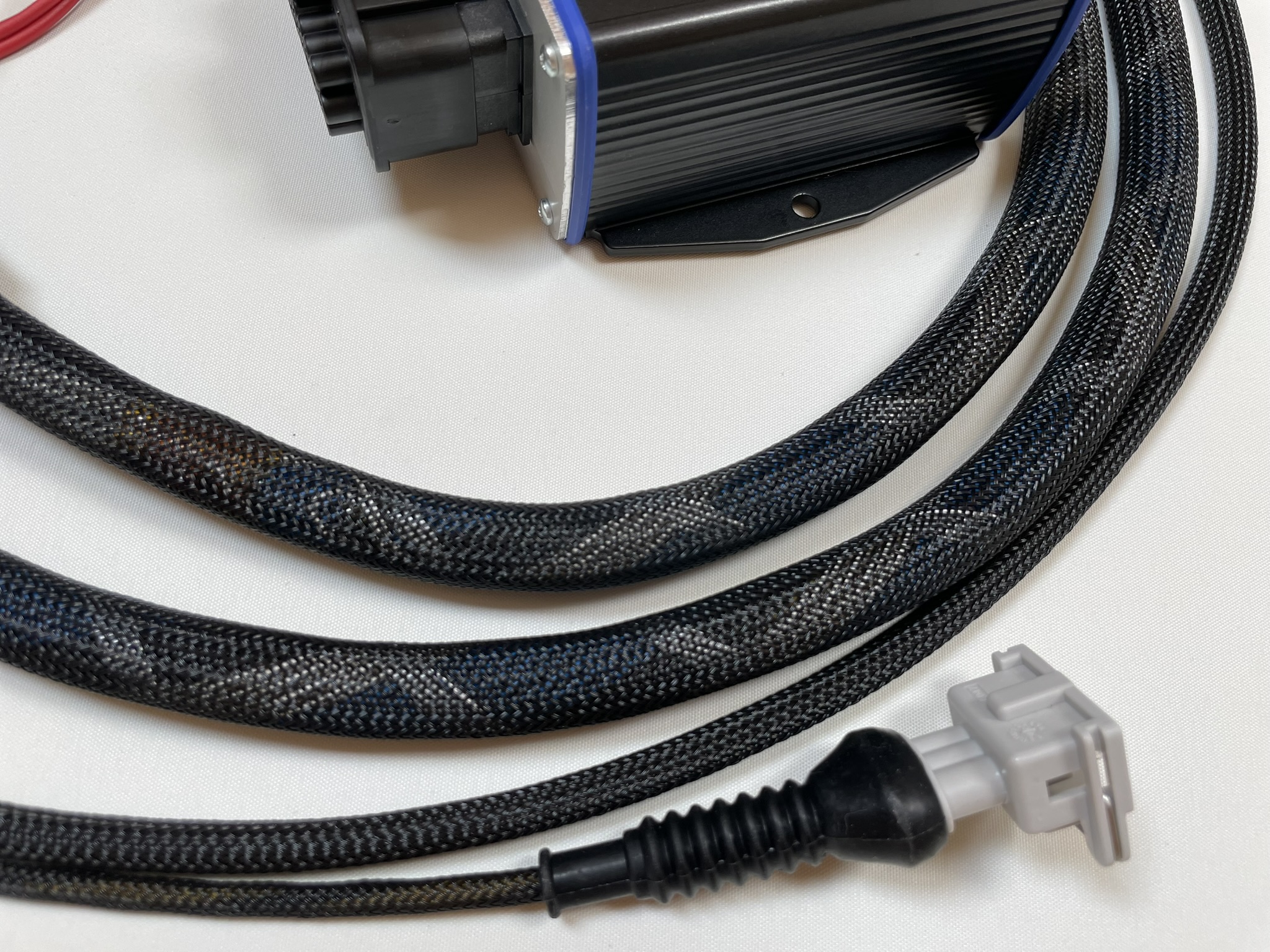

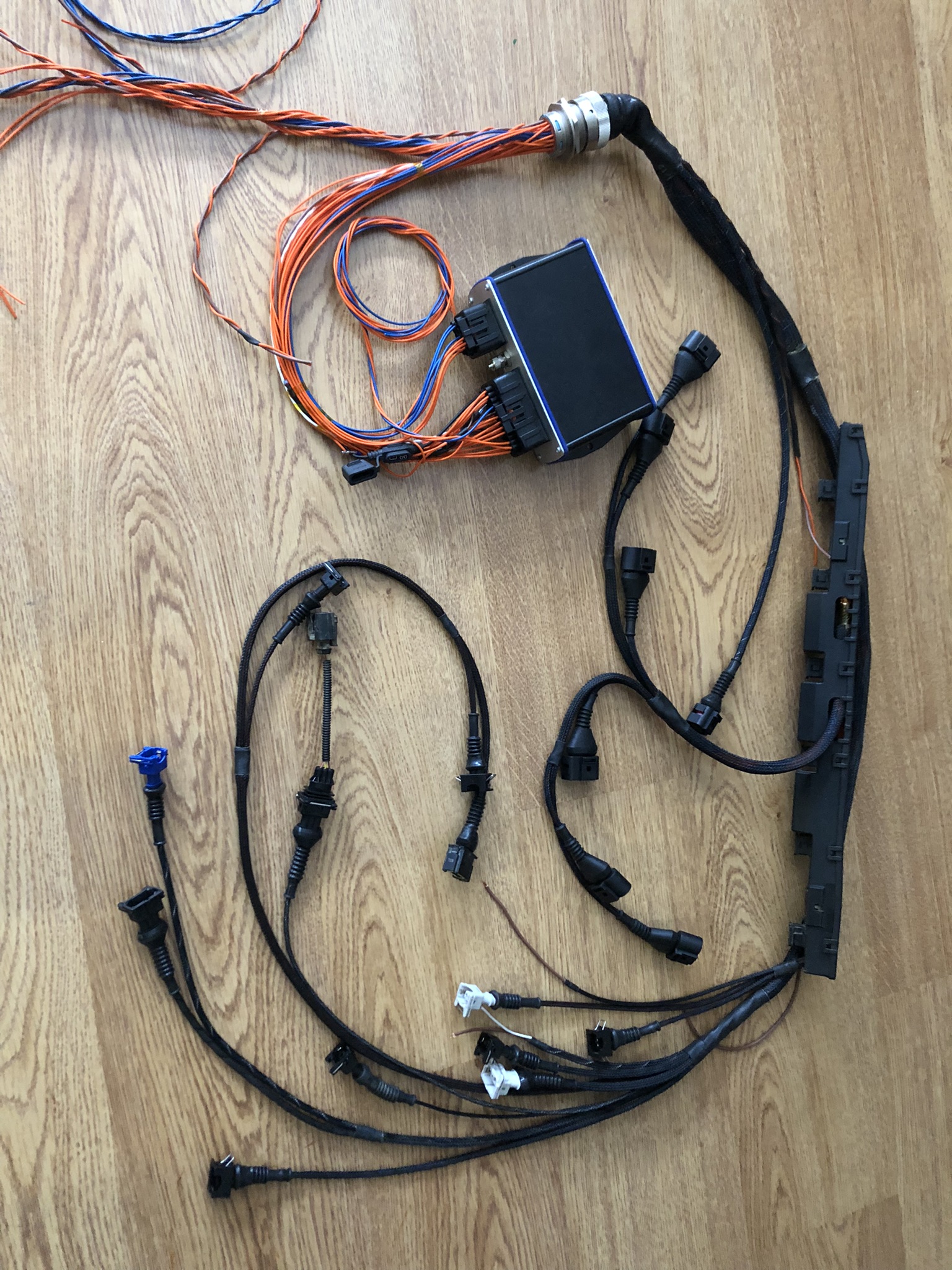

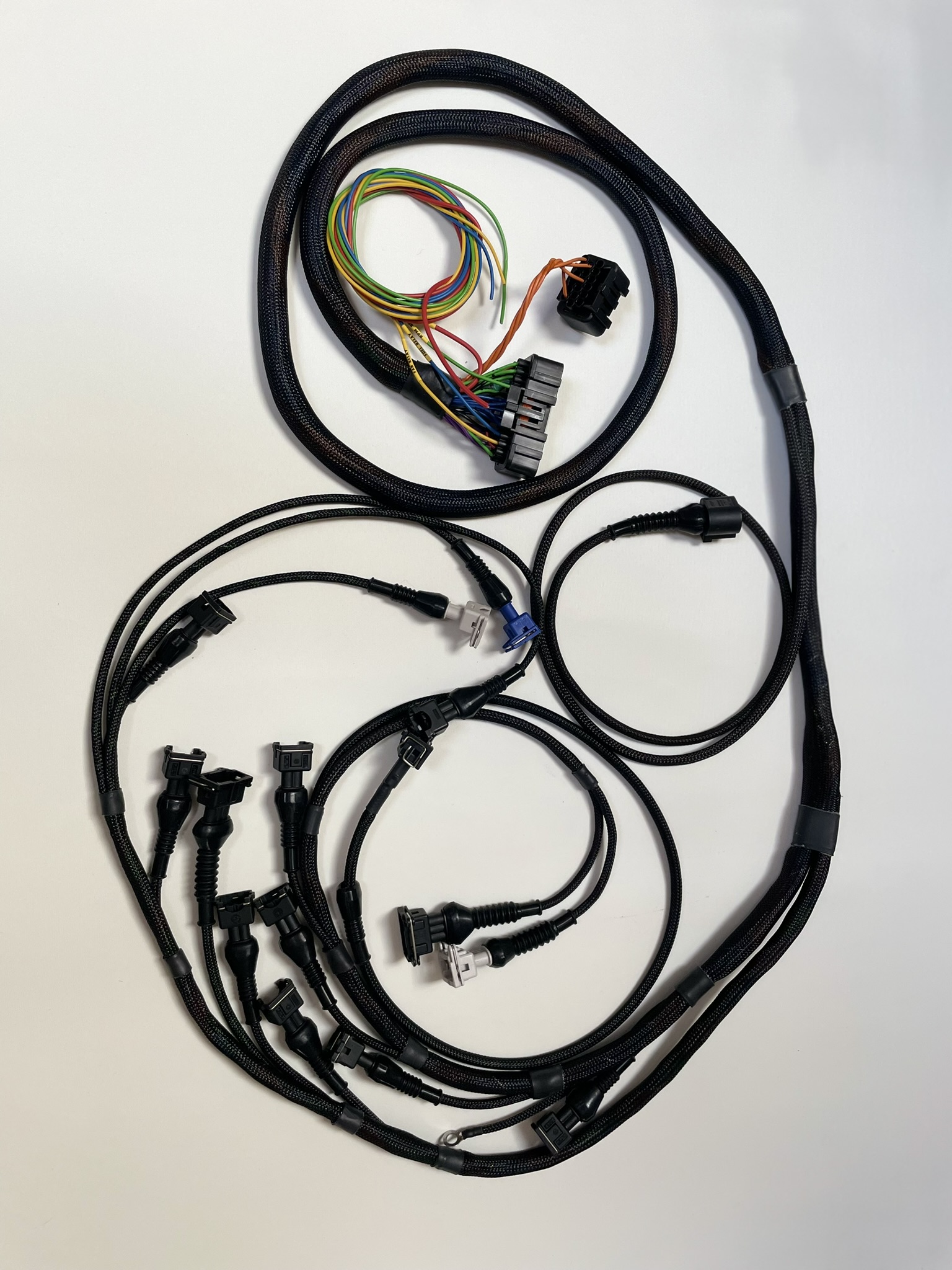

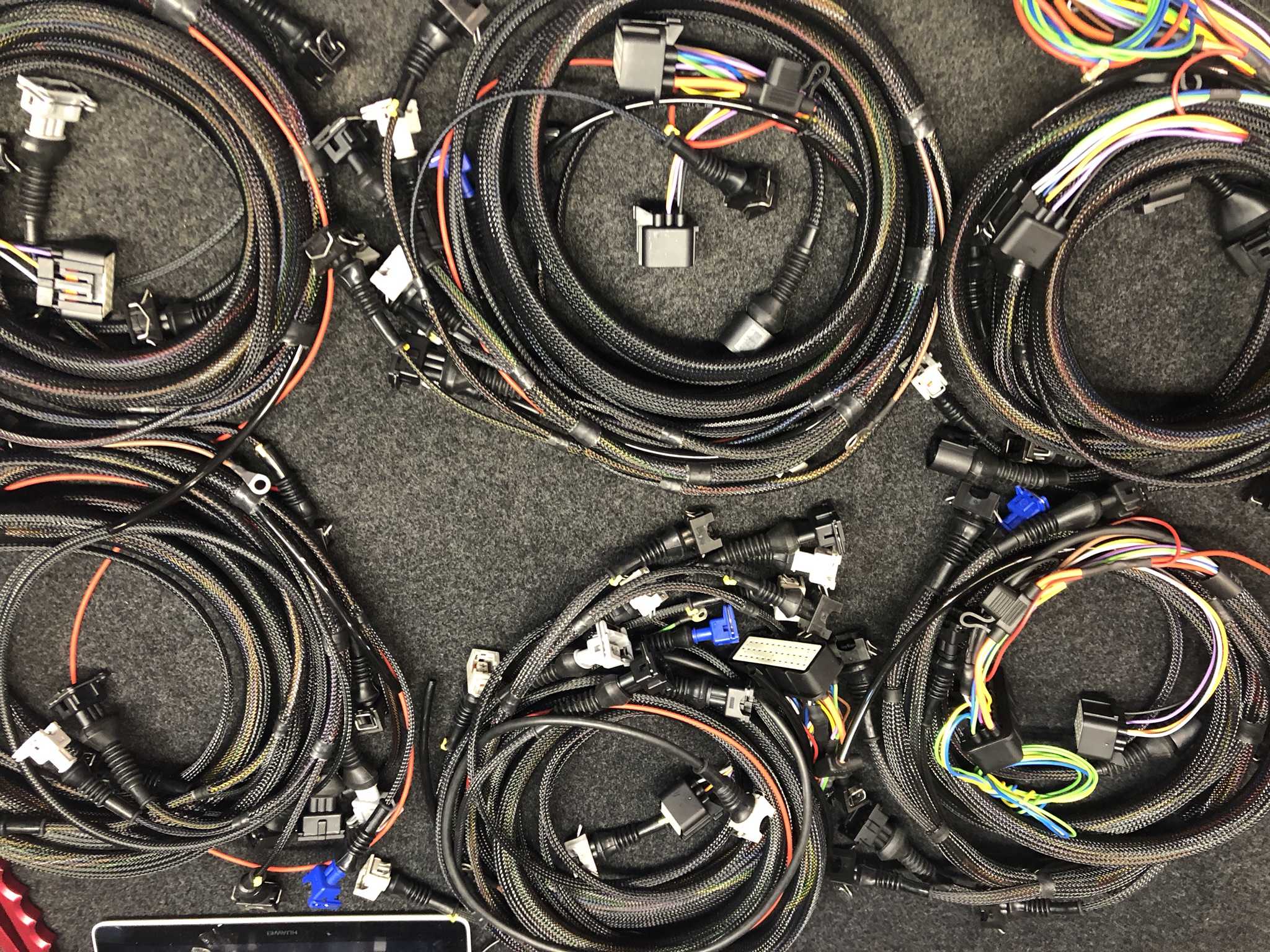

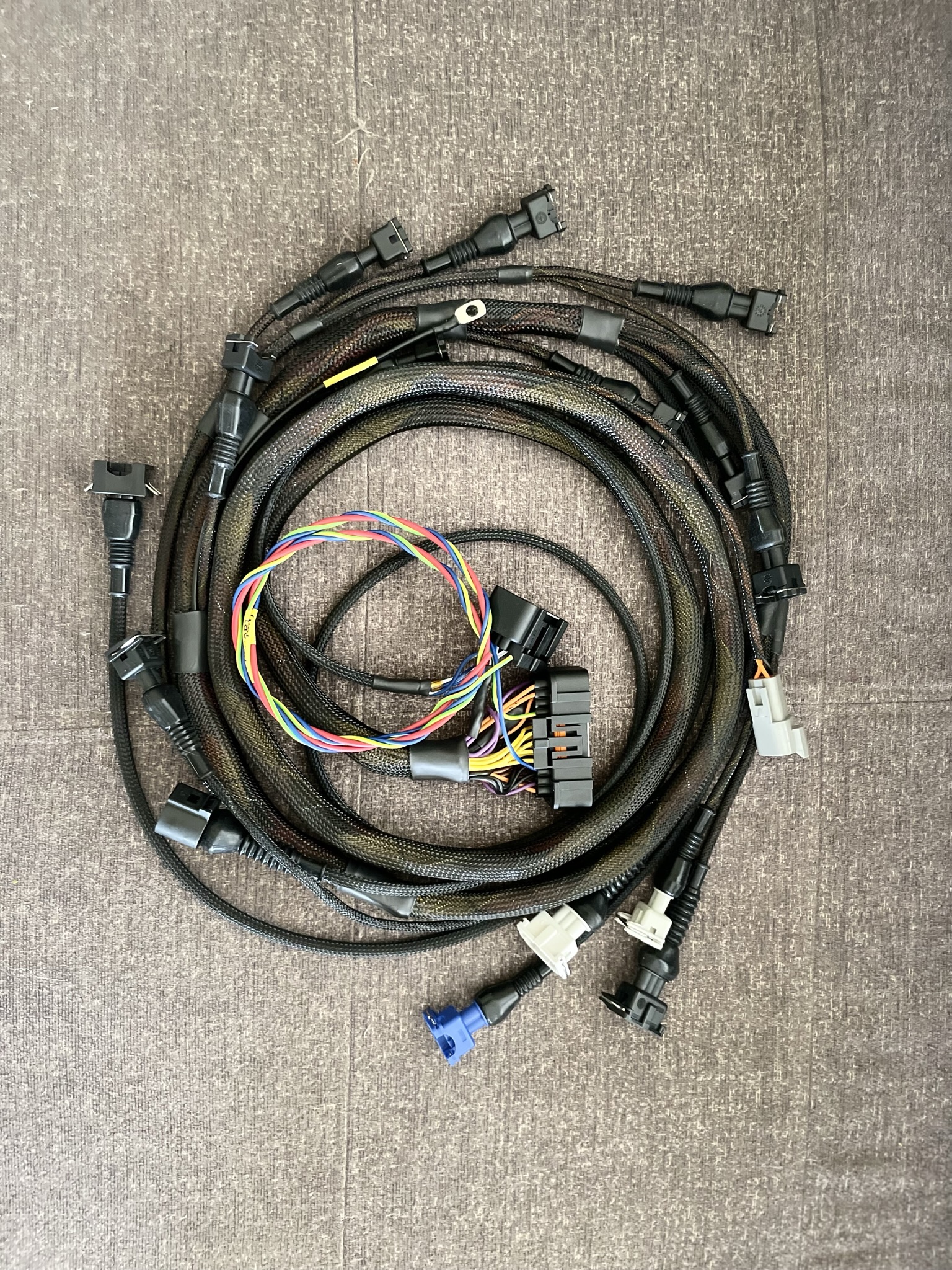

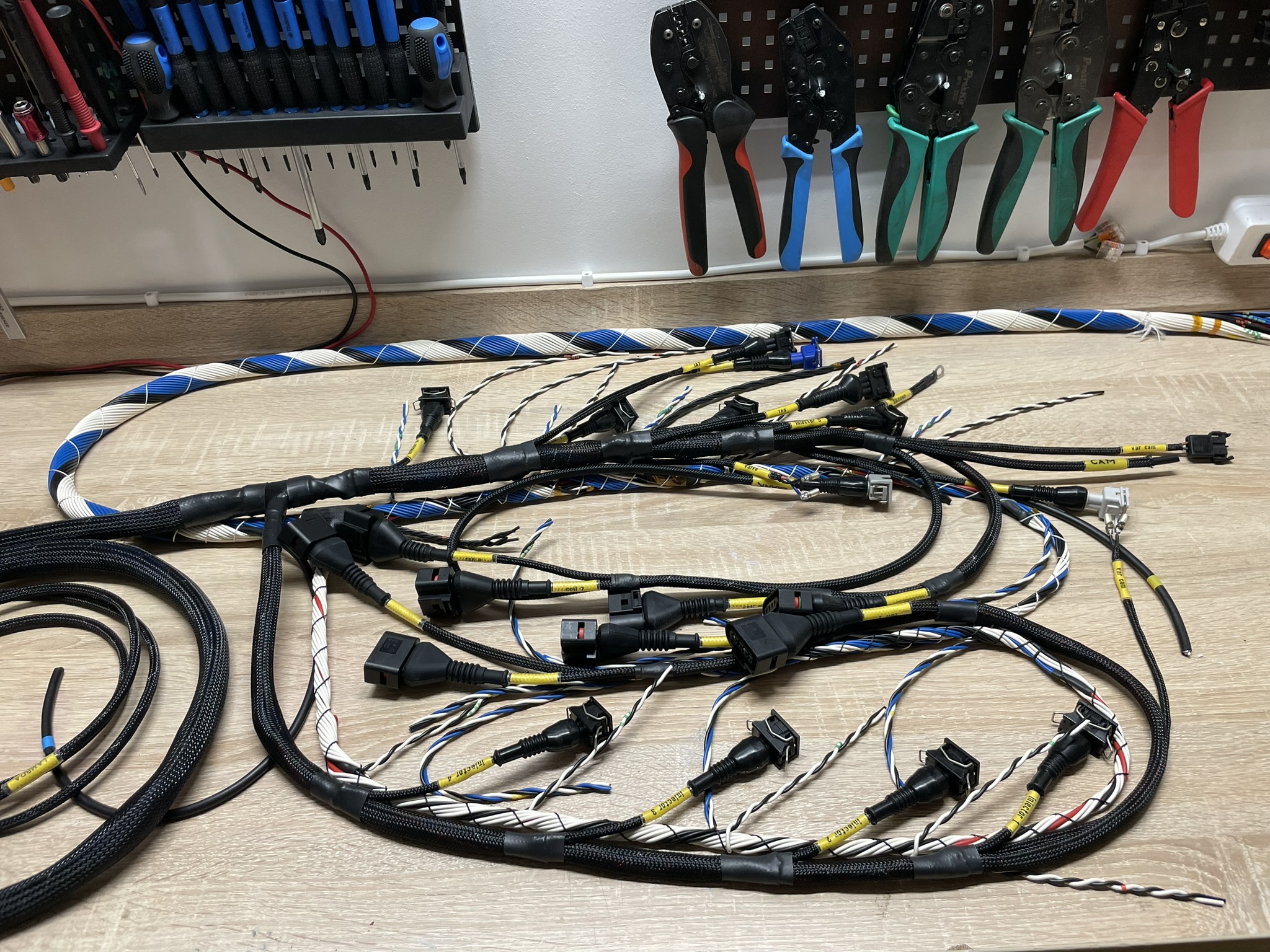

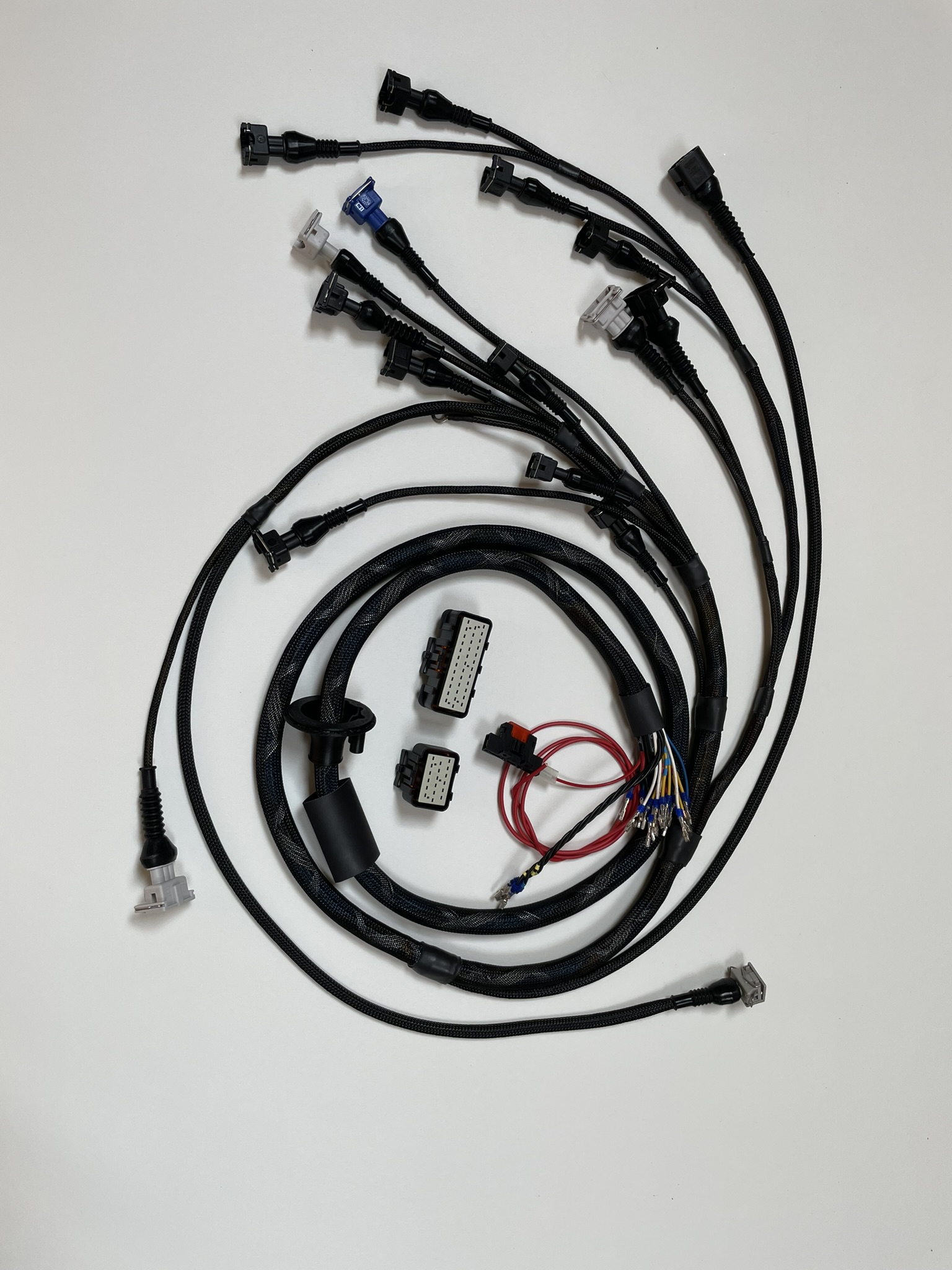

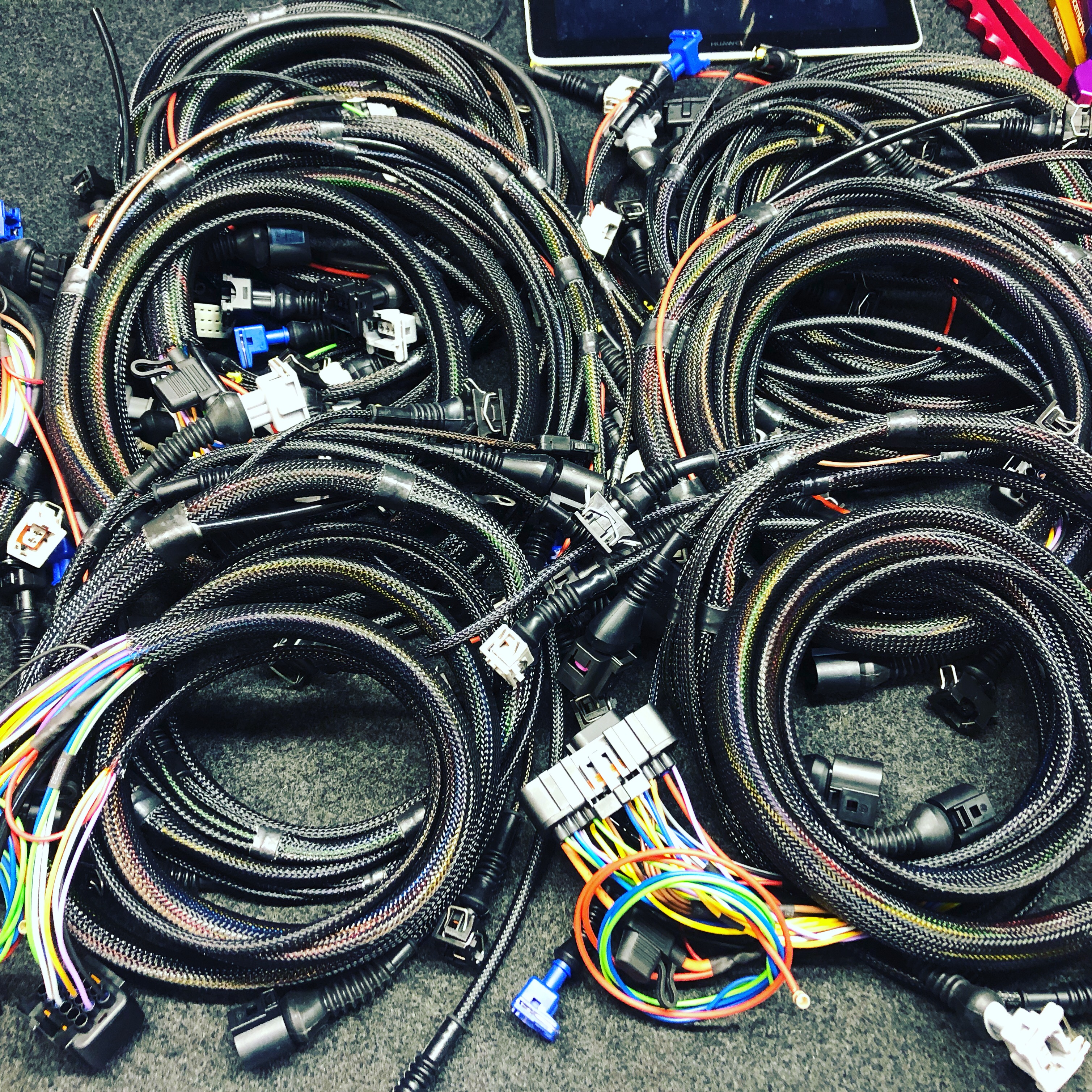

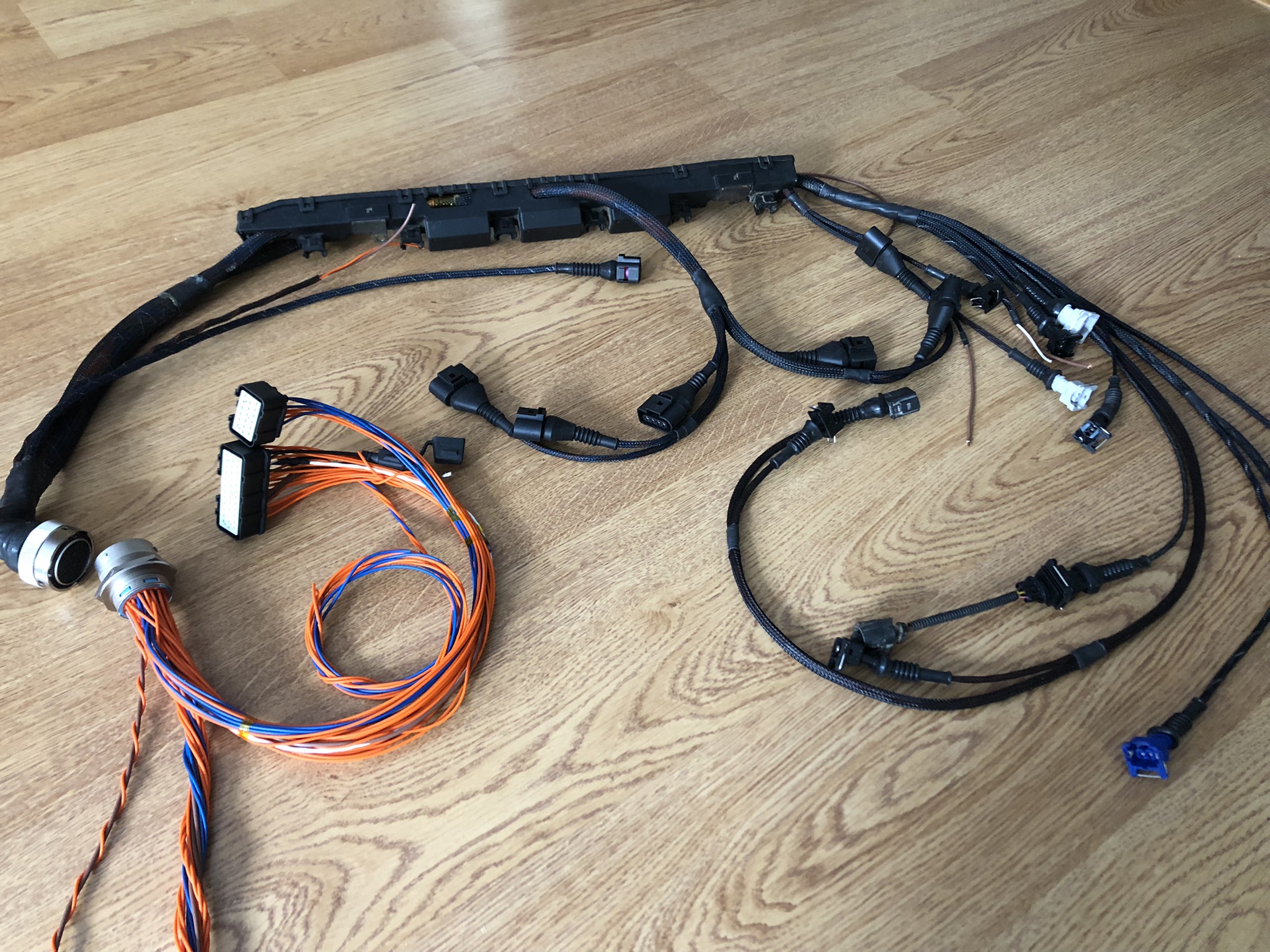

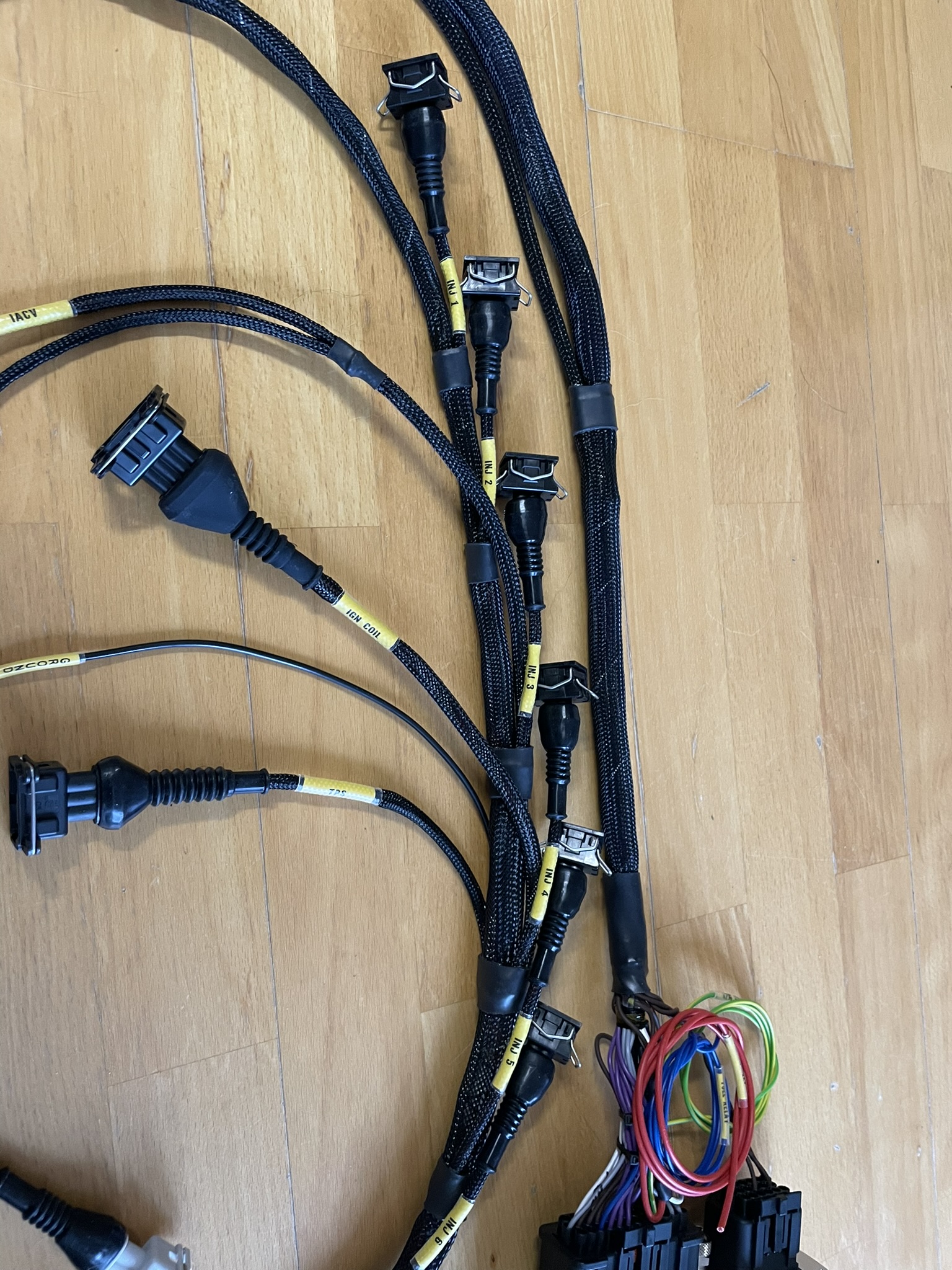

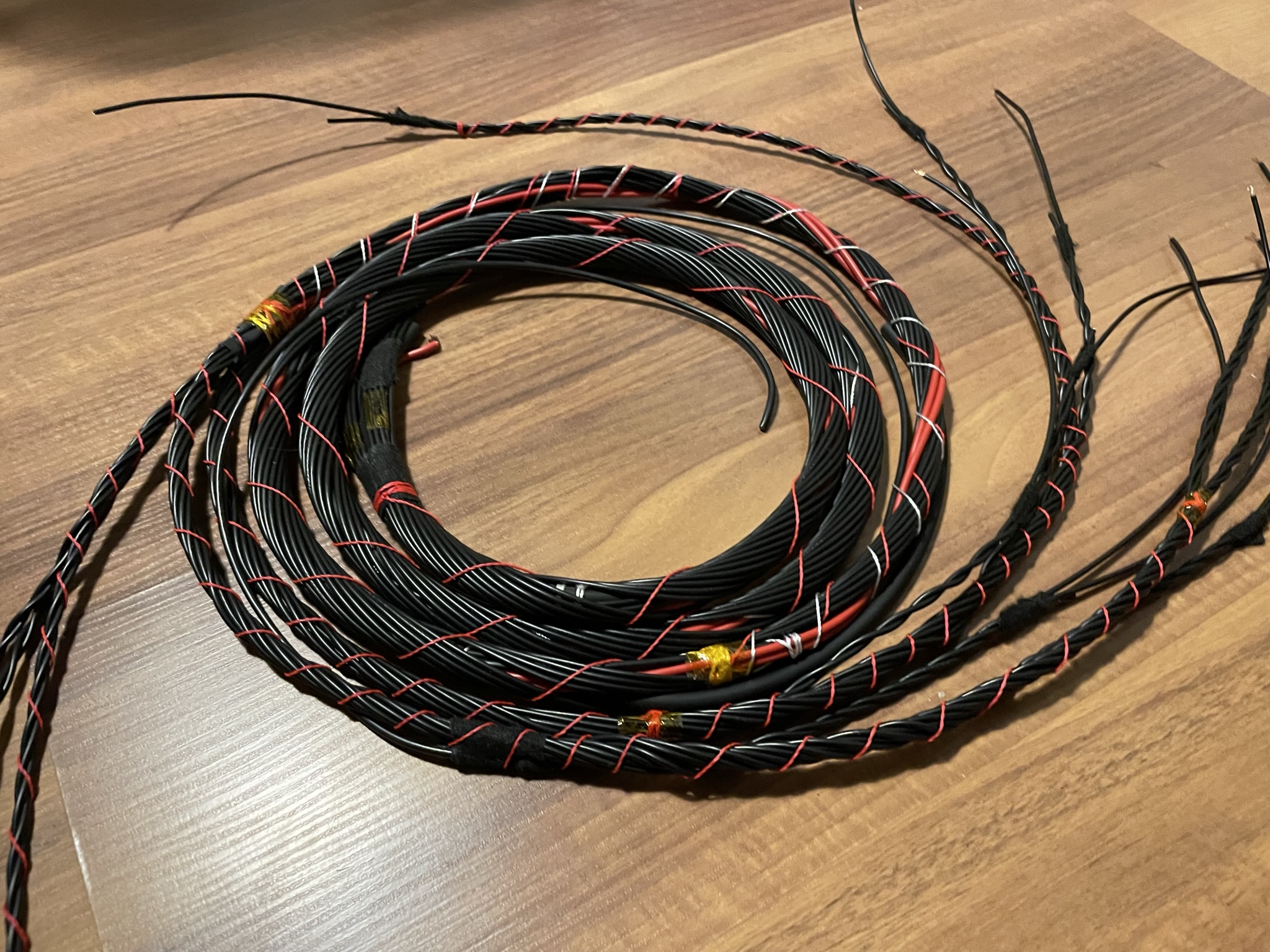

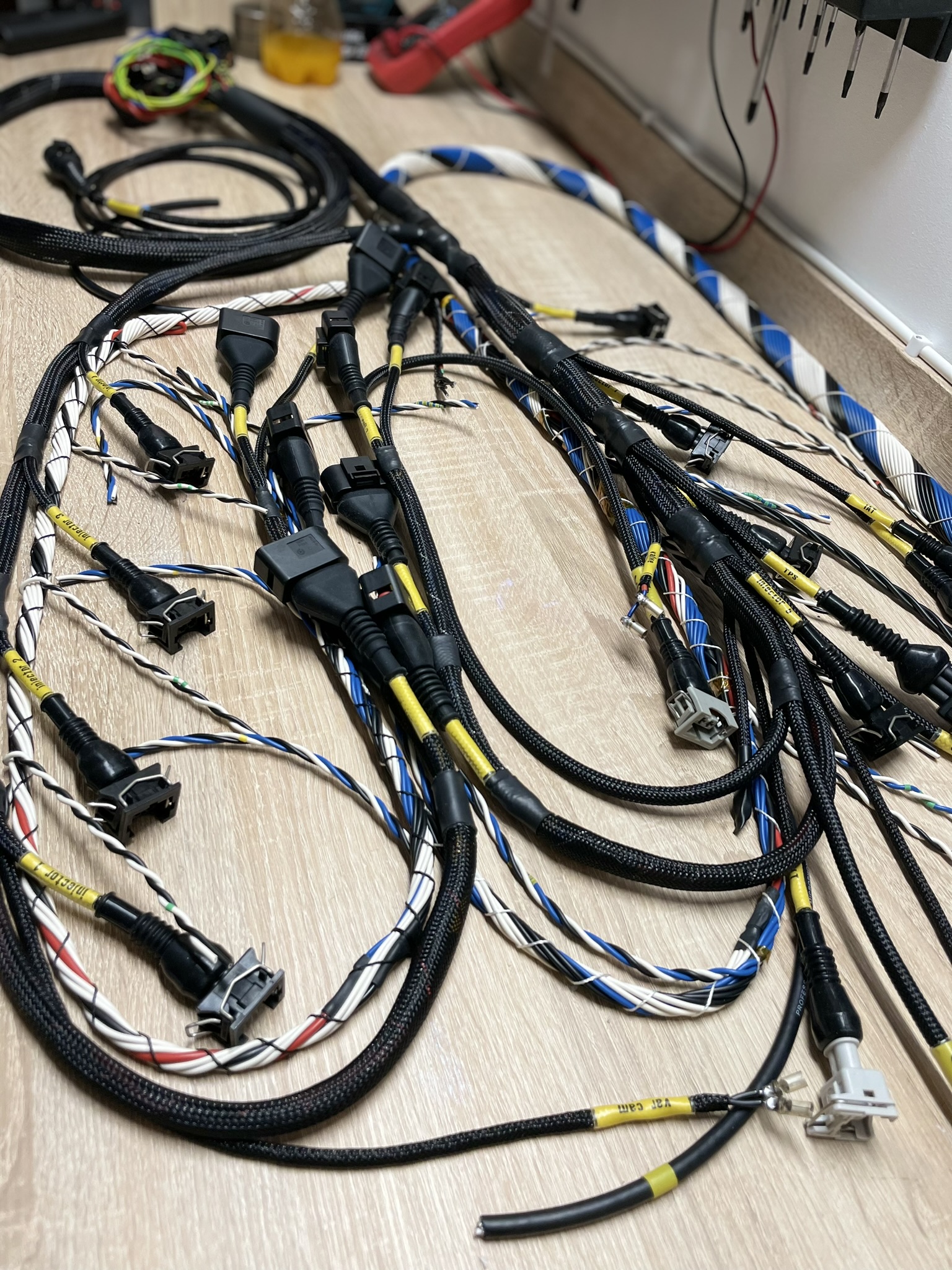

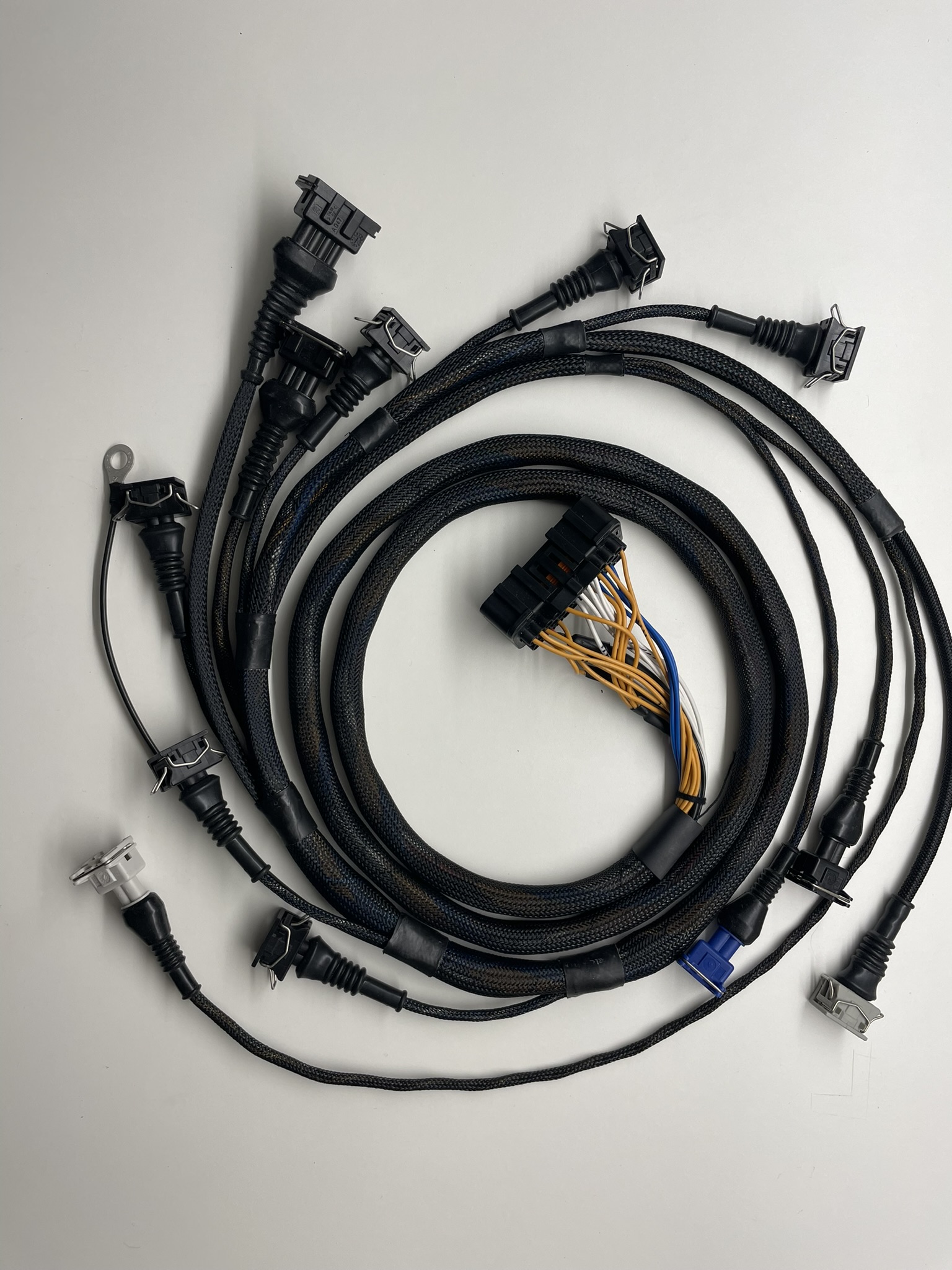

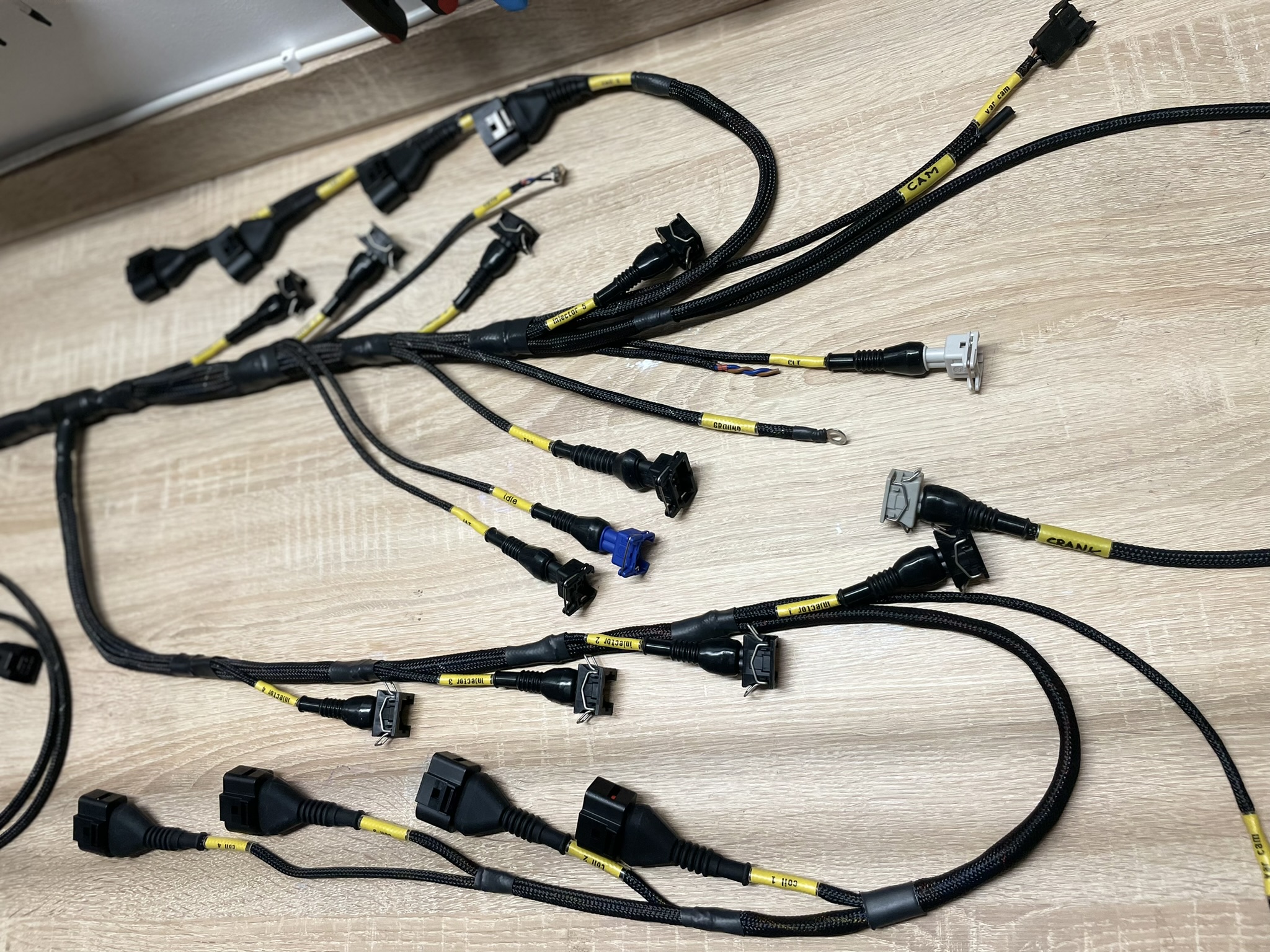

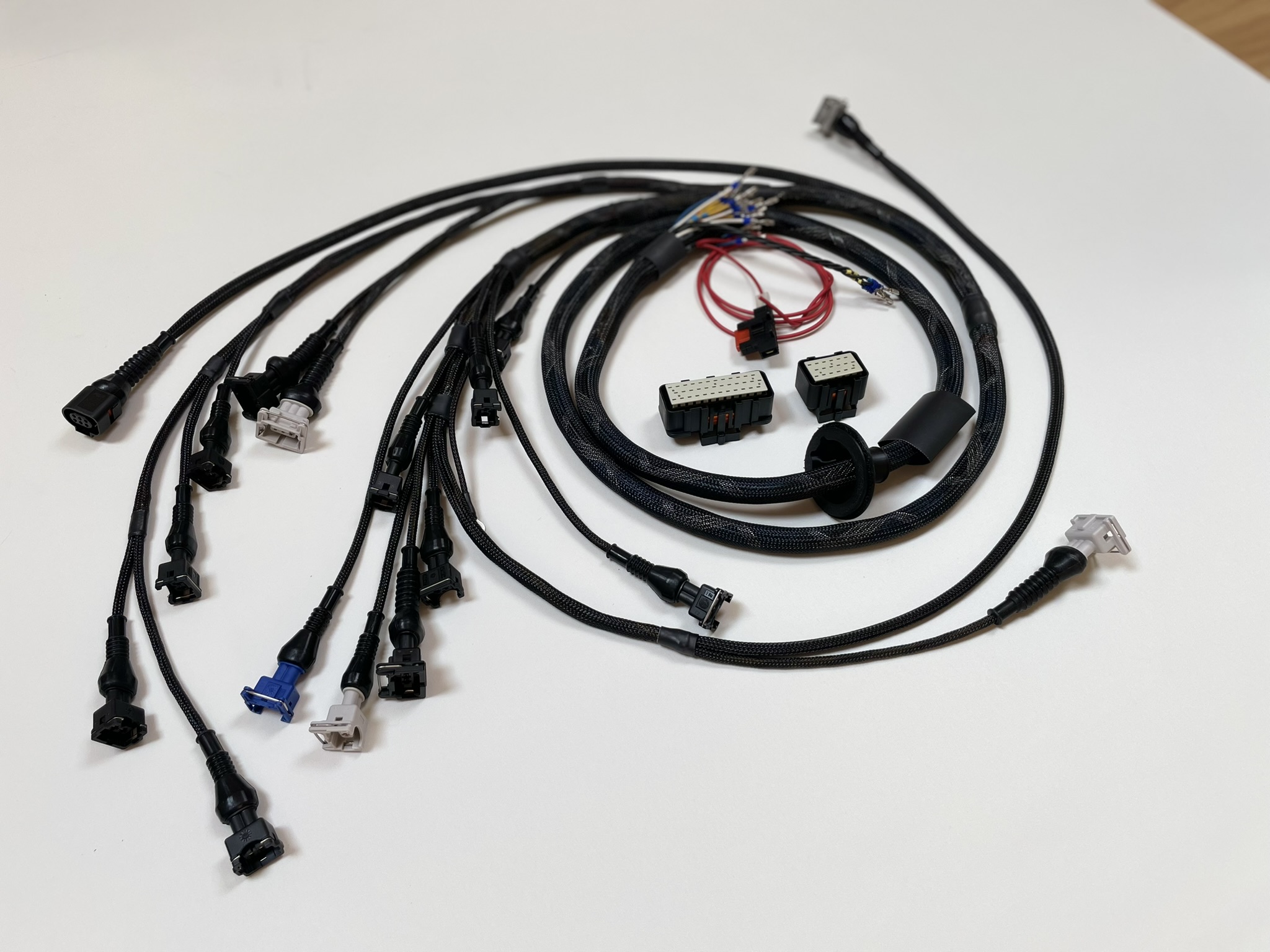

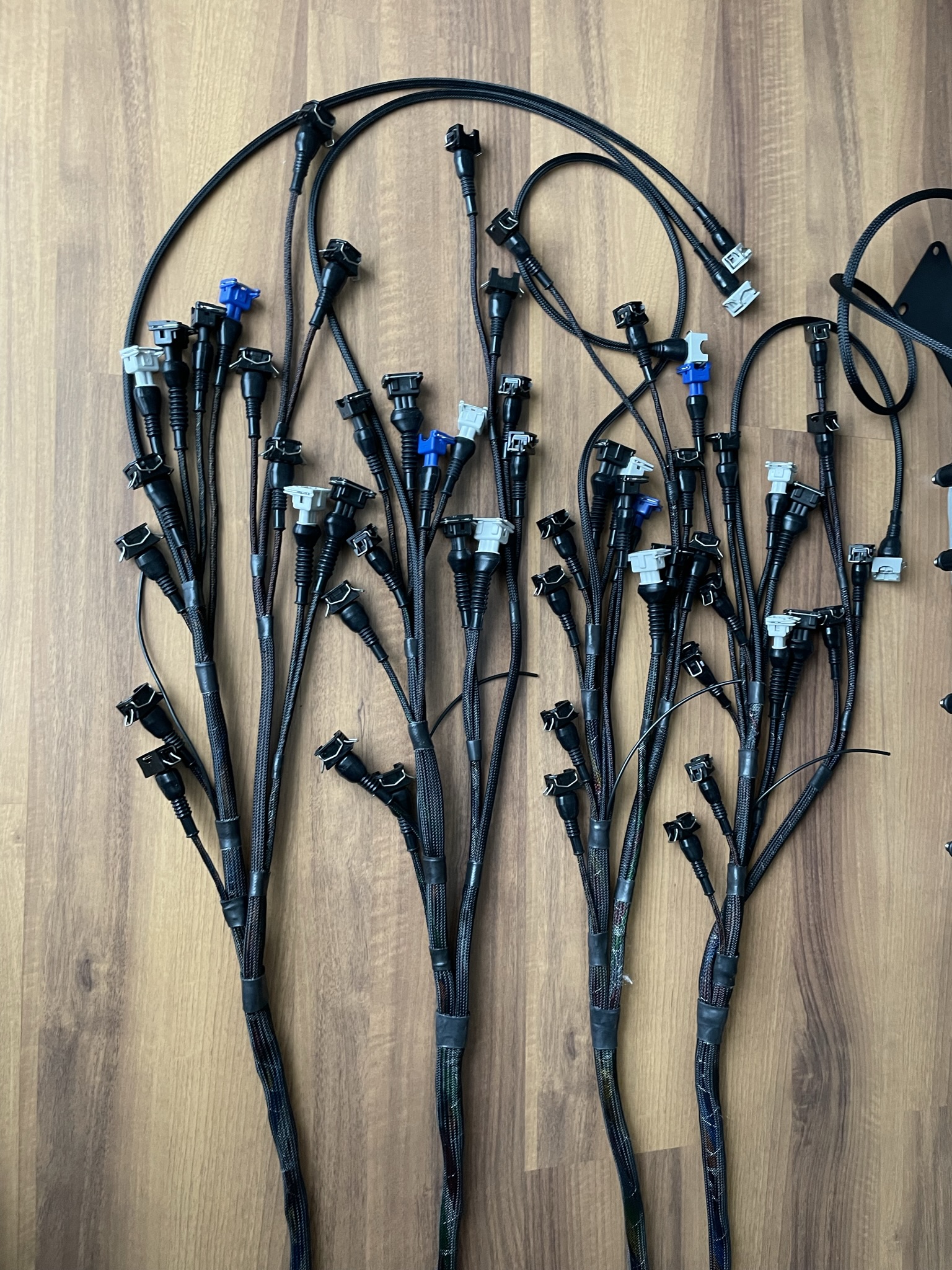

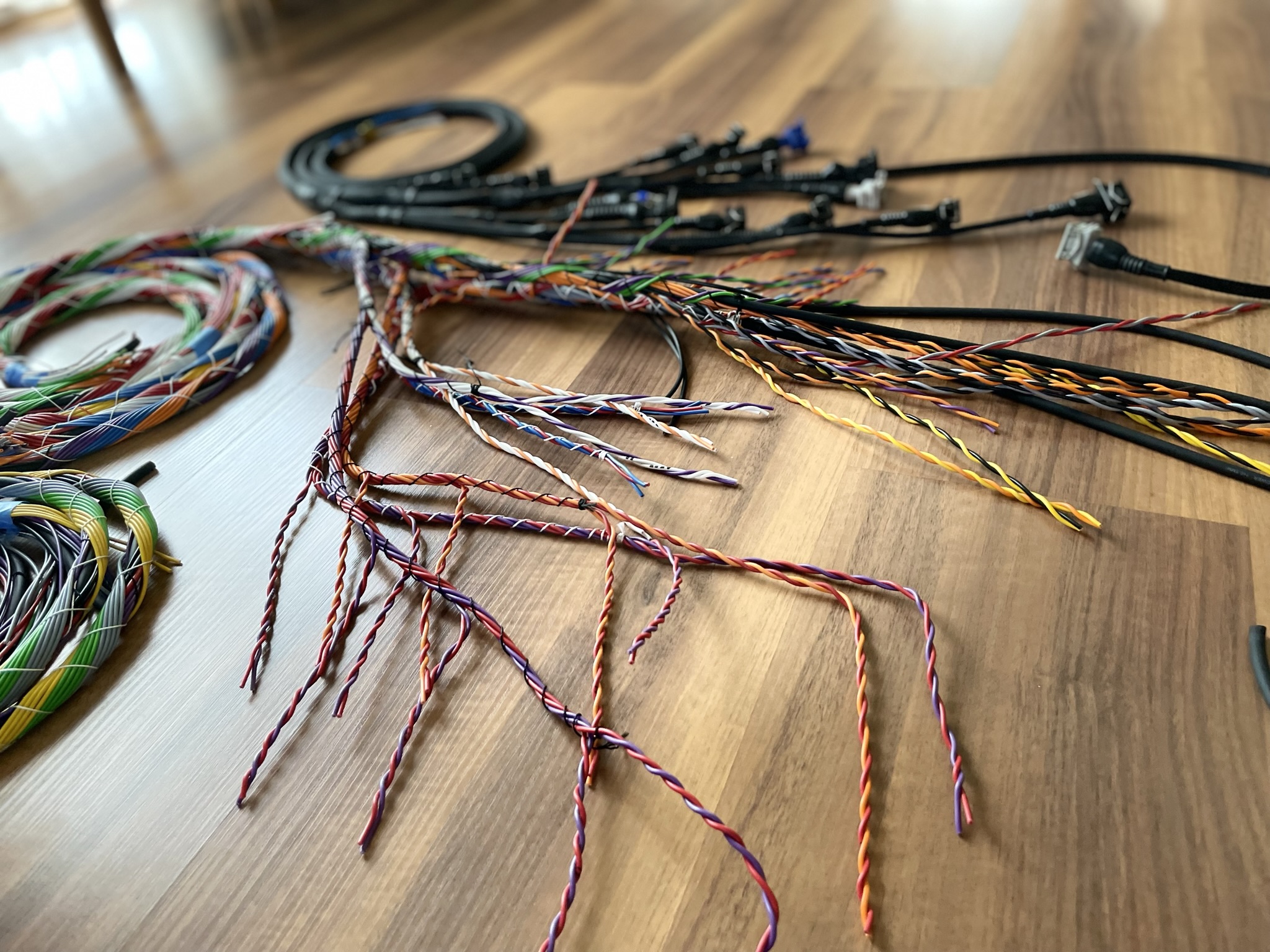

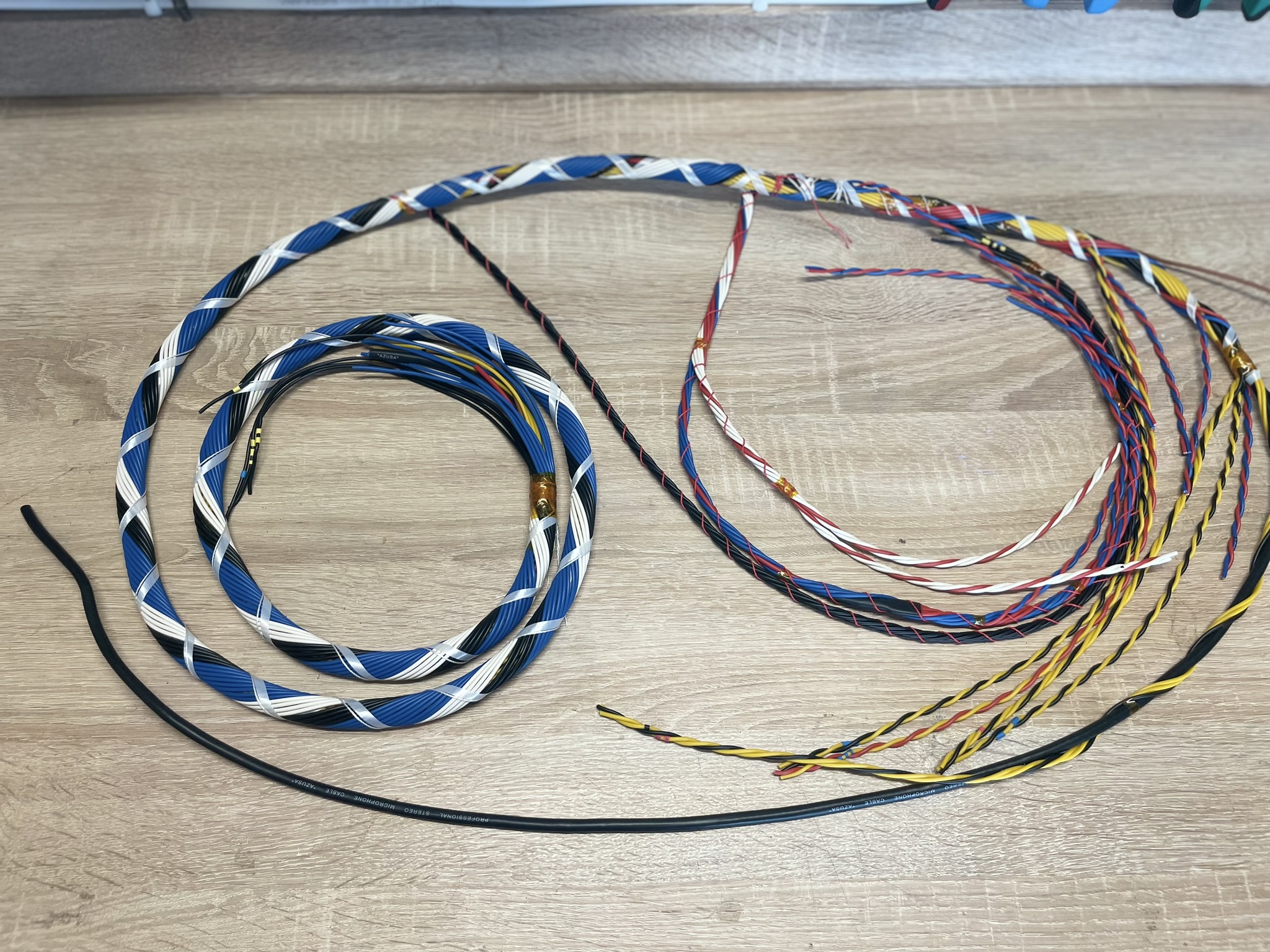

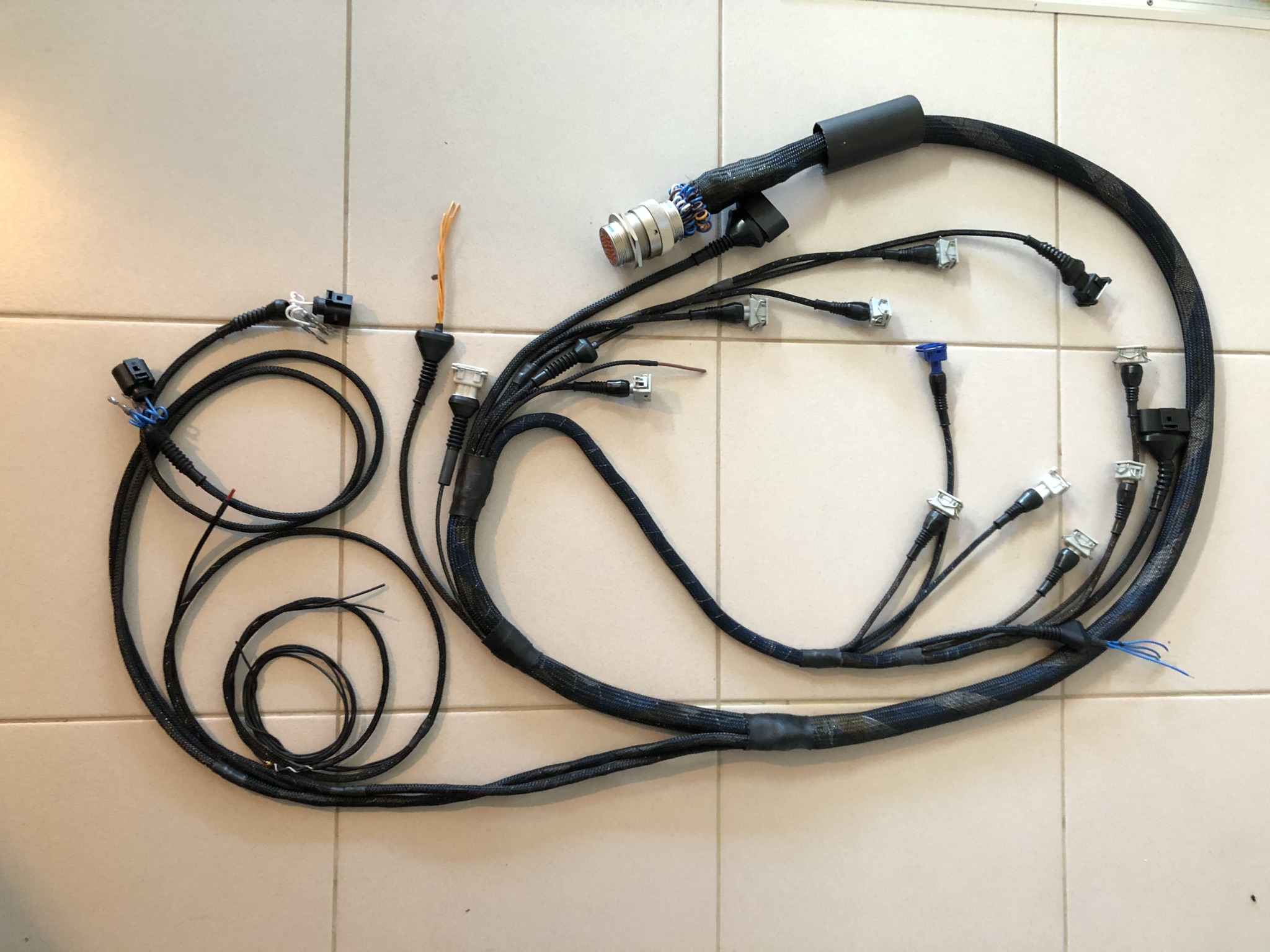

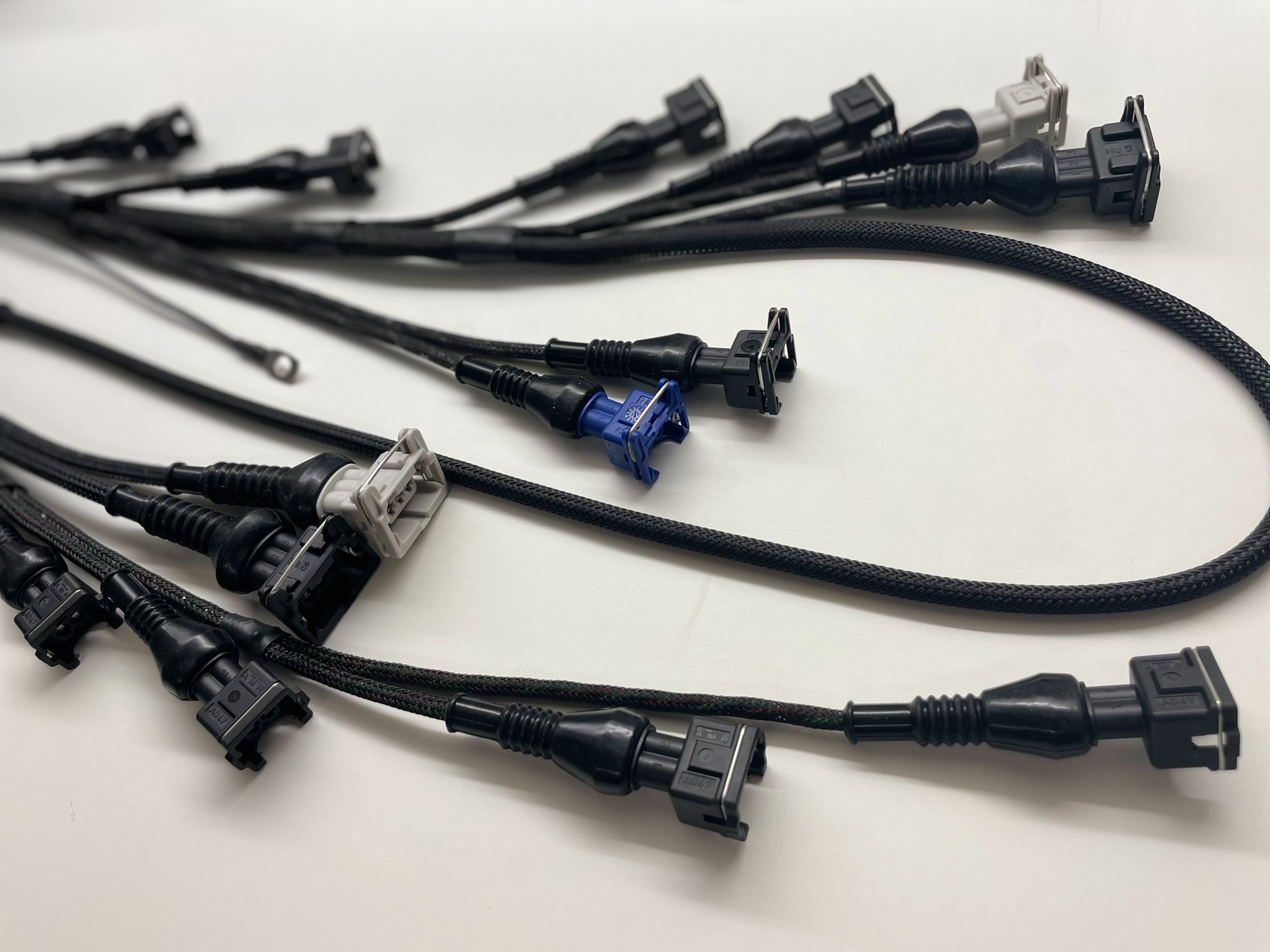

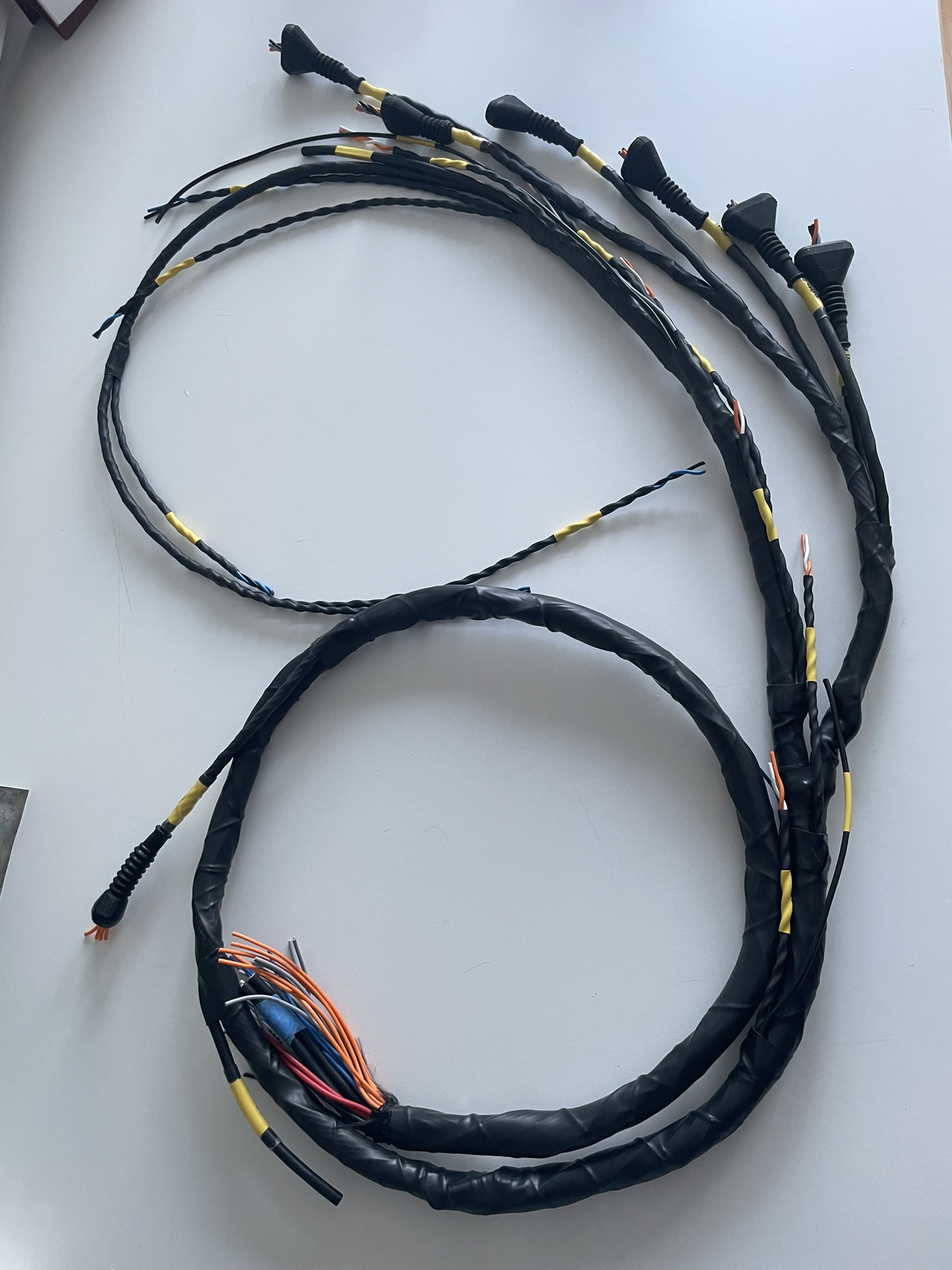

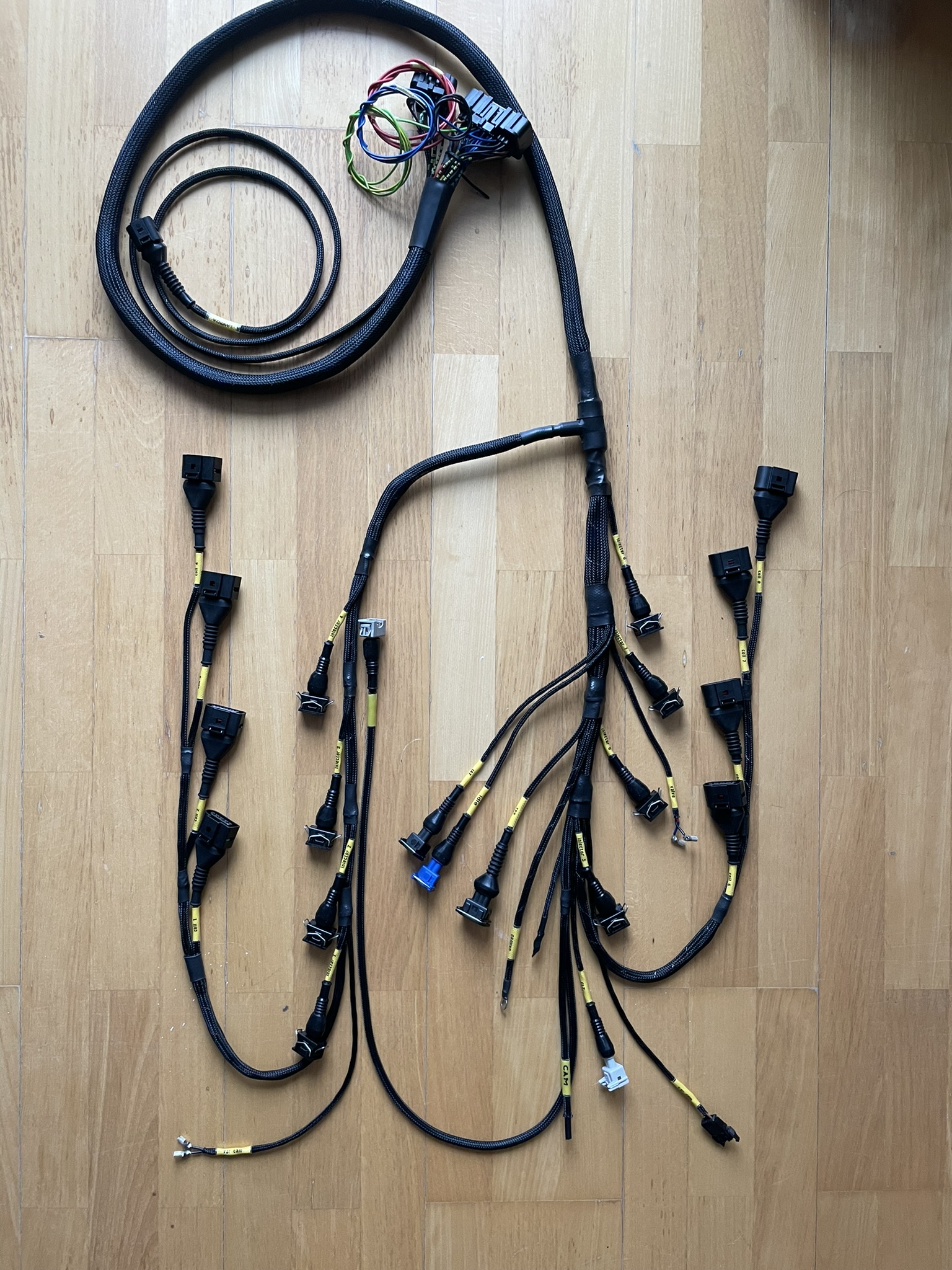

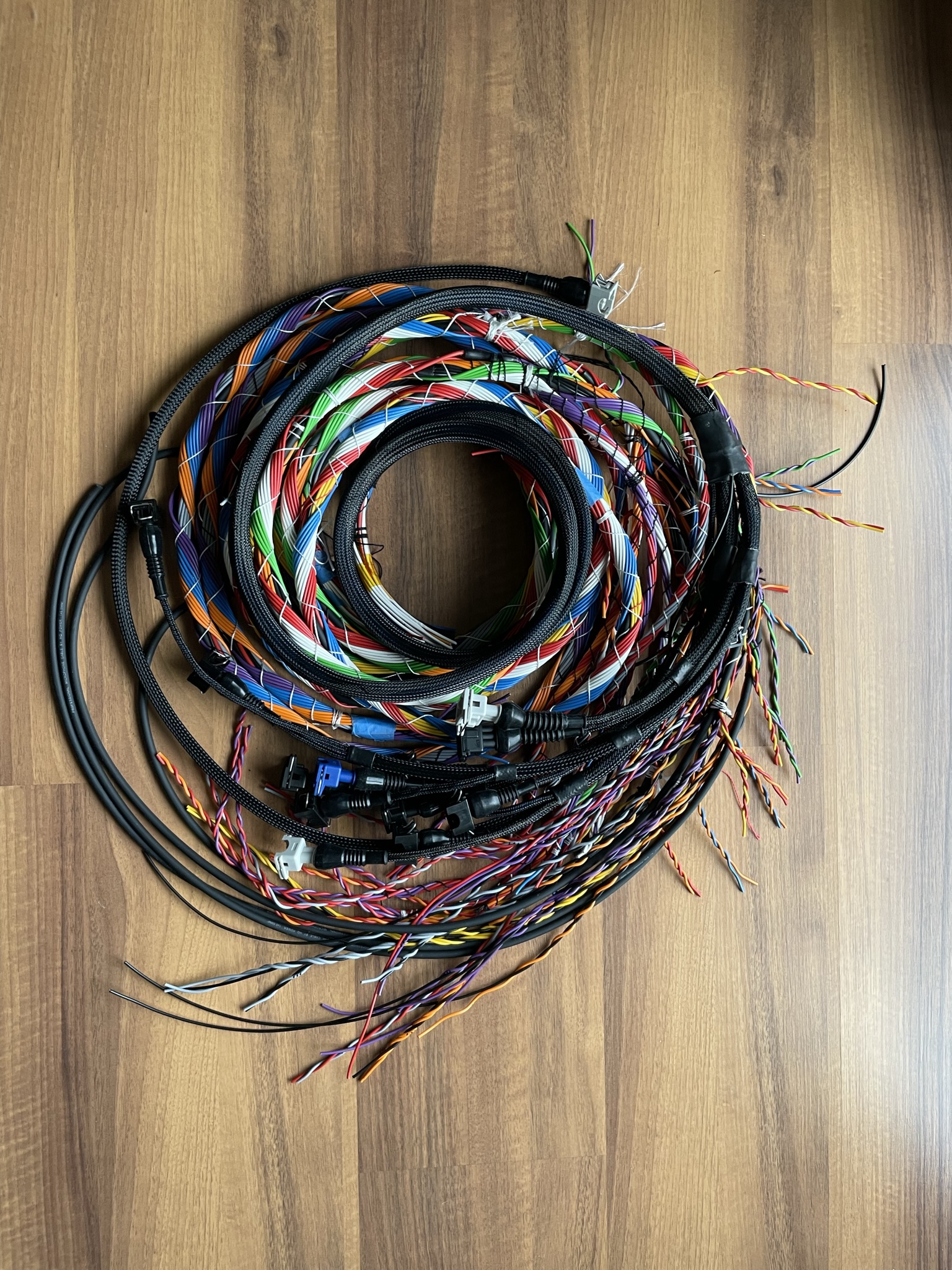

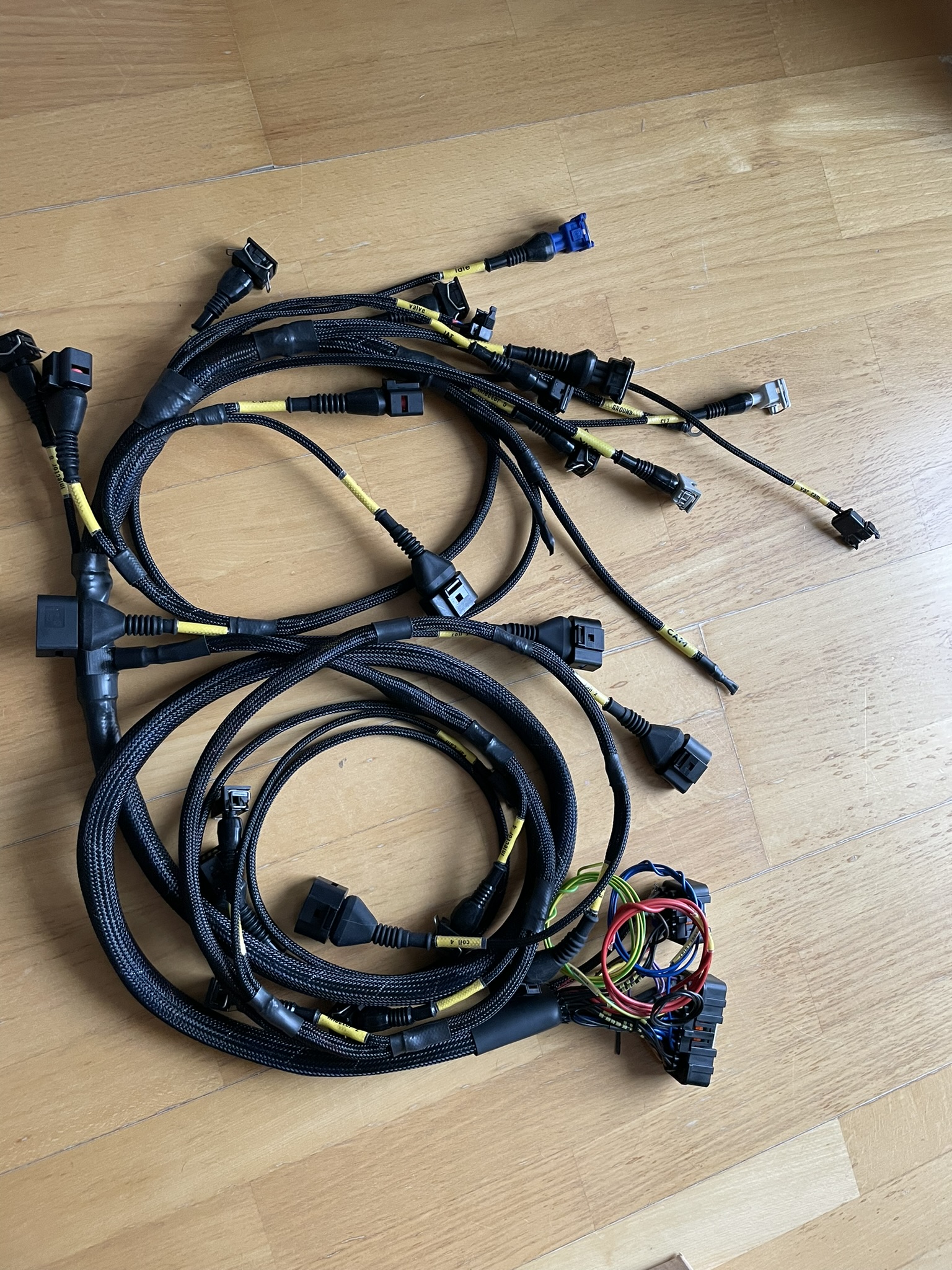

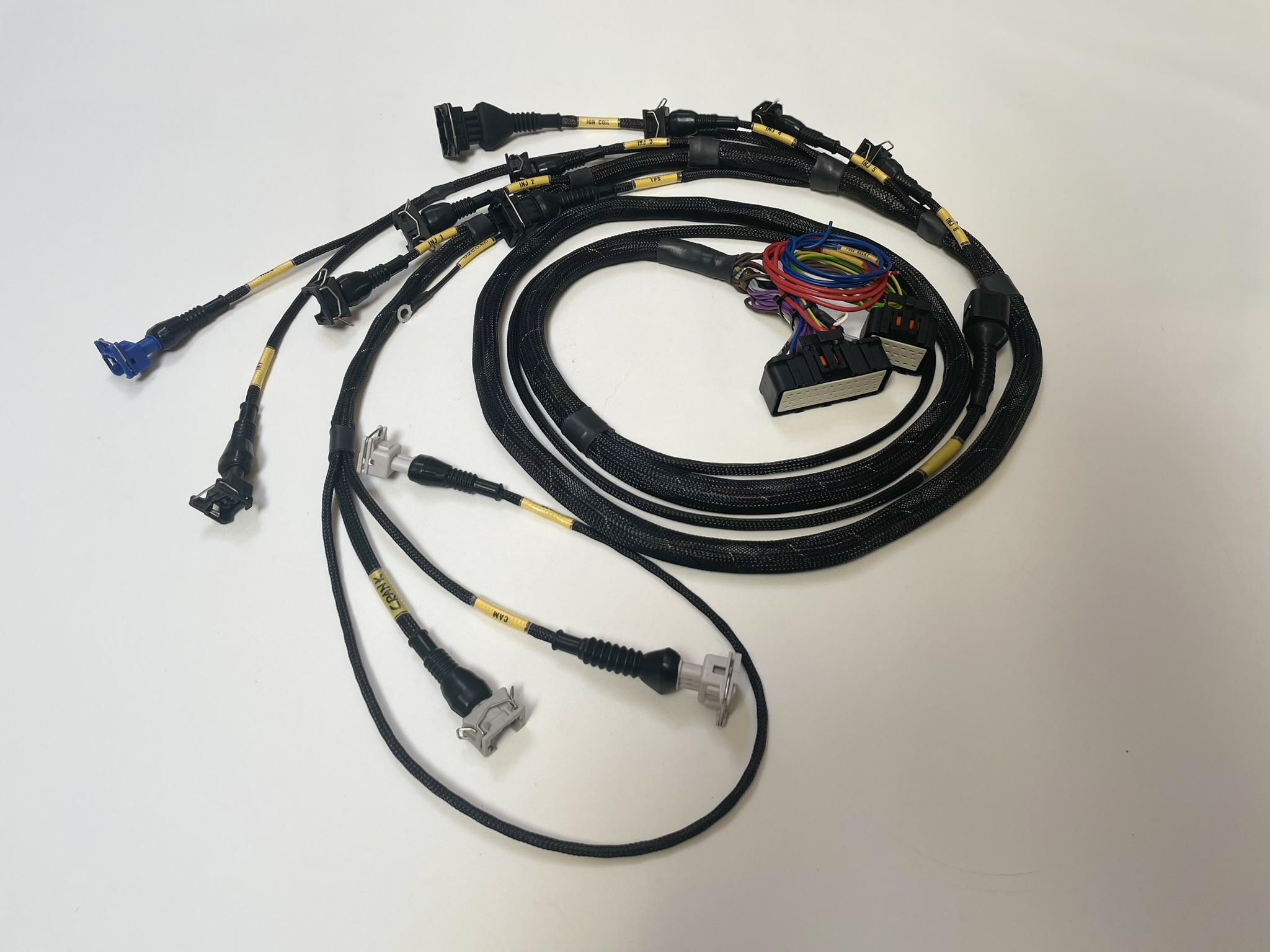

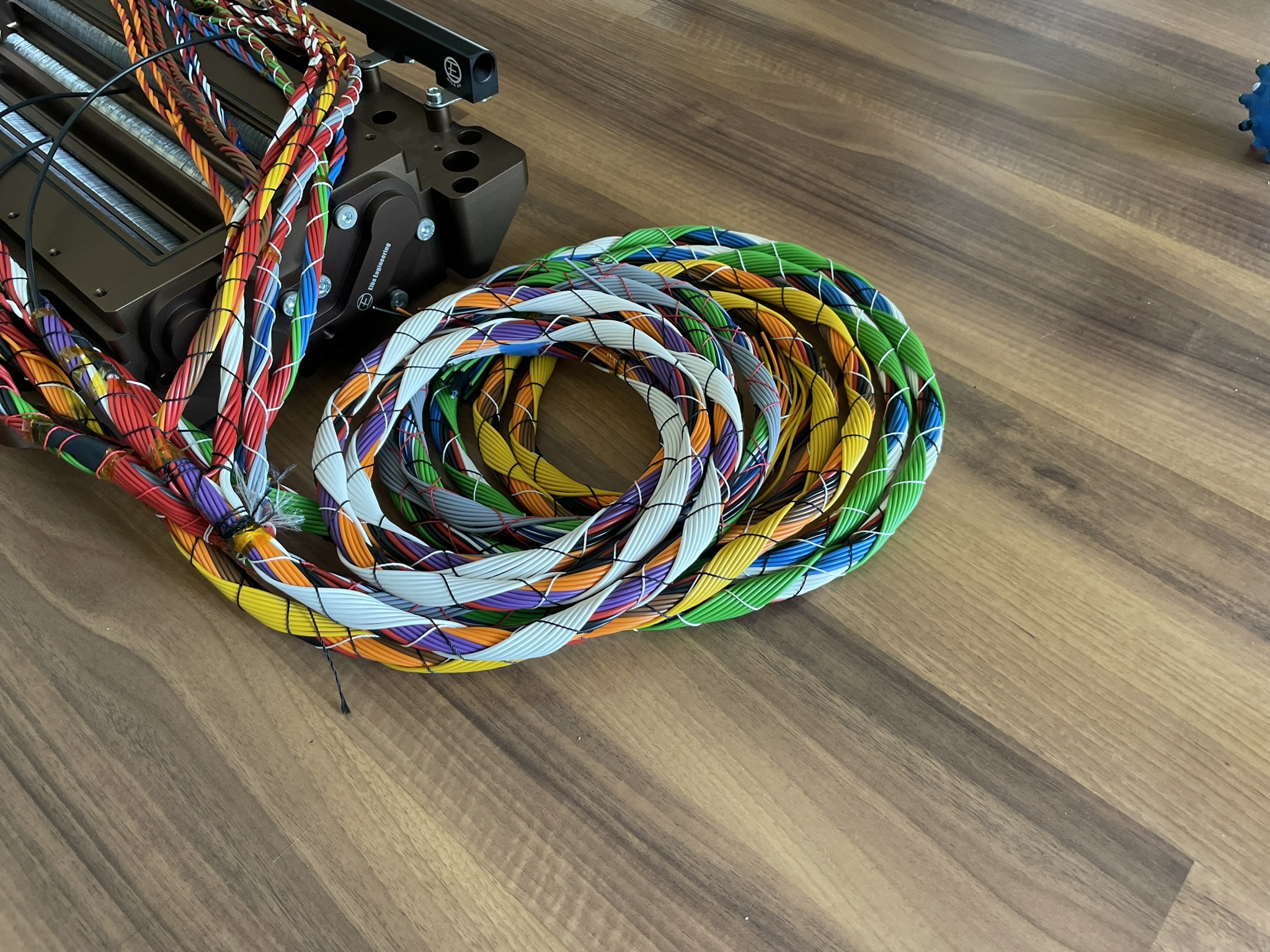

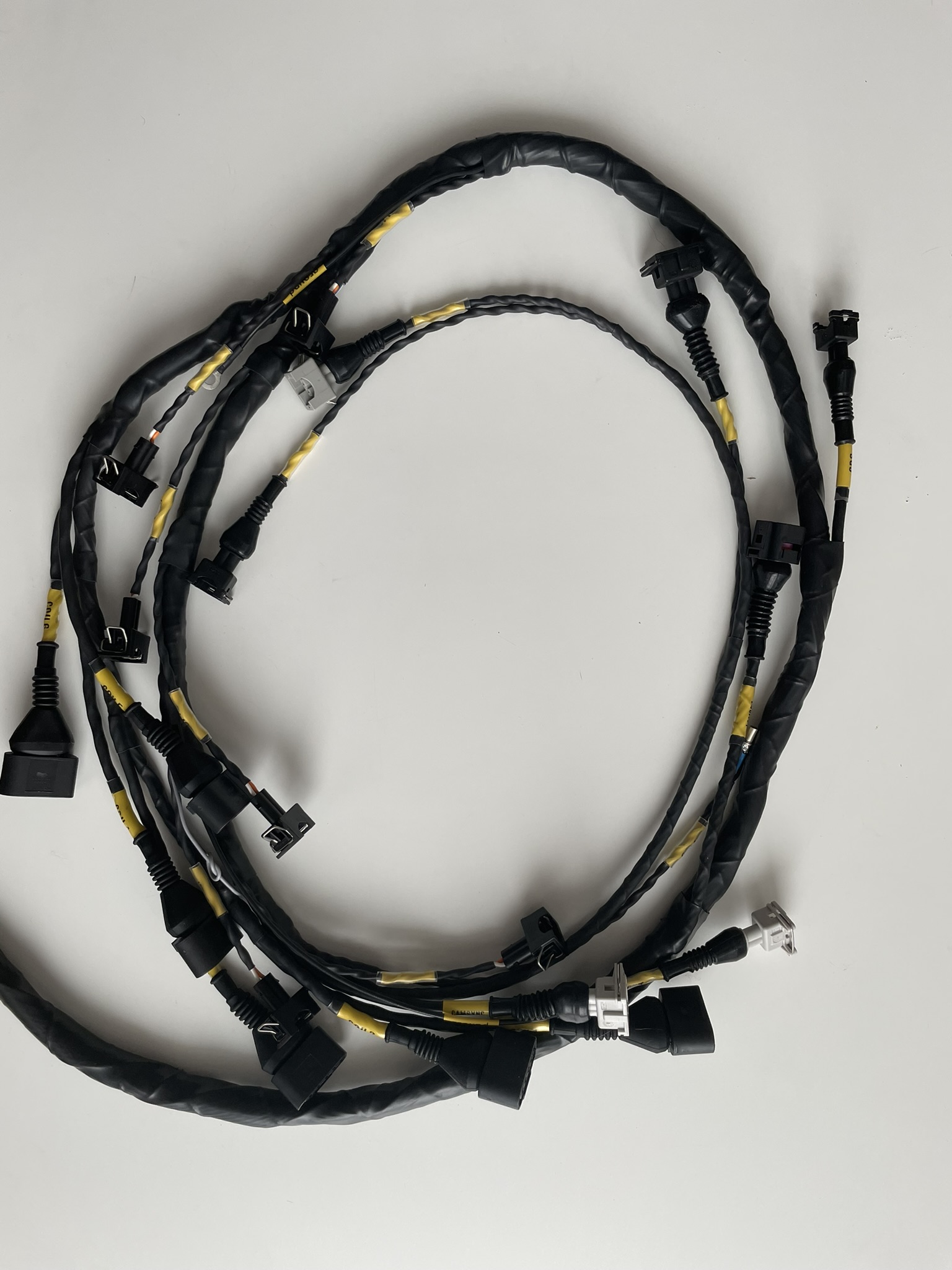

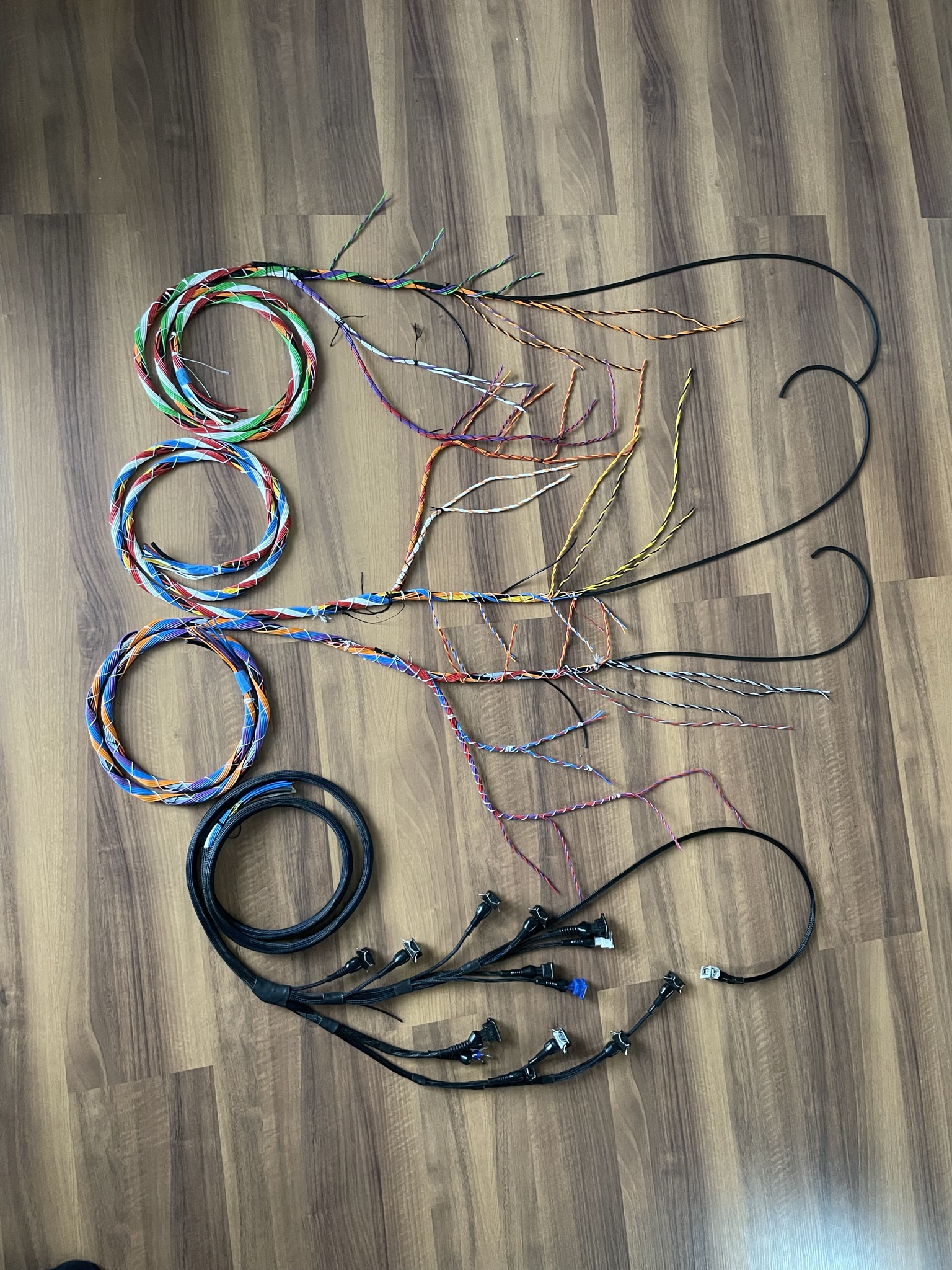

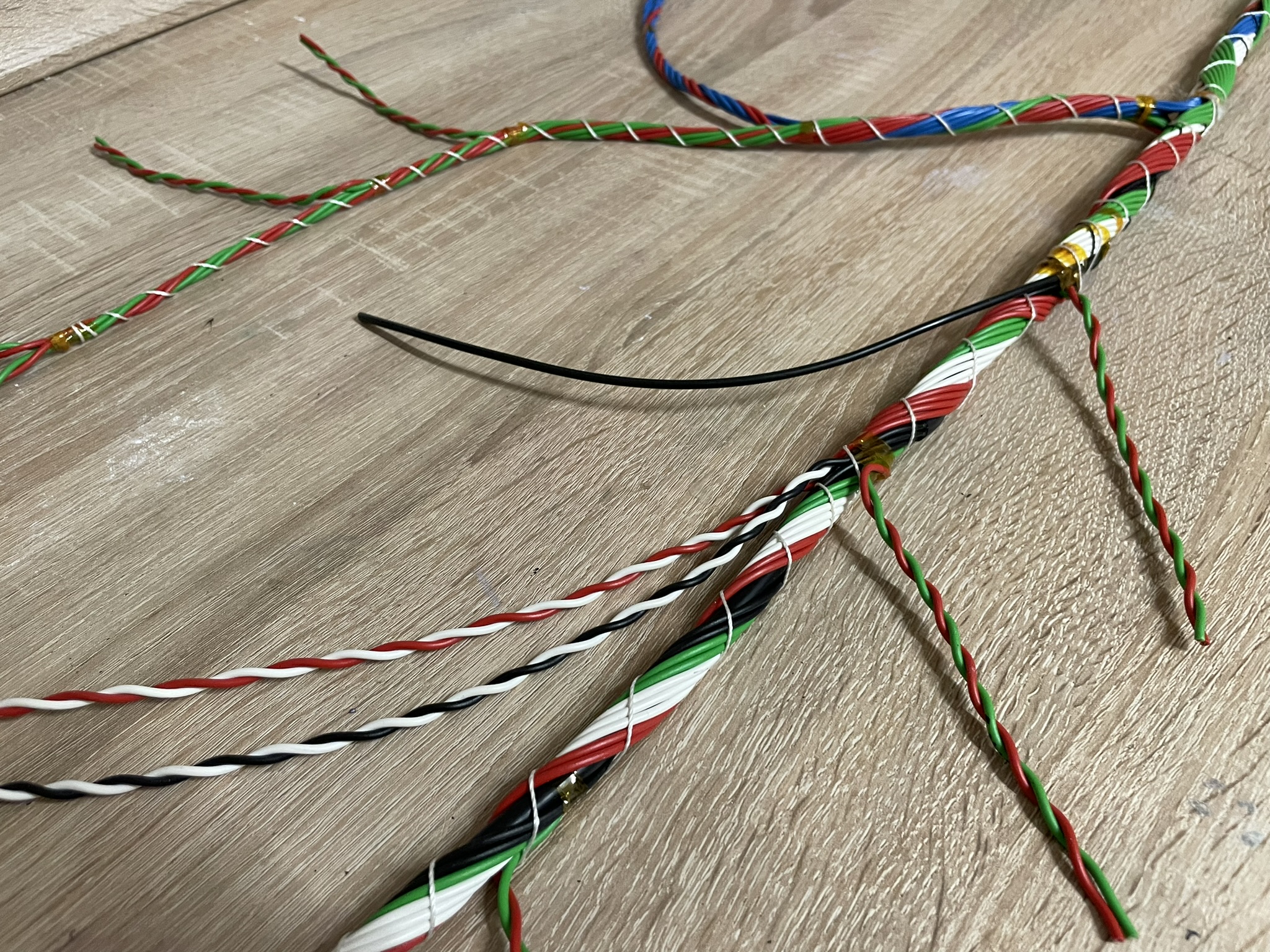

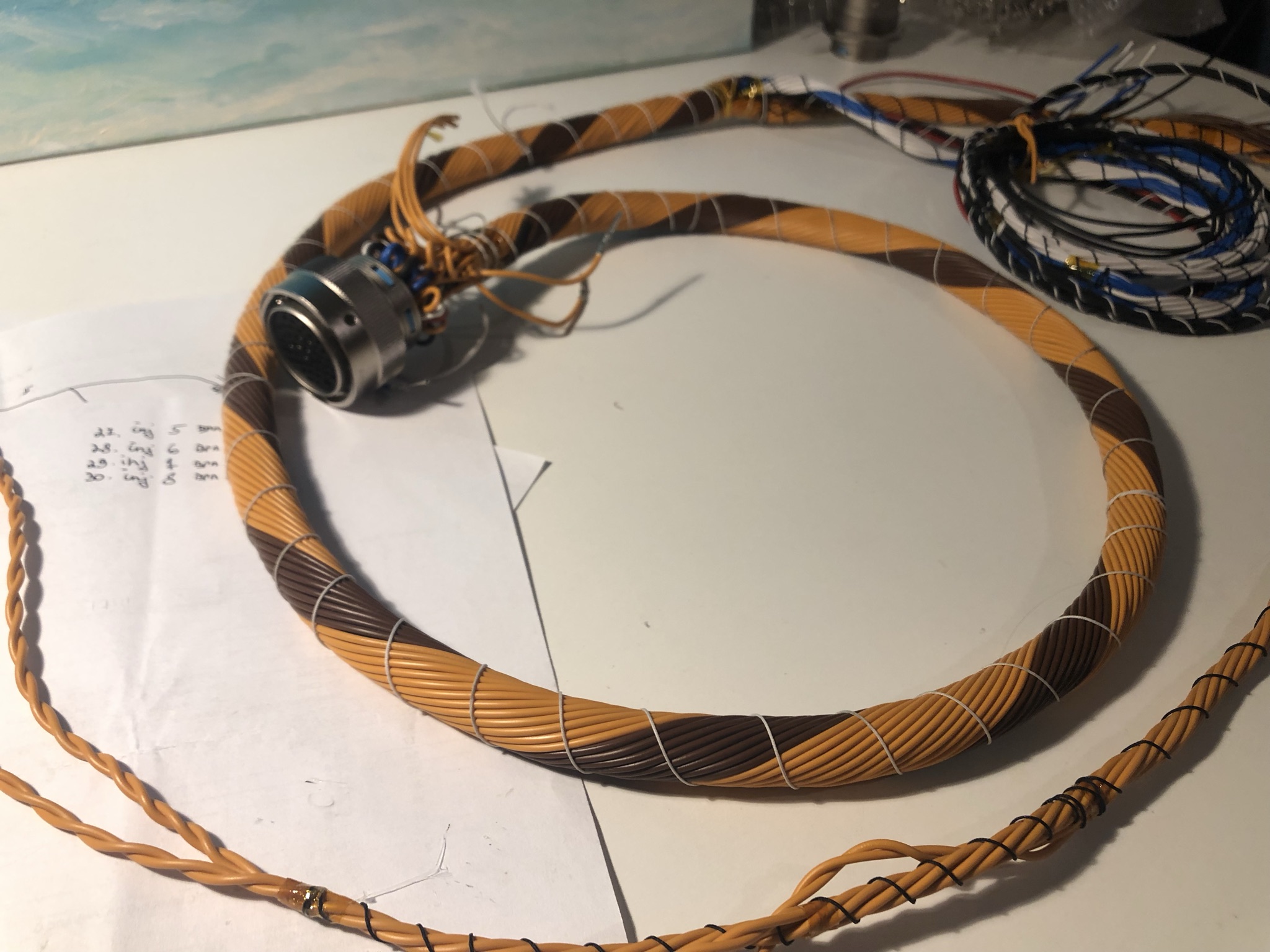

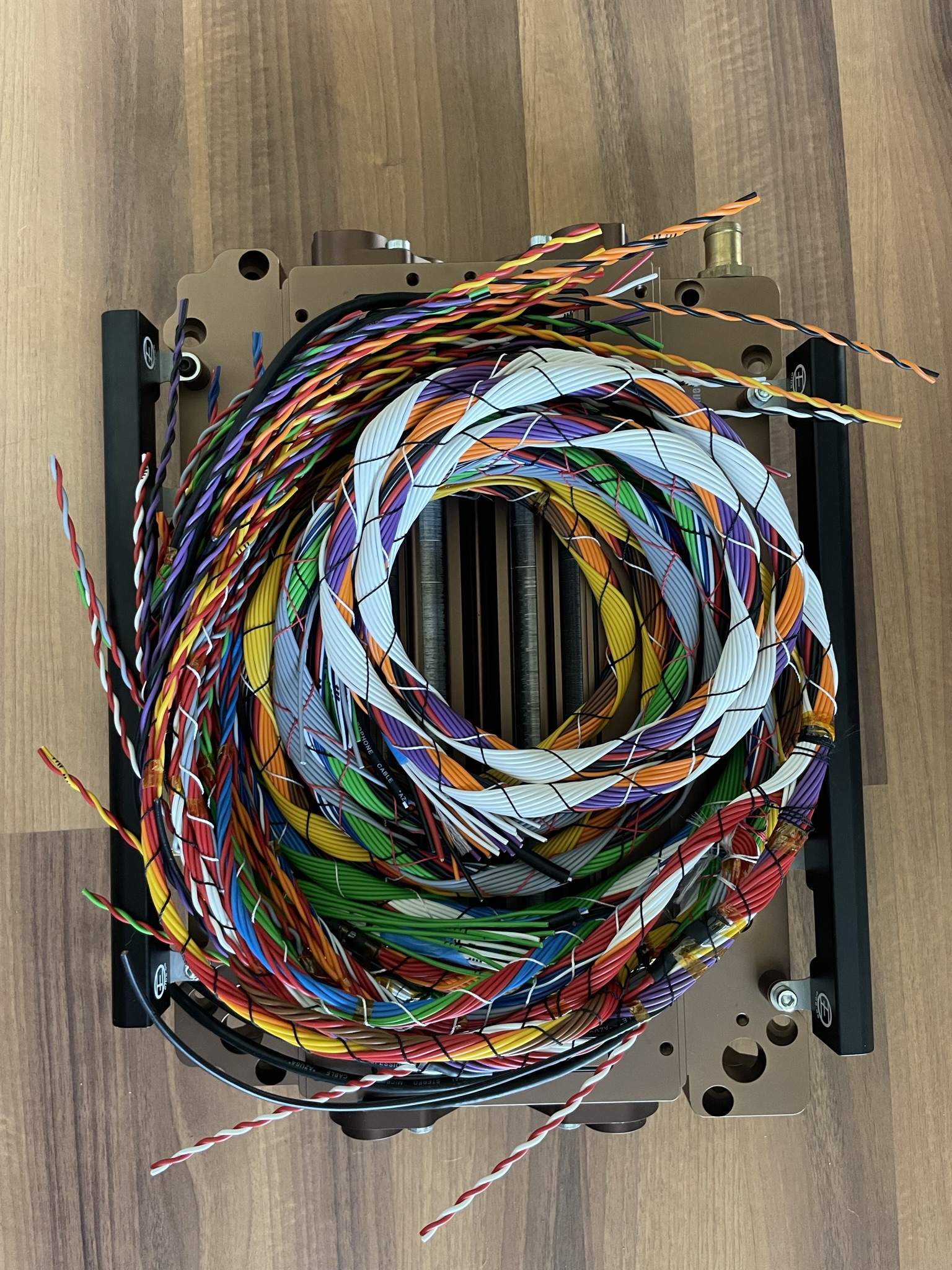

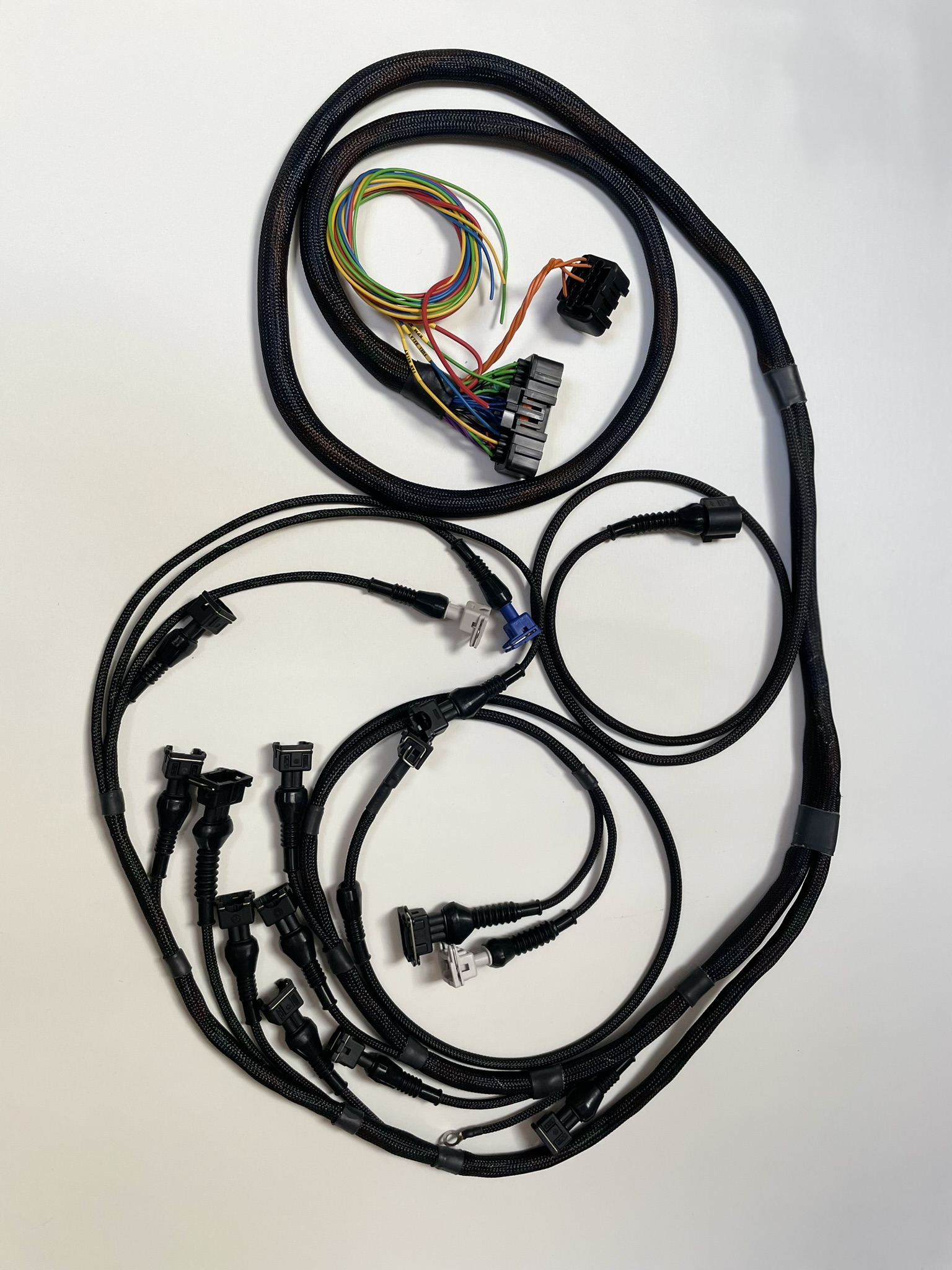

Handcrafted engine wiring harnesses without ECU connector/pins. Possible to order without any connectors and/or customized cable sets.
M102-8V
M102-16V
M103
M104
M110
M116
M117
M119

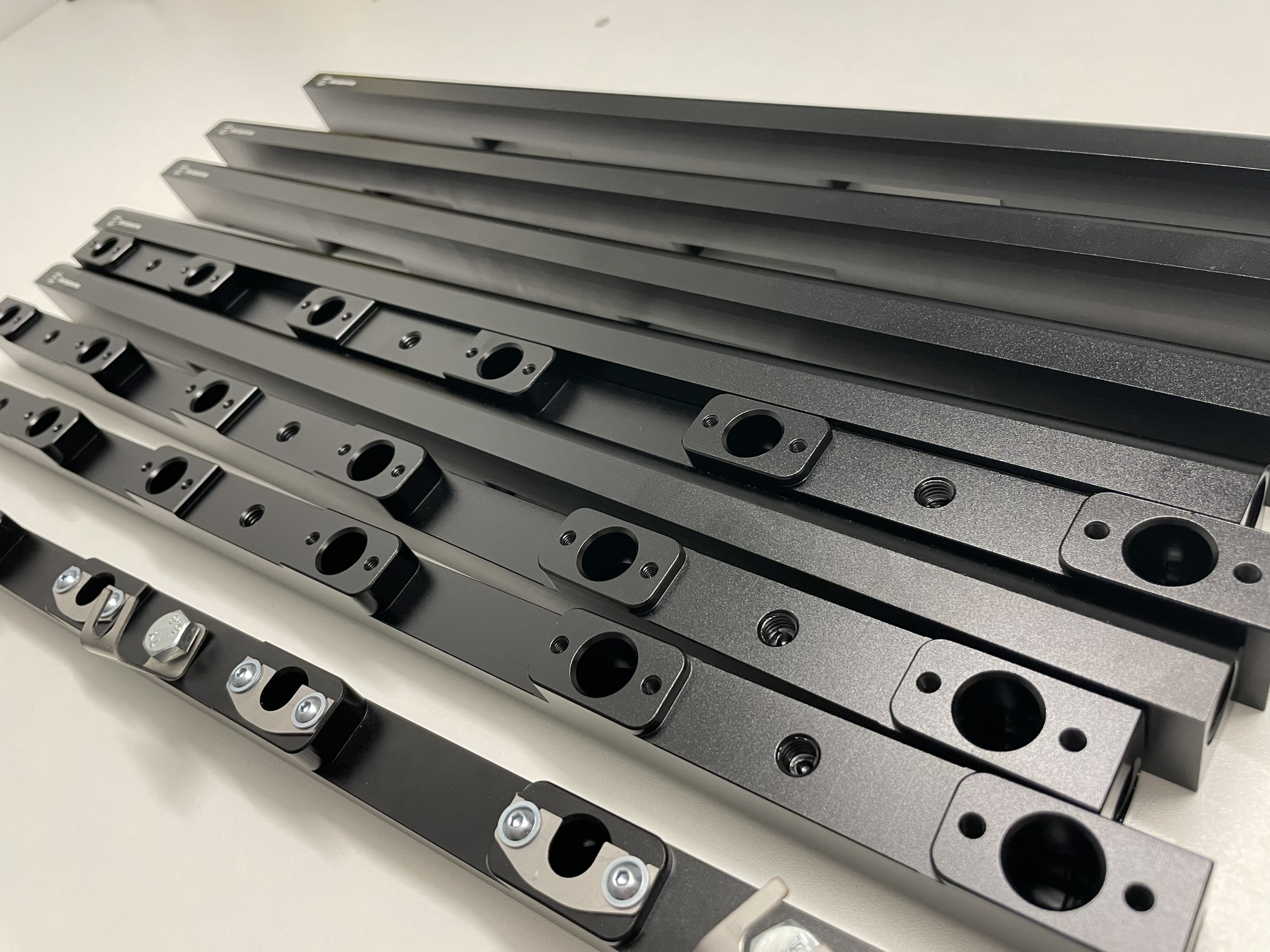

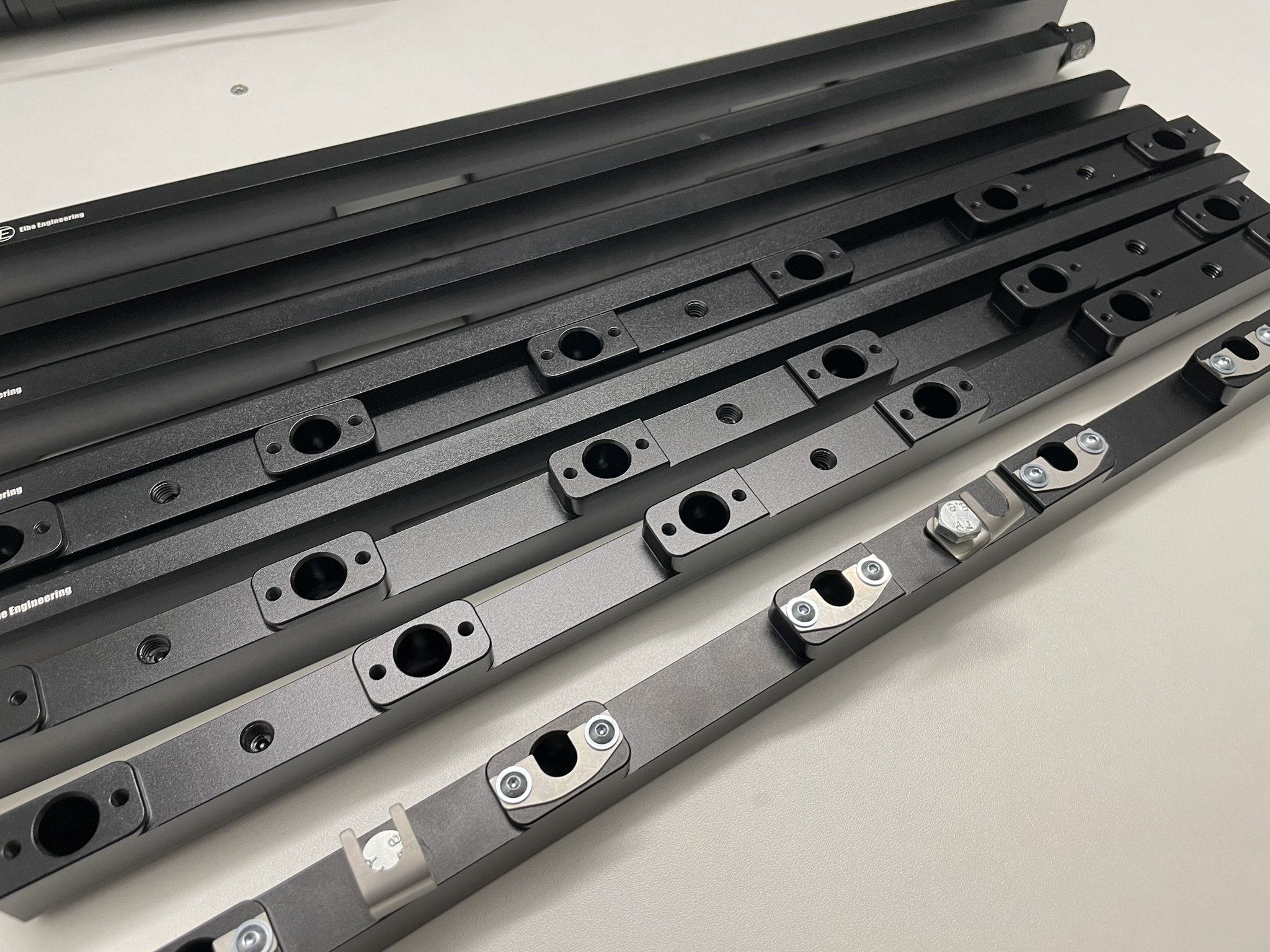

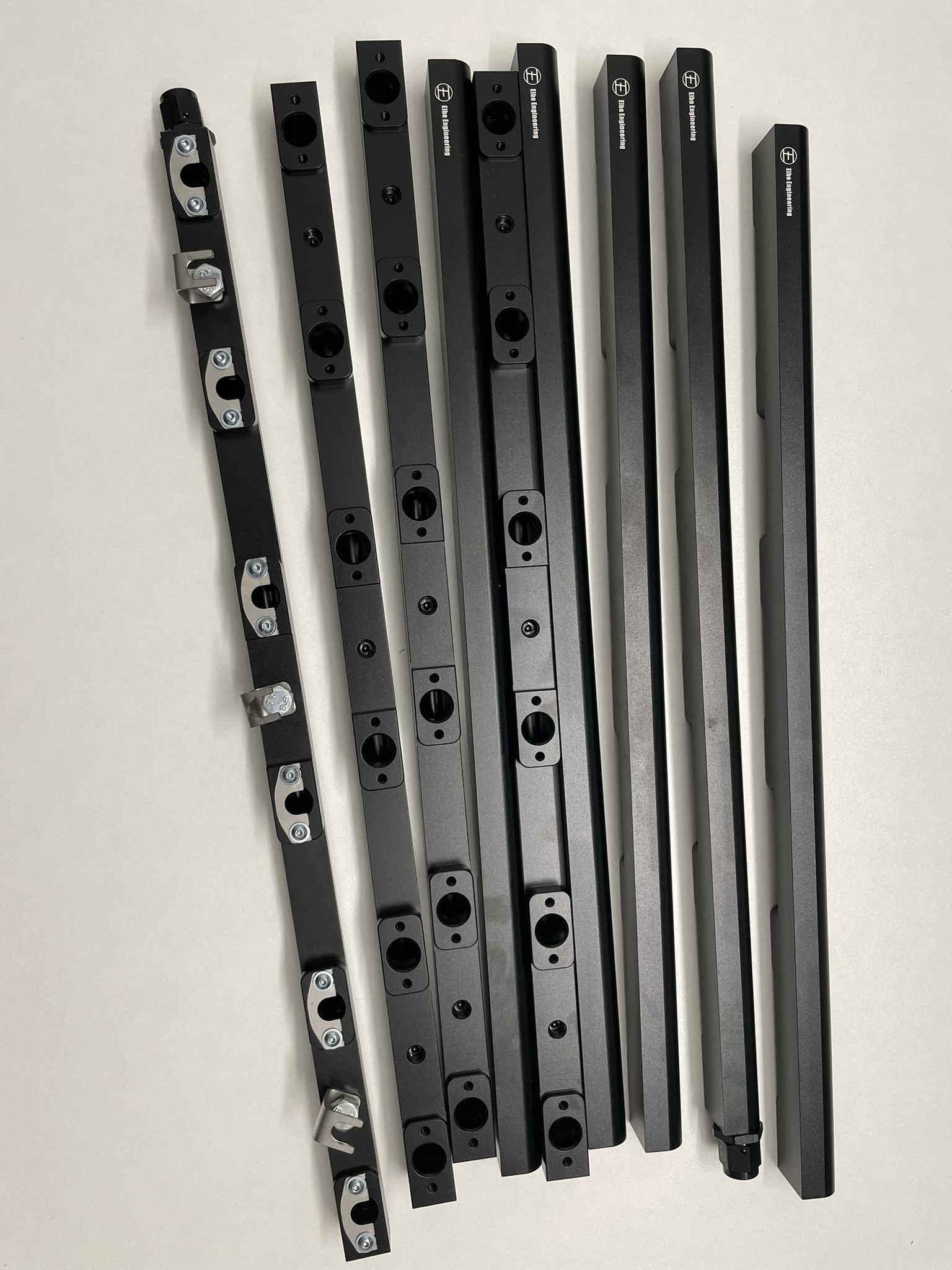

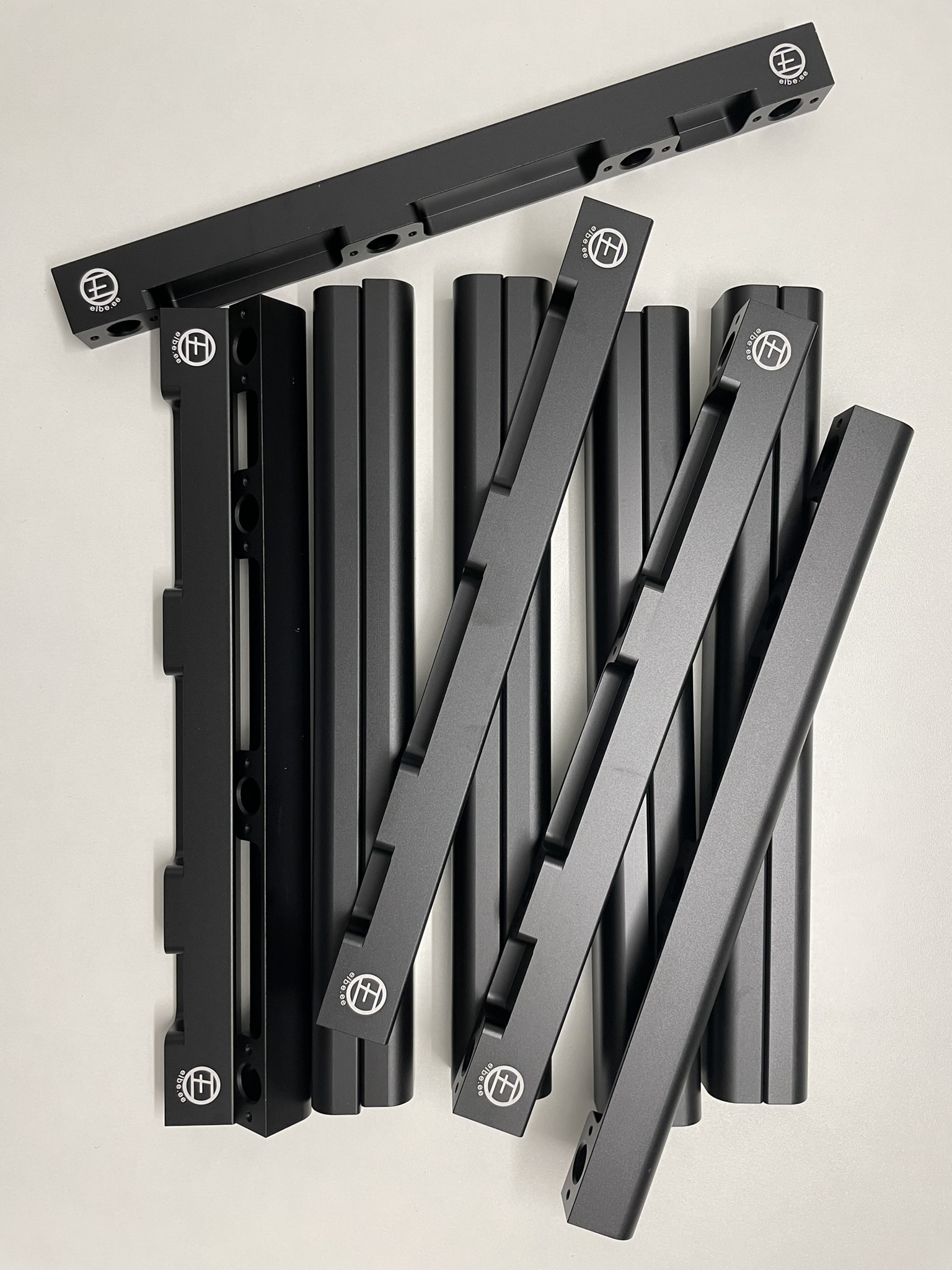

Fuel rails:

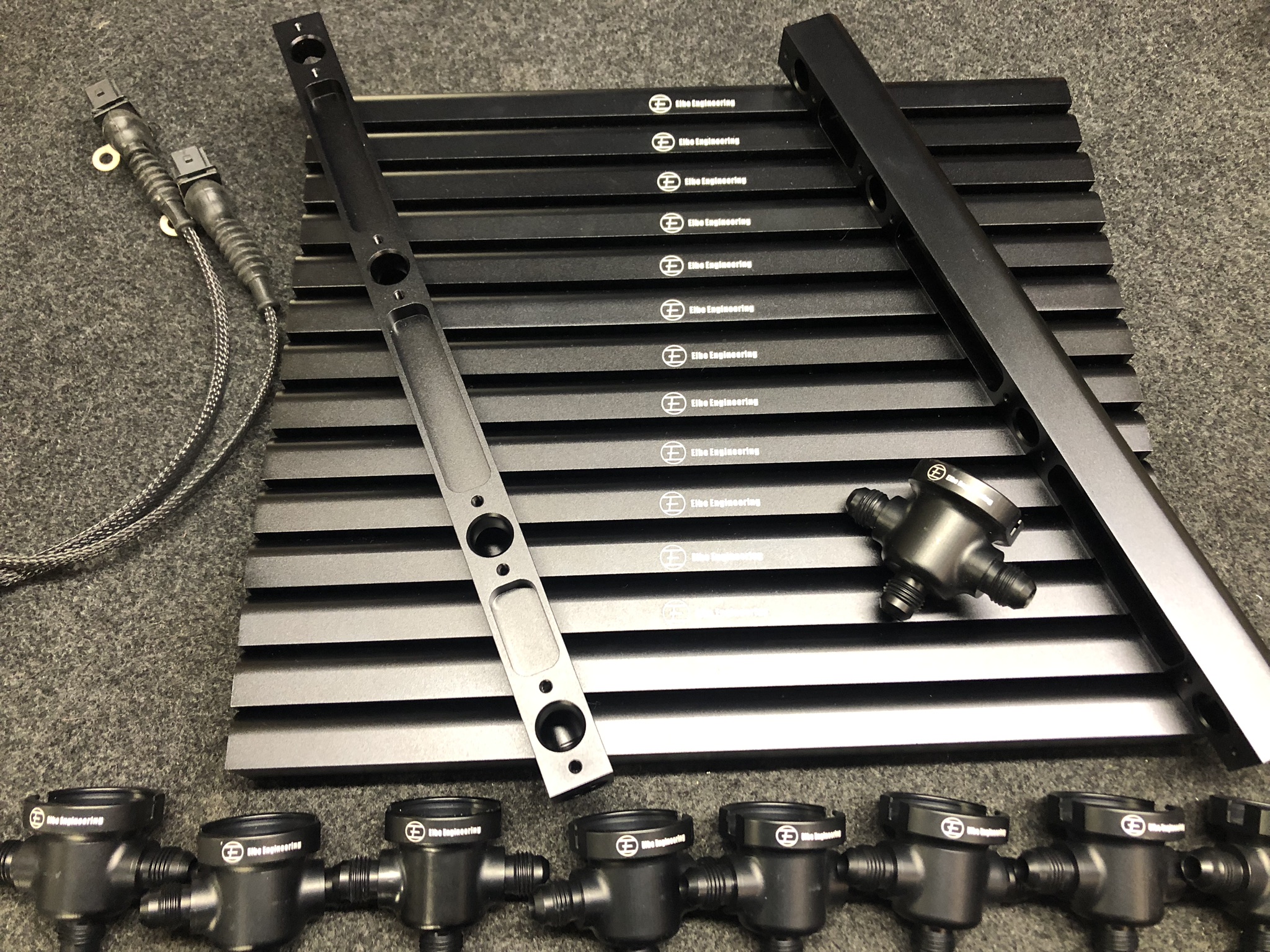

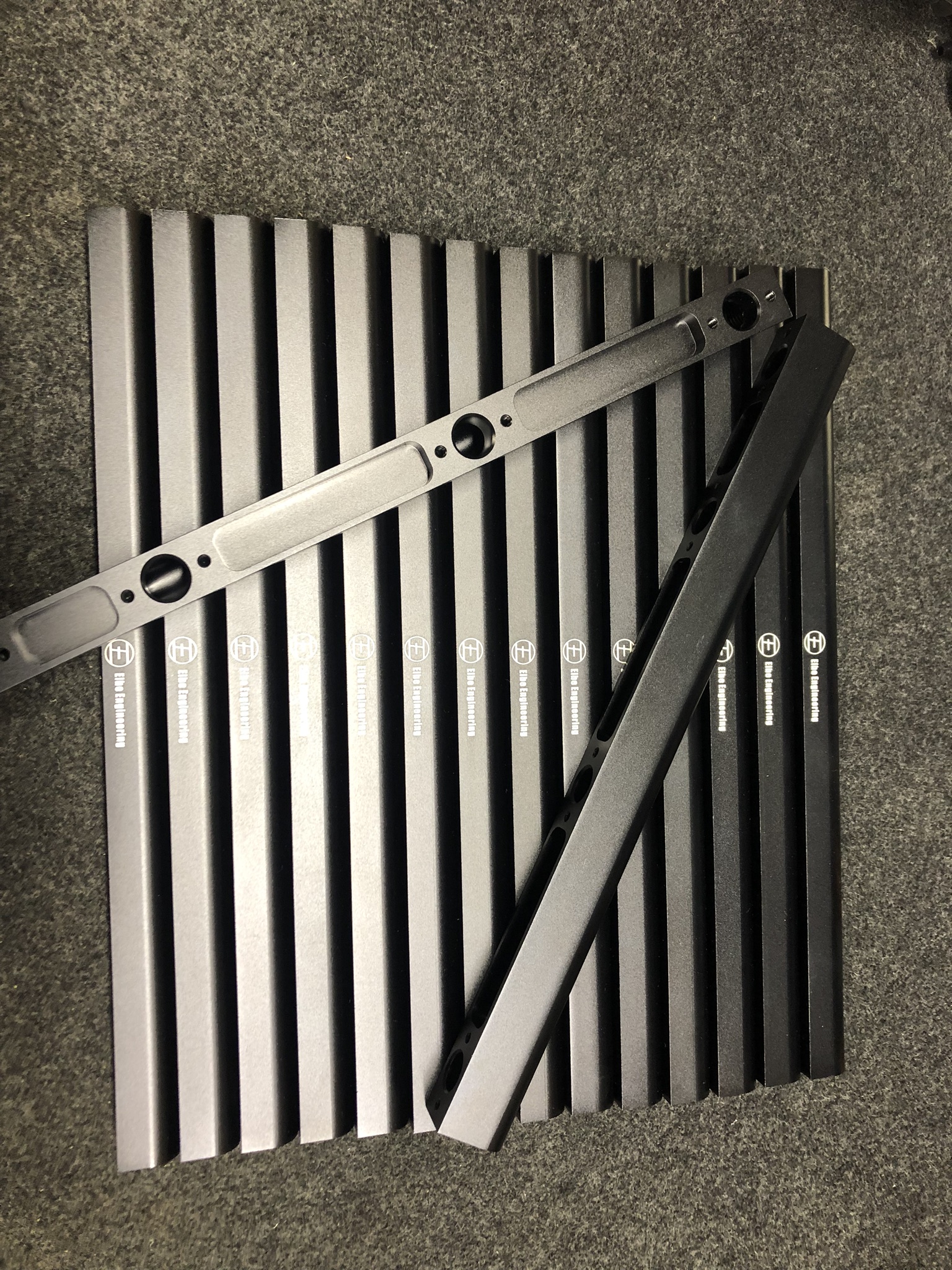

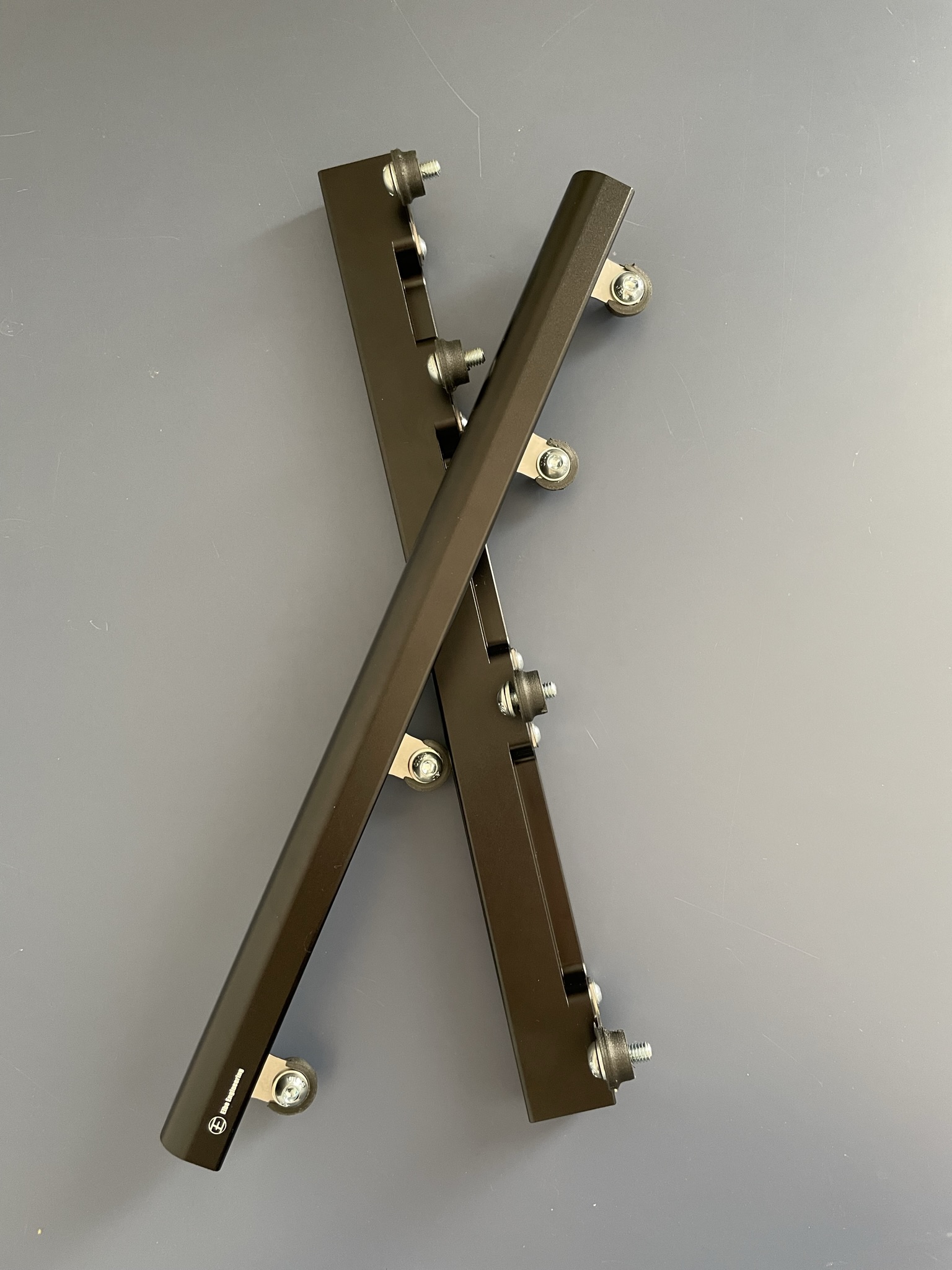

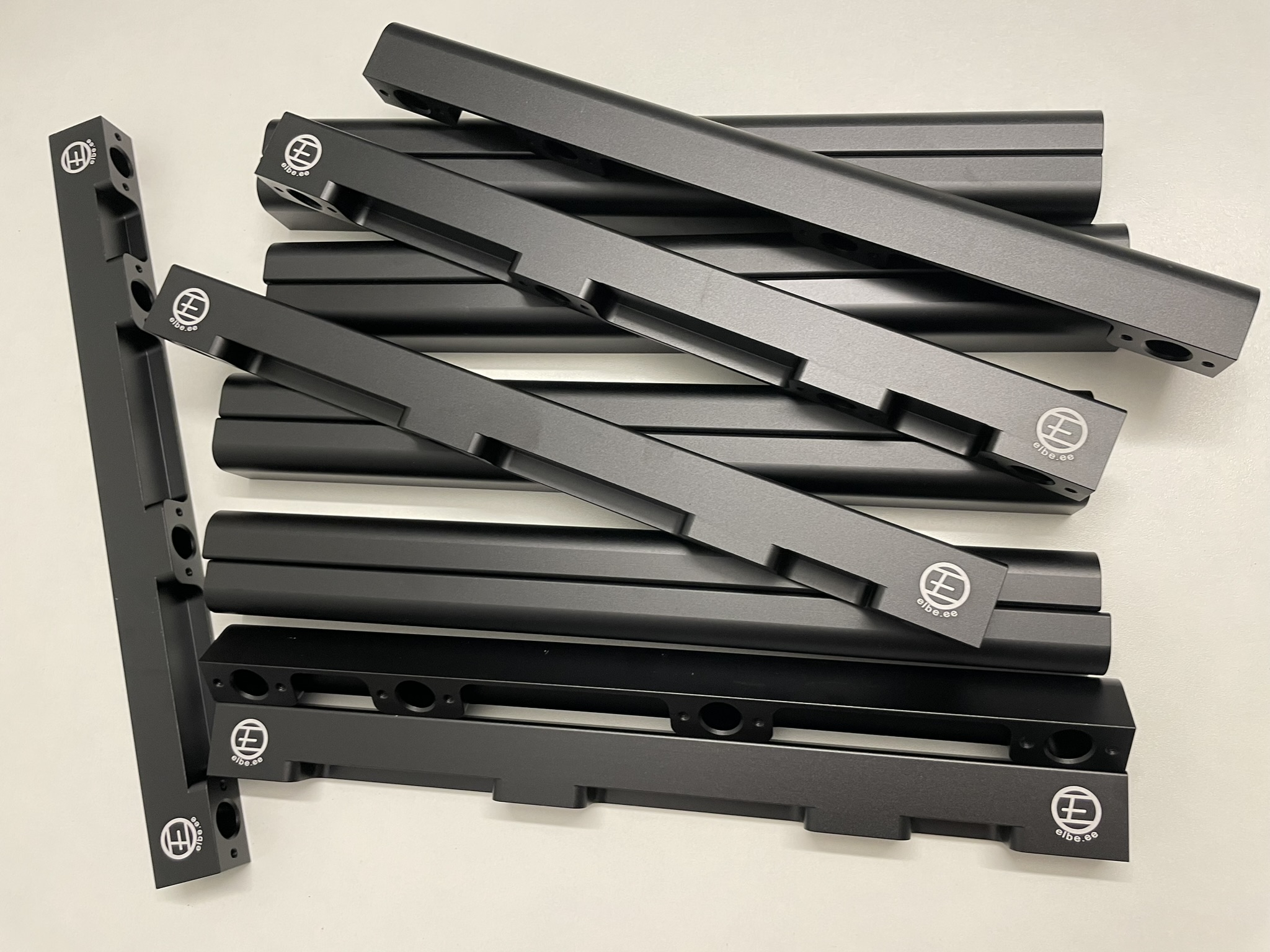

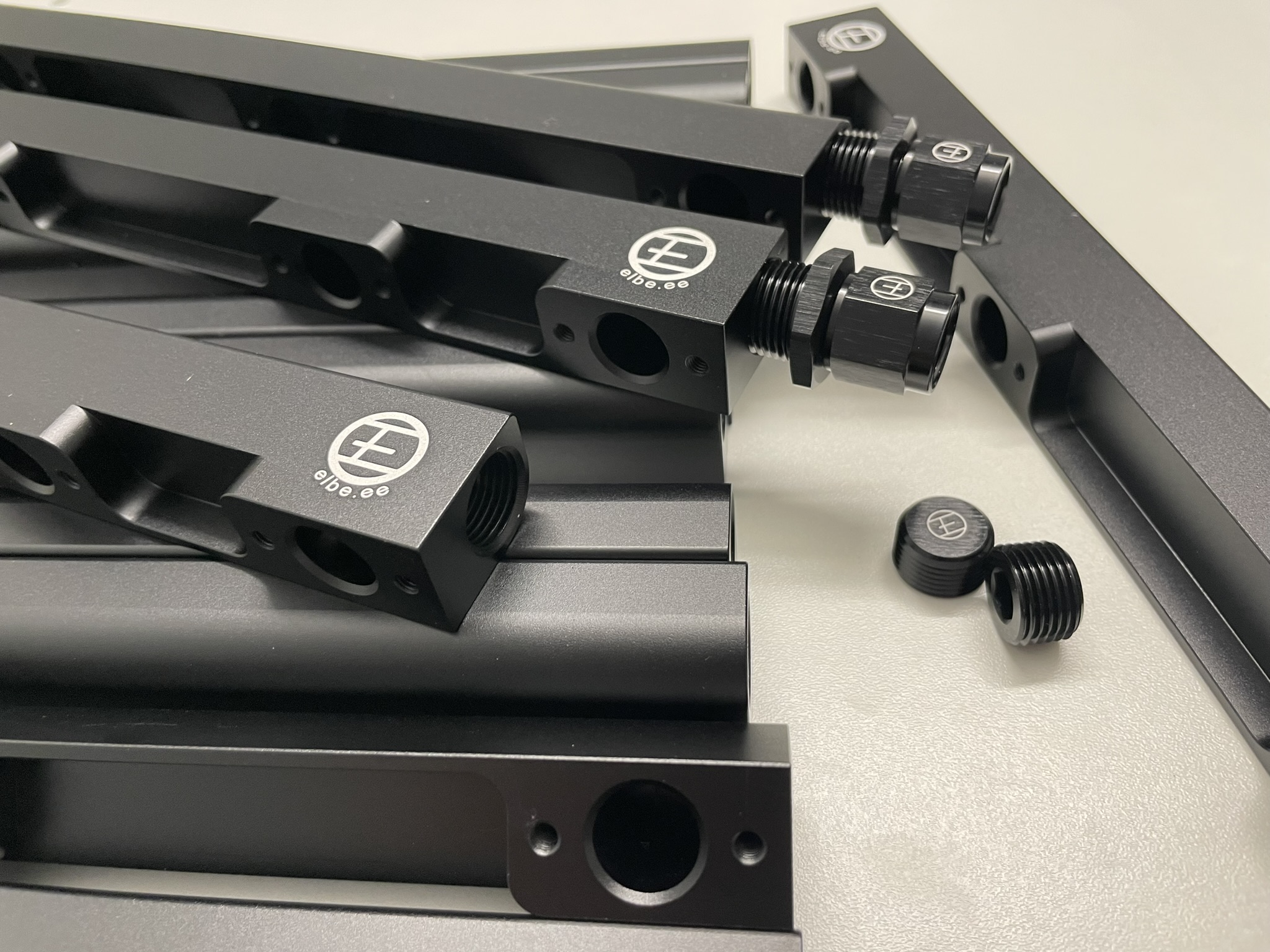

M117 Billet Fuel rails

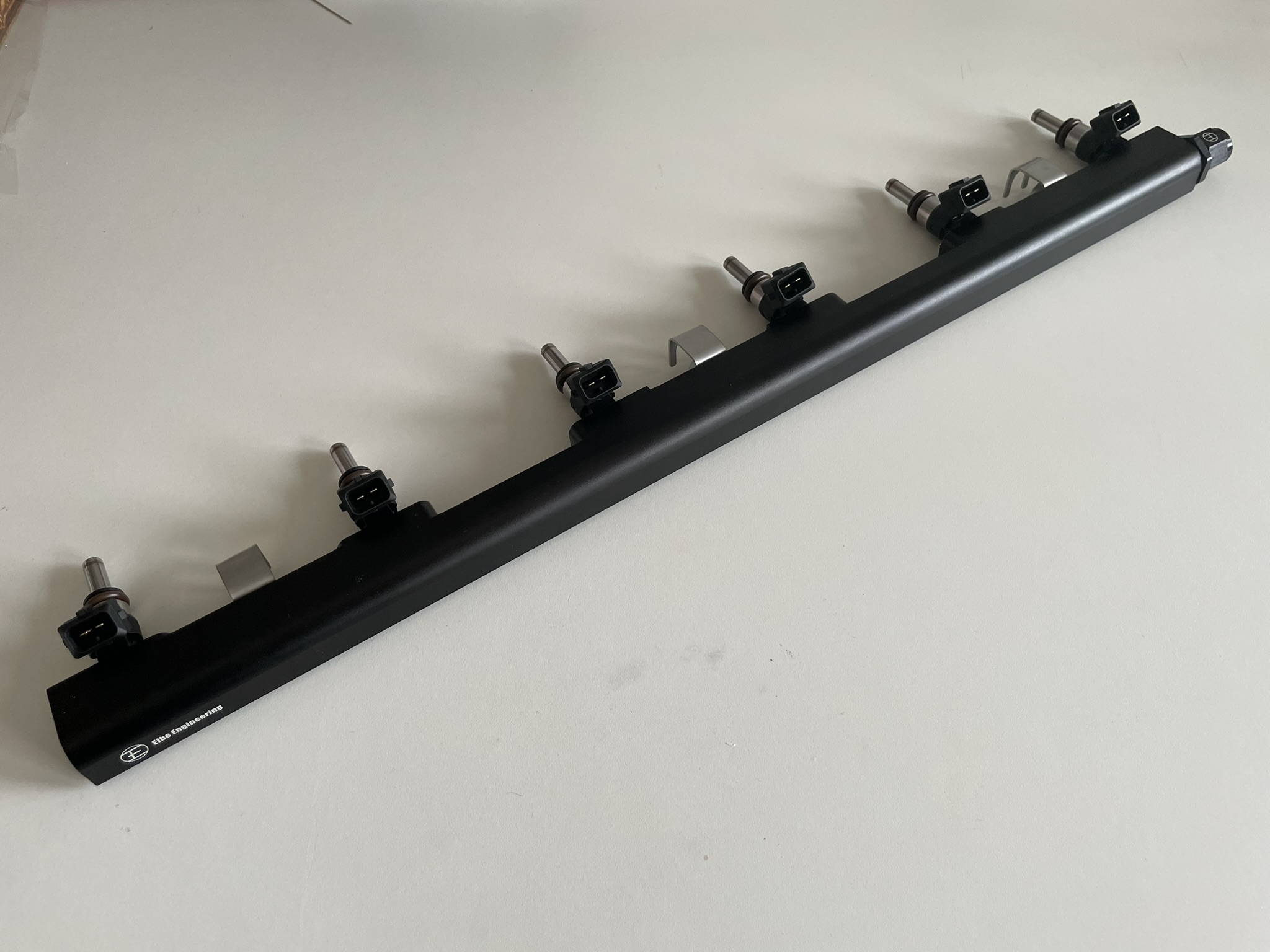

M110 Billet Fuel rail
Fuel lines/Fittings:

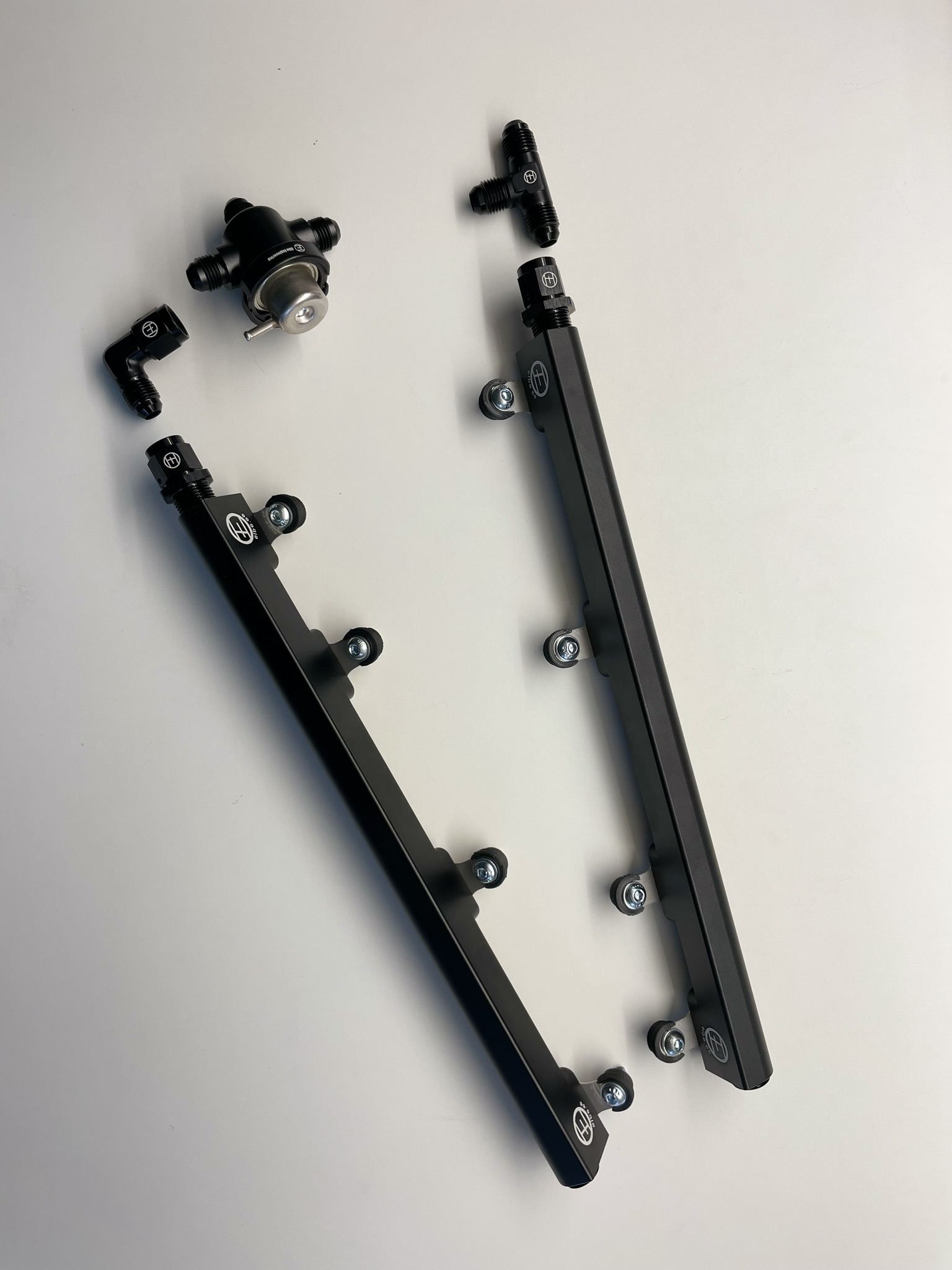

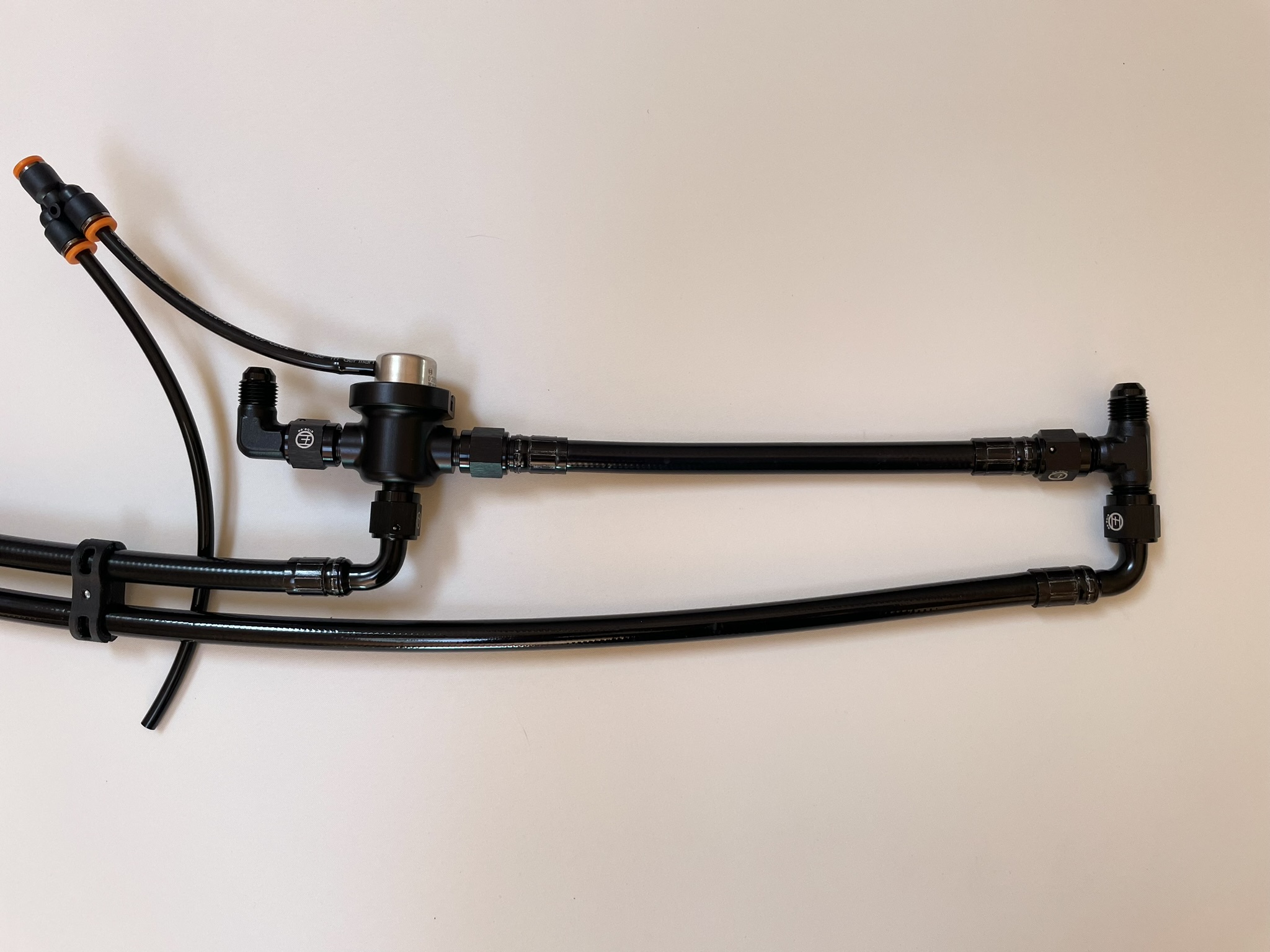

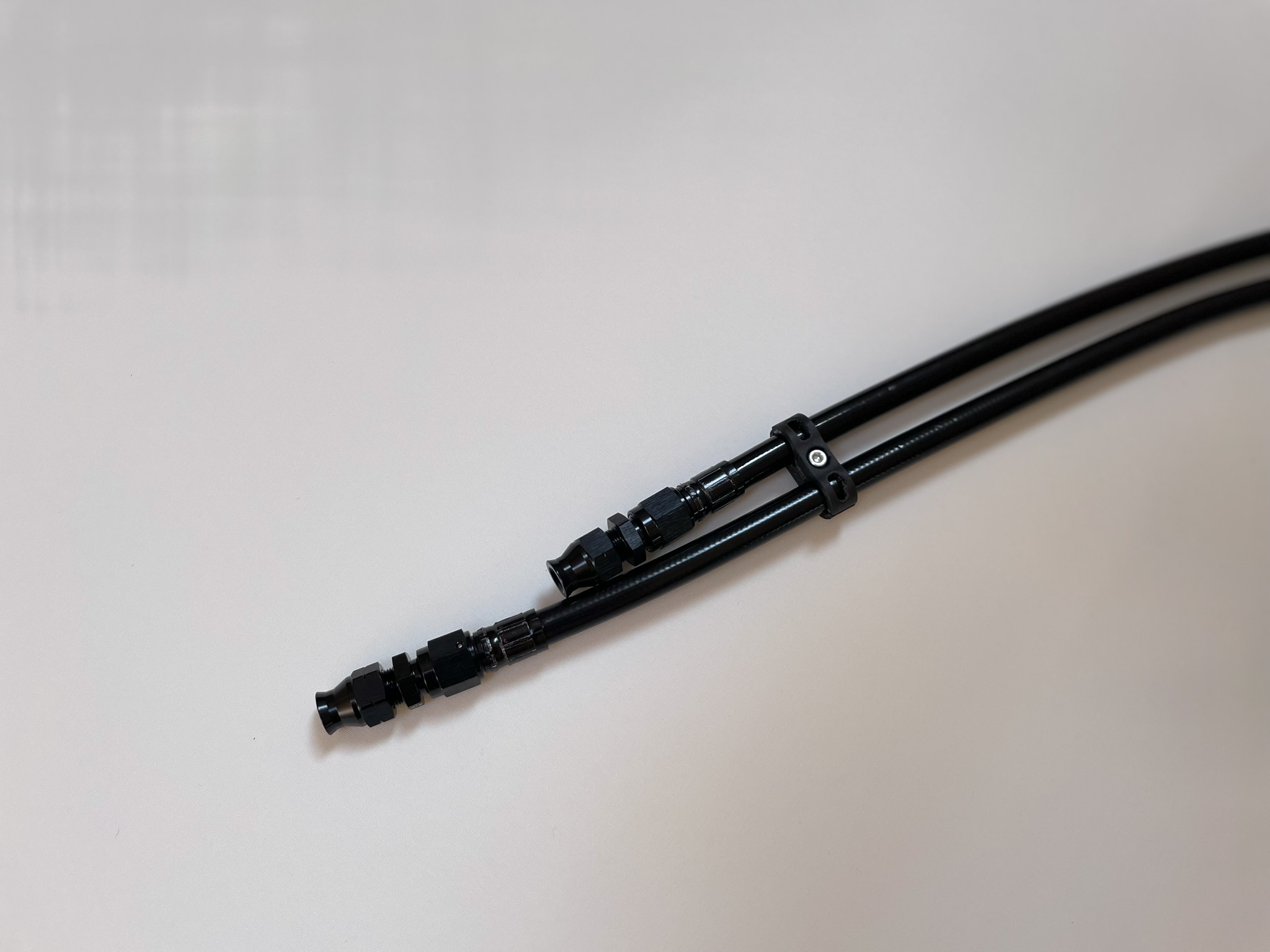

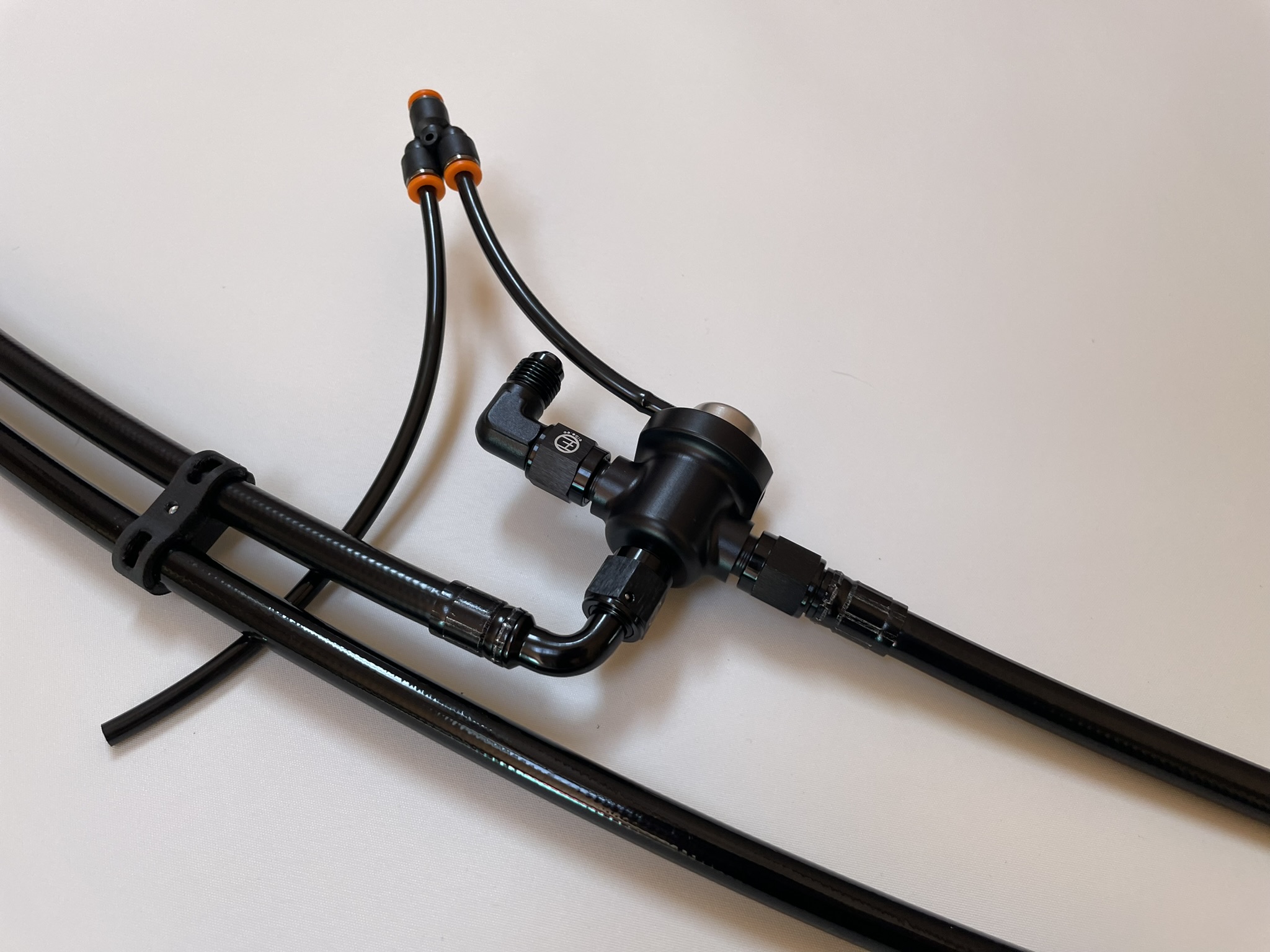

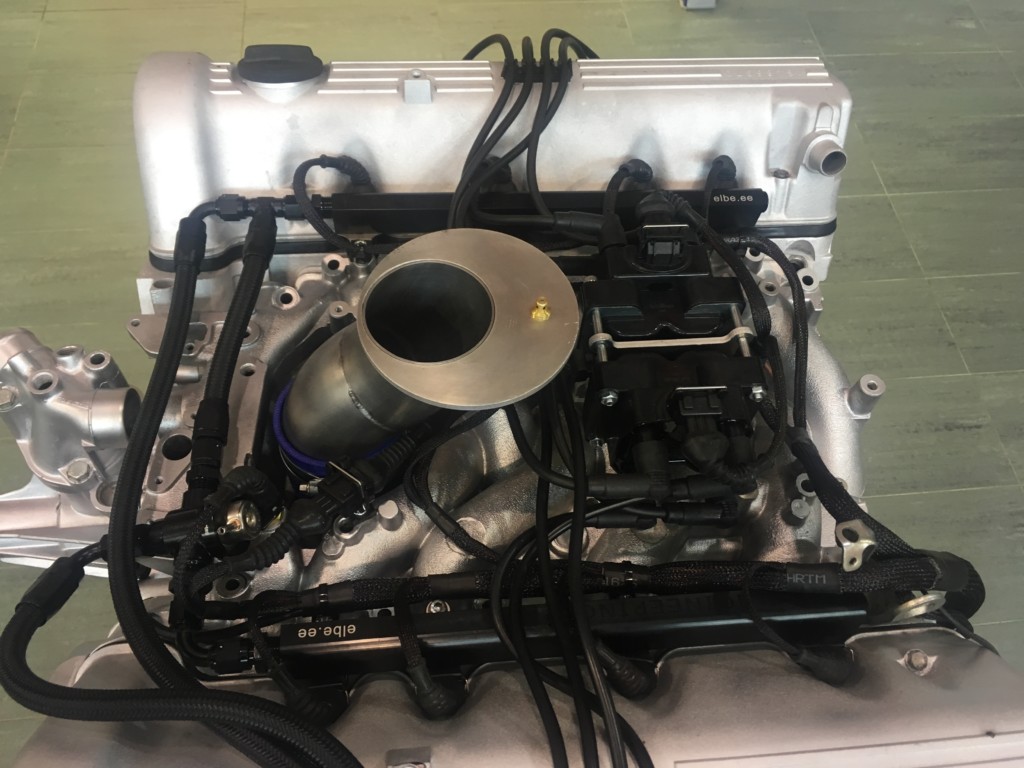

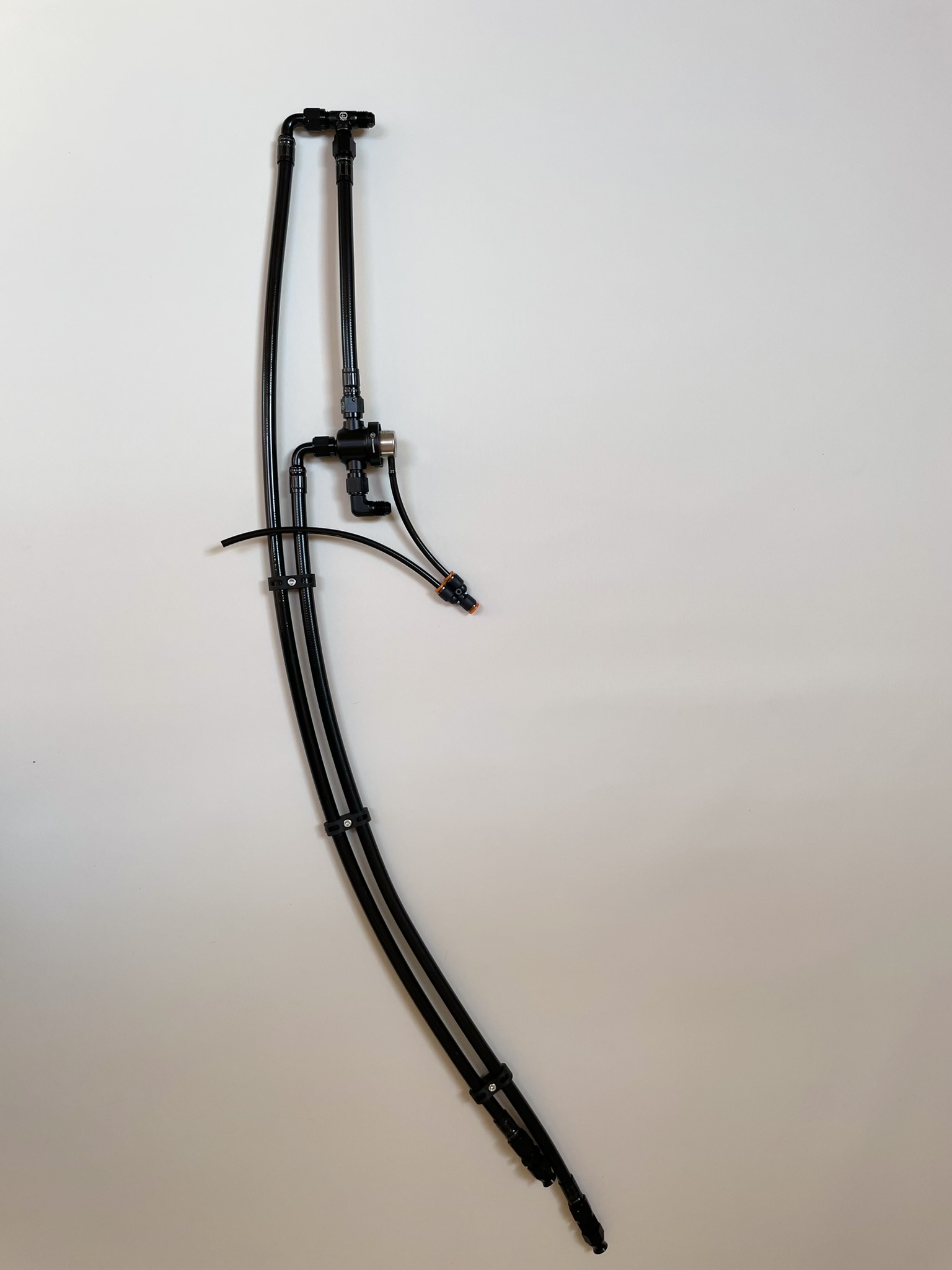

M117 EFI fuel system setup for billet fuel rails – AN6 fittings and teflon hoses with PVC coating. Fuel pressure regulator with billet housing (special design for M116/M117 engines)

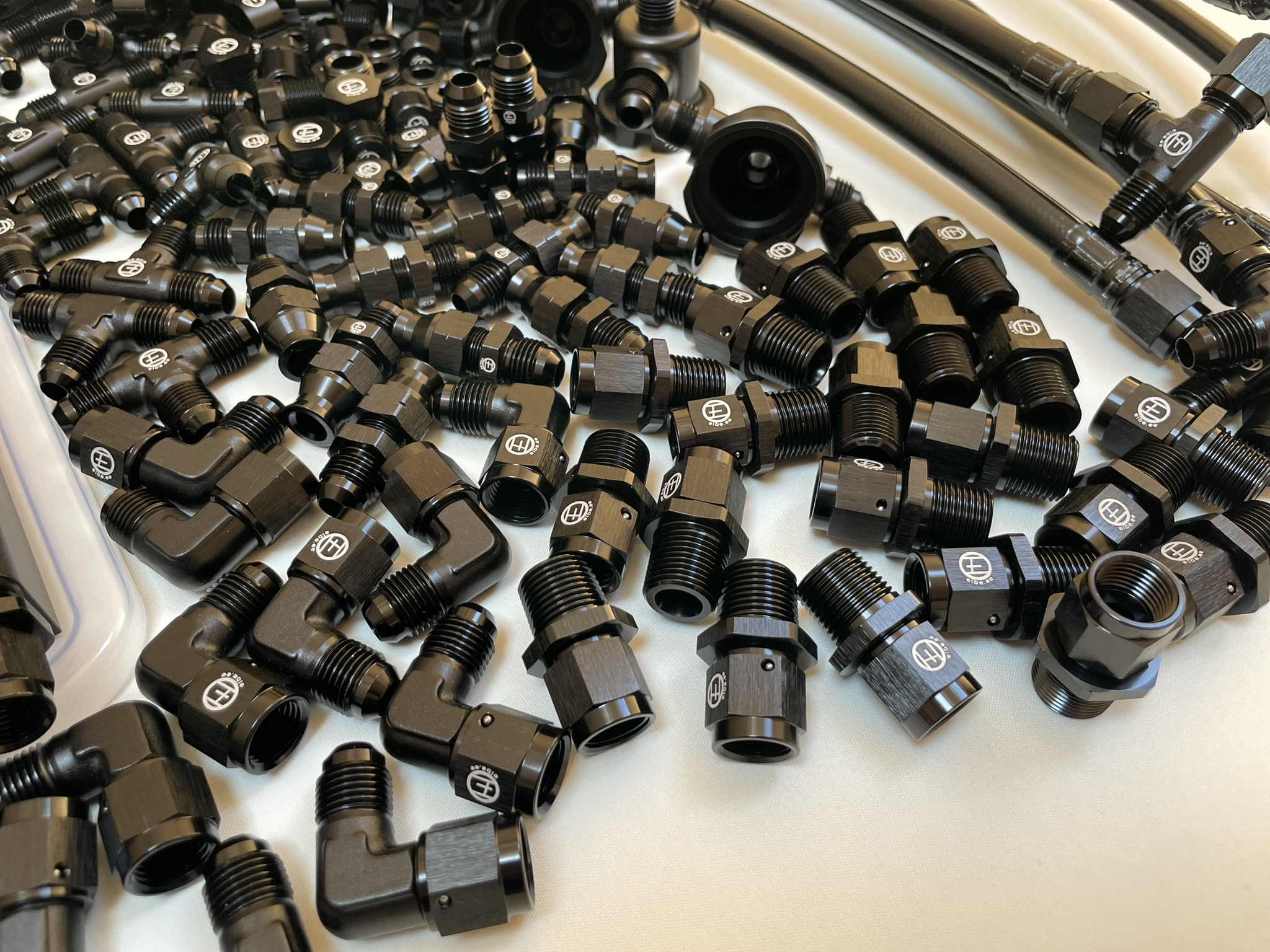

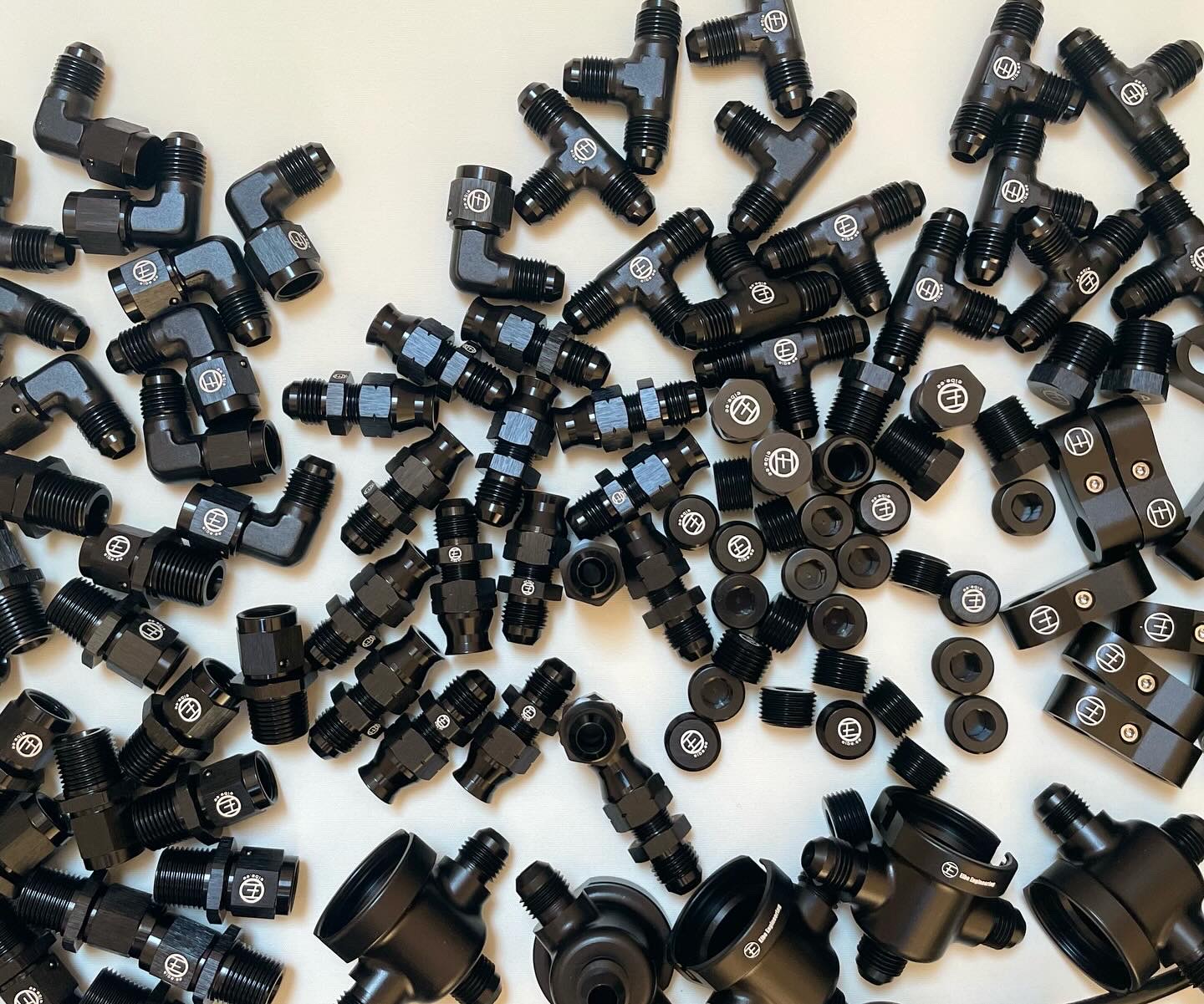

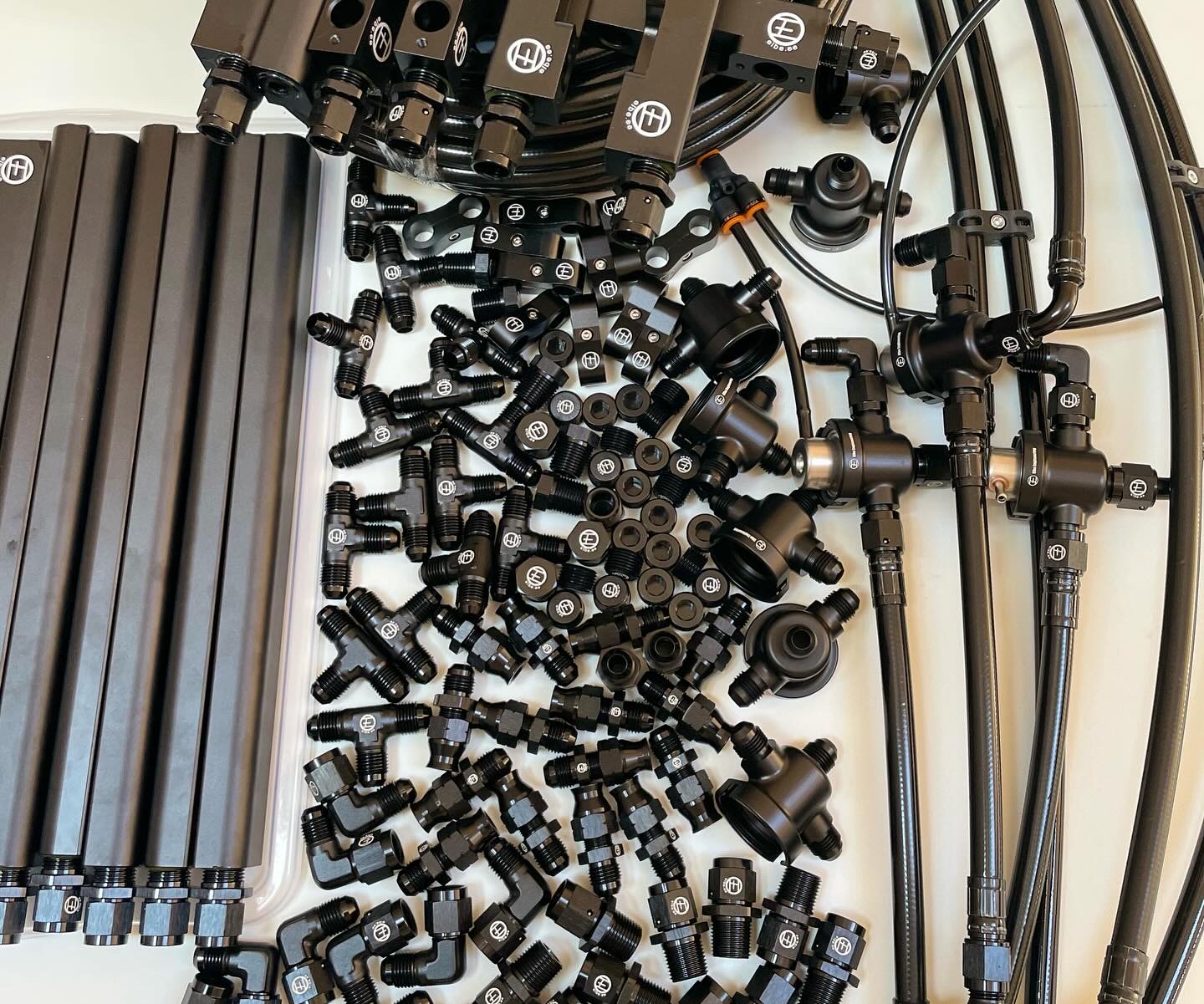

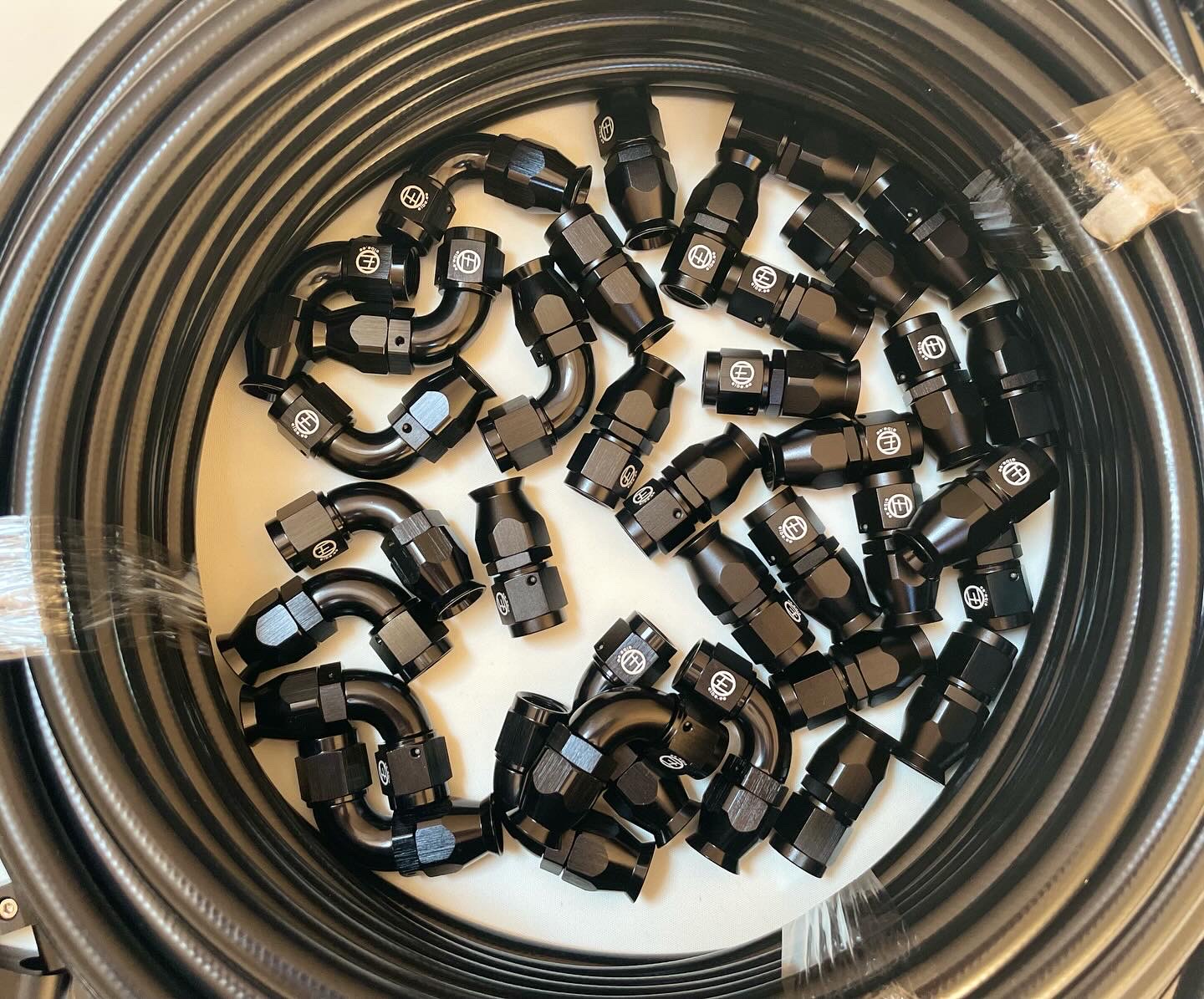

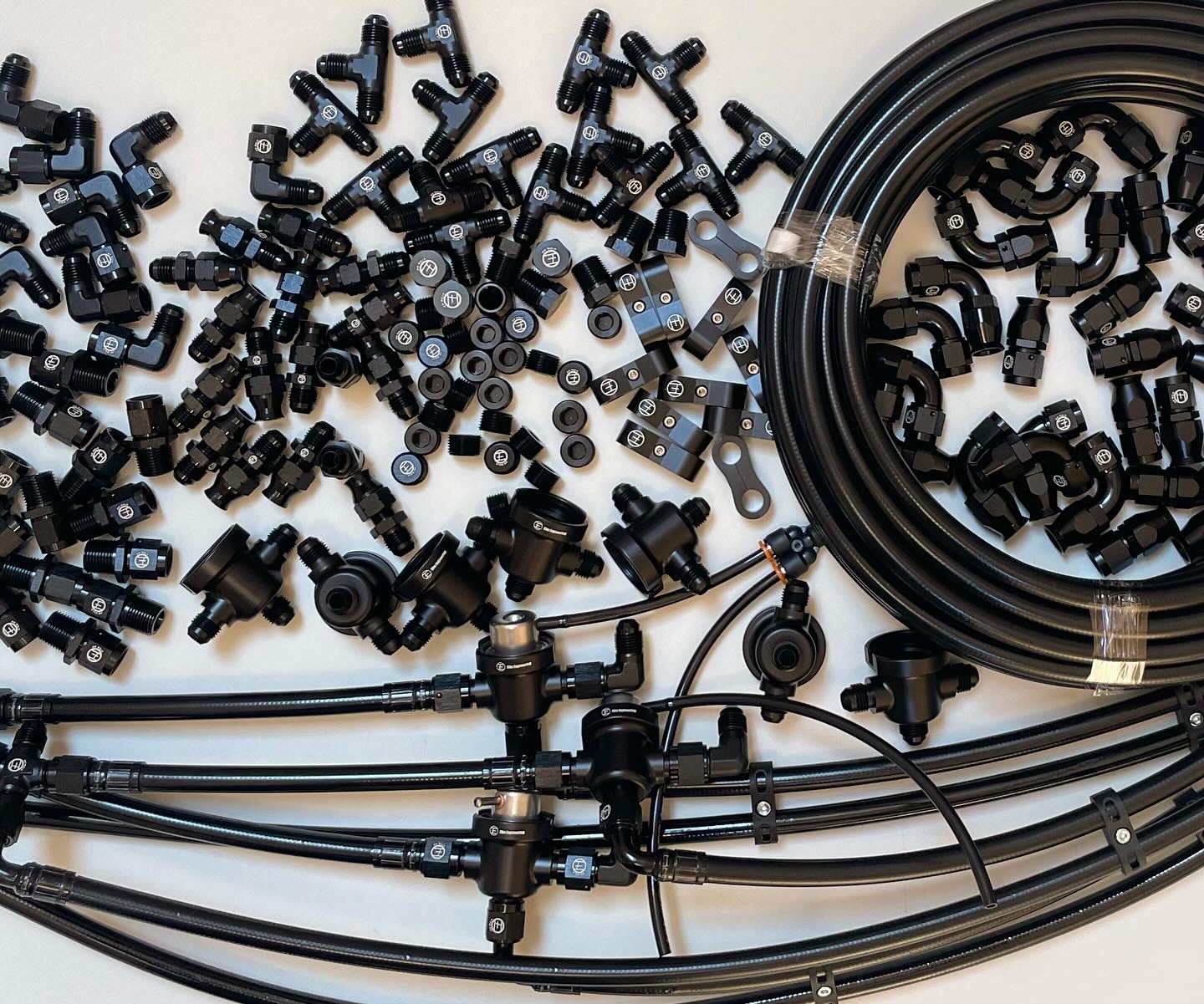

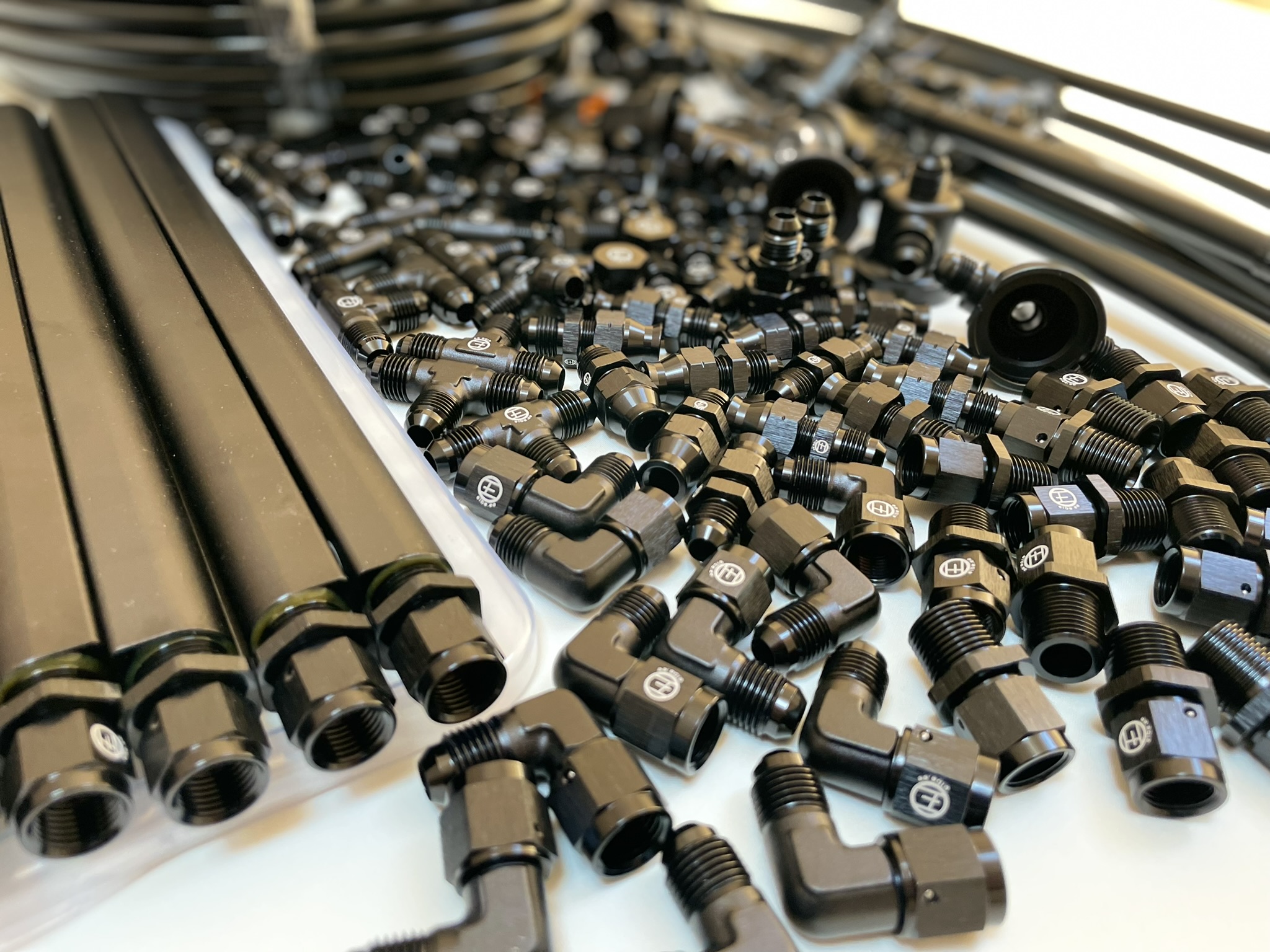

AN6 fittings and hose ends (full flow design)
AN6 dual port fuel pressure regulator housing with or without regulator element
Ignition coils:

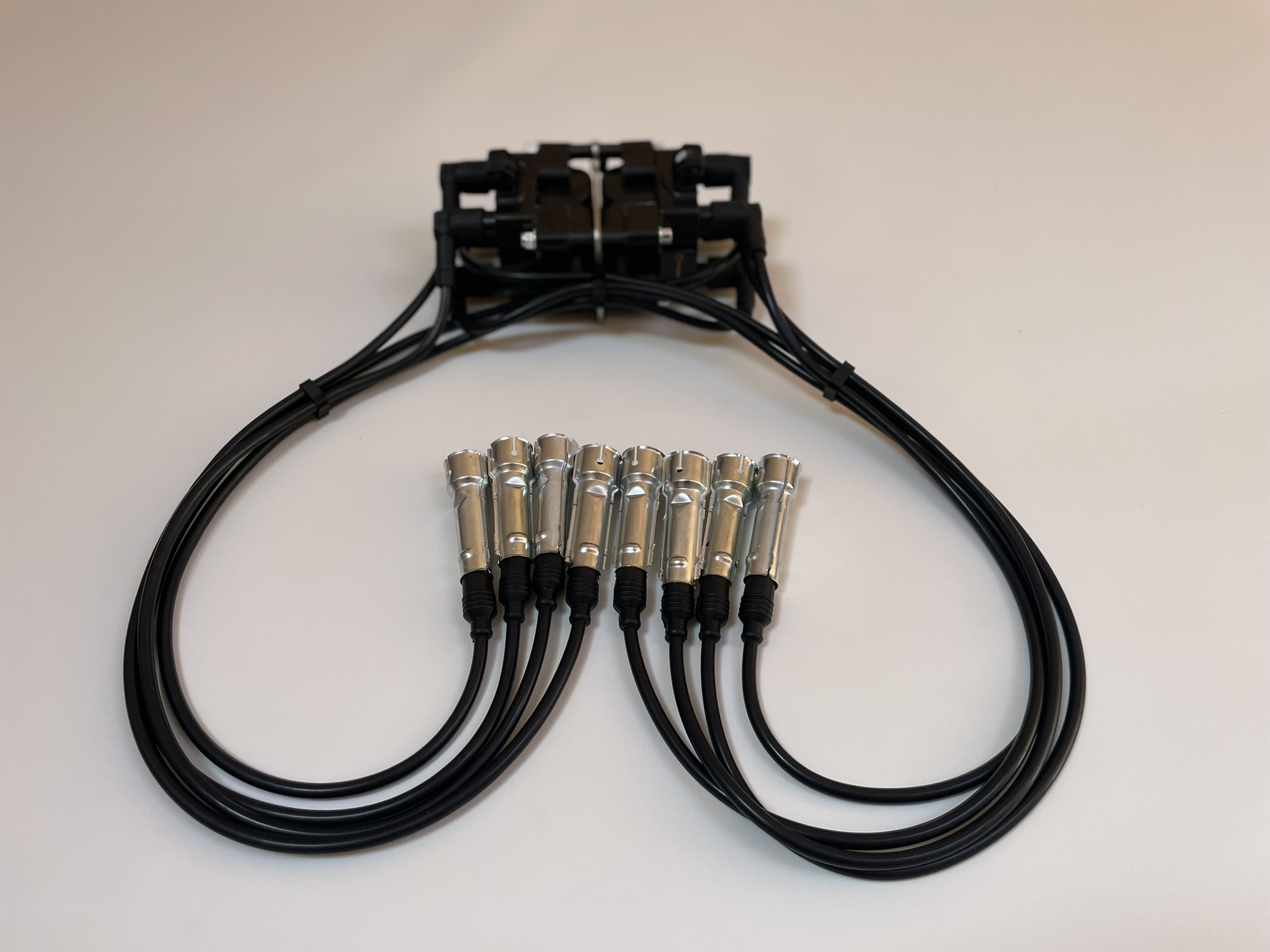

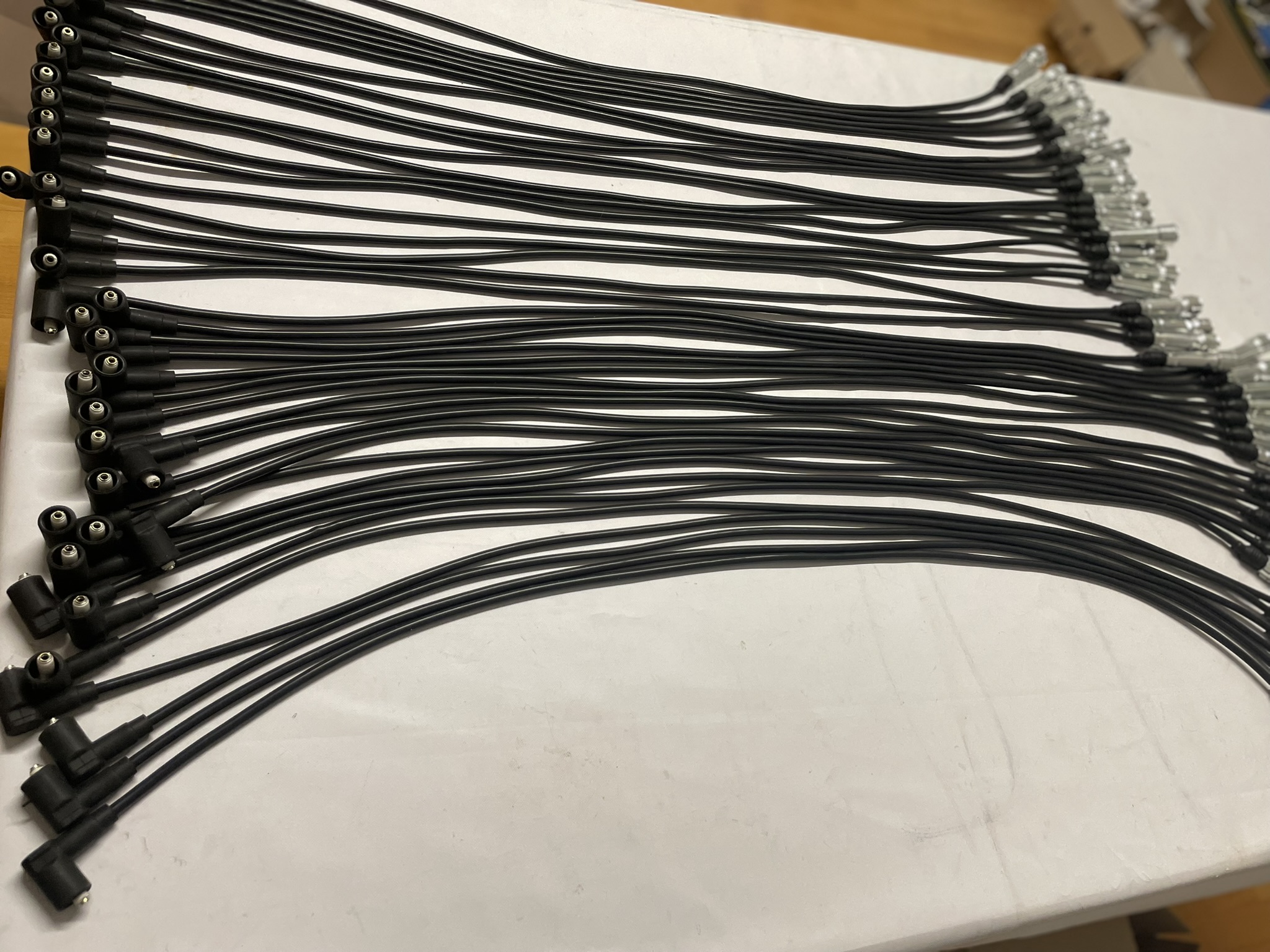

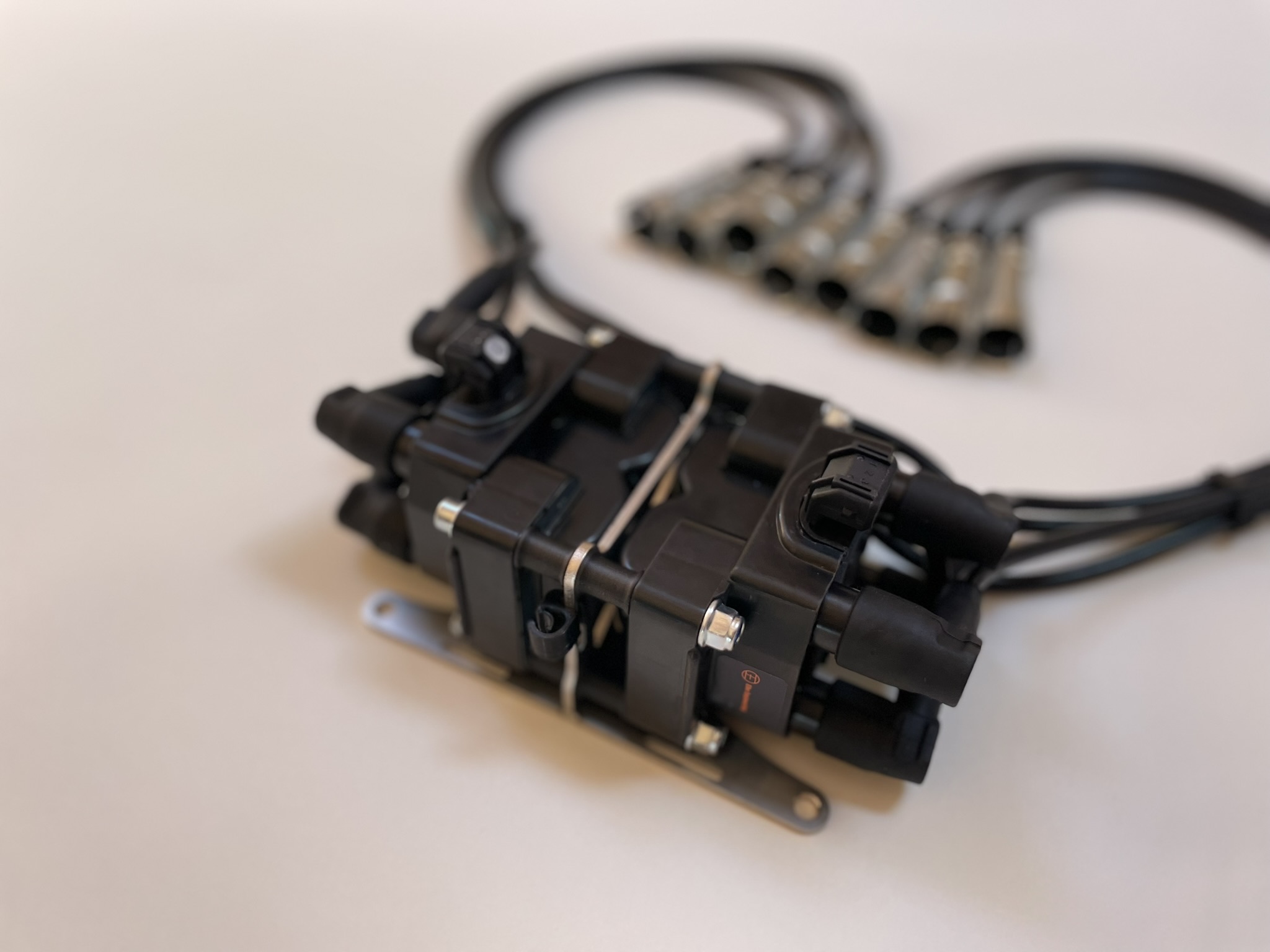

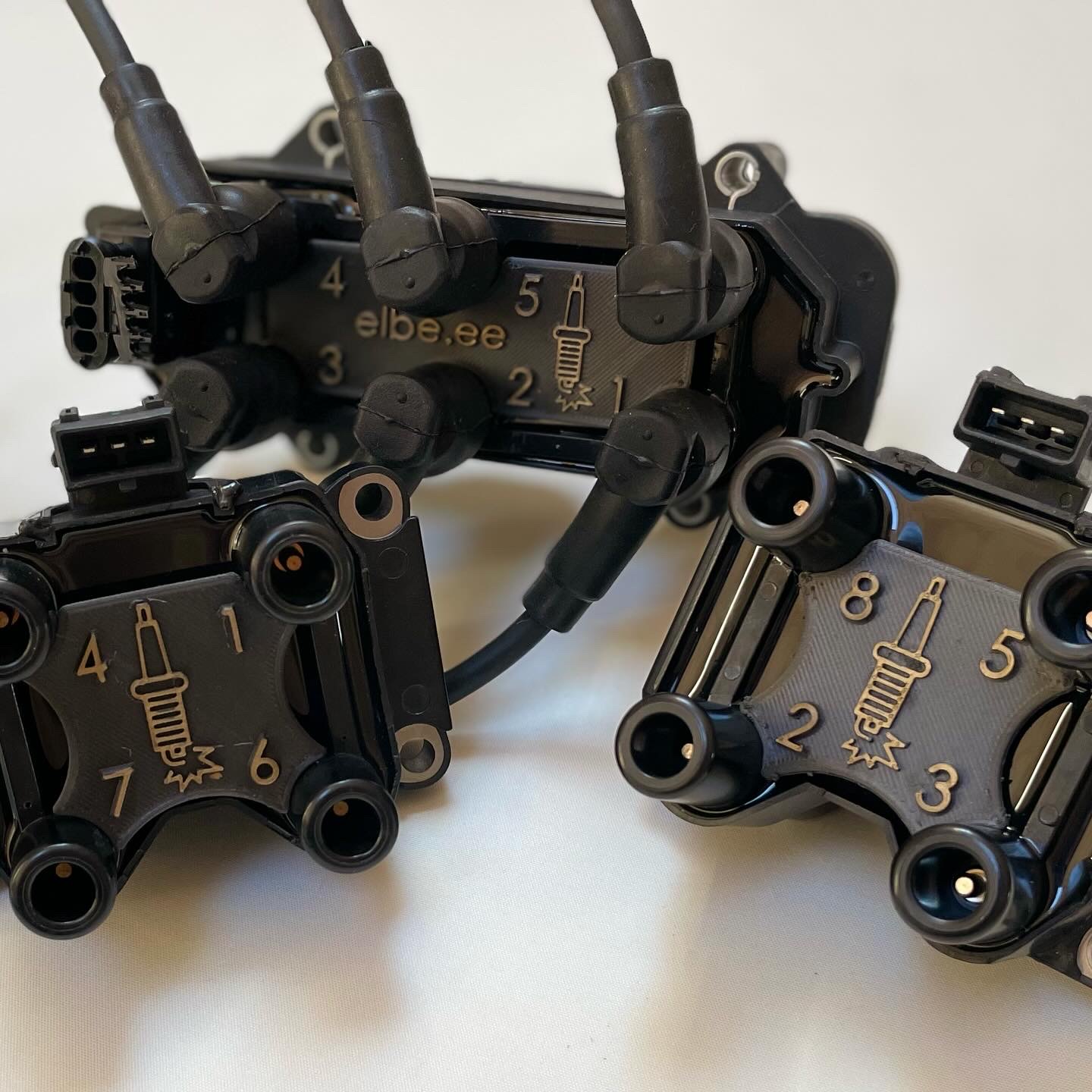

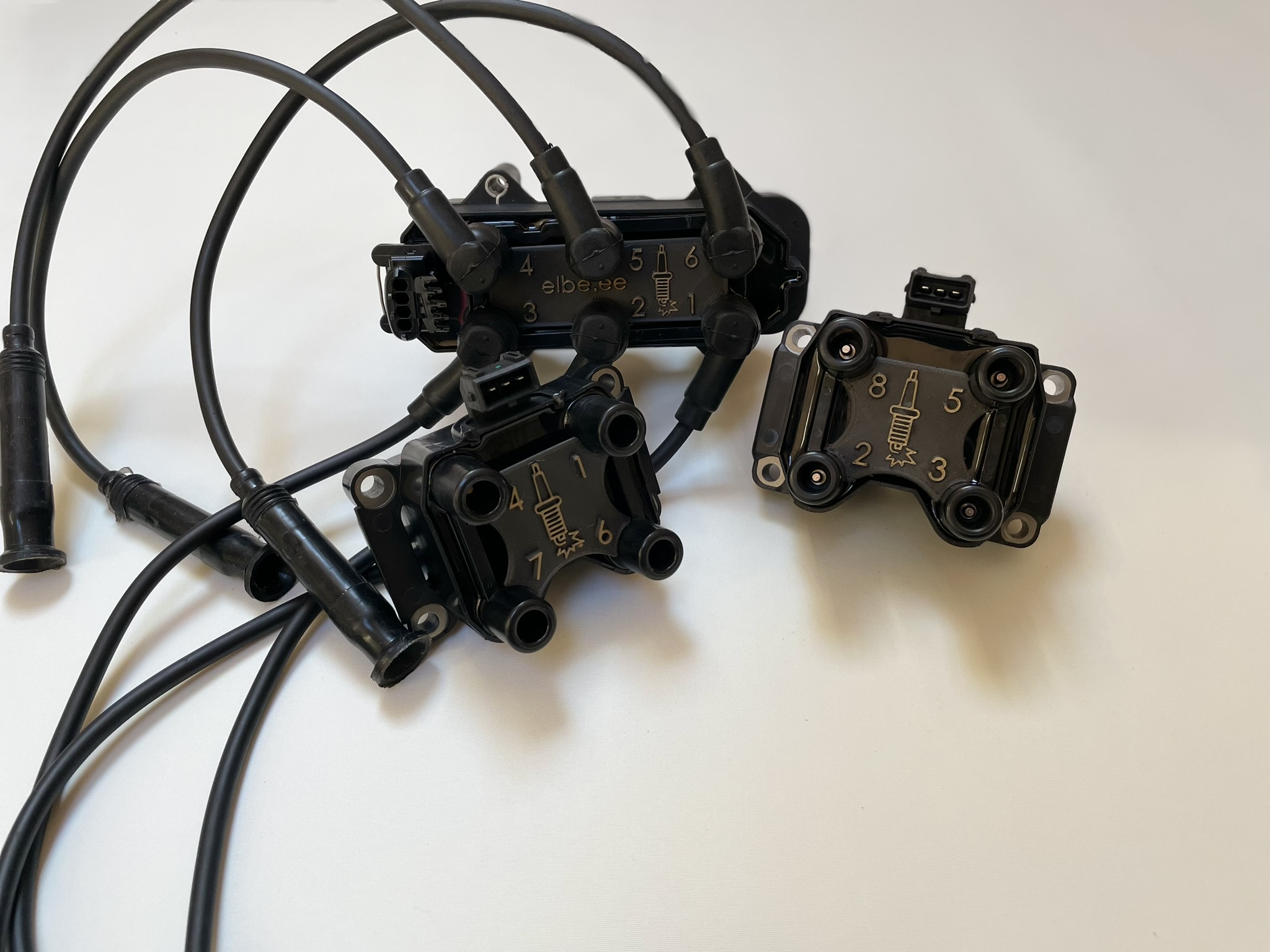

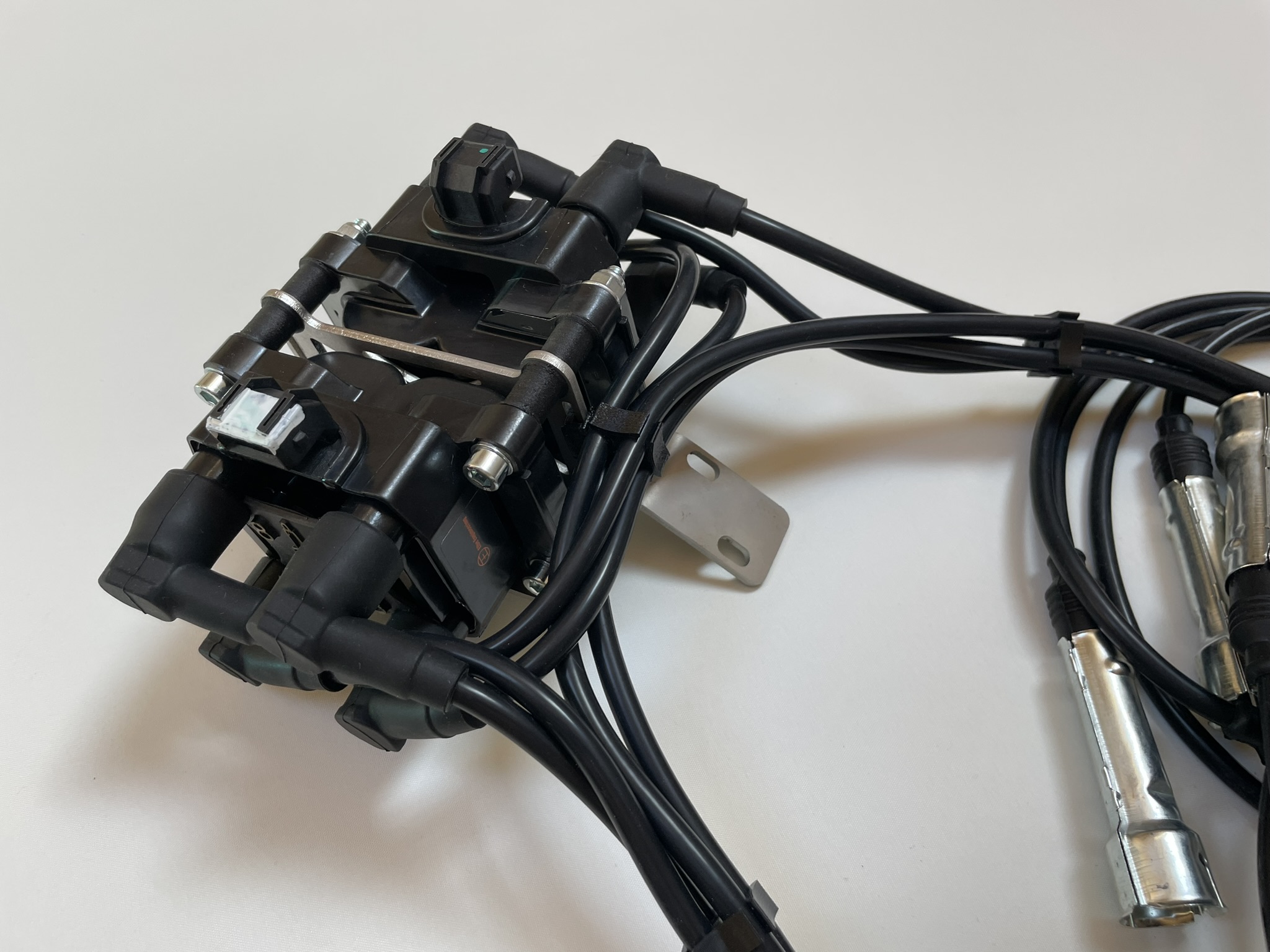

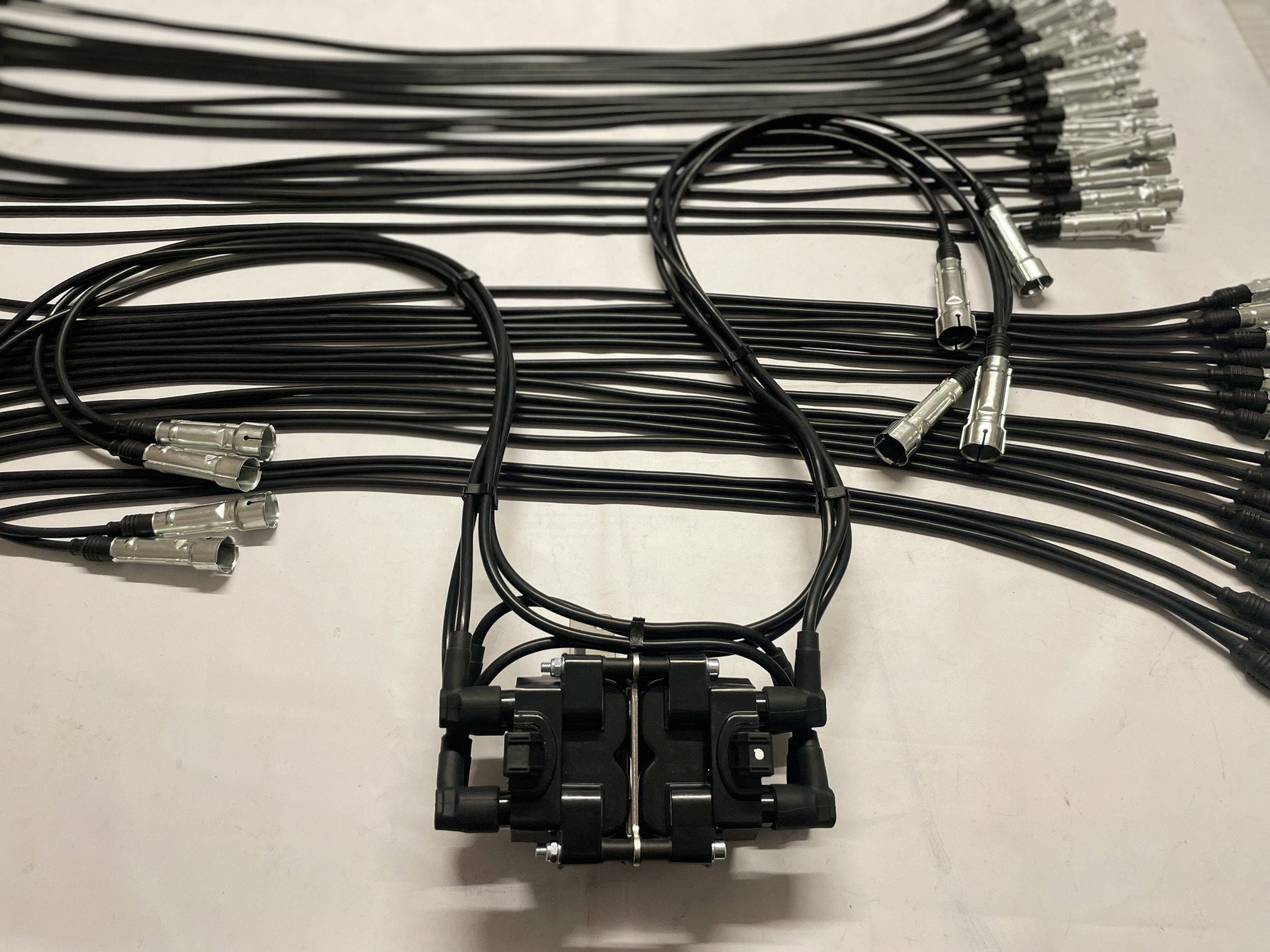

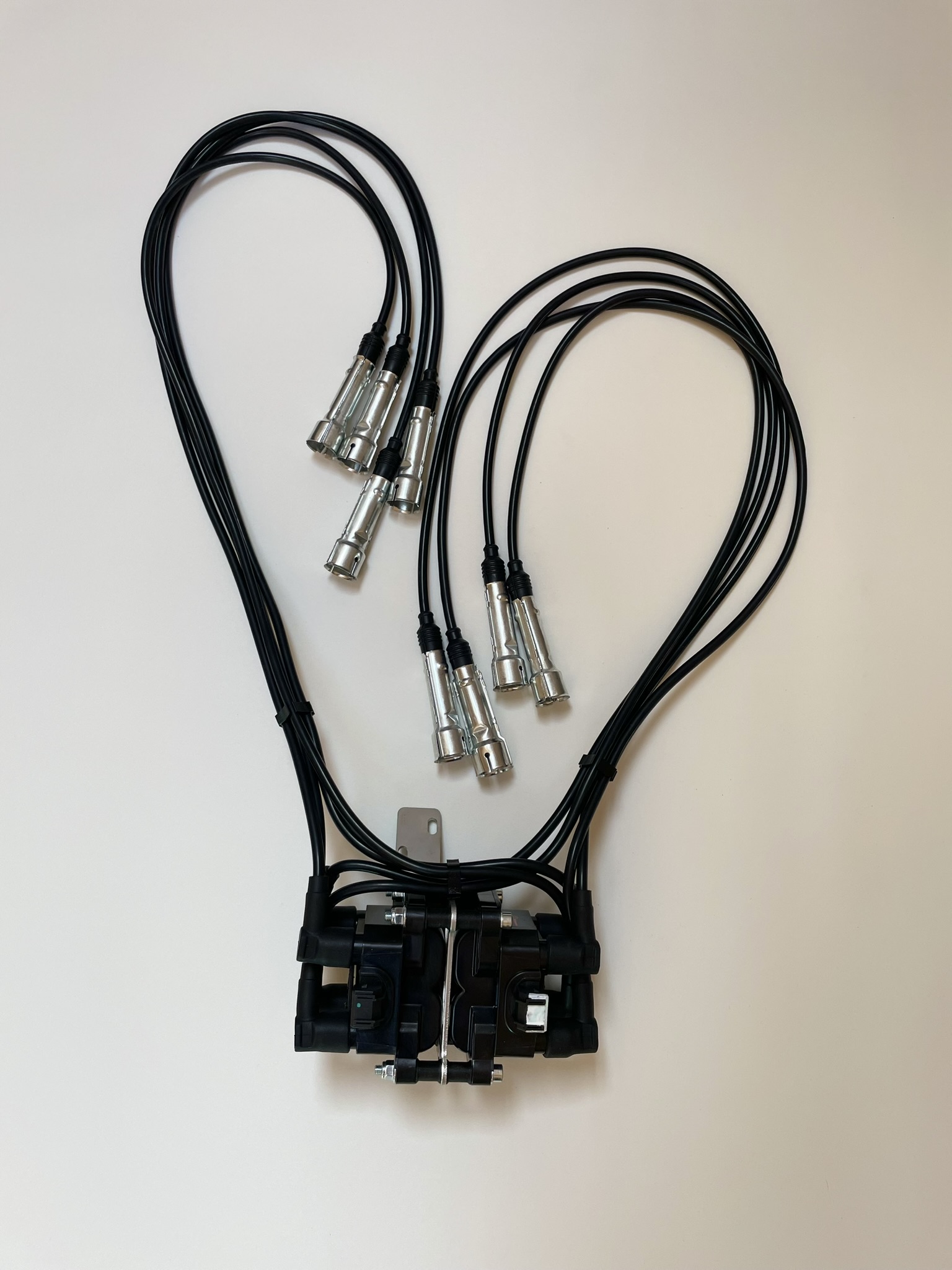

M116/M117 coilpack with mounting bracket and spark plug wires

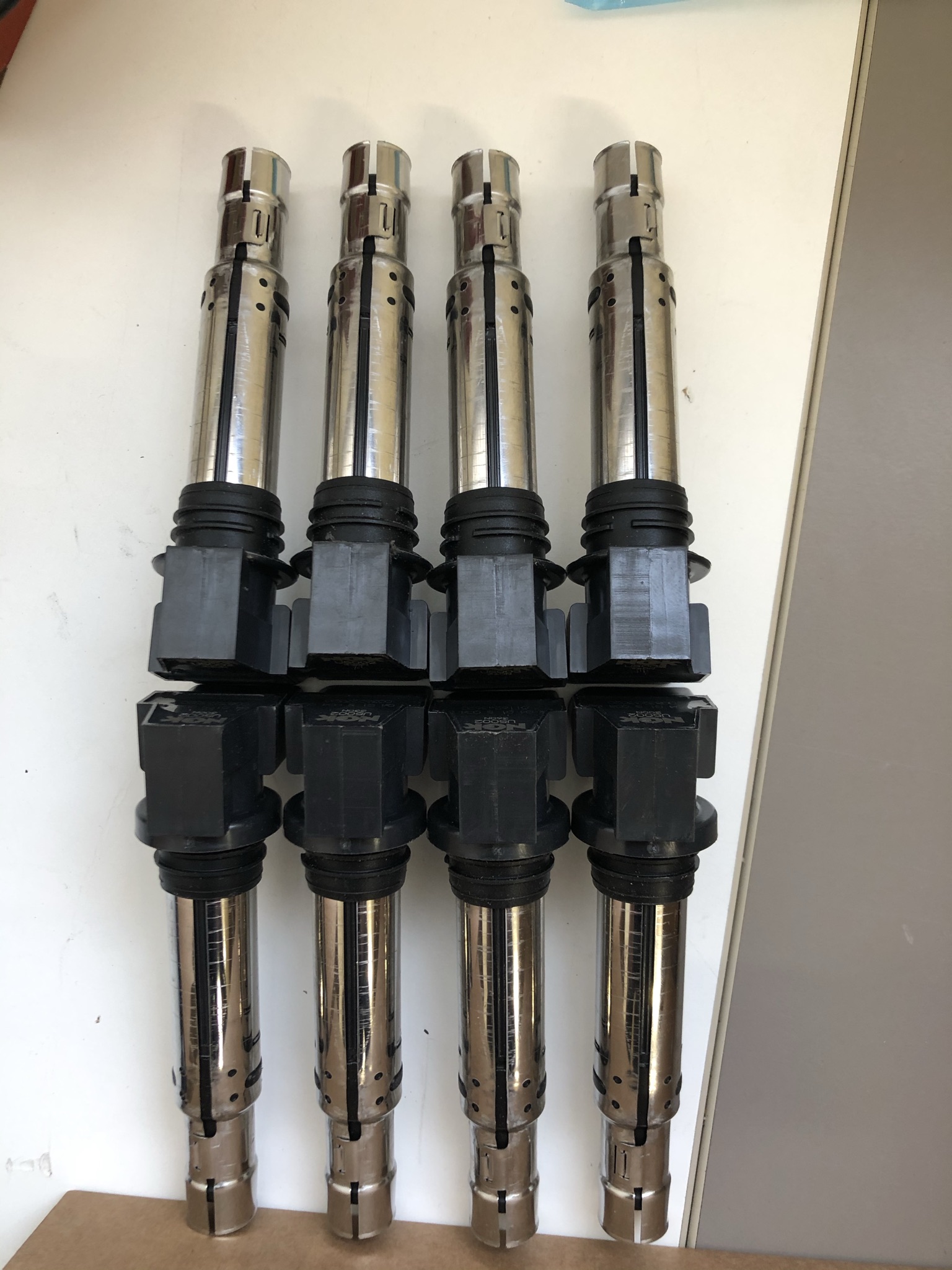

M102 2.3-16 Coil on plugs

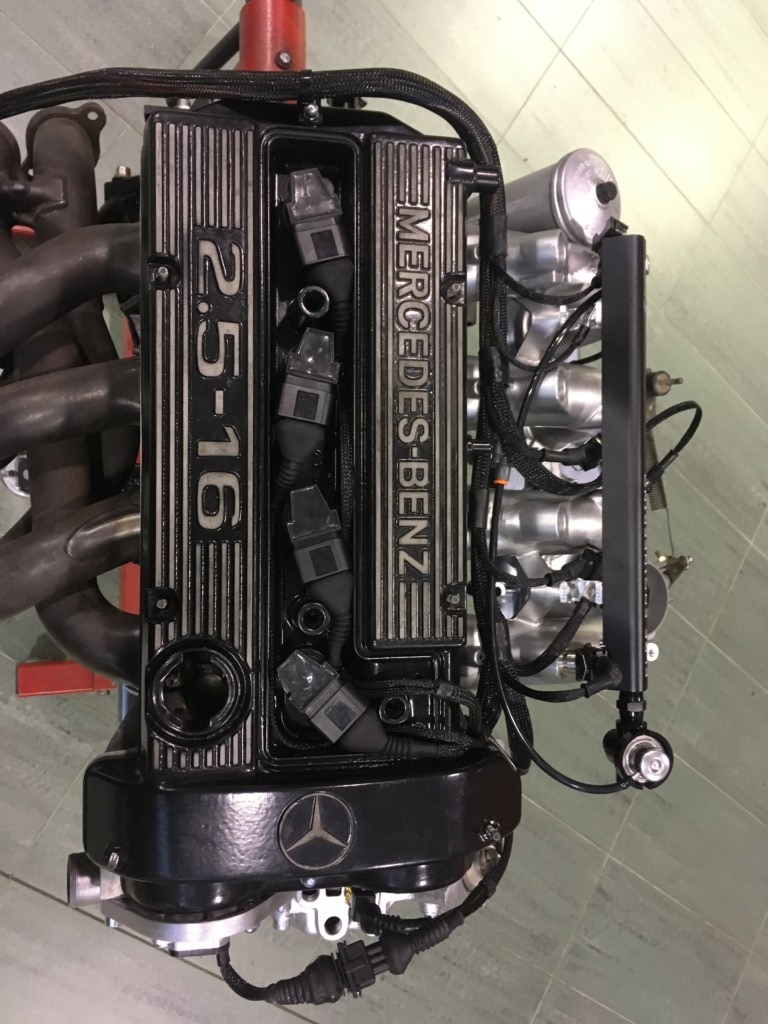

M102 2.5-16 Coil on plugs

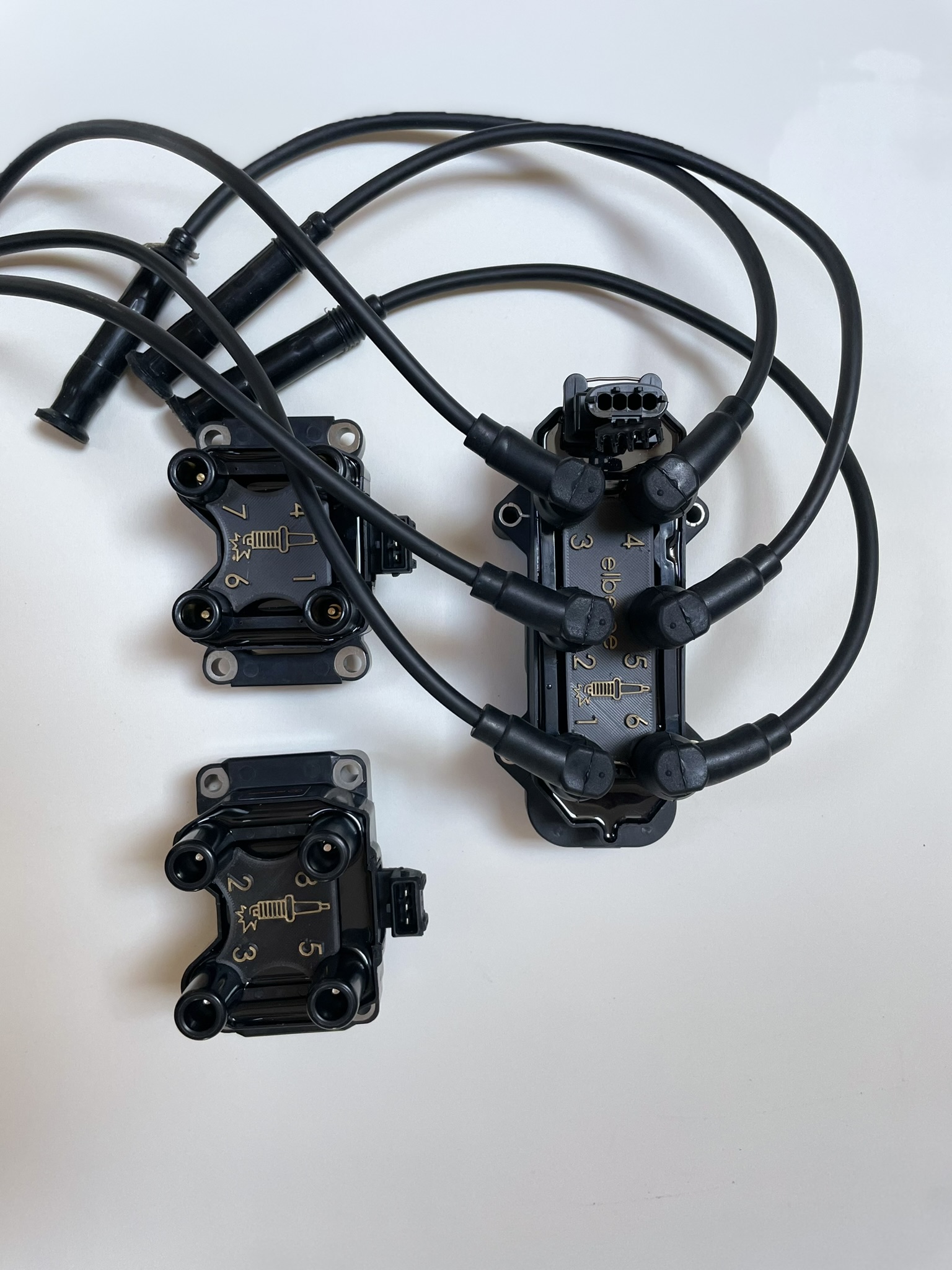

M110 coilpack with mounting bracket and spark plug wires plus throttle position sensor
Crankshaft / Camshaft sensors and trigger wheel kits:

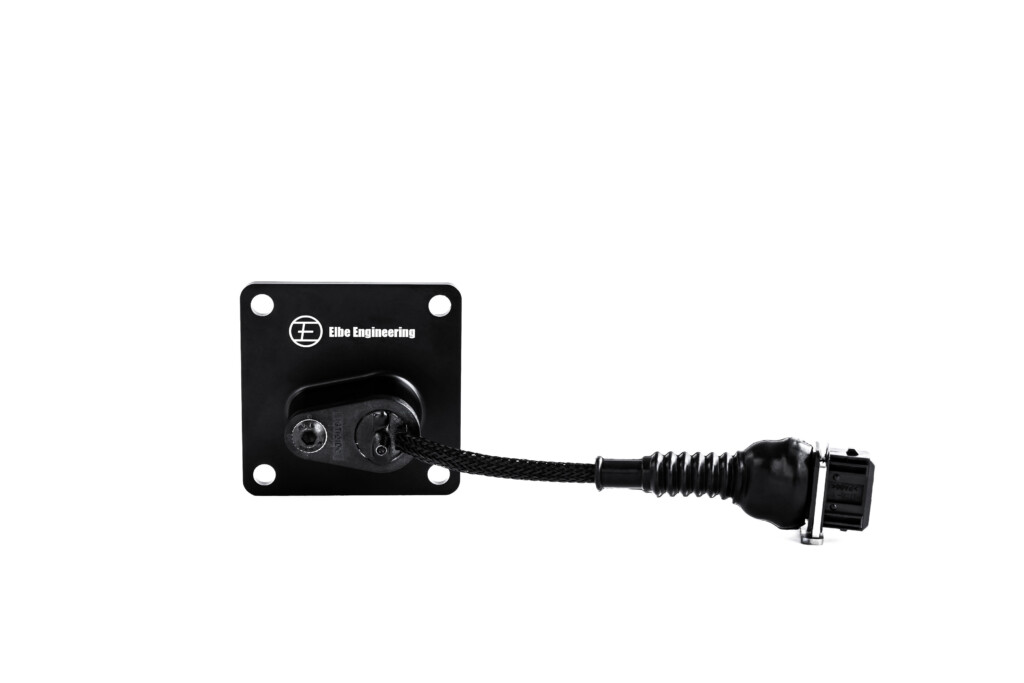

M102-16 Camshaft position sensor with mounting bracket (mounted instead of SLS/hydraulic pump)

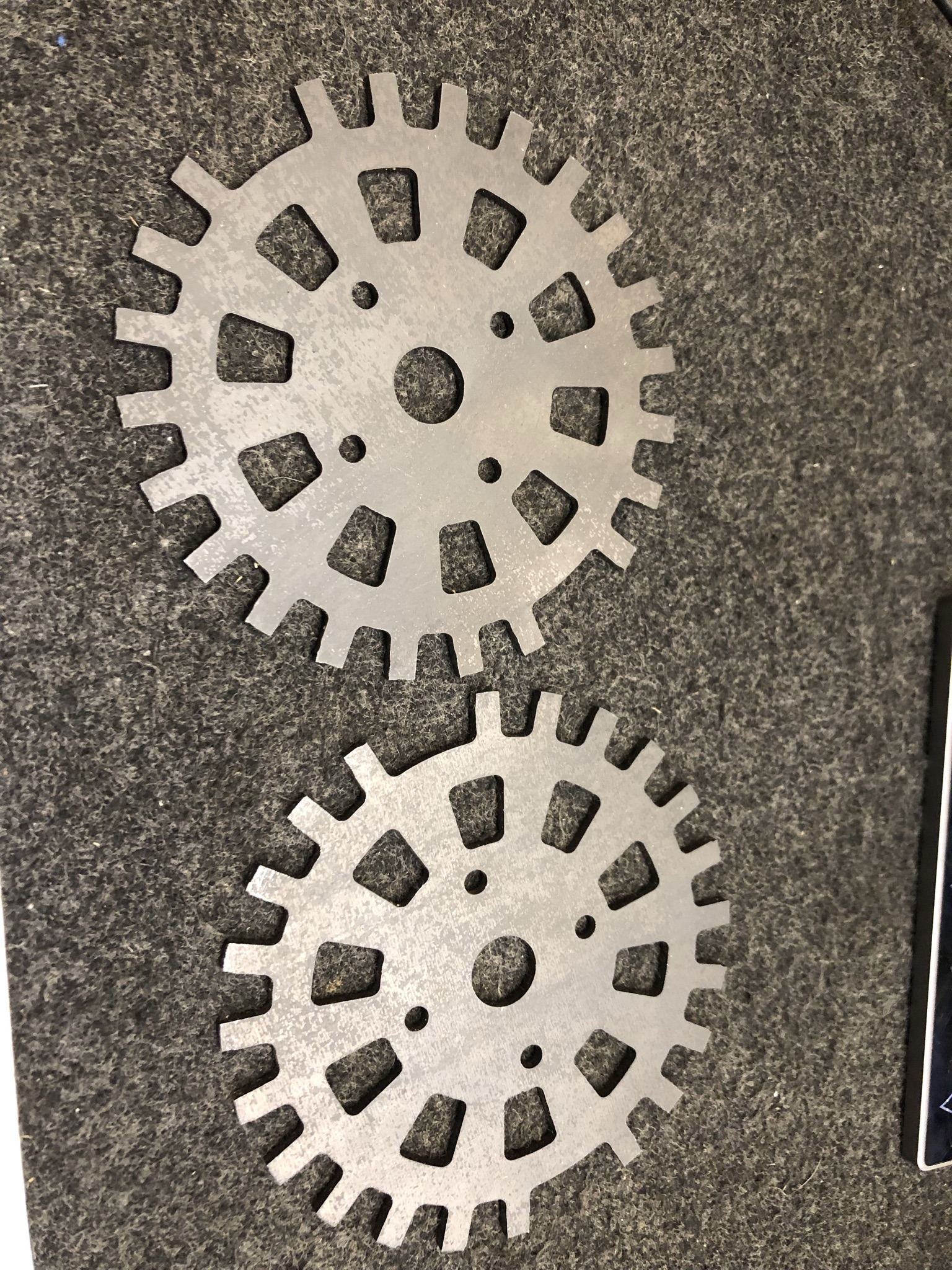

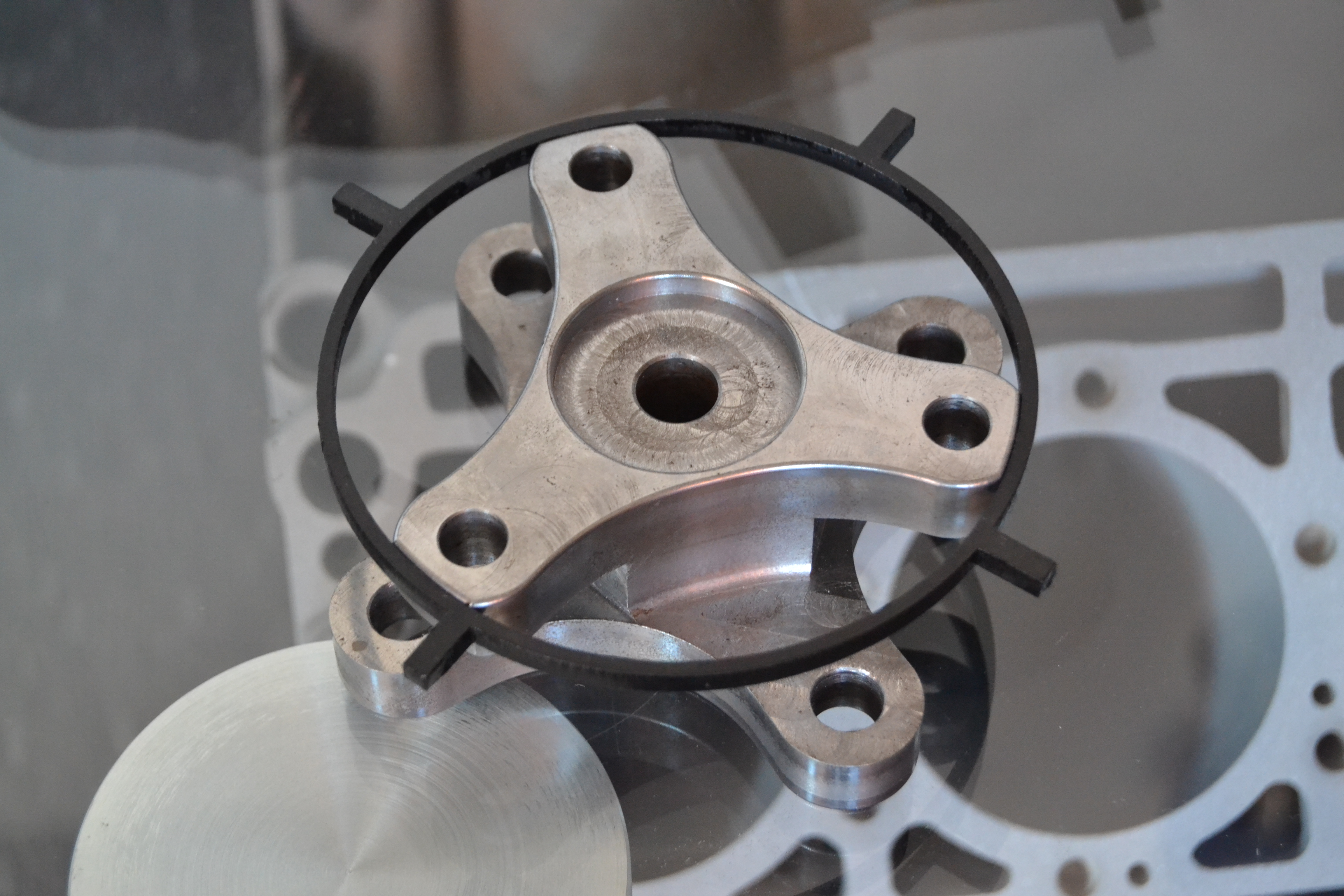

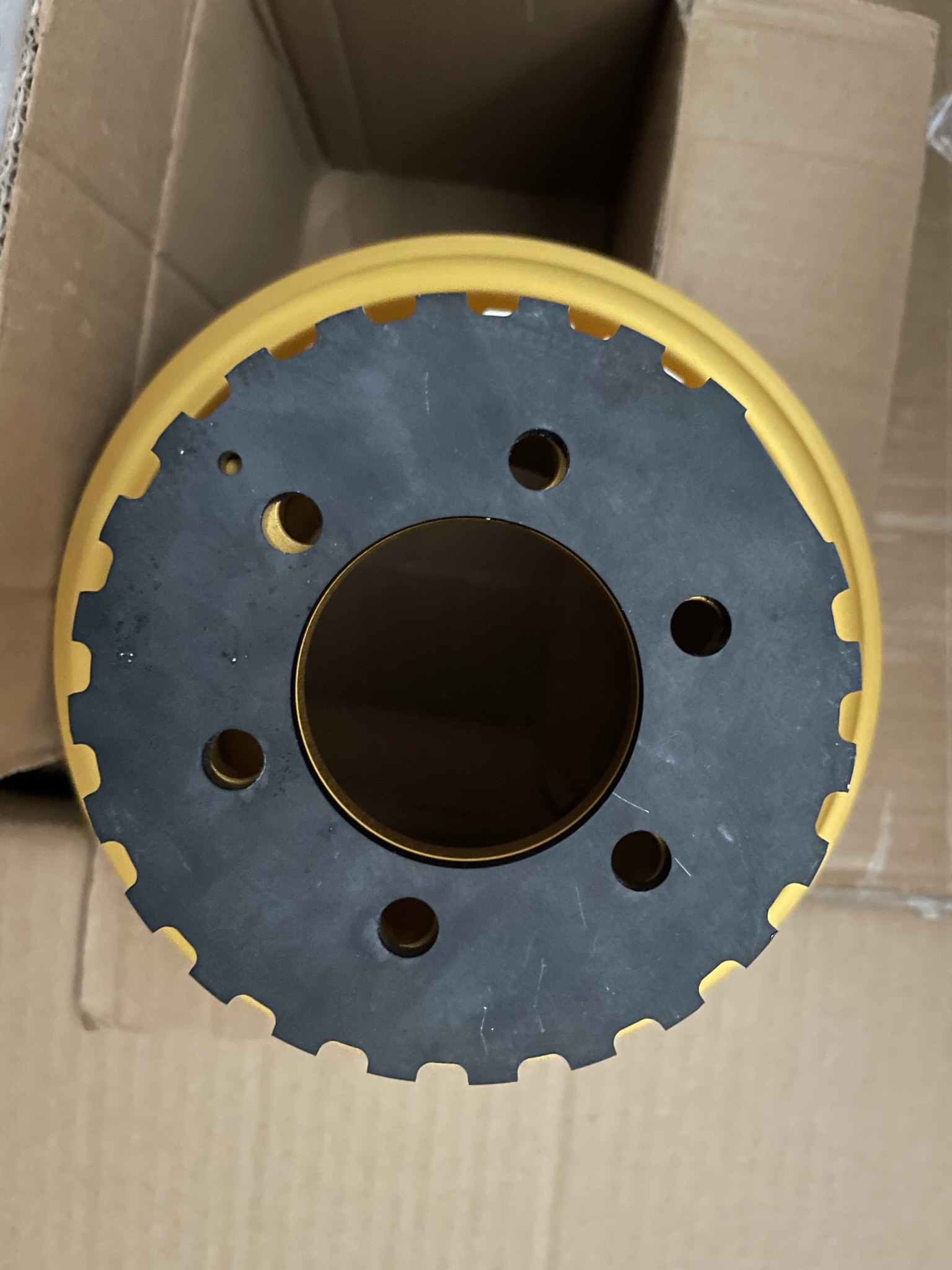

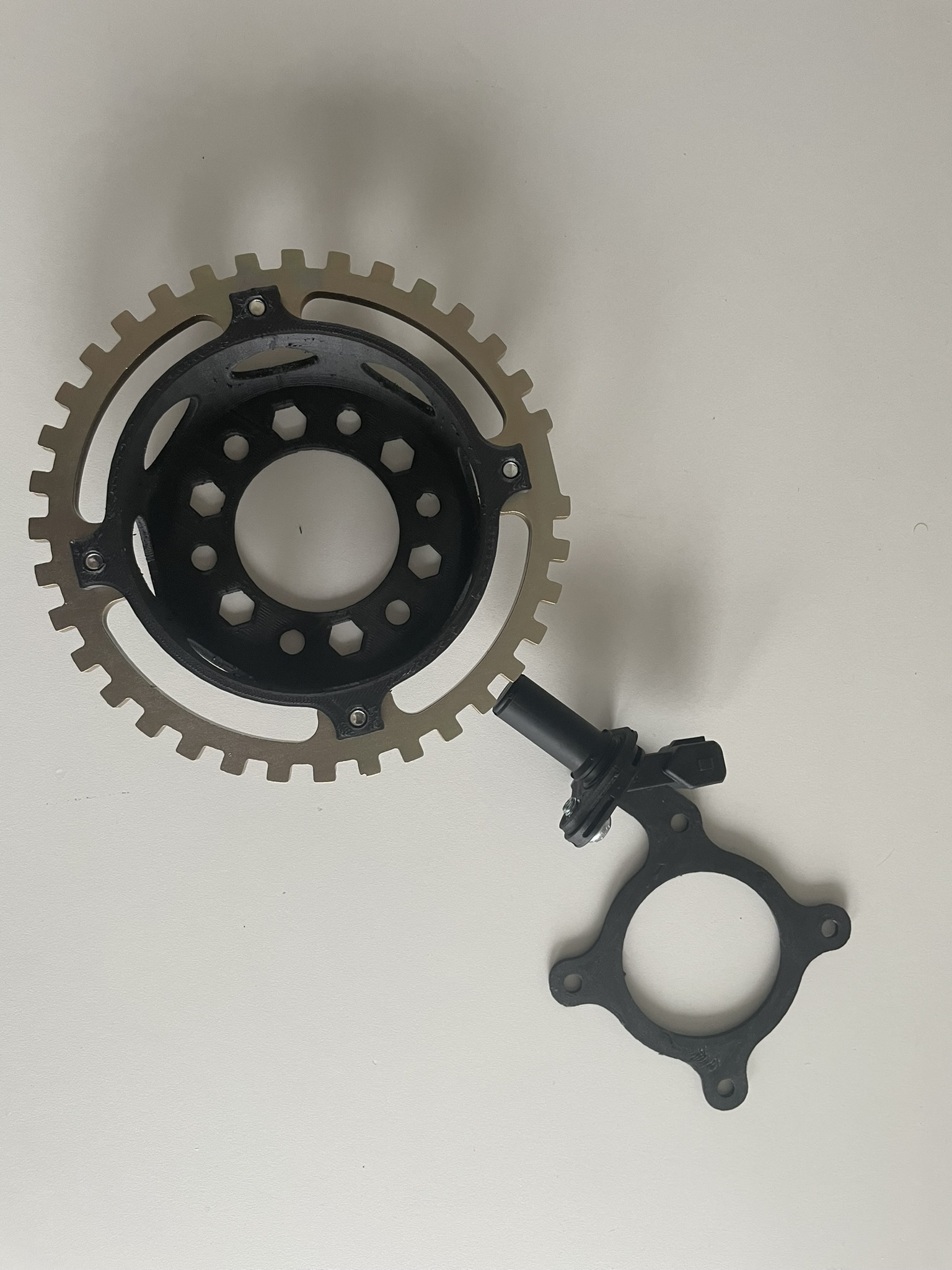

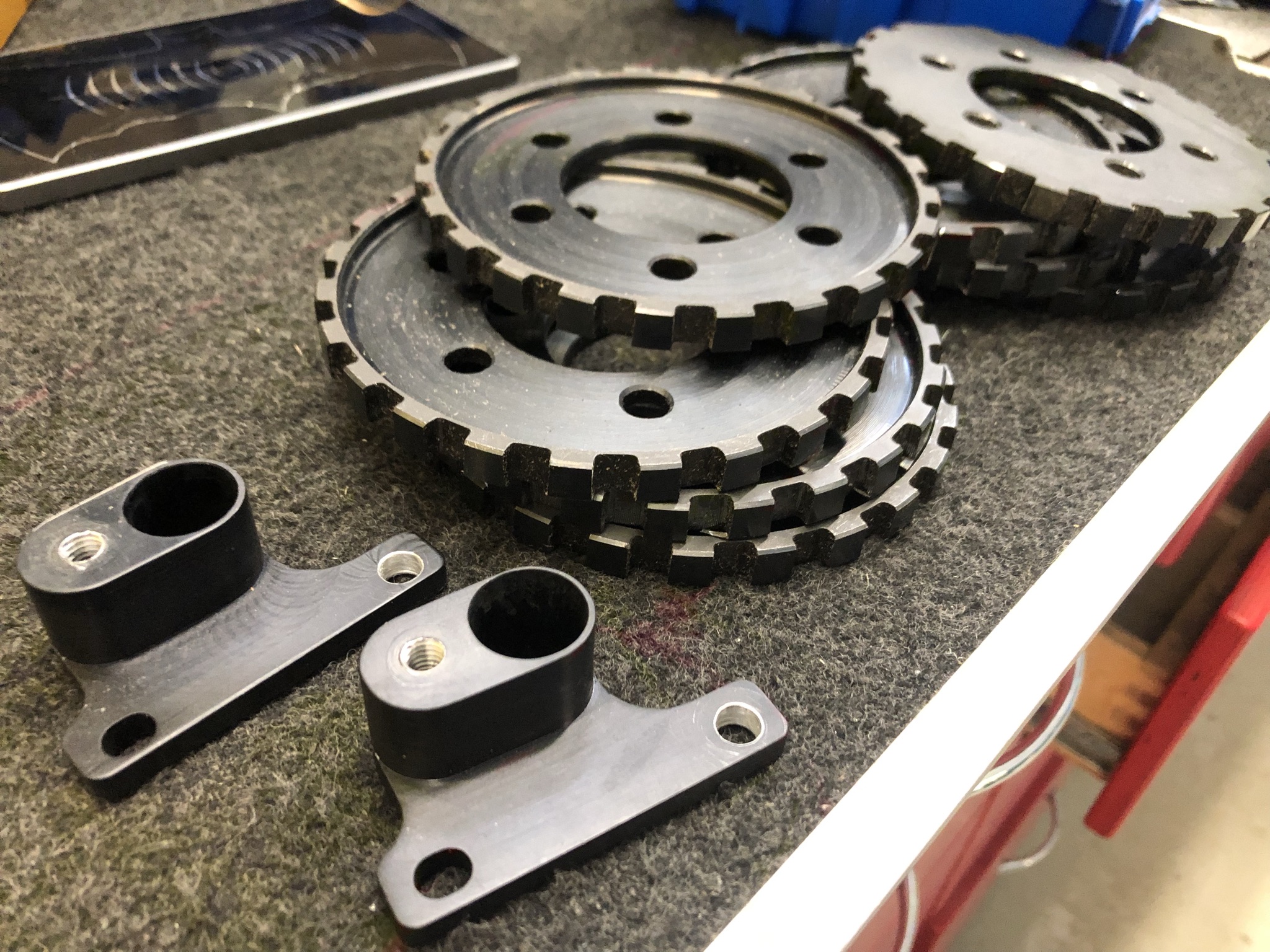

M116/M117 Alloy block 24-1 trigger wheel (mounted instead of harmonic balancer) and crankshaft sensor with mounting bracket

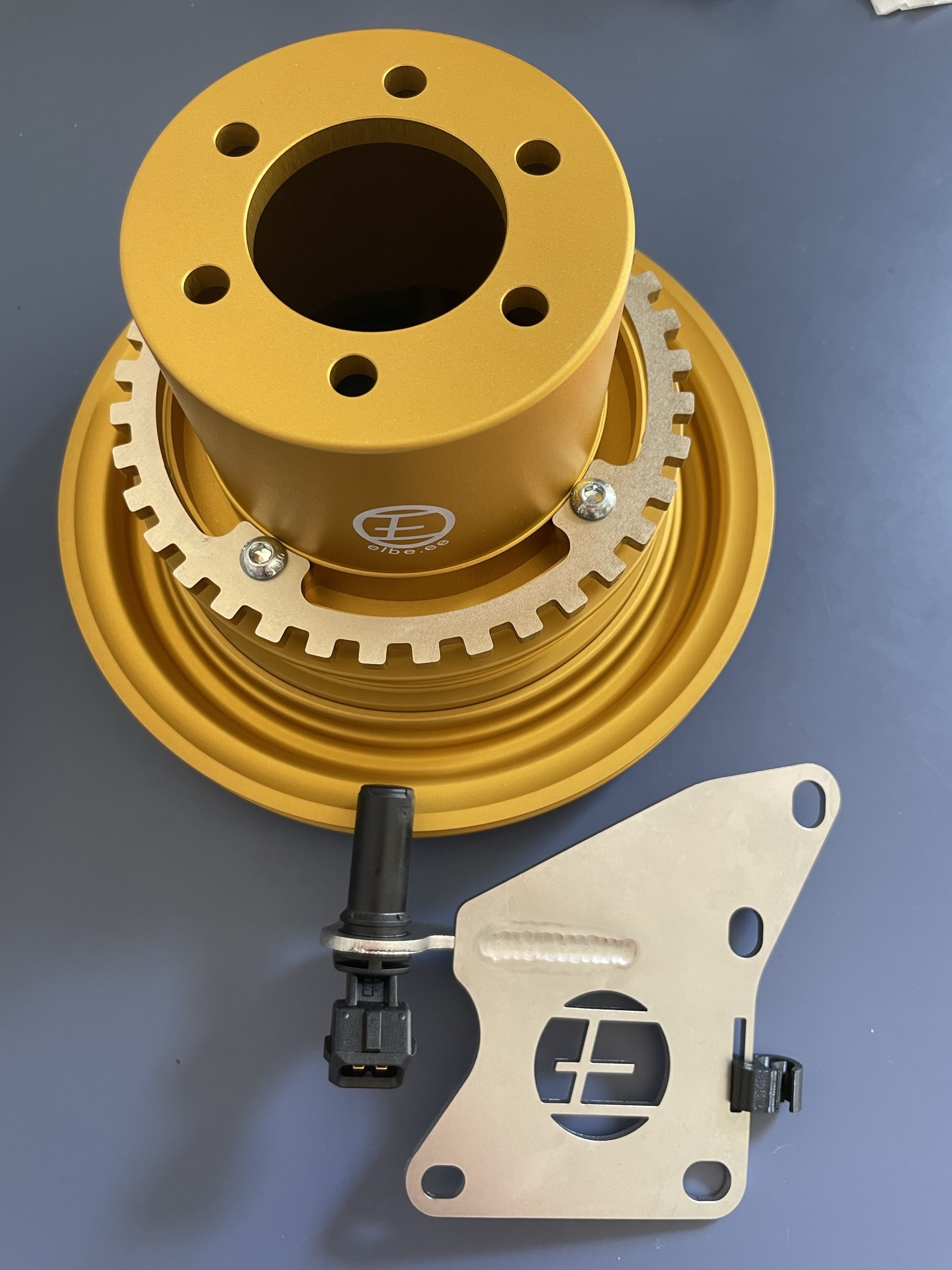

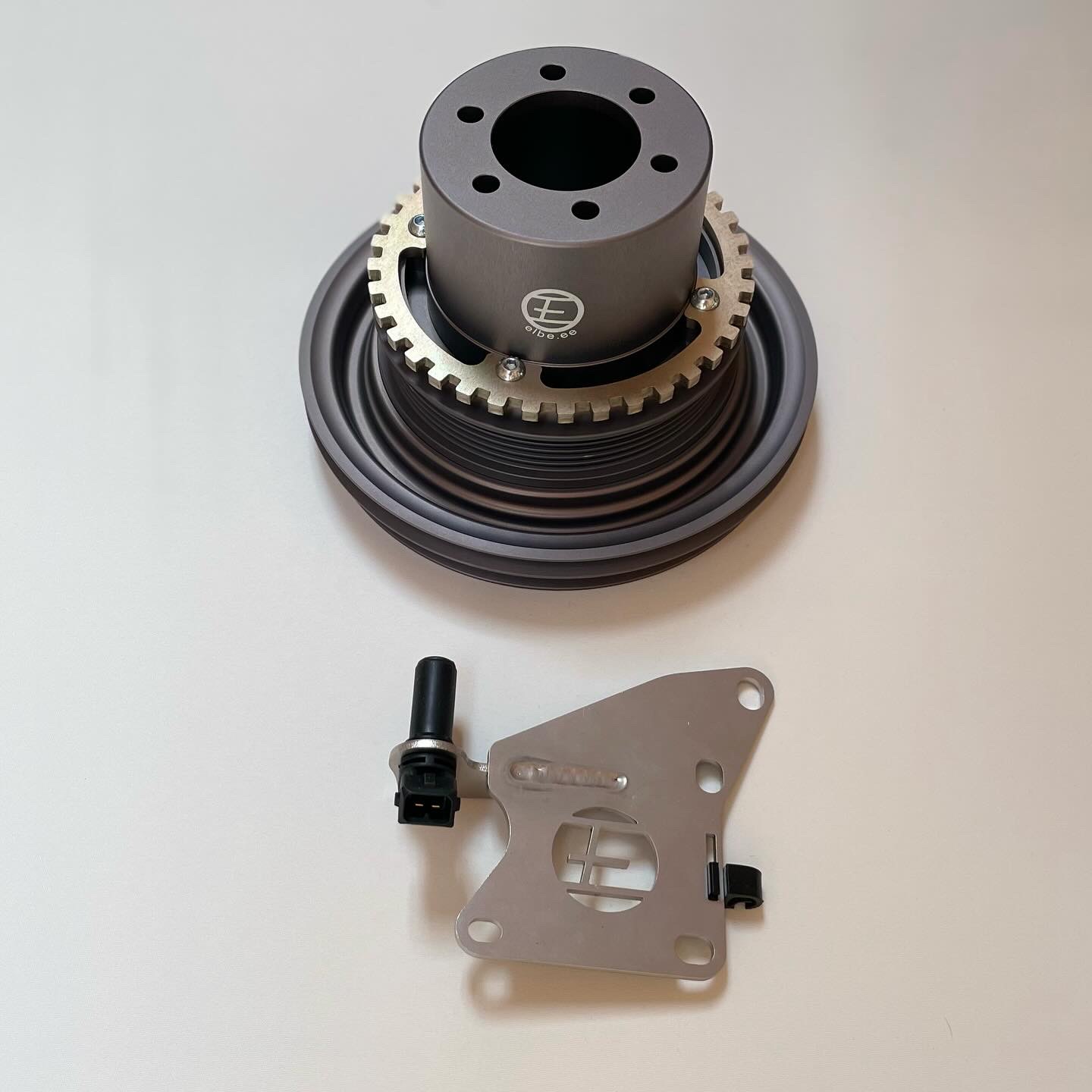

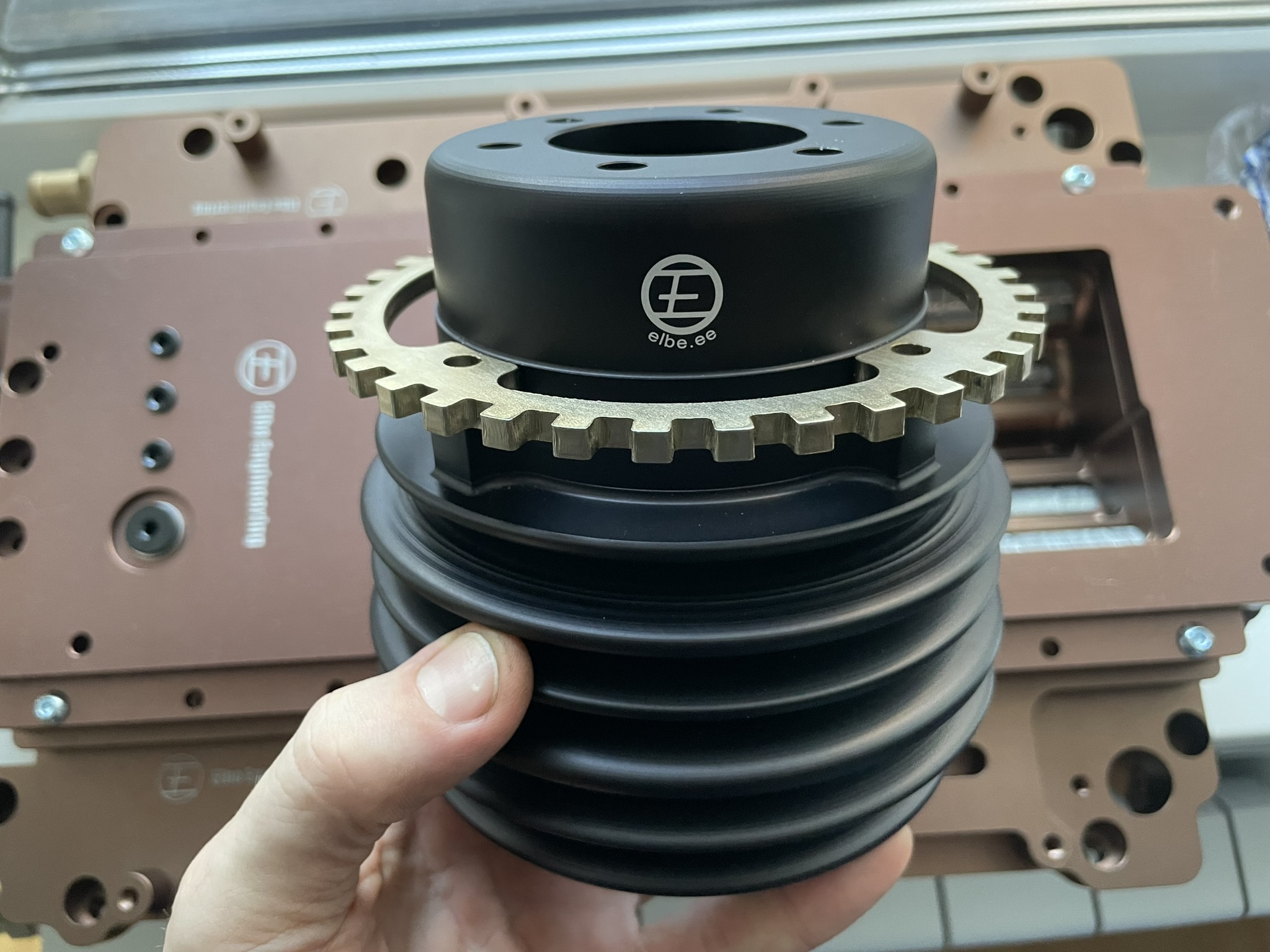

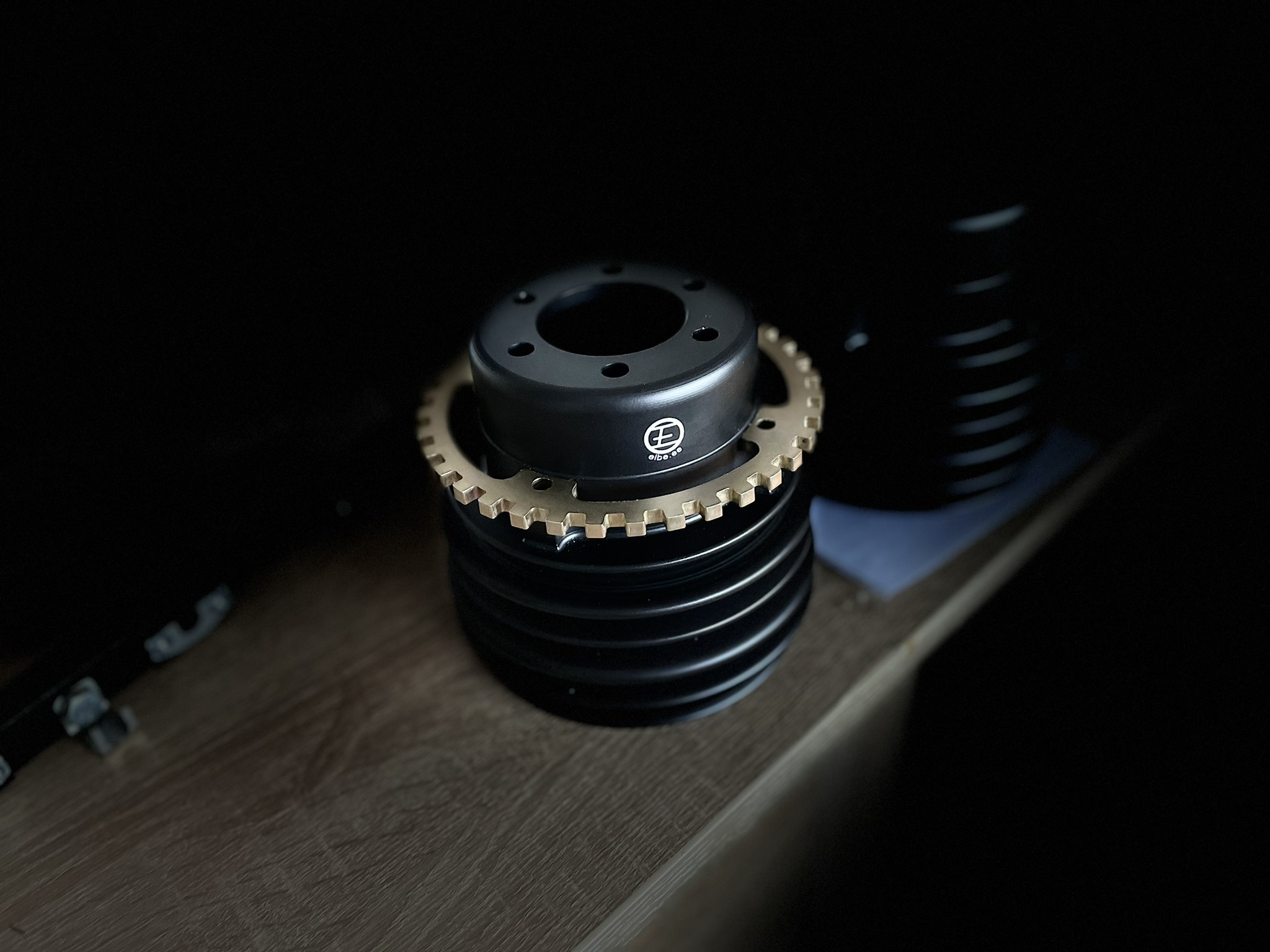

M116/M117 Iron block aluminum (billet 7075) crankshaft pulley with 36-1 trigger wheel and crankshaft sensor with mounting bracket

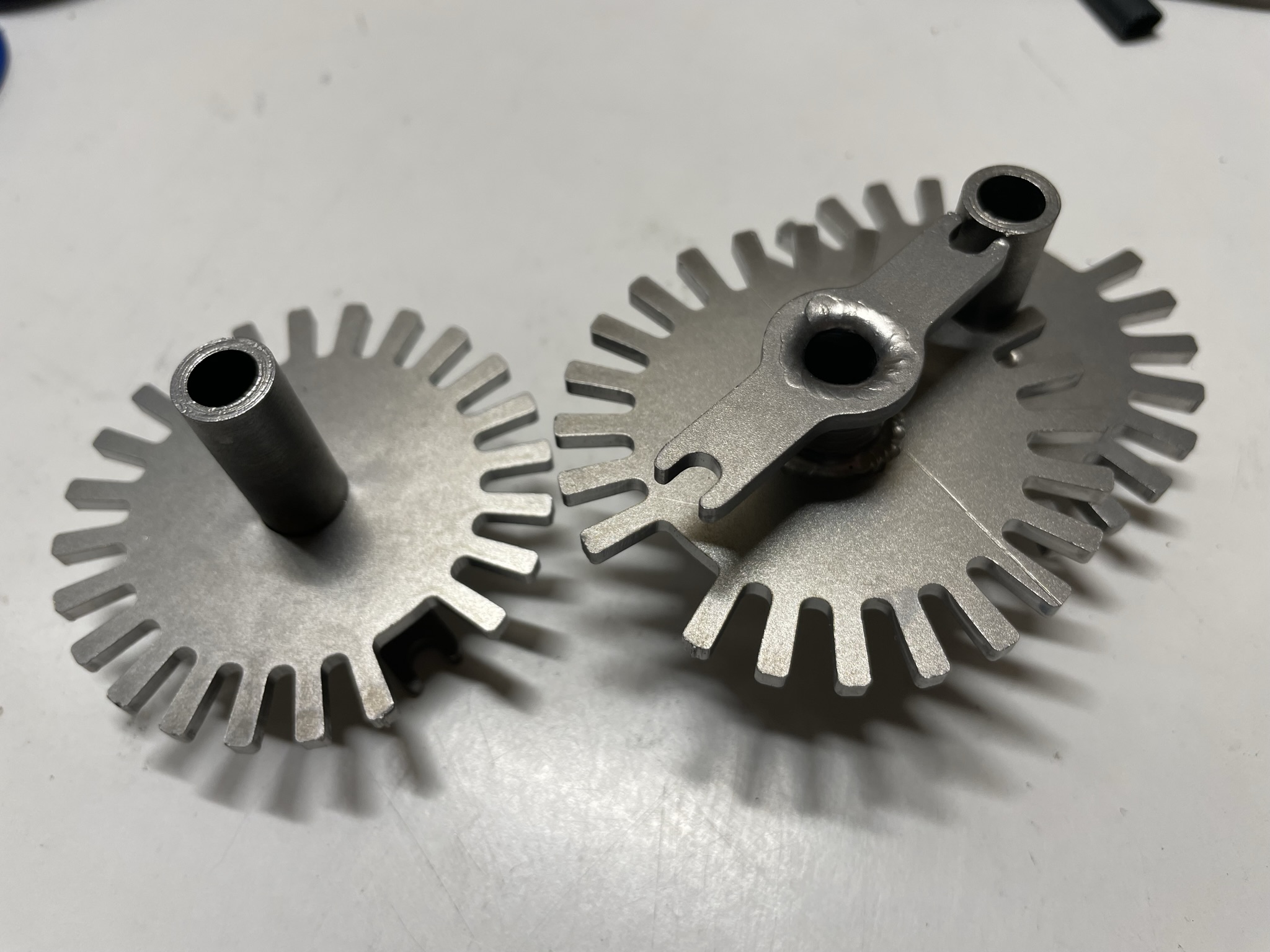

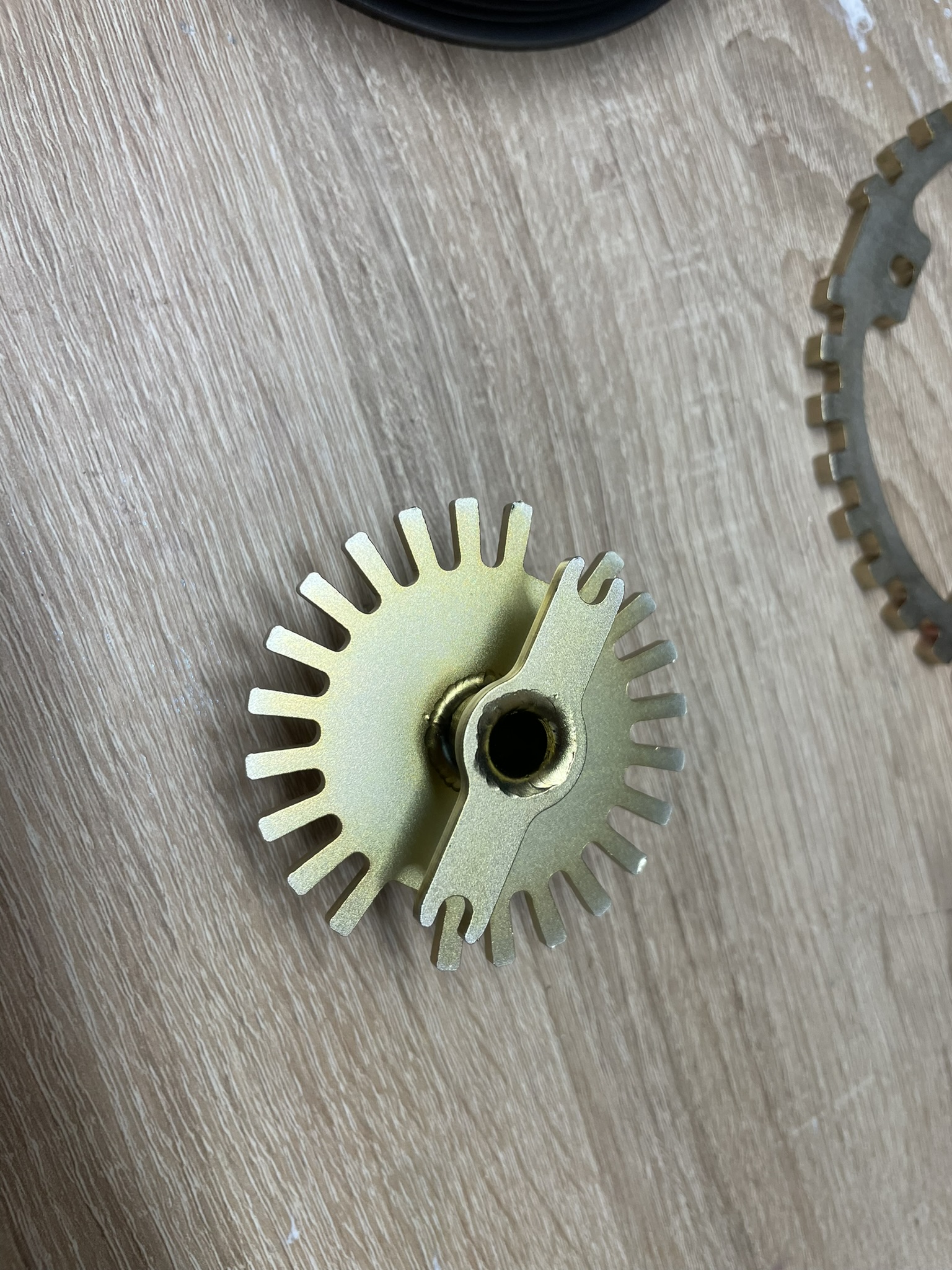

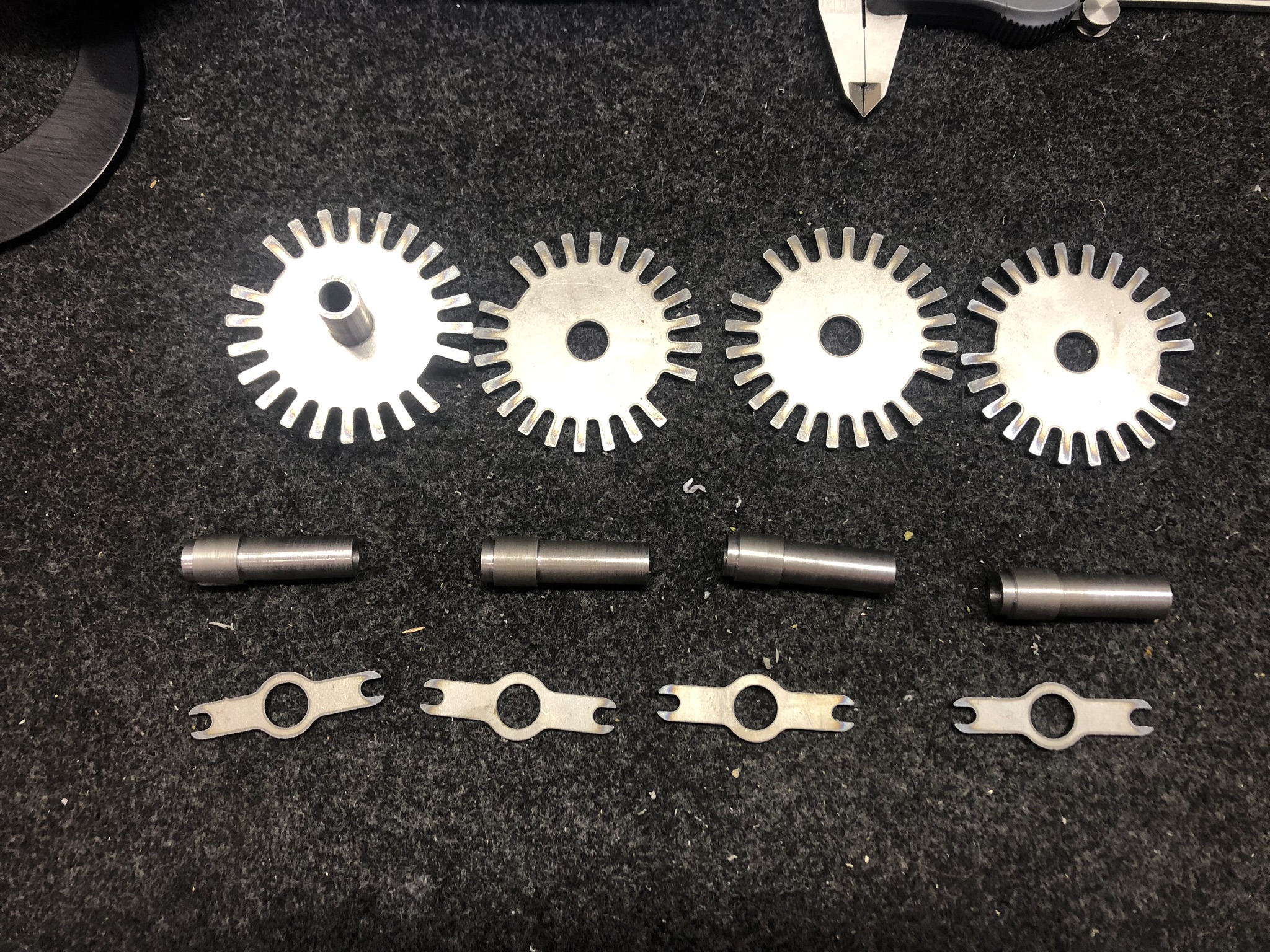

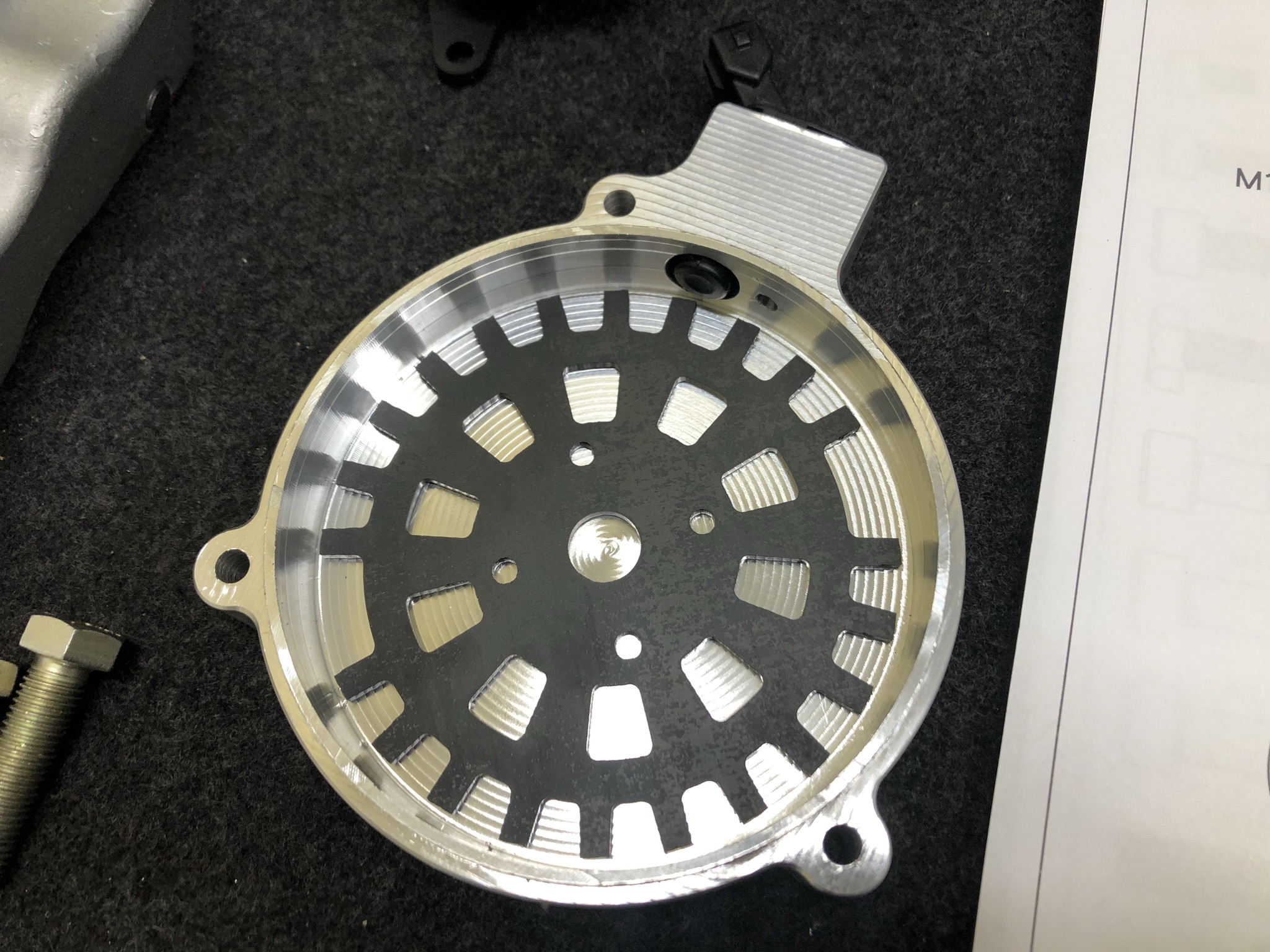

M110 trigger wheel into distributor with “Crankshaft” position sensor and bracket for original distributor
M110 trigger wheel into distributor with “crank and cam” sensors for full sequential ignition/injection with crank/cam sensors

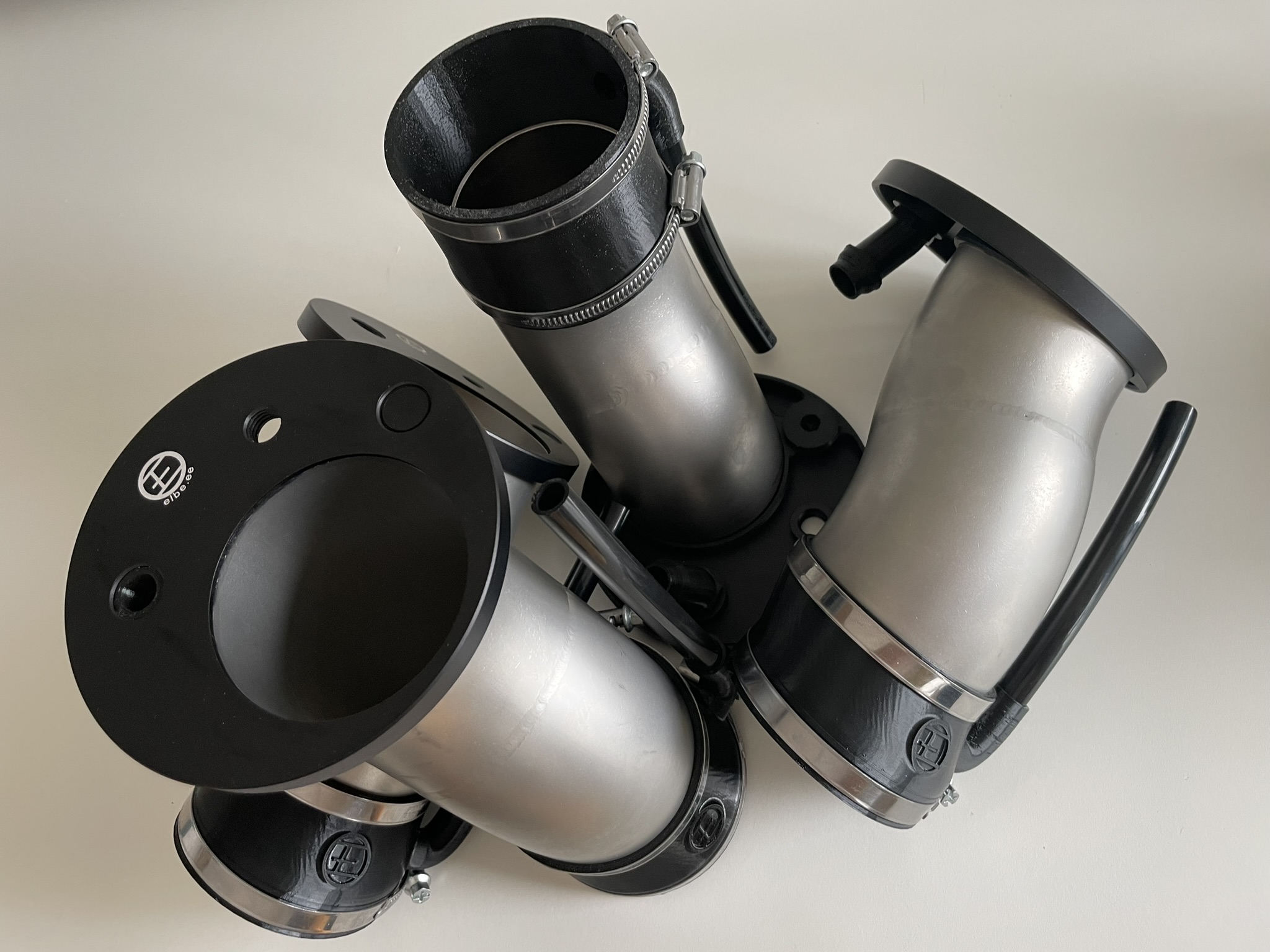

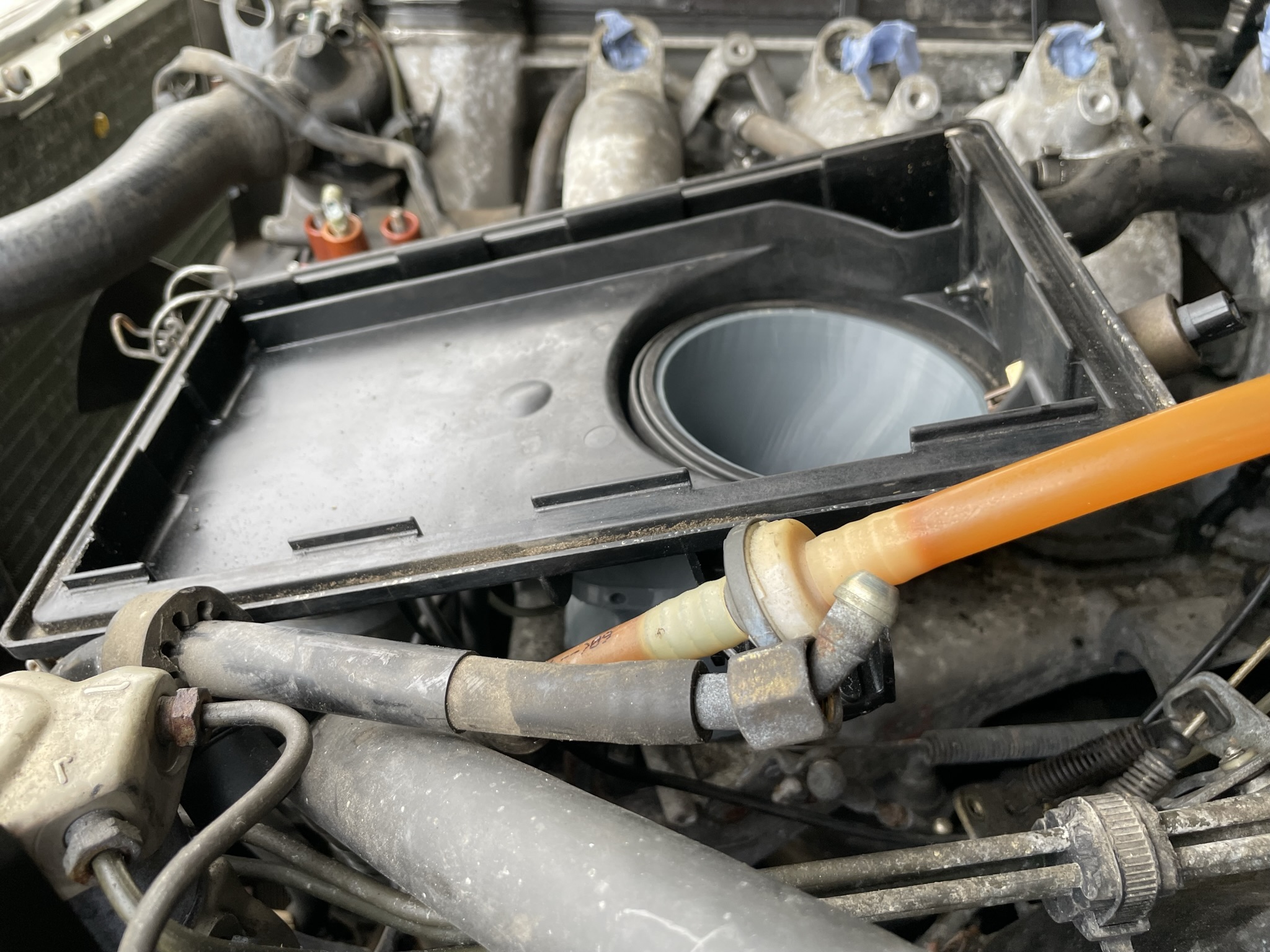

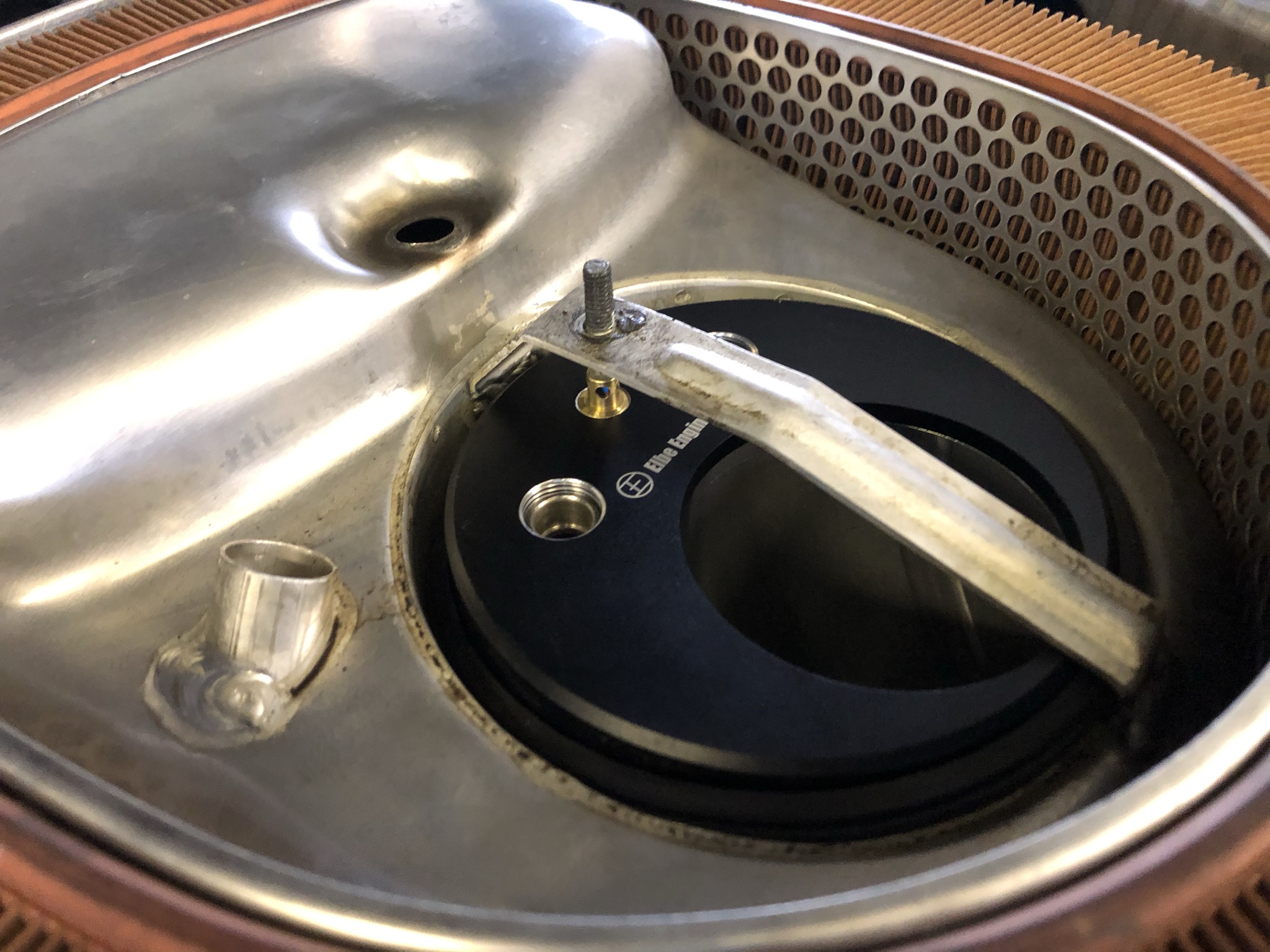

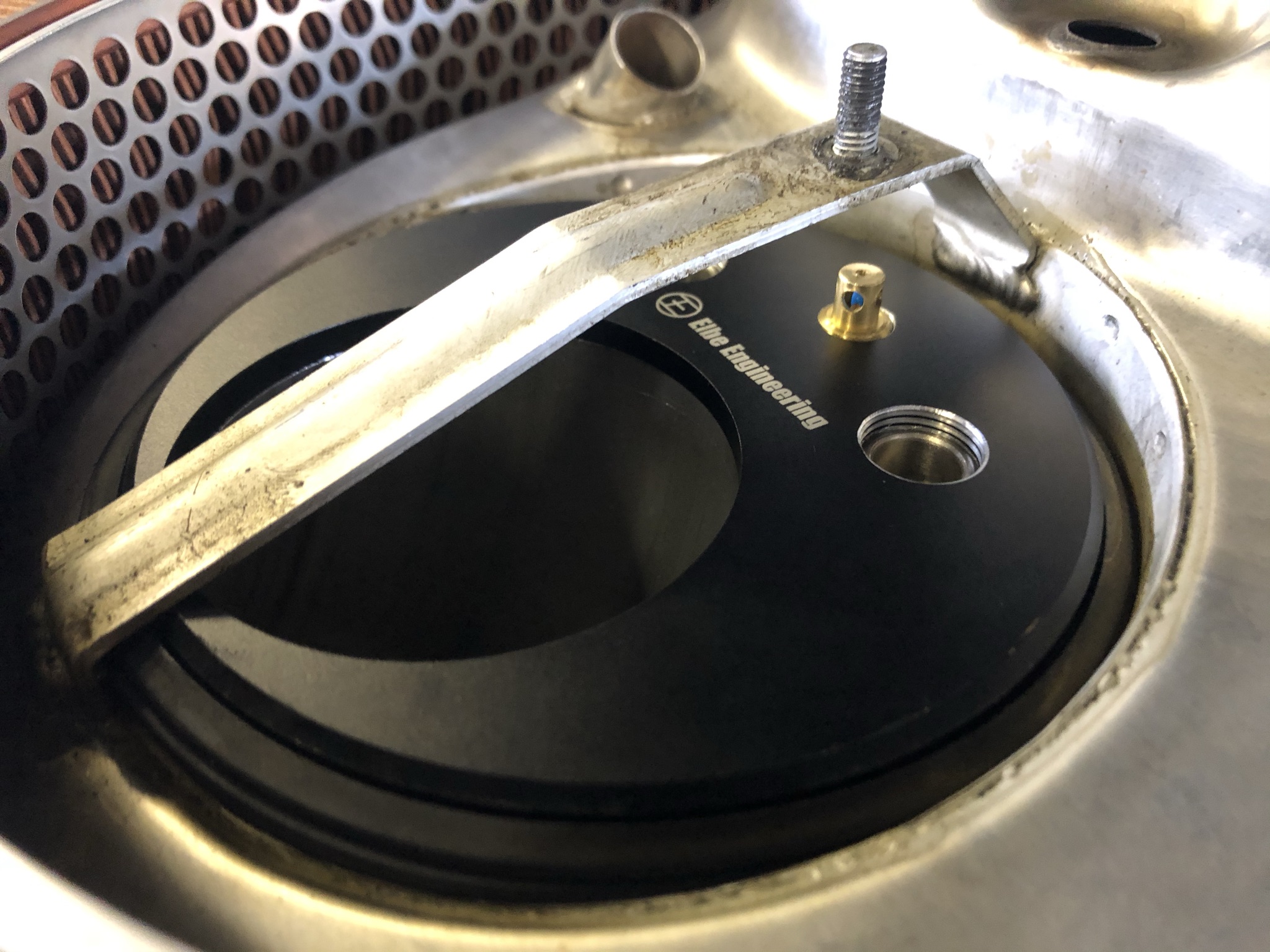

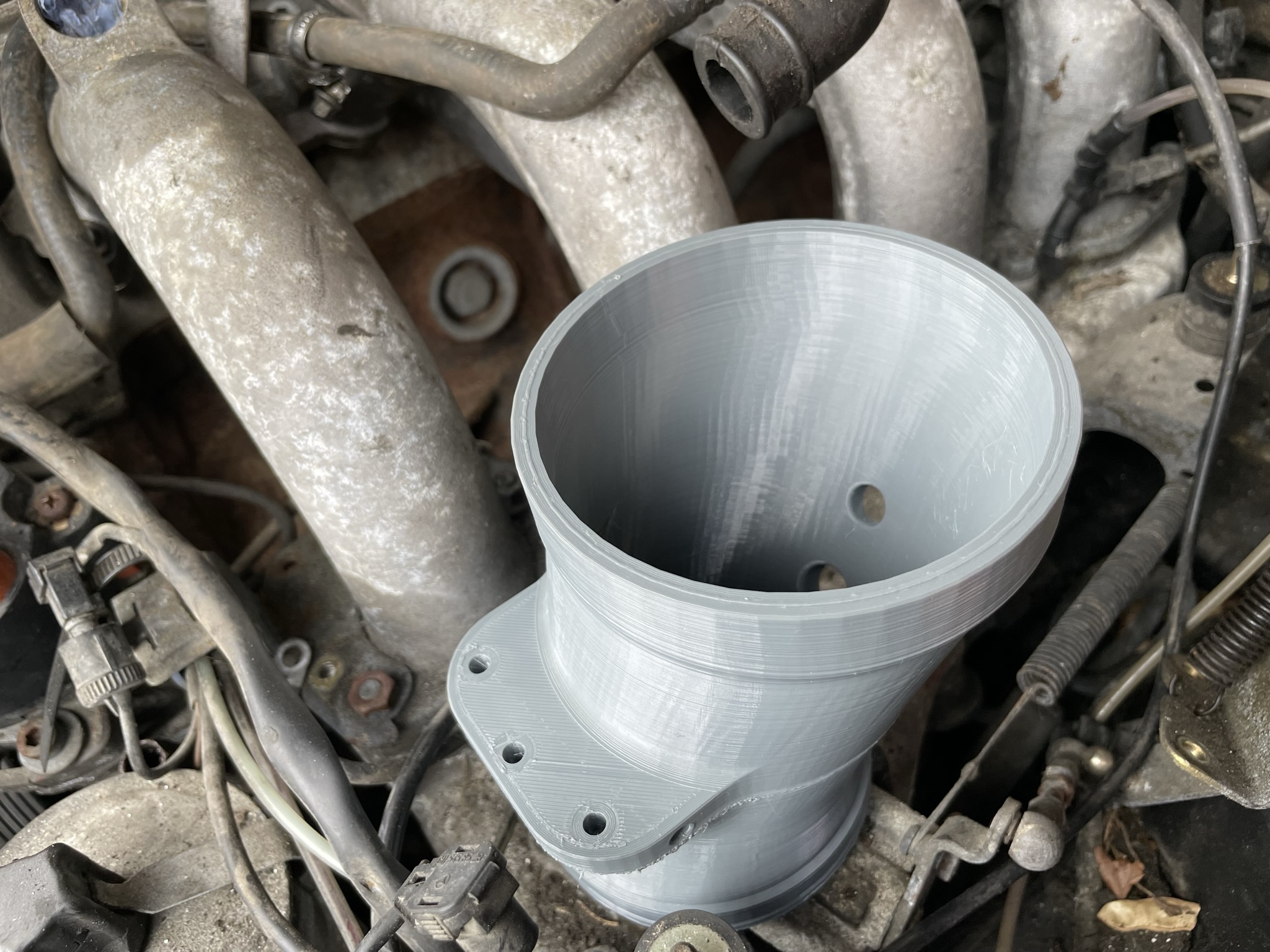

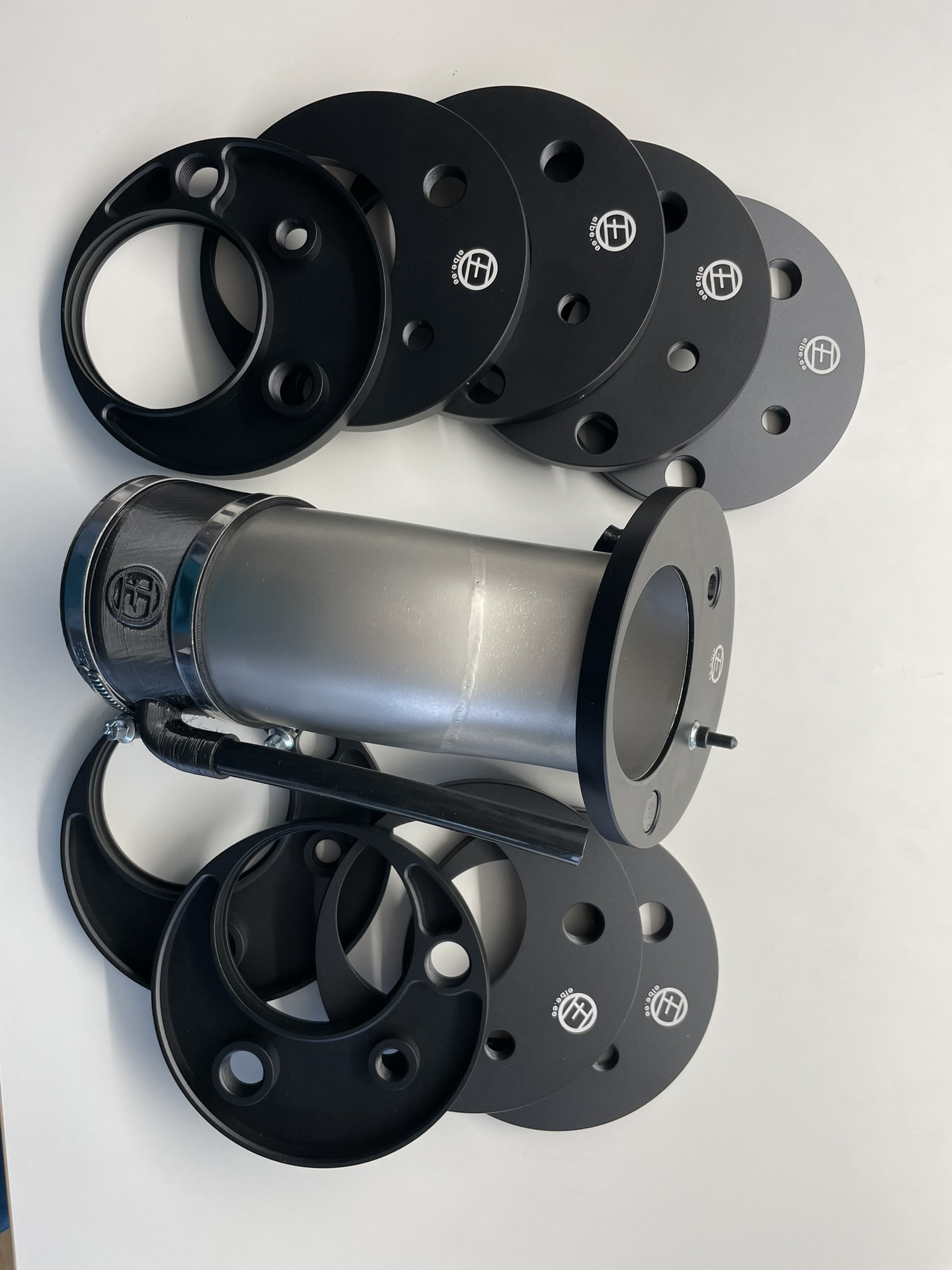

Adapters between throttle body and air filter housing(replacing K-jetronic unit):

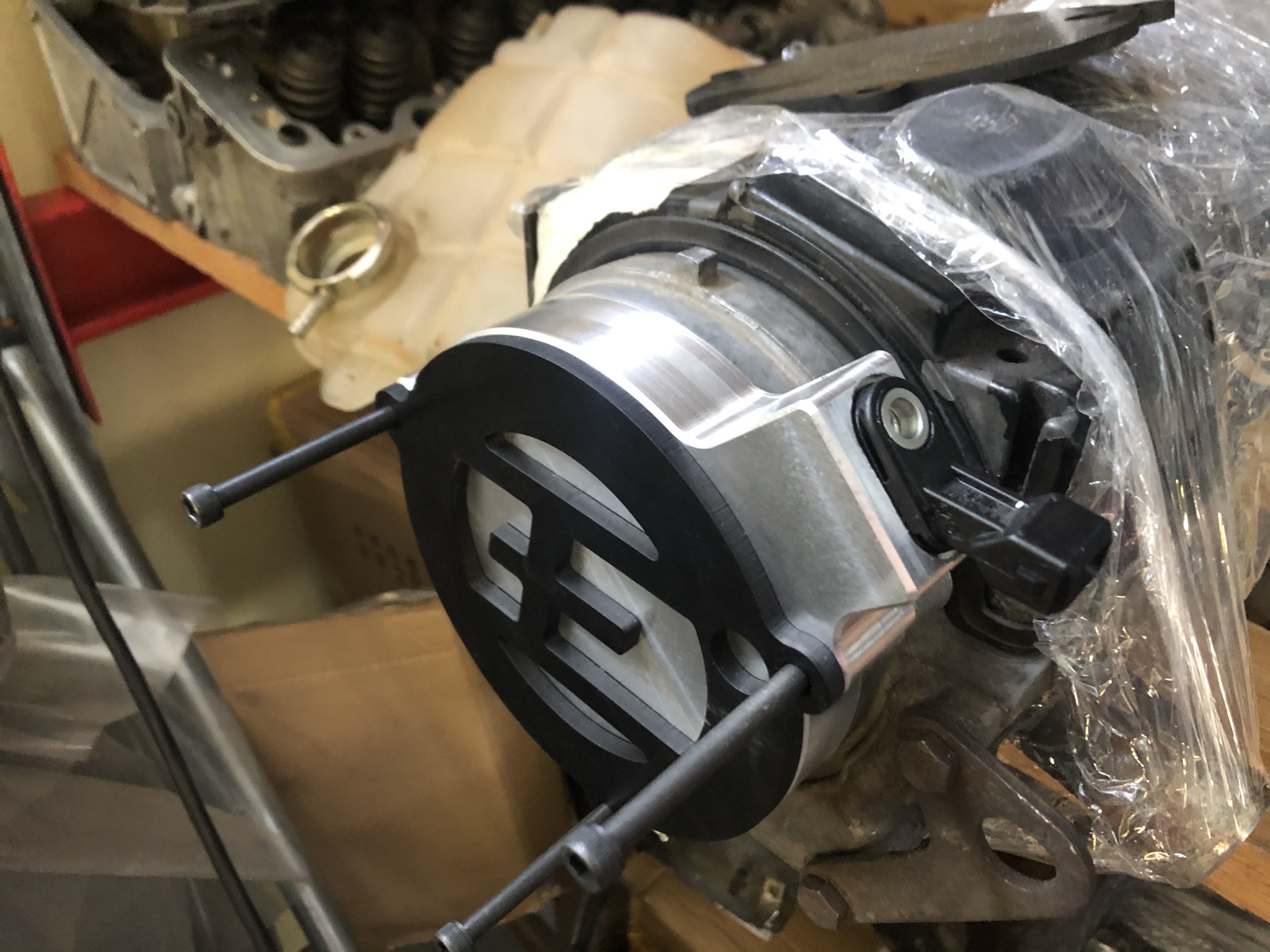

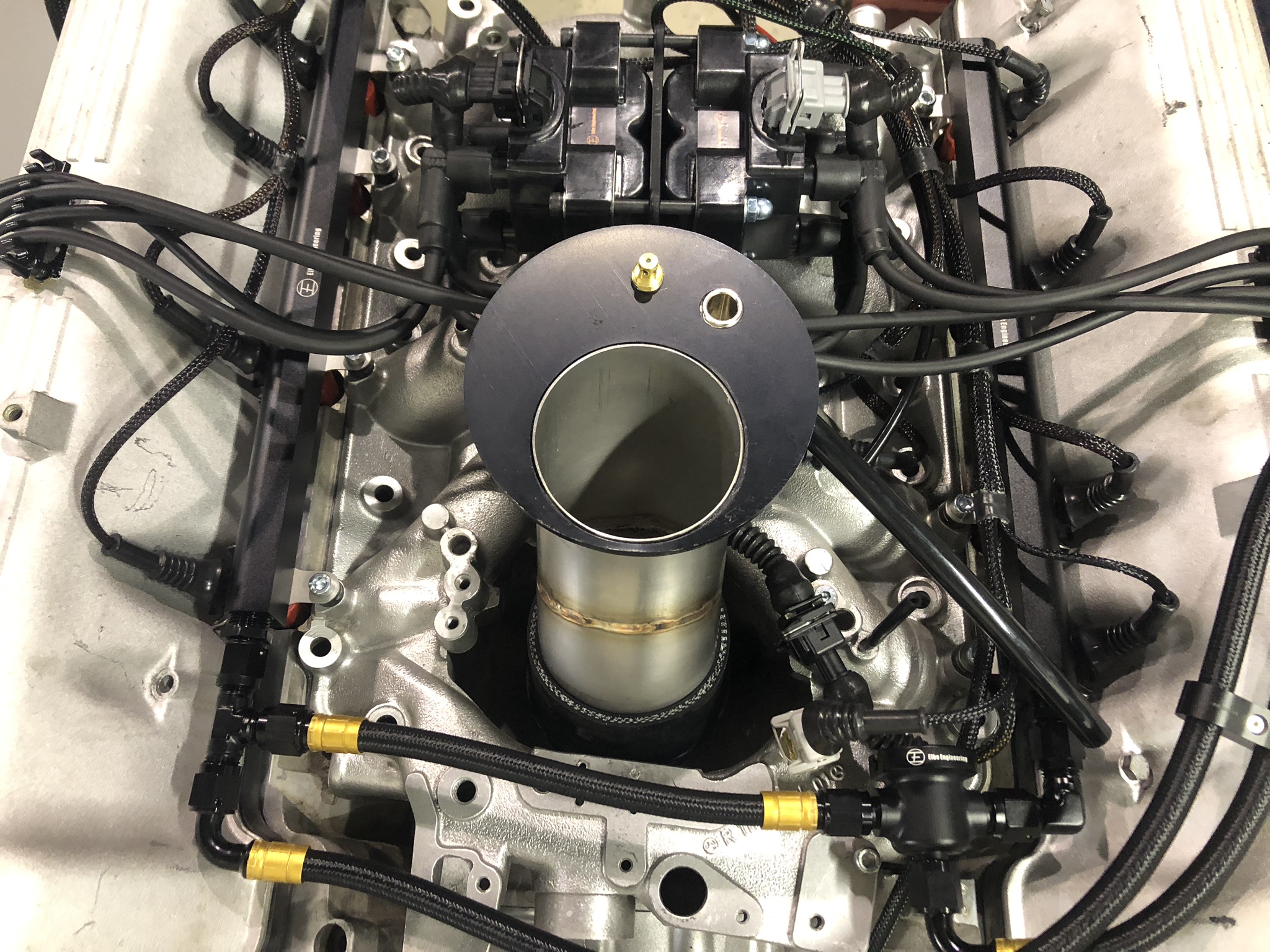

M116/M117 Adapter with manifold air temperature sensor, idle air port, crankcase ventilation port
M102-16 Adapter with manifold air temperature sensor

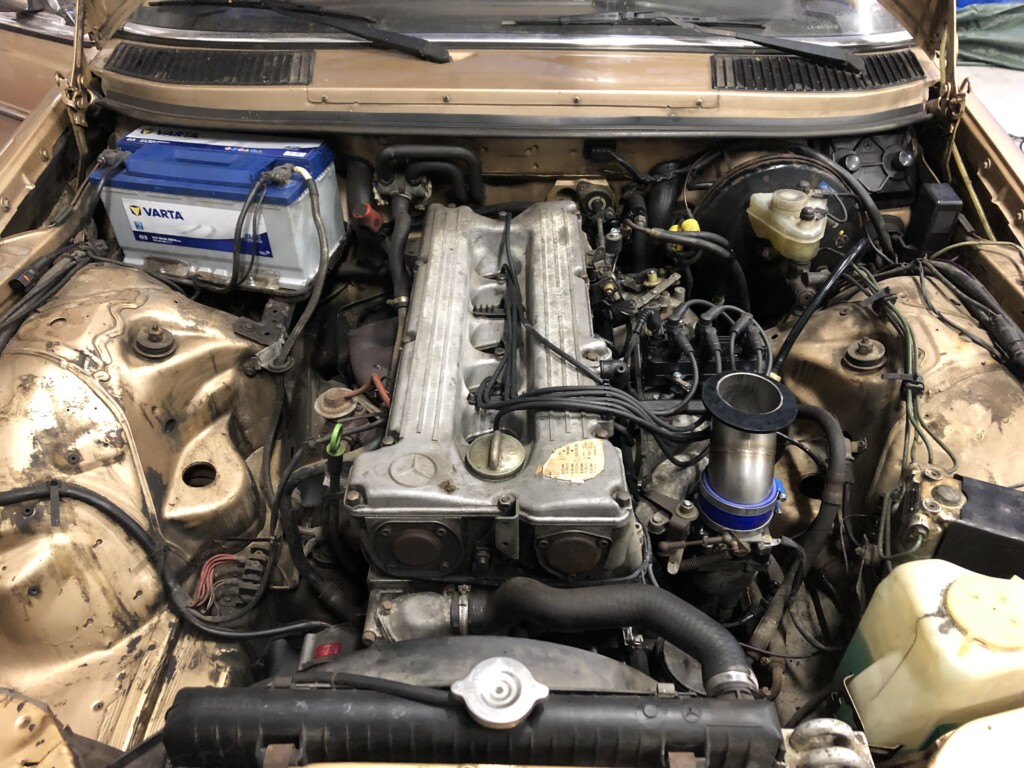

M110 Adapter with manifold air temperature sensor
M119 Adapter with manifold air temperature sensor, crankcase ventilation port
Sensors:

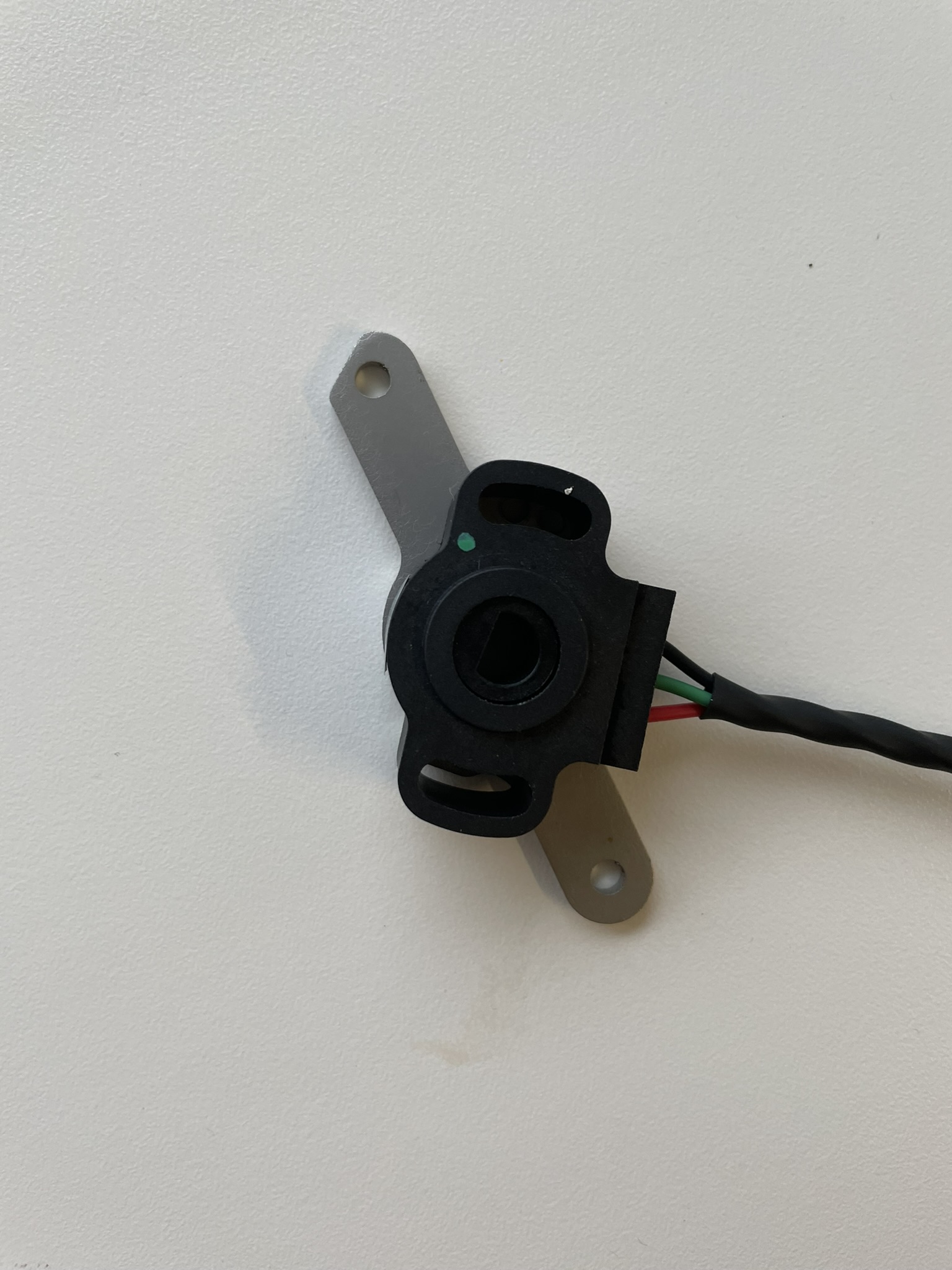

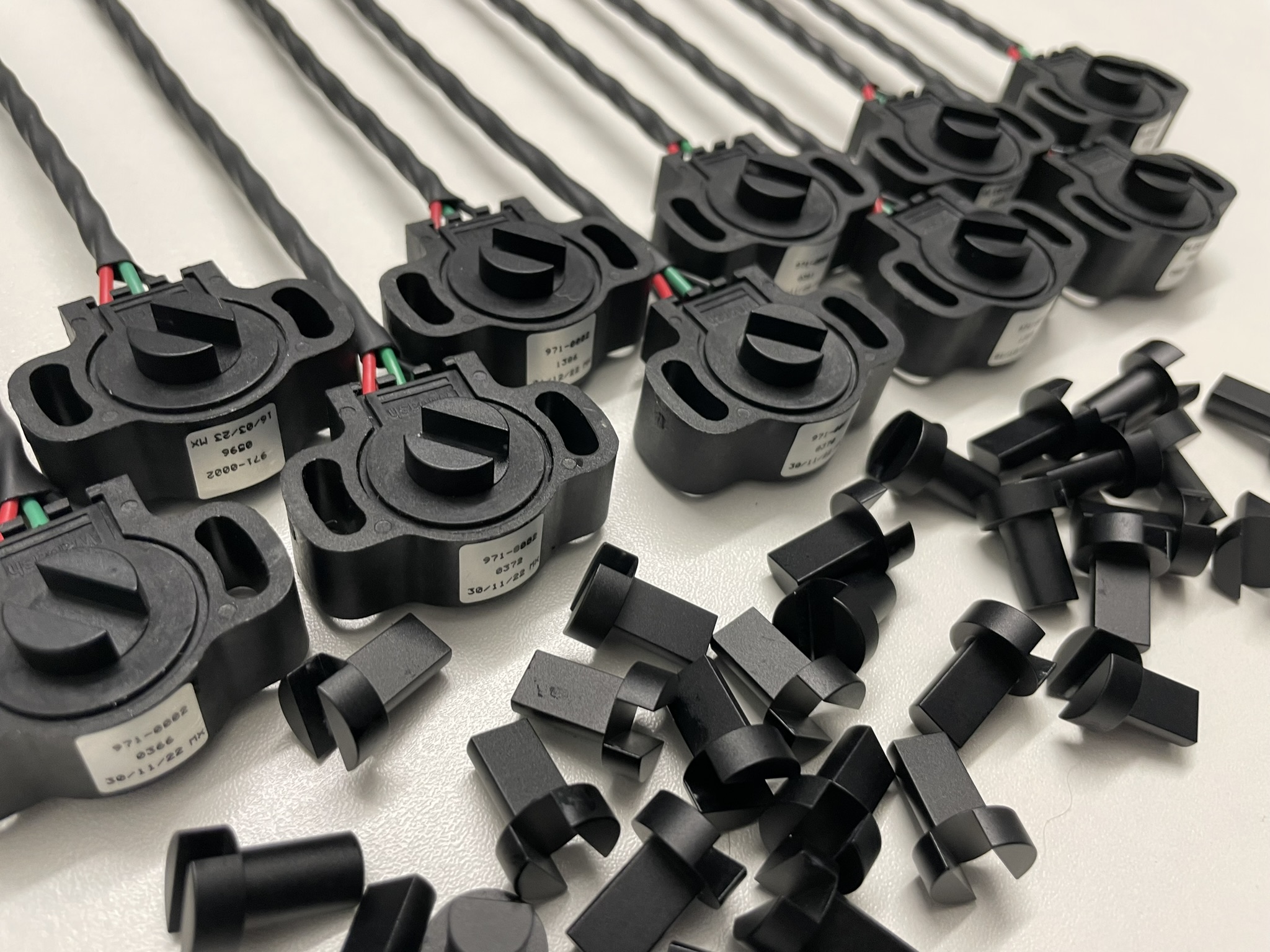

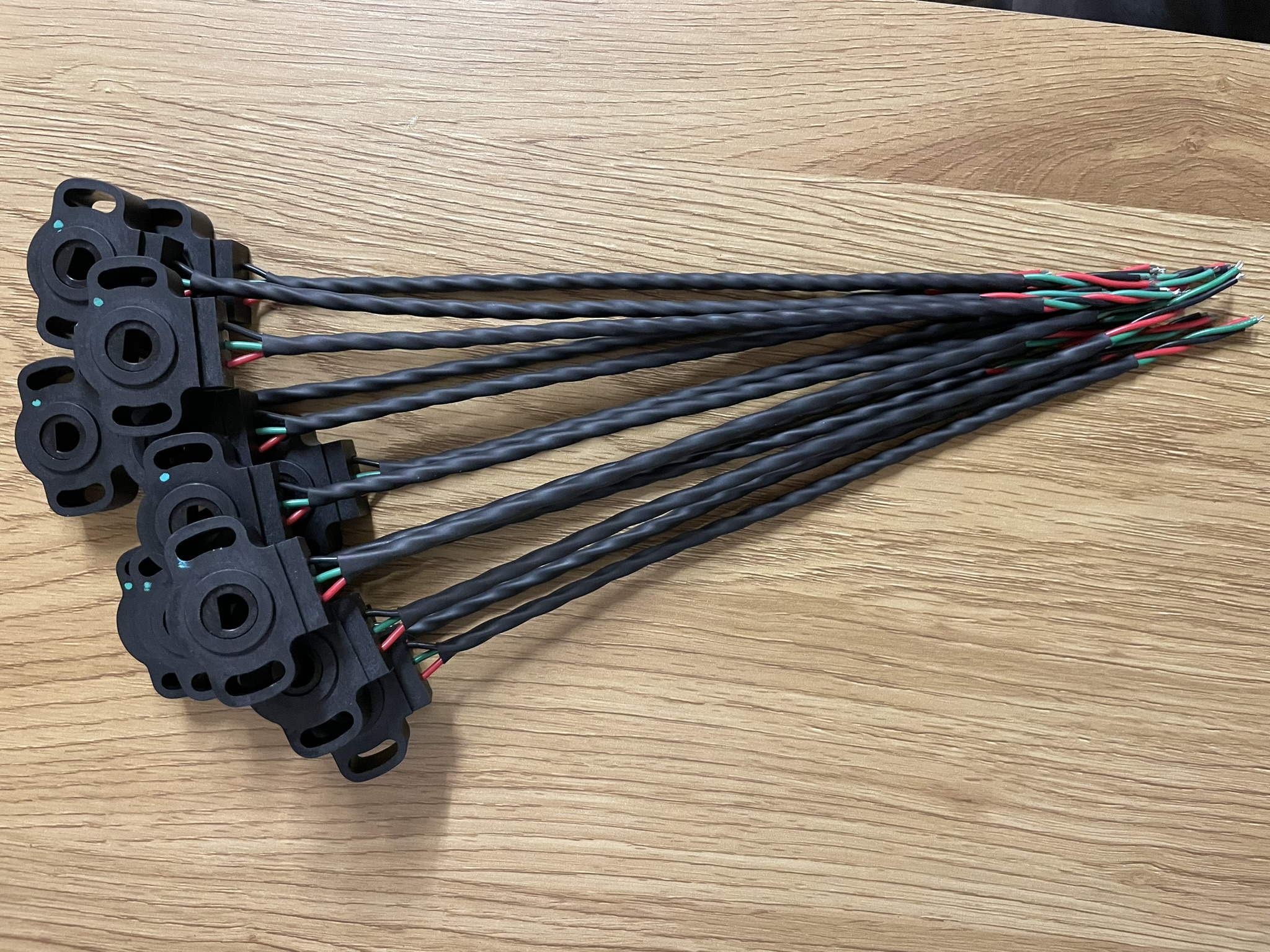

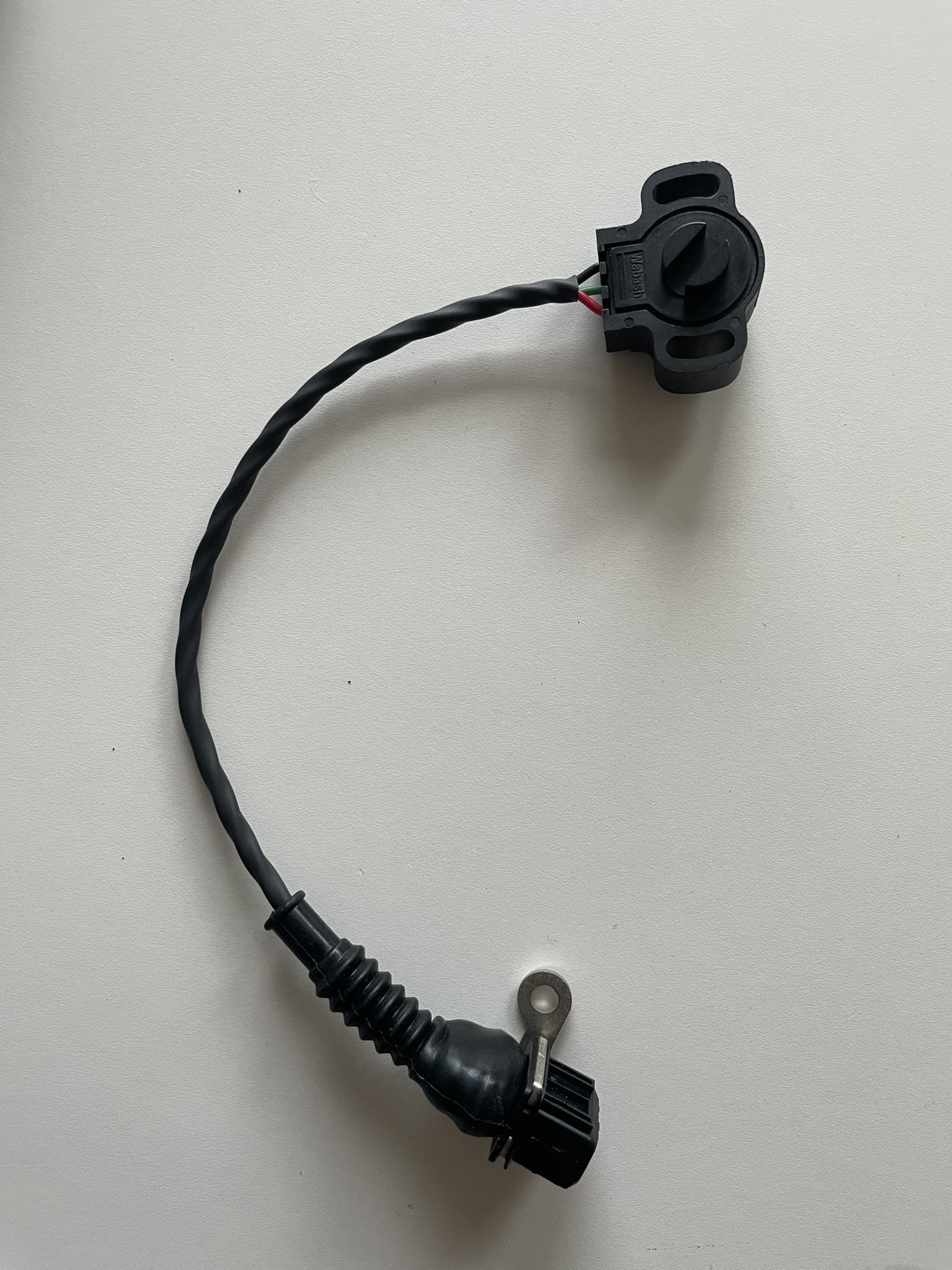

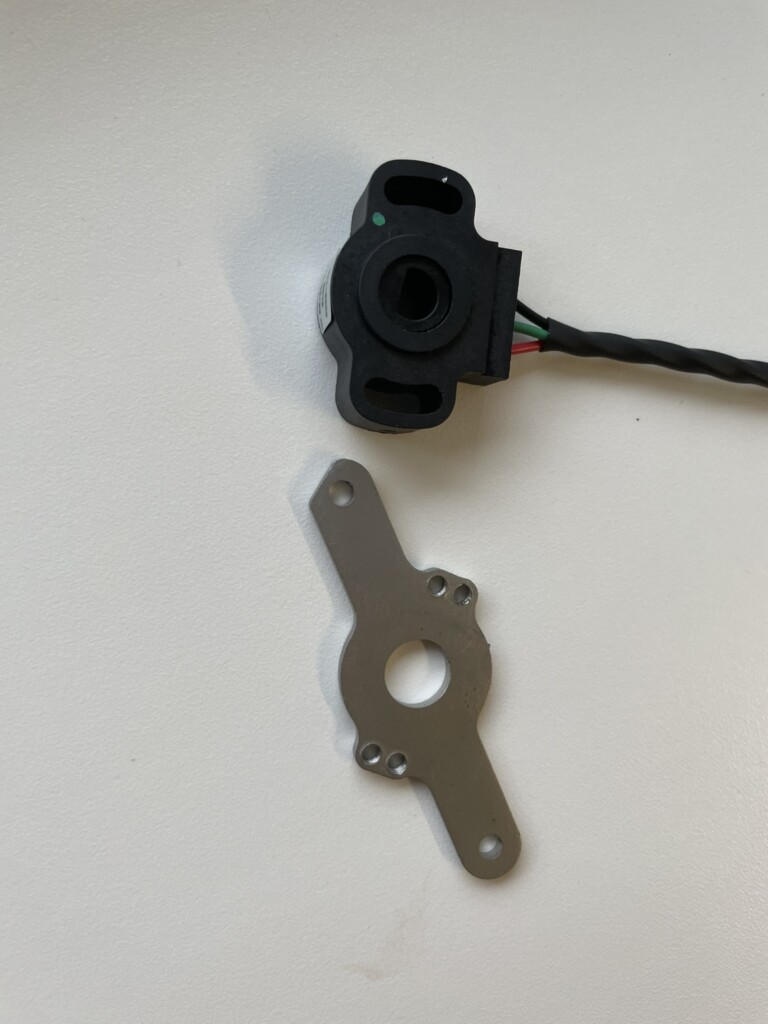

M116/M117/M119 Throttle position sensor
M102-16/M103 Throttle position sensor
M14x1.5mm Coolant temperature sensor
M12x1.5mm Manifold air temperature sensor
Wideband 4.9 oxygen sensor / lambda

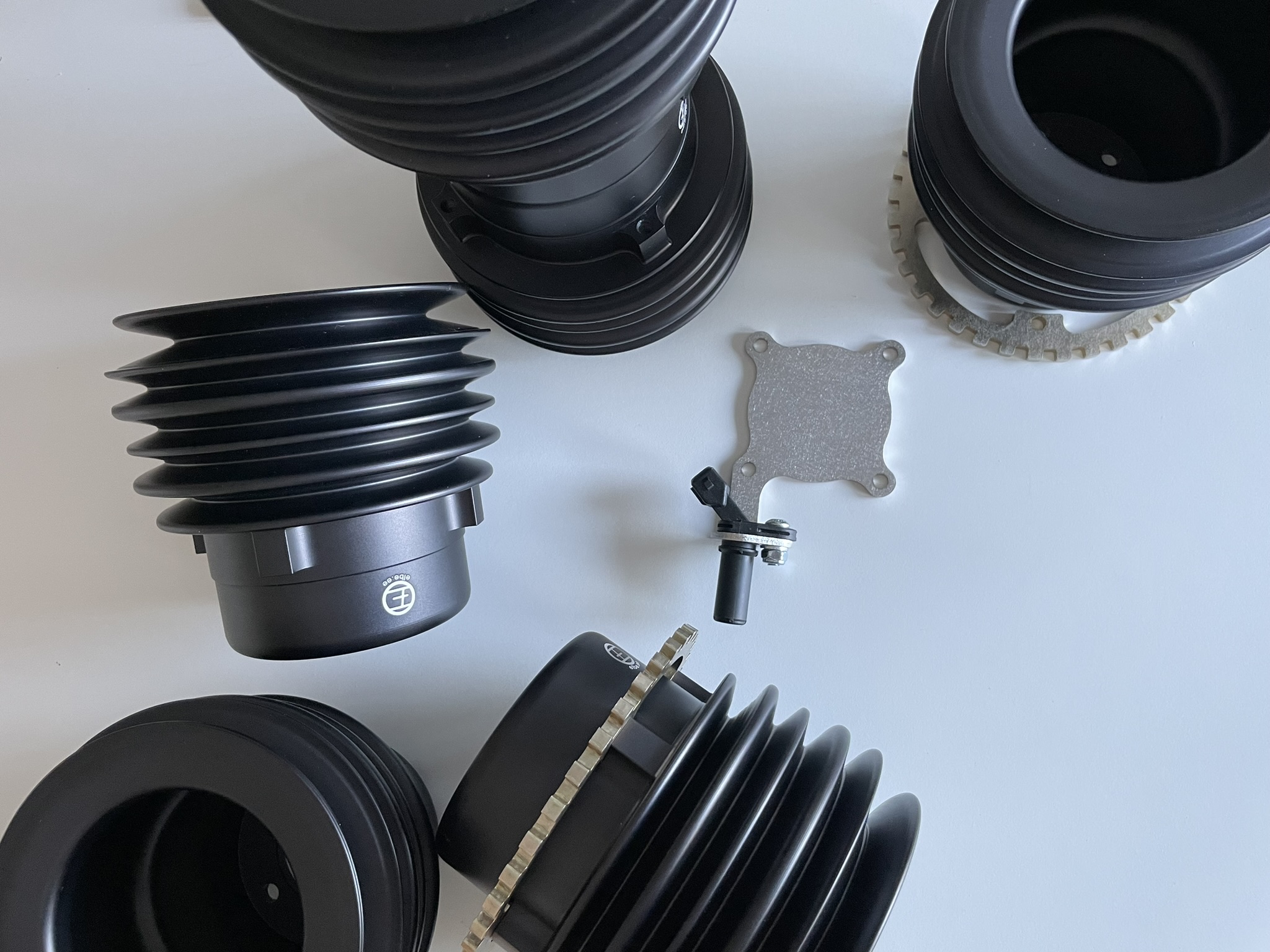

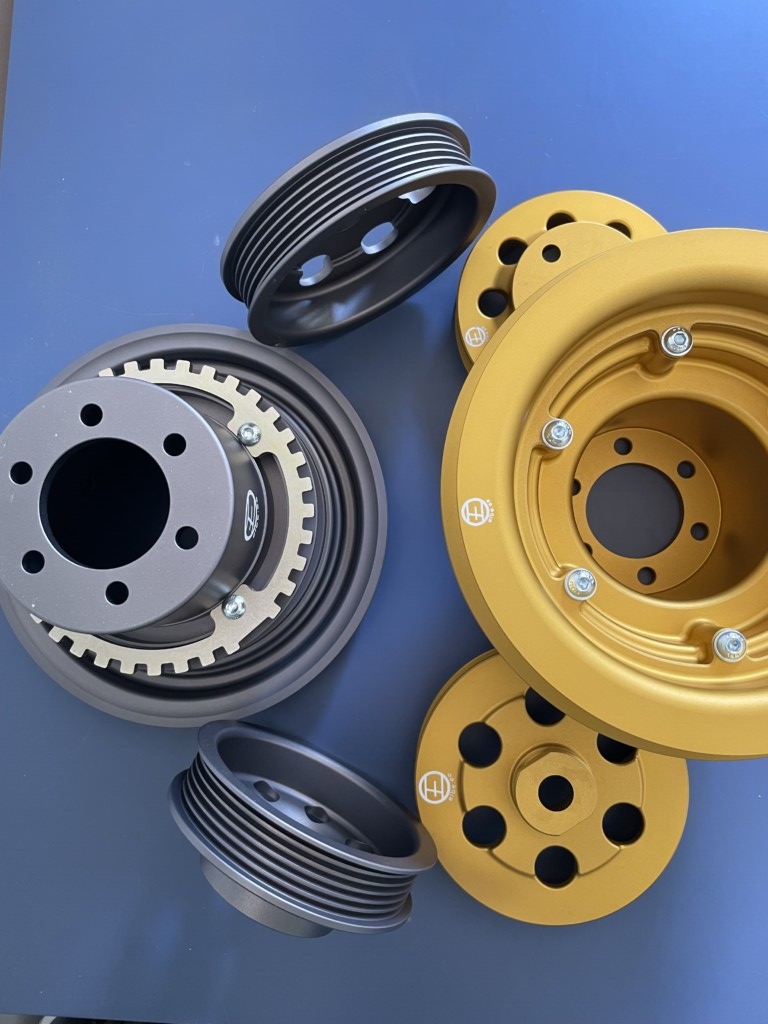

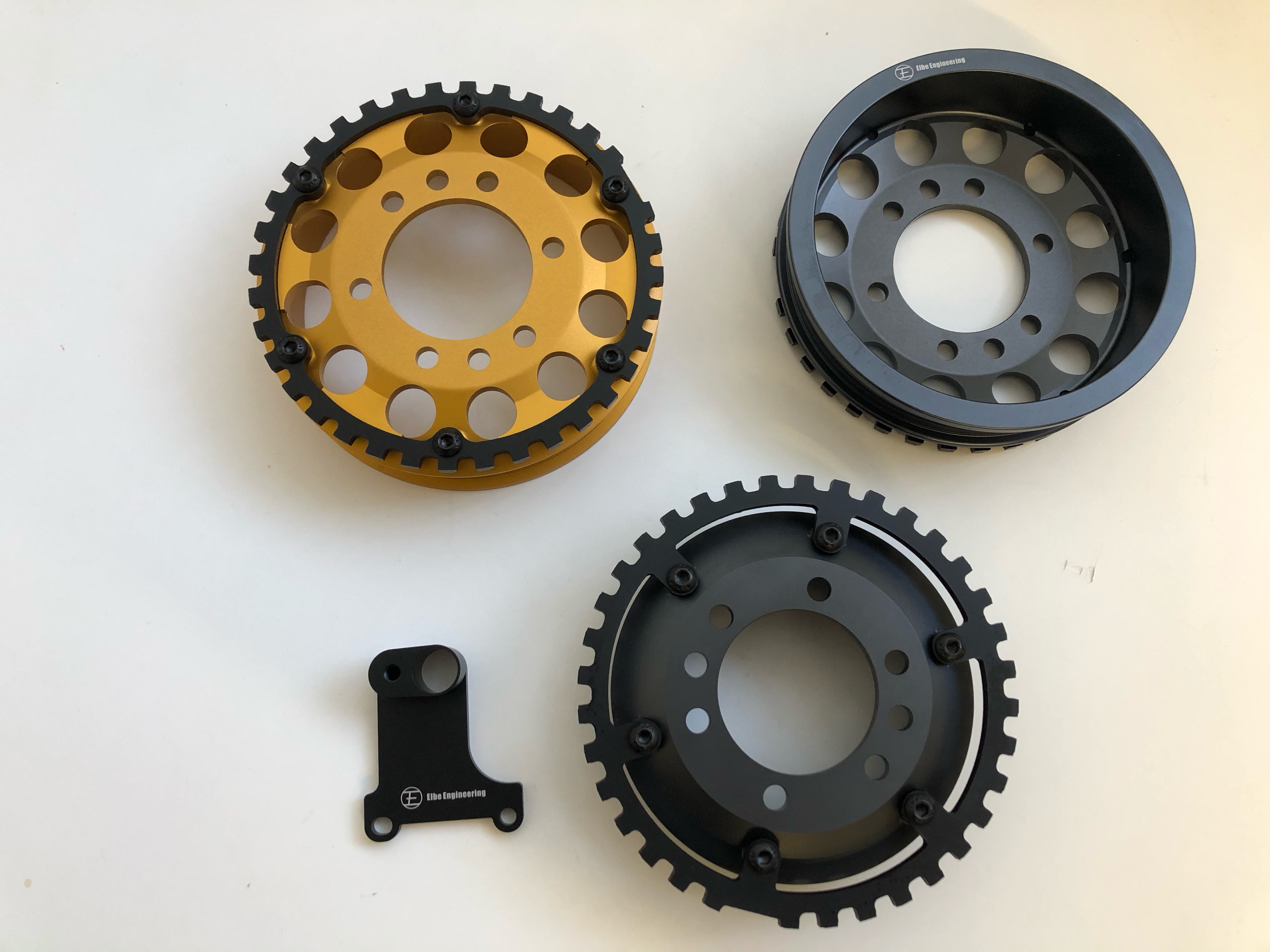

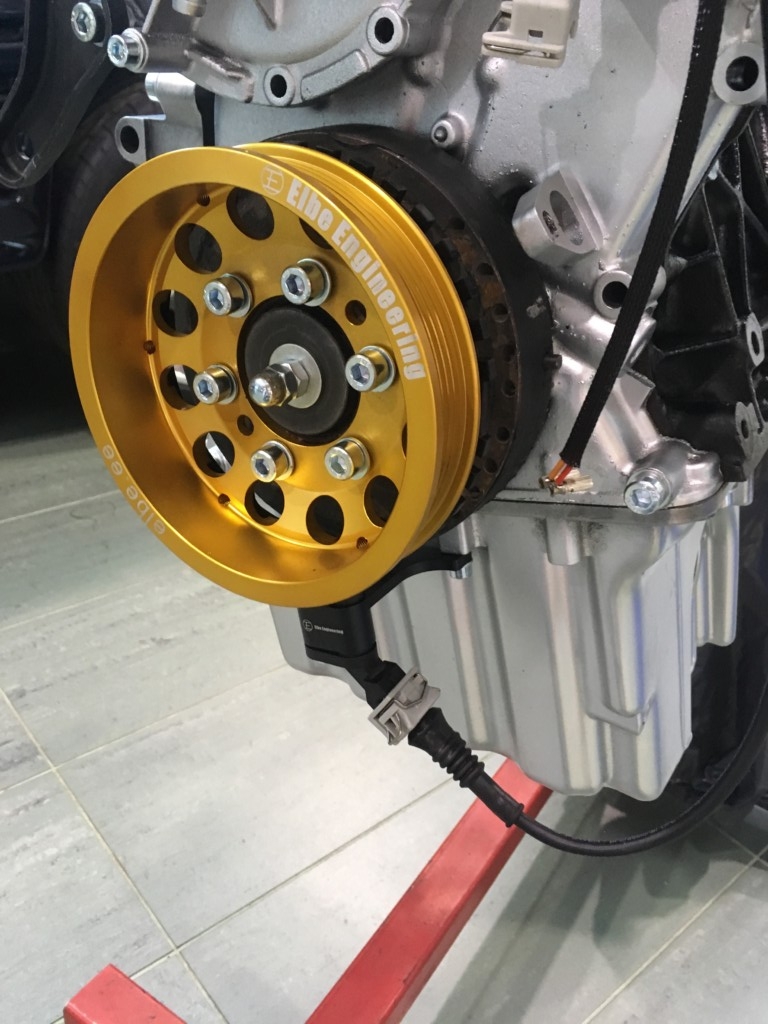

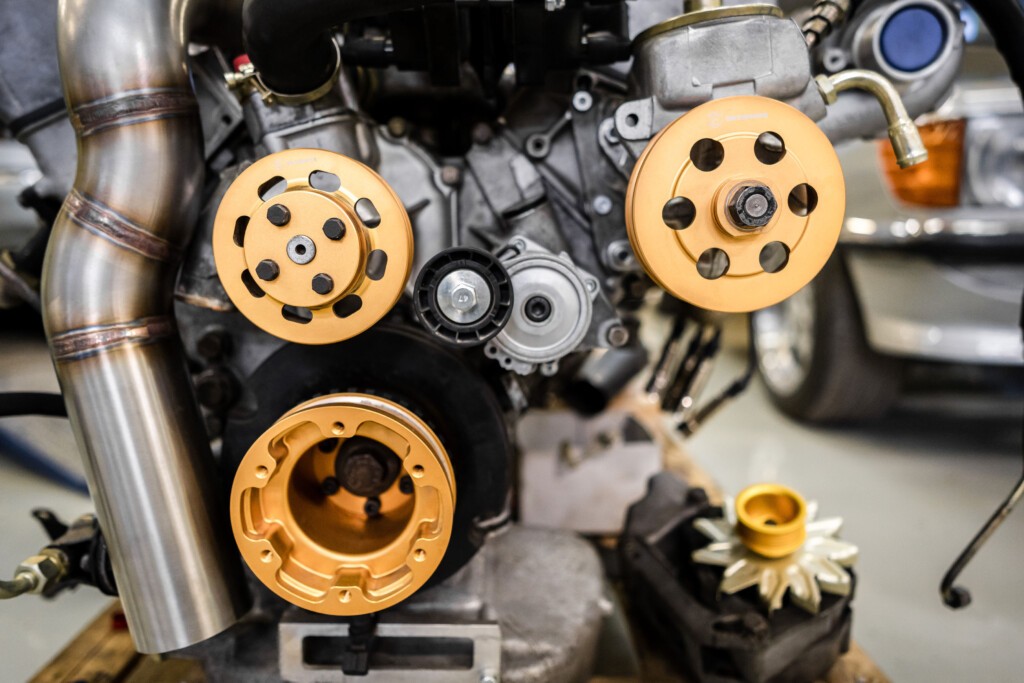

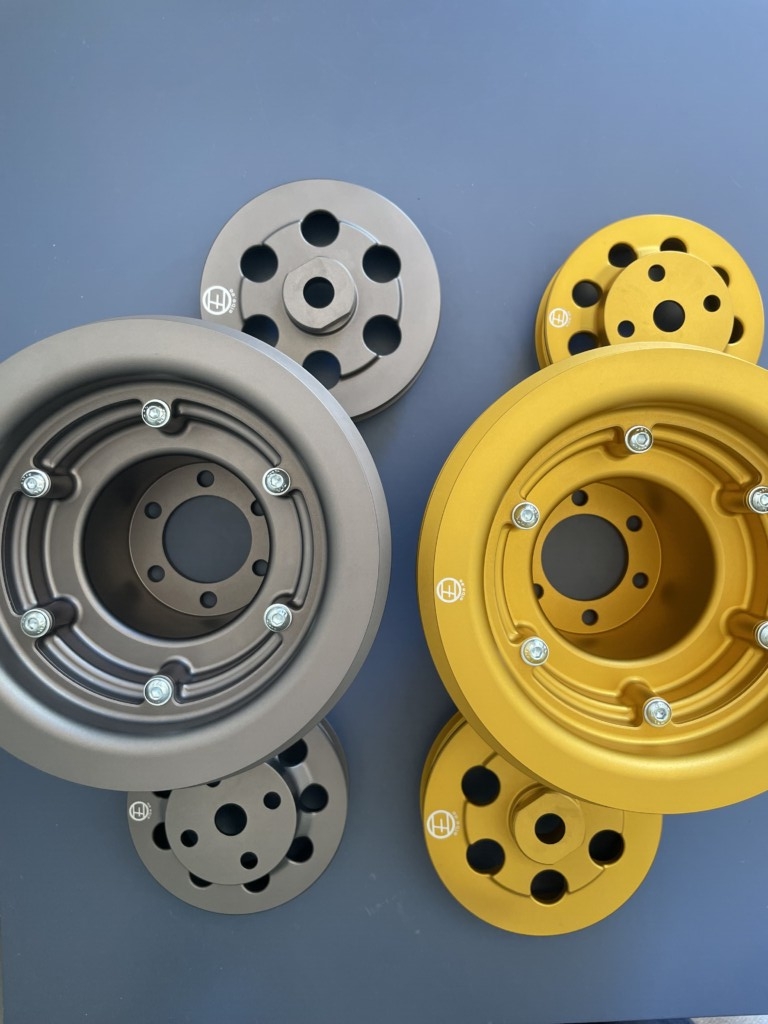

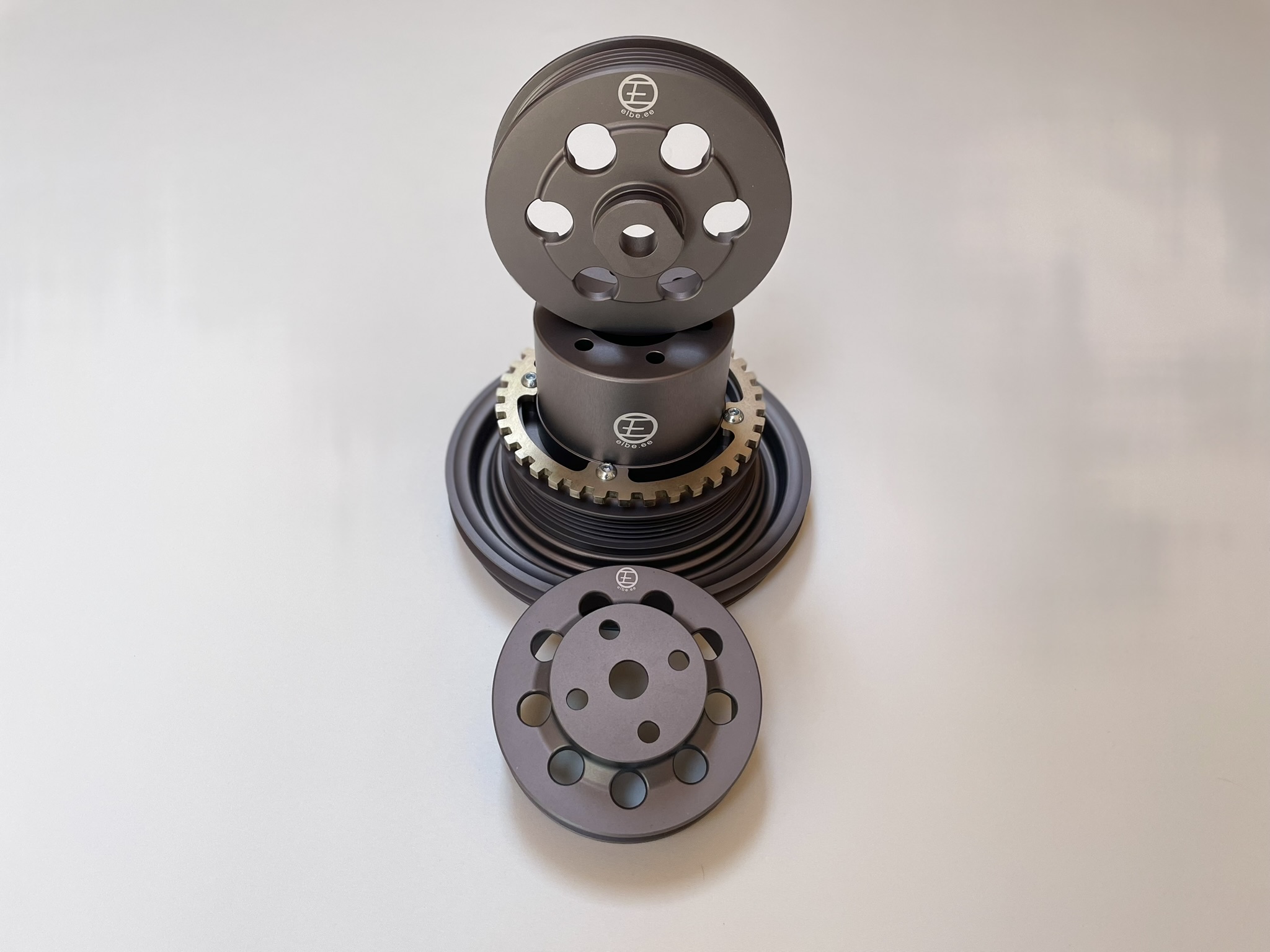

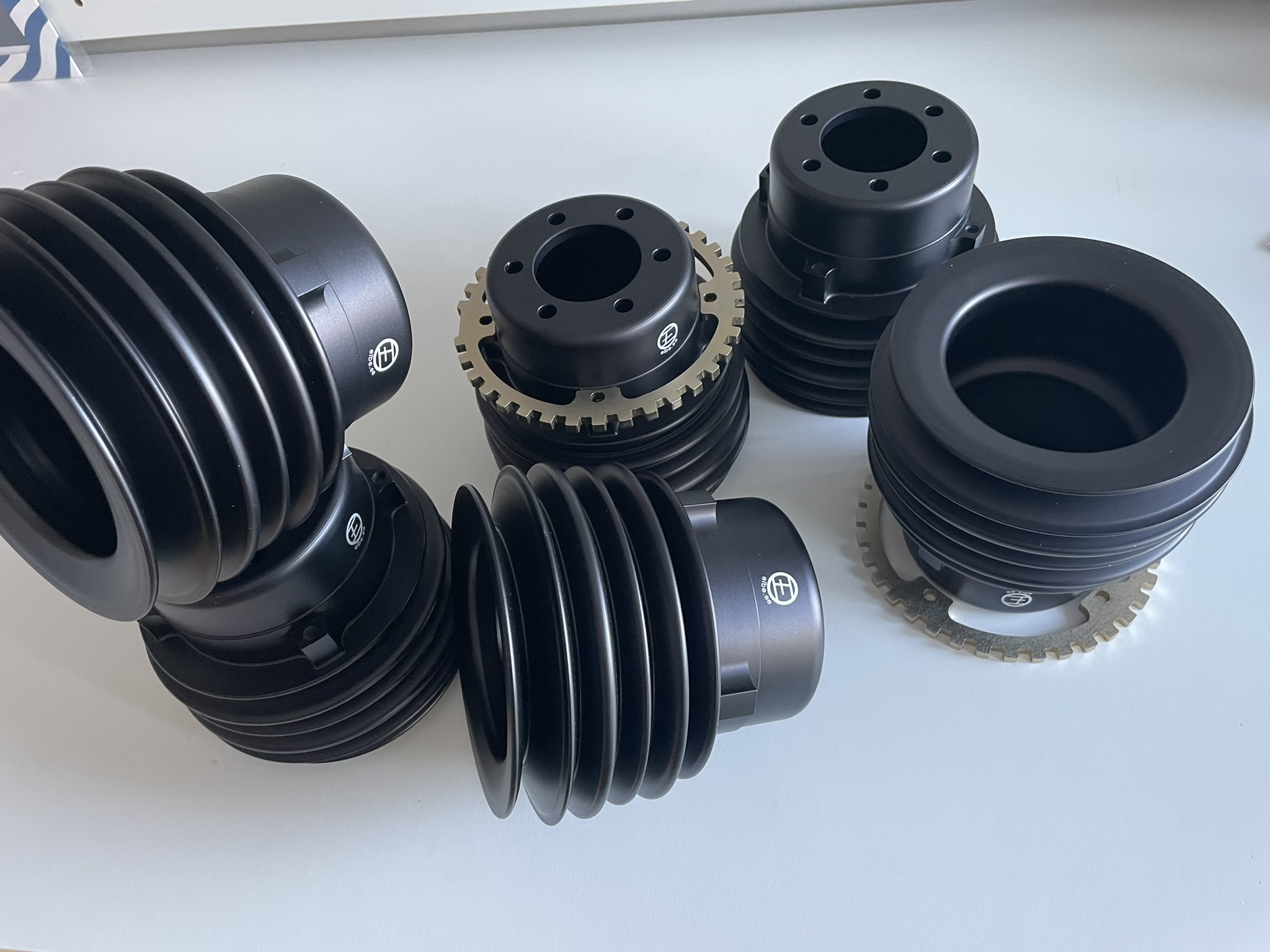

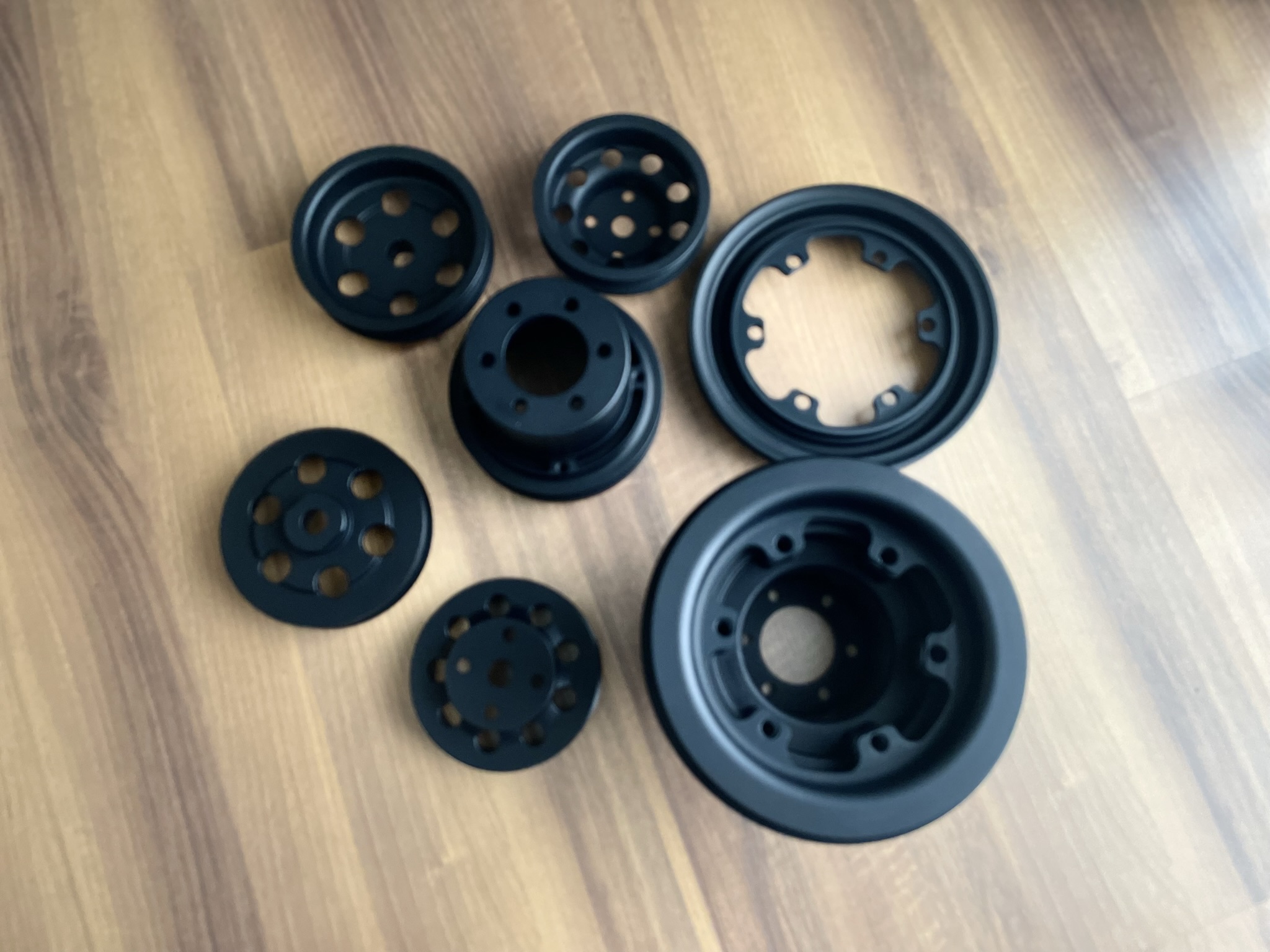

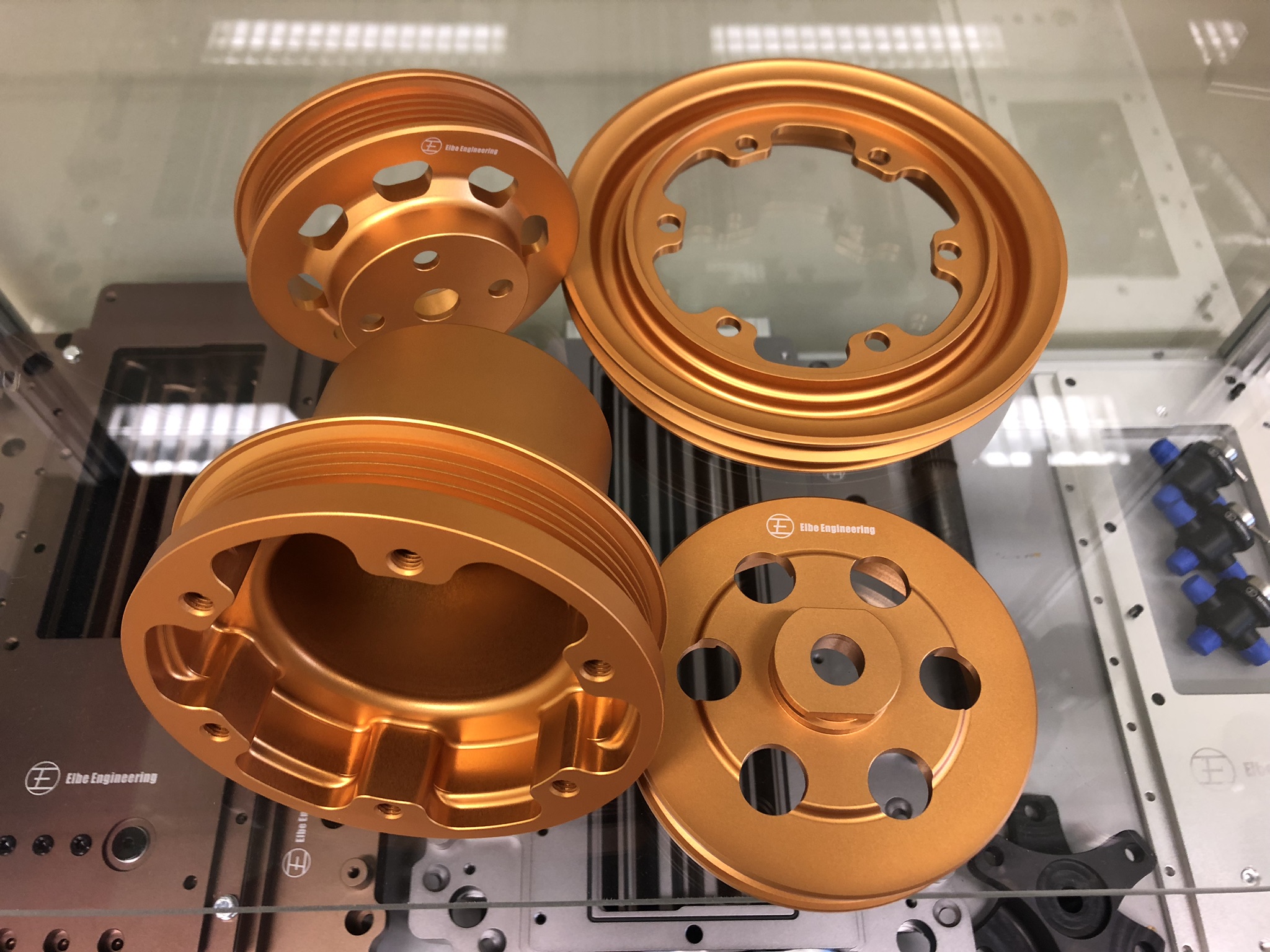

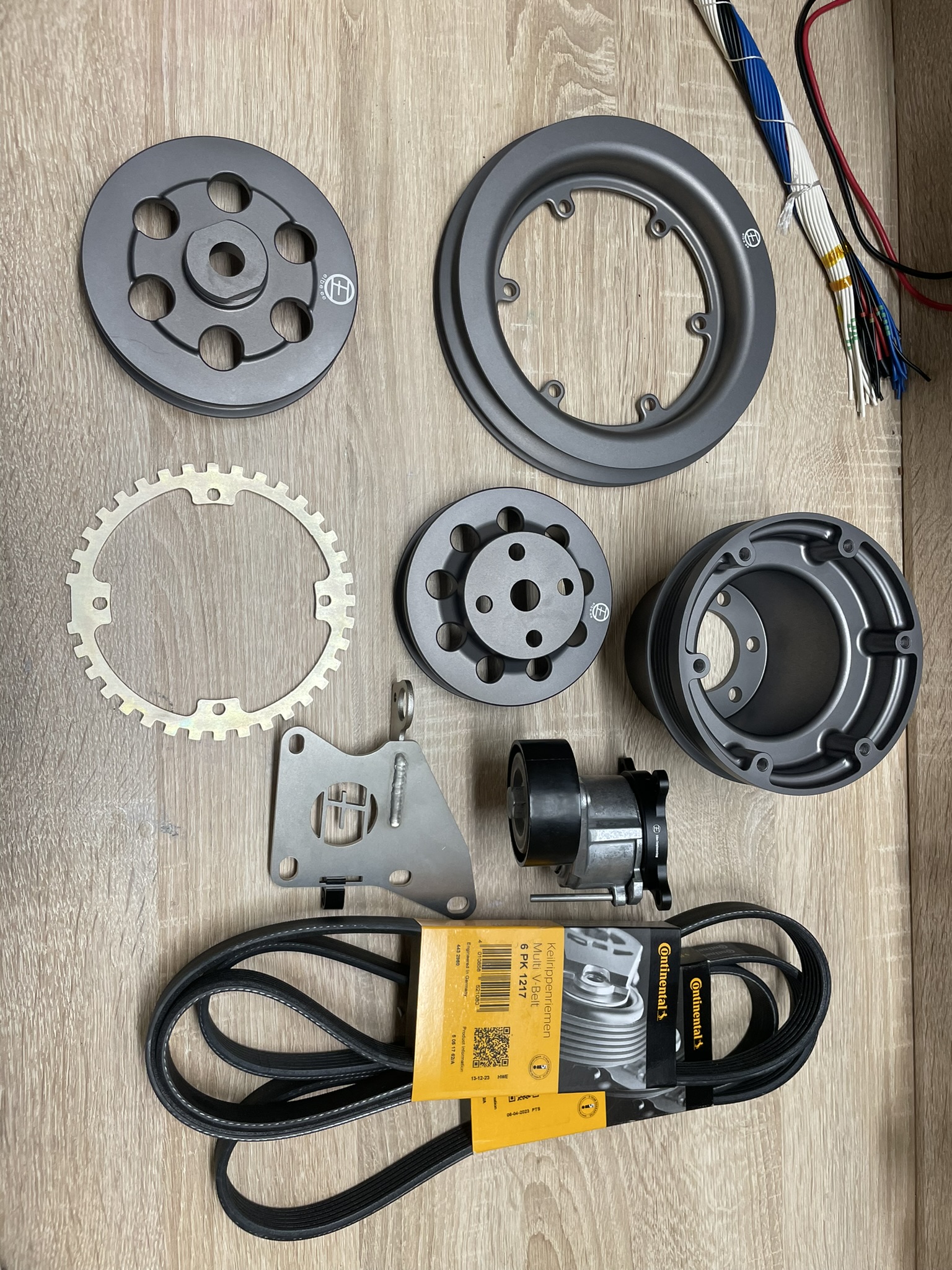

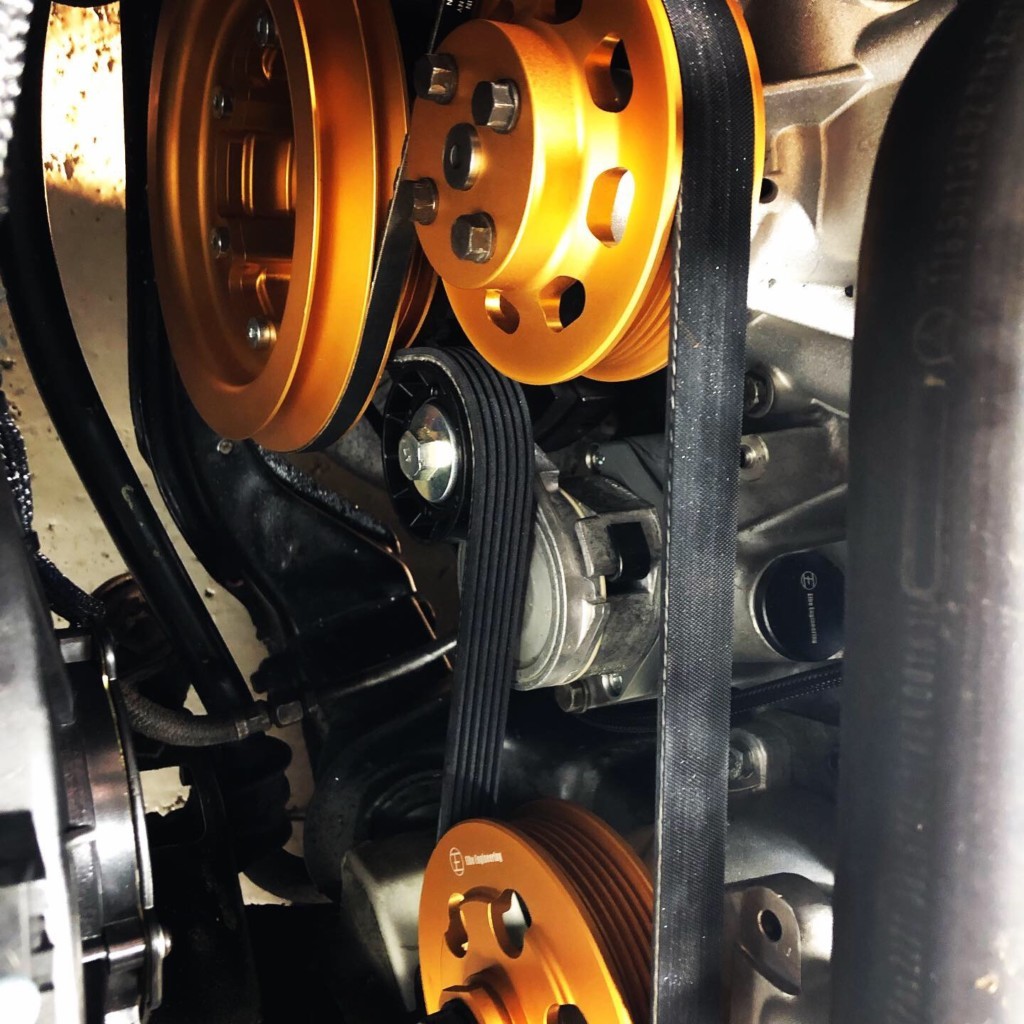

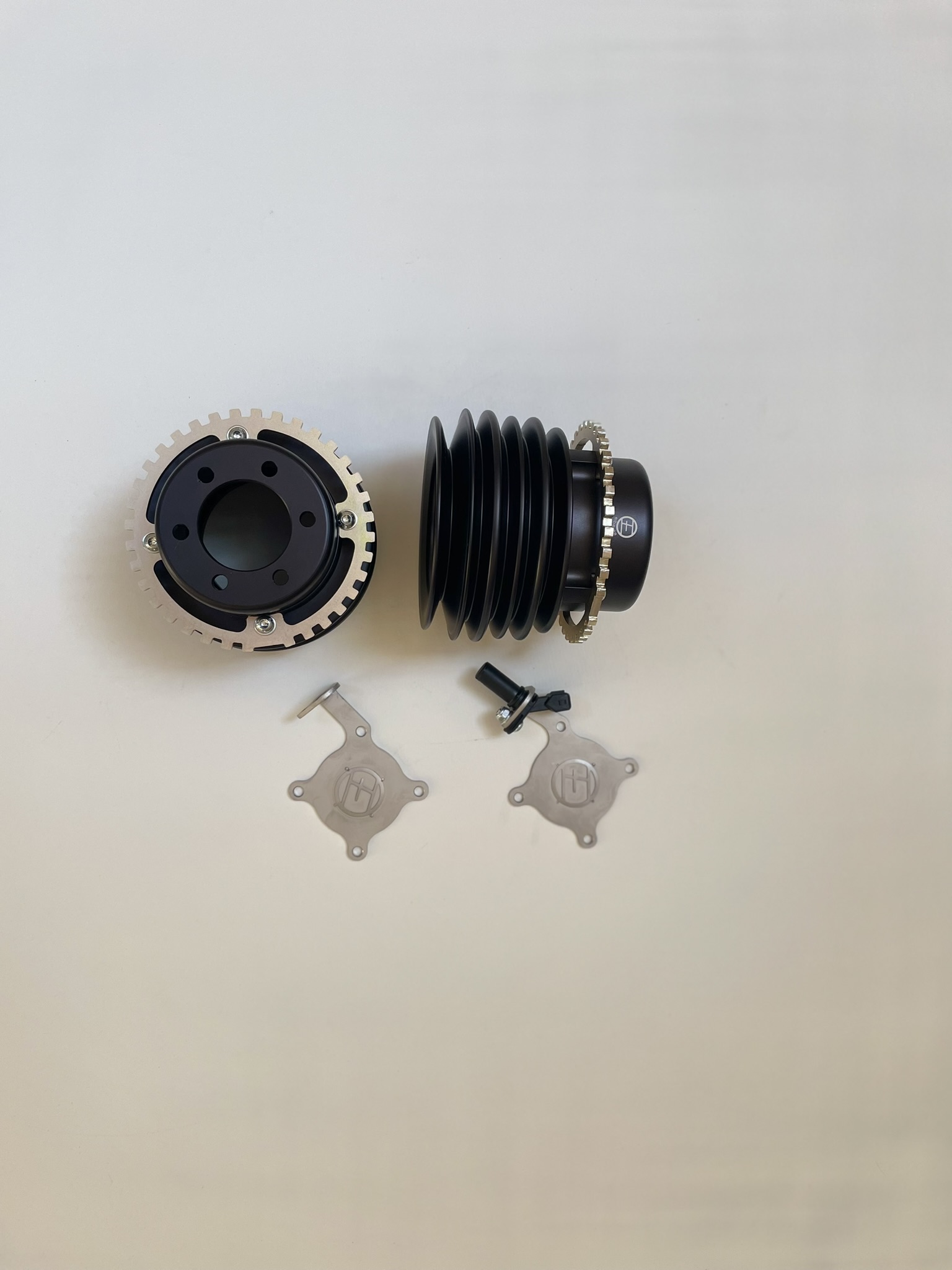

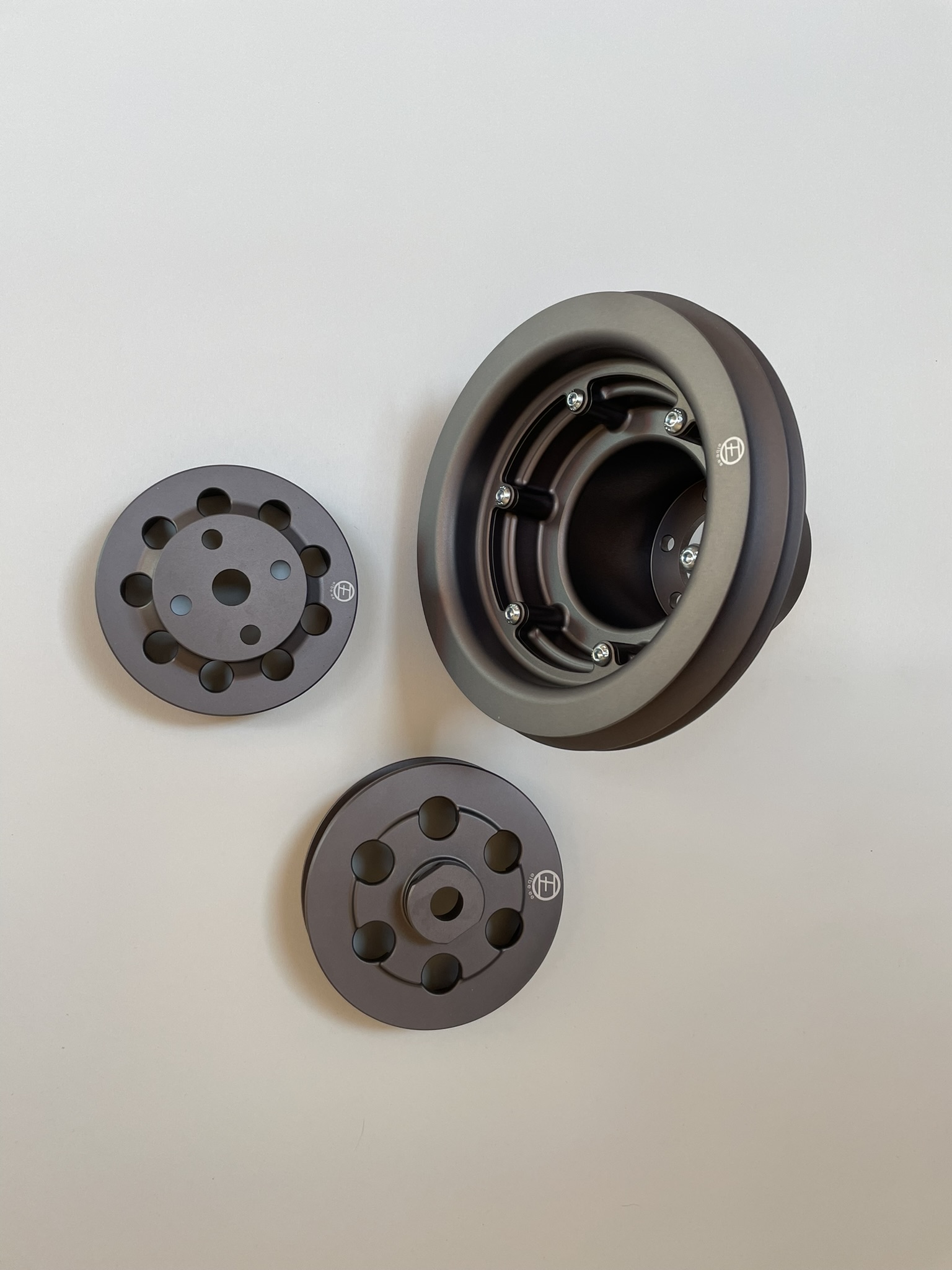

M116 / M117 Alloy block lightweigh aluminum pulleys with 6-rib belt
Crankshaft pulley – 6-rib belt for power steering and water pump. Original V-belt grooves for Alternator and A/C. Good option for driving supercharger. Billet 7075 anodized aluminum.

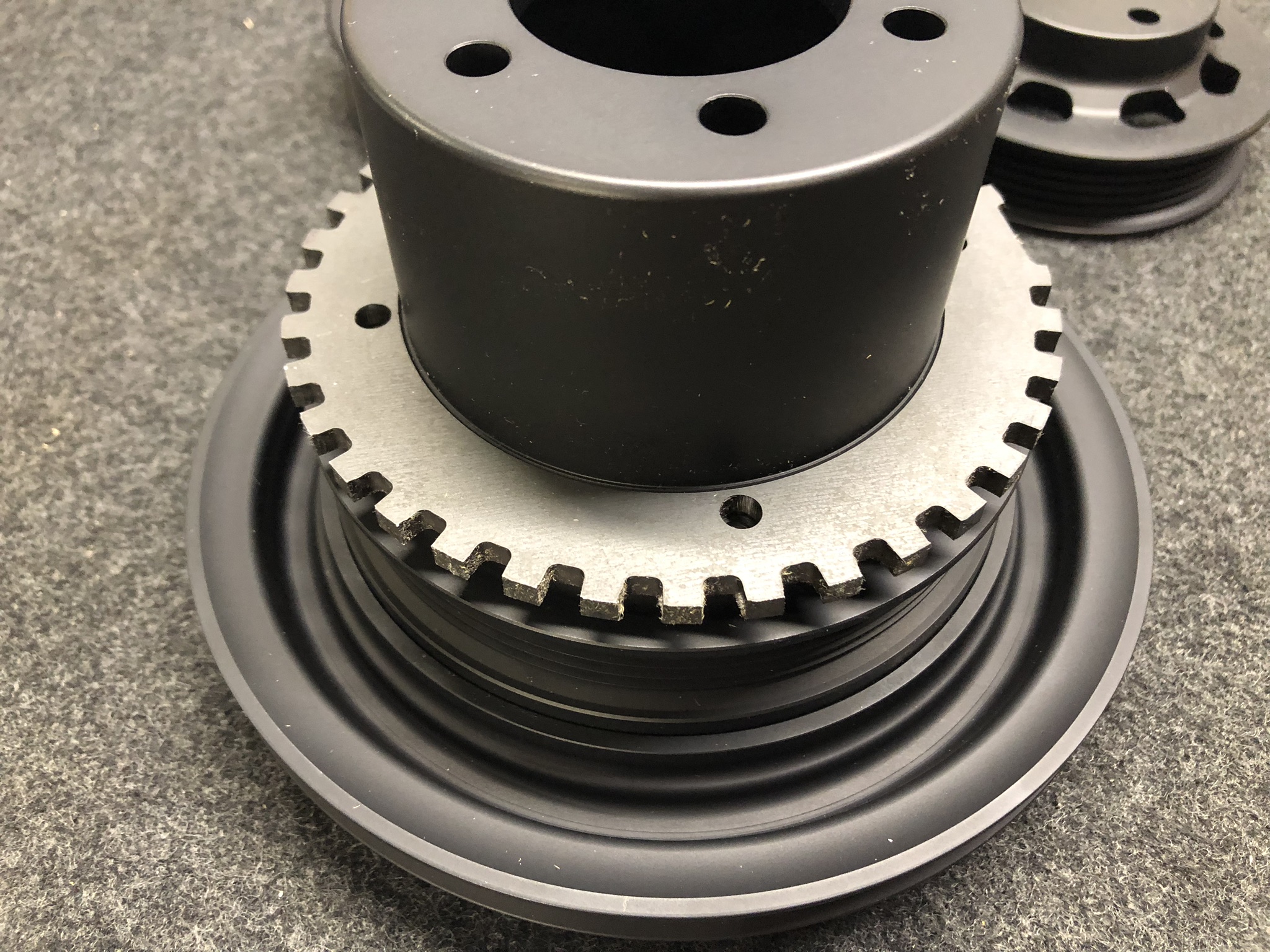

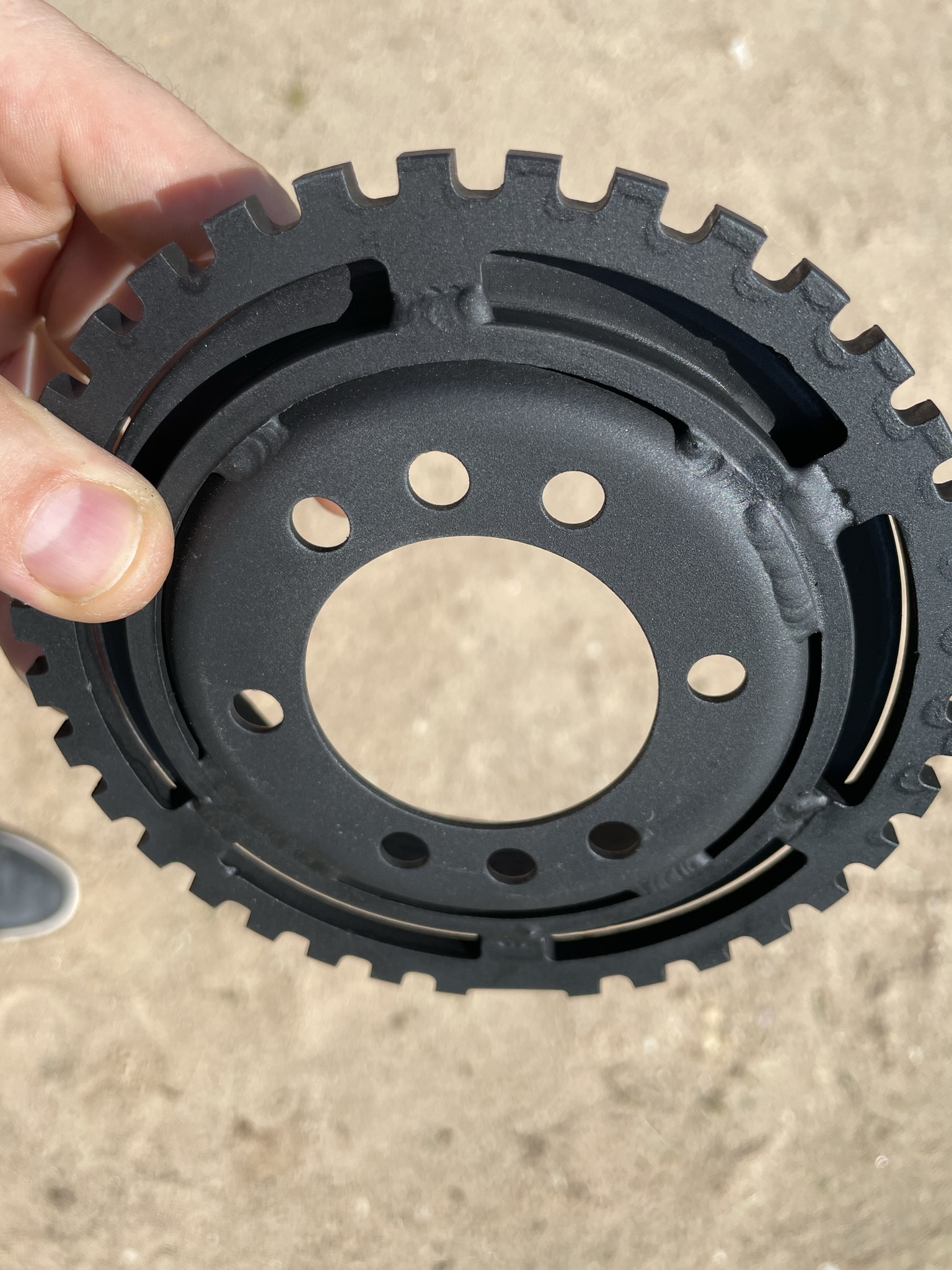

36-1 Trigger wheel for crankshaft pulley
*Automatic 6-rib belt tensioner can be mounted instead of SLS/hydraulic pump

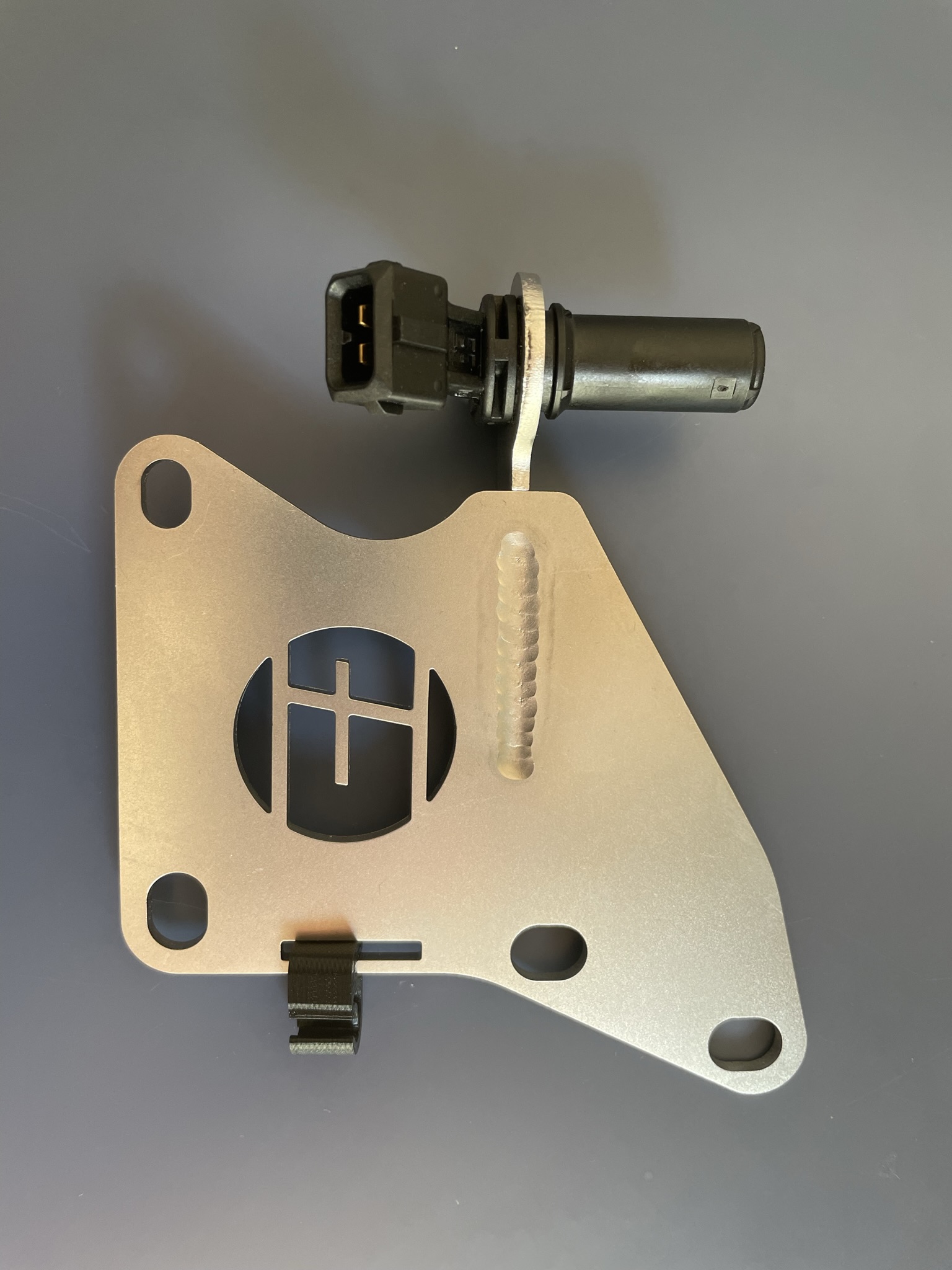

Crankshaft position sensor with mounting bracket for pulley mounted trigger wheel

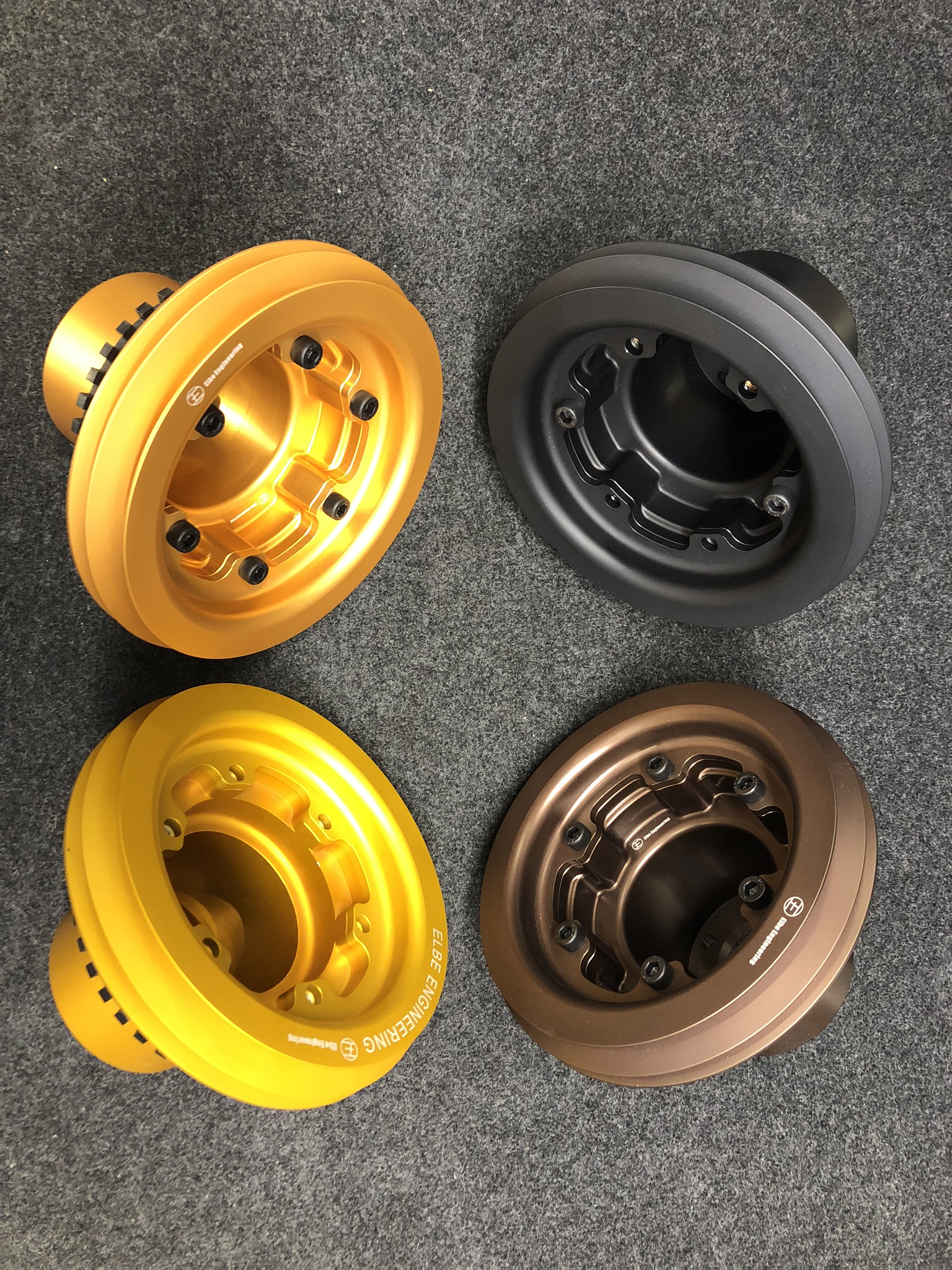

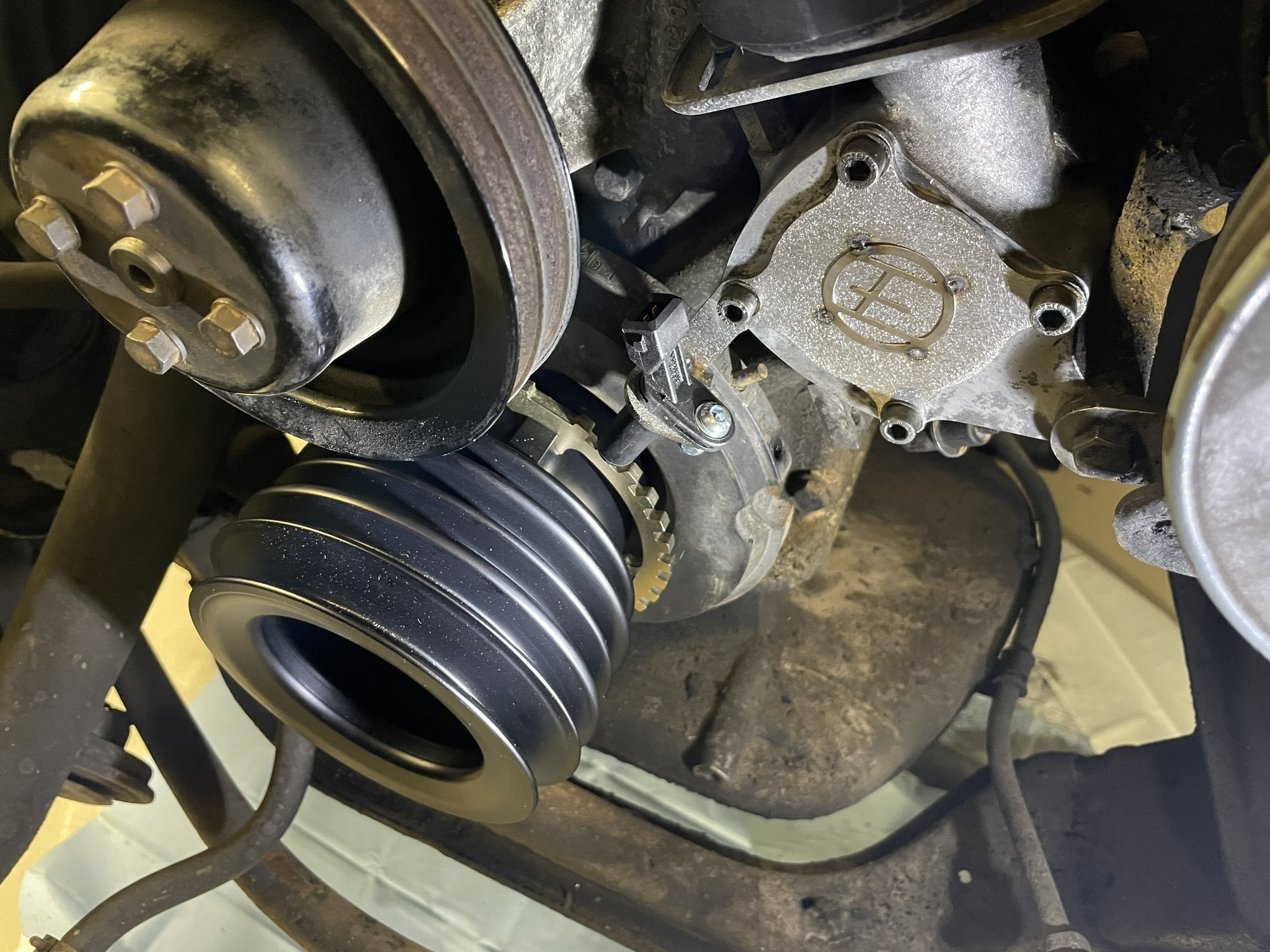

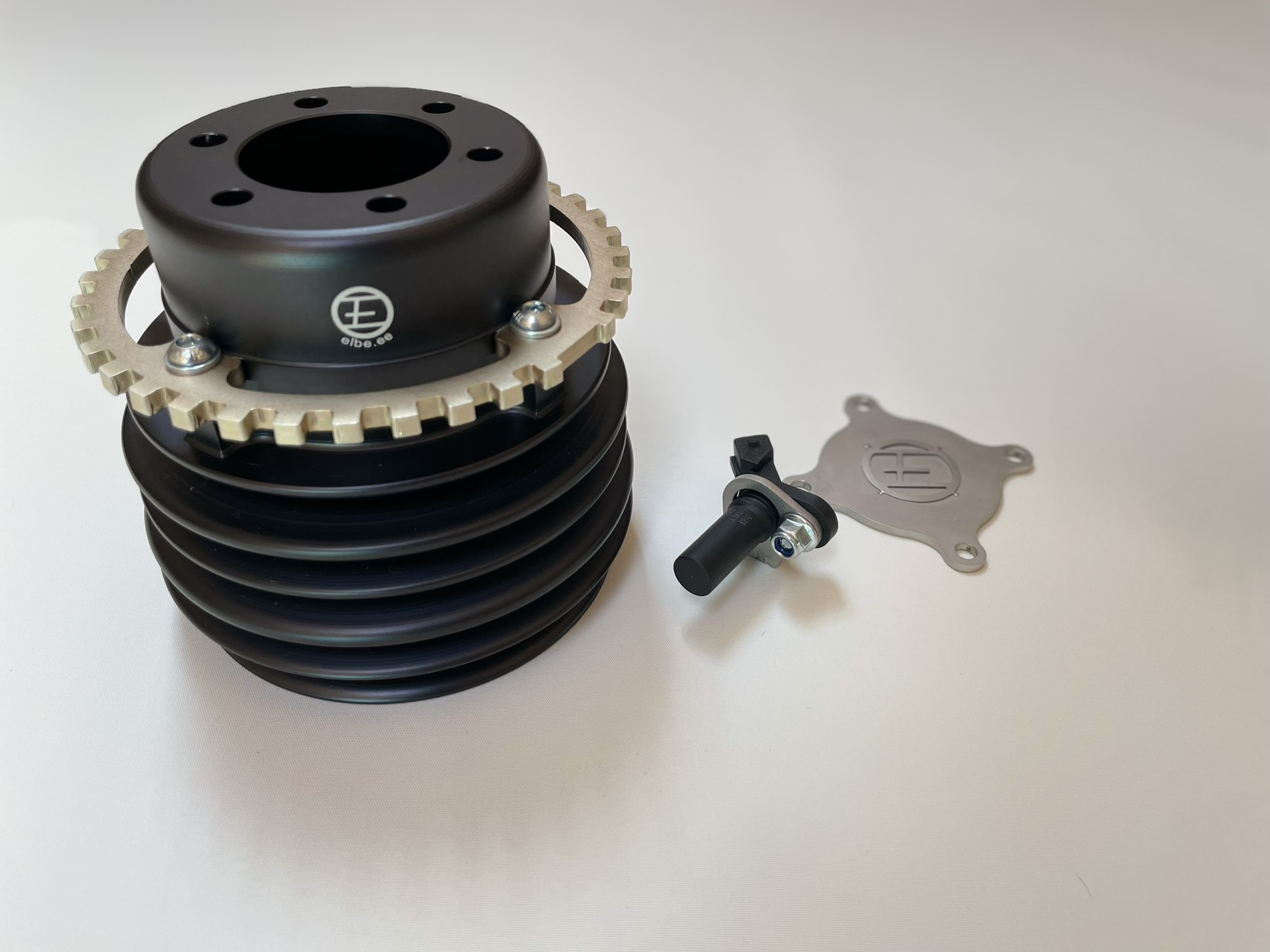

M116 / M117 Iron block crankshaft pulley
Crankshaft position sensor with mounting bracket for pulley mounted trigger wheel
